The Lano contemporary system delivers a smooth waterfall stream alongside coordinated shower controls. Waterfall delivery creates a distinctive, relaxing experience, although it may require greater flow and drainage capacity than a conventional spray. Installation should route each diverter outlet correctly, support the shower head securely and maintain service access to the valve. Test flow, temperature adjustment, drainage and every concealed connection before completing the enclosure.
VIEW LANO INSTALLATION →

BathSelect Large Shower Head With Shower Mixer & Hand Shower

With this two-function waterfall and rain shower head you can turn on the fun in your shower just by turning on the water. The Ultimate Bath Showering Experience Durable, dependable and with the luxury of a solid brass rough-in valve.

Features:
  • Designed to be lightweight, durable and corrosion-resistant
  • Size:22" long S/S chrome-plated Stainless Steel shower head
  • Brass diverter Stainless Steel control valve mixer
  • Chrome-plated hand shower with
  • Double locked stainless steel shower hose 1.5m.-with
  • Chrome-plated wall mount bracket
  • Unique Rain Shower Head Stainless steel with multi-function hand shower
  • Pressure balance brass valve Brass Valve Water pressure balance control
  • Comes with 64-inch chrome-plated brass hose
  • Standard plumbing connection
  • Comes with-5 years parts warranty from the date of purchase
  • All functions work independently to ensure proper water pressure
  • The minimum pressure required is 29 psi and maximum pressure required 72.7 psi.
  • Ceramic Disc Technology Chrome finish ½" NPT Inlets and Outlets
  • Compatible with standard US plumbing connections
  • Pre-set maximum temperature 104ºf Automatic anti-scald device
  • The recommended pressure for best performance 2 to 75 psi
  • Easy installation, comes with all standard accessories.
  • The flow rate is 2.5 GPM

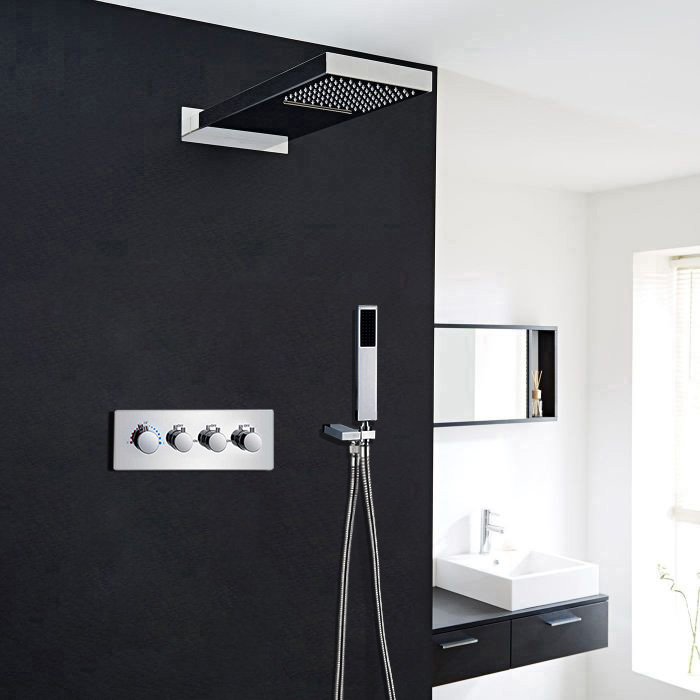

showerLano Bathroom Contemporary Water Fall Shower Set


Important Note:
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
    		•

    Shower Head Installation Instructions

    Size:
    Step 1: shower head Step 2:
    Open the top cover and drill according to the marked position.
    1. Mark by the position of the four holes.
    2. Take care to avoid wires and pipes to prevent damage.
    3. Be sure to confirm that the four holes are on the same horizontal line.


         		Remove the protective cover (F). Mark the positions and drill holes to suit the anchors (A). Install the anchors (A) and fix the rough-in valve (B) into the wall with screws. Use a level to ensure that the rough-in valve (B) is straight and level. (Important: Flush the water supply to remove any dirt and debris before installing the valve body).
    Shower Head Installation Instructions
    Step 3: Step 4:
    Wrap Teflon tape around the pipe threads and connect water supply lines and in-wall pipes (not included) as desired to the rough-in valve (B). Turn on the water supply and open the cartridge to check for leakage. Then put on the protective cover and finish the wall surrounding the valve. (Note: Test the water pressure after the pipe connections have been made and before the finished wall material is installed). Two inlet fittings are connected to the pipe joint of the wall; then the nut, expansion screw, and inlet pipe are connected.
    Shower Head Installation Instructions
    Step 5: Step 6:
    Reinstall the top cover.
         		Fix the escutcheon (D) to the showerhead (E) with screws (C).
    Shower Head Installation Instructions

    Step 7: Step 8:

    Remove the protective cover when the finished wall is completed. Then, install the showerhead (E) and press it against the finished wall.






















    Waterfall




    Rainfall







    Hand Held Shower Installation Instructions




    Step 1: Step 2:
    Hand
    Held
    Shower
    Handheld Shower
    Step 3:
