Shower Arm Installation Instructions

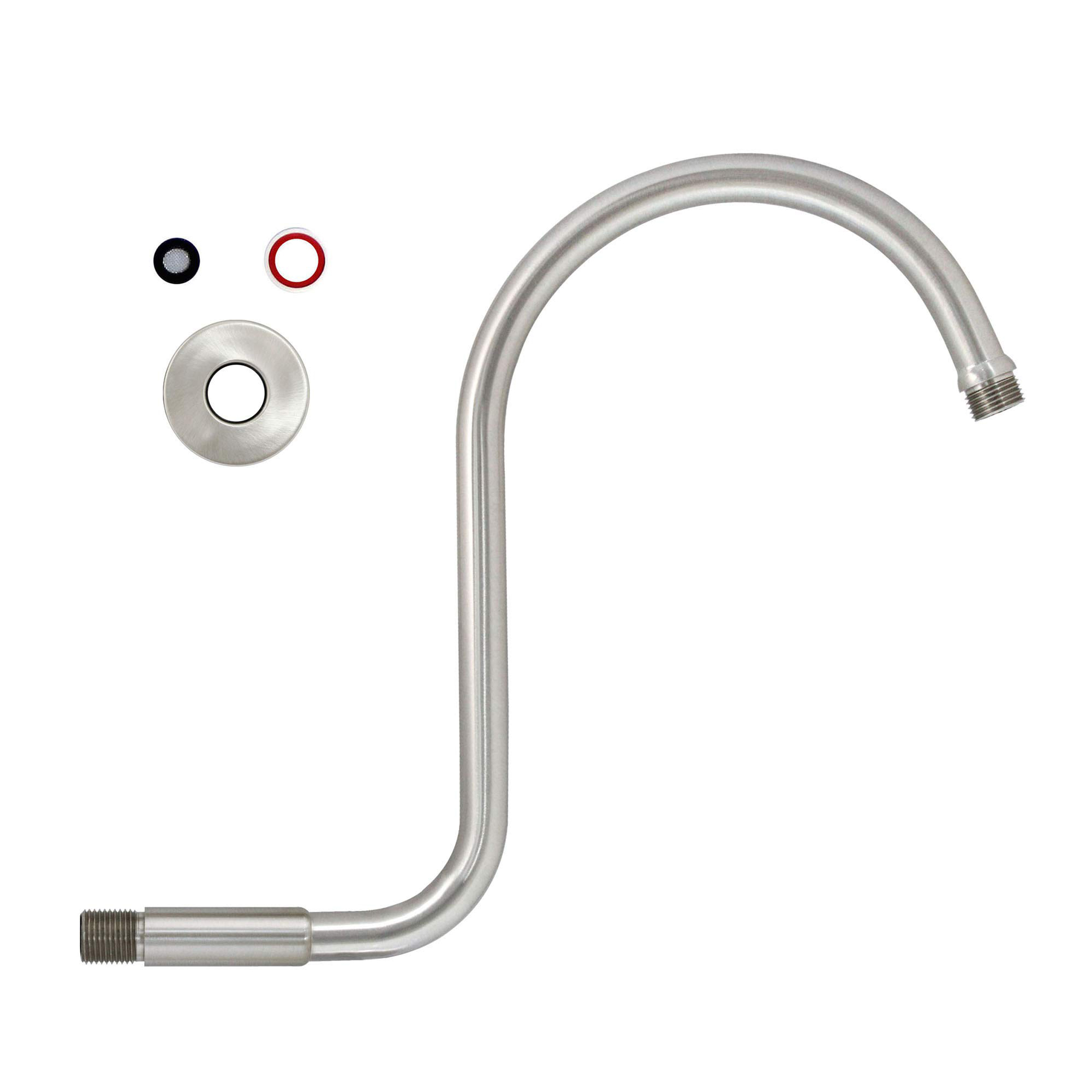

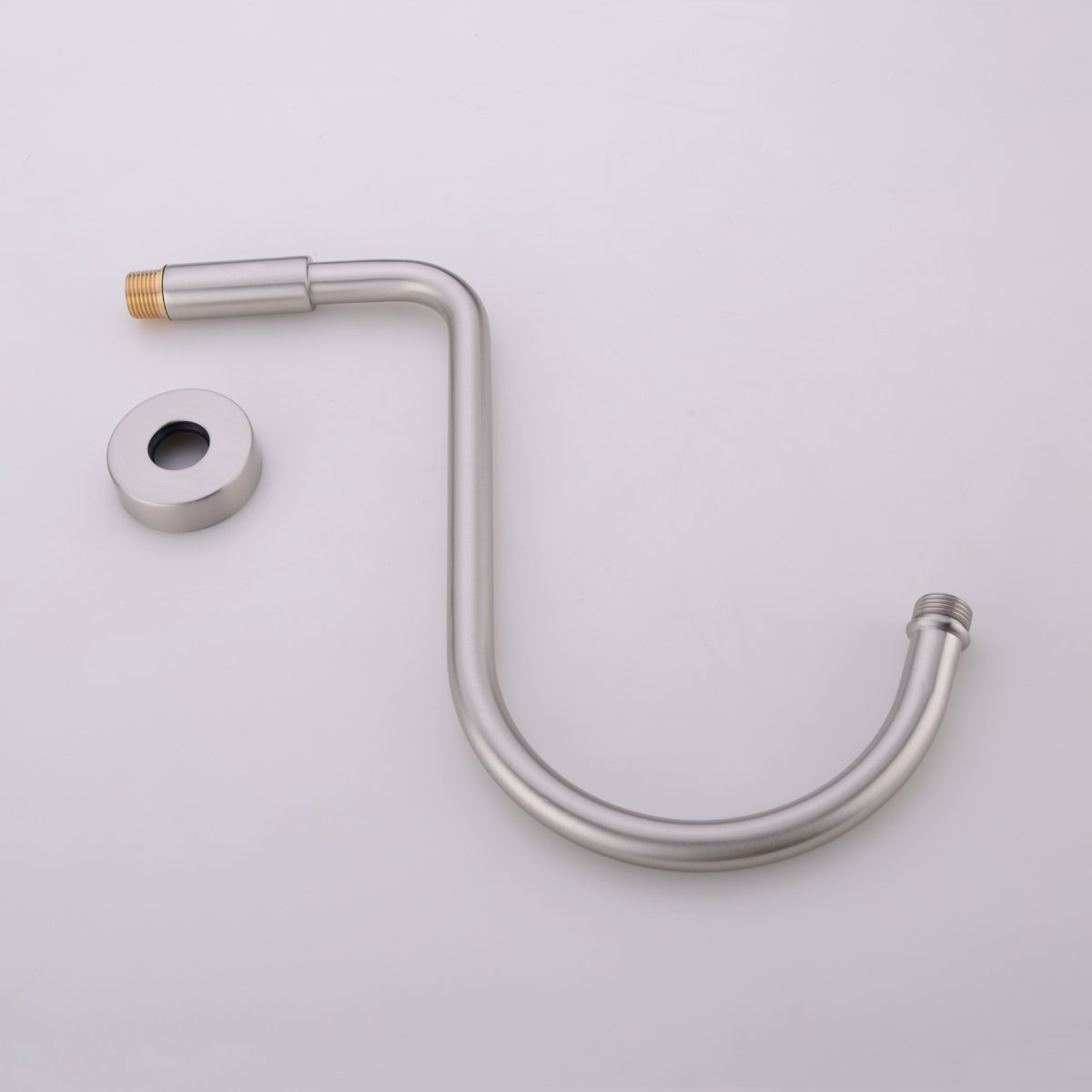

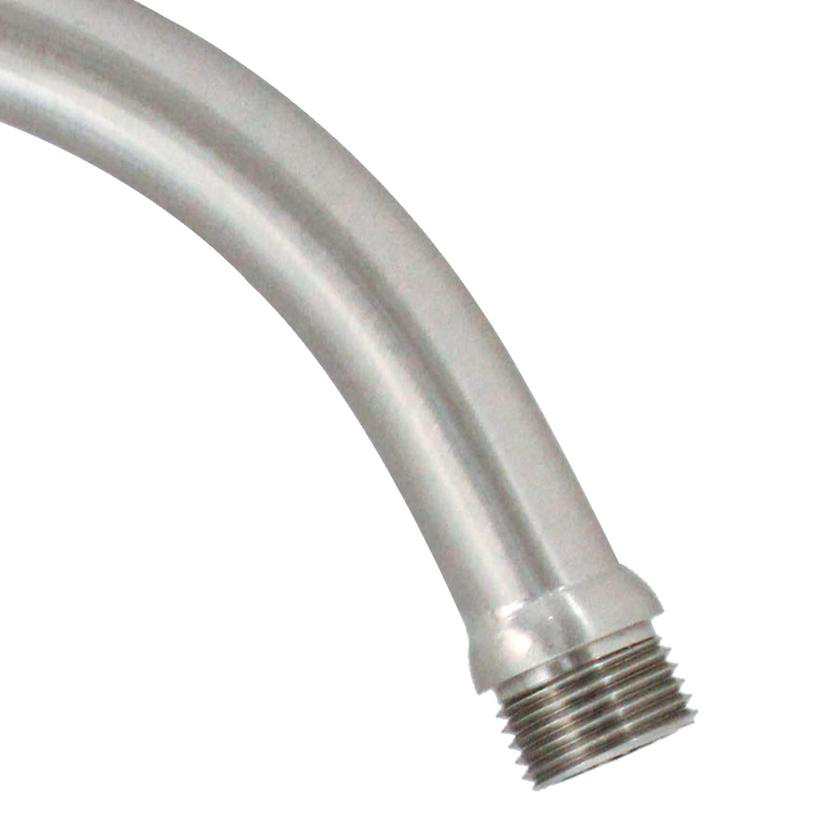

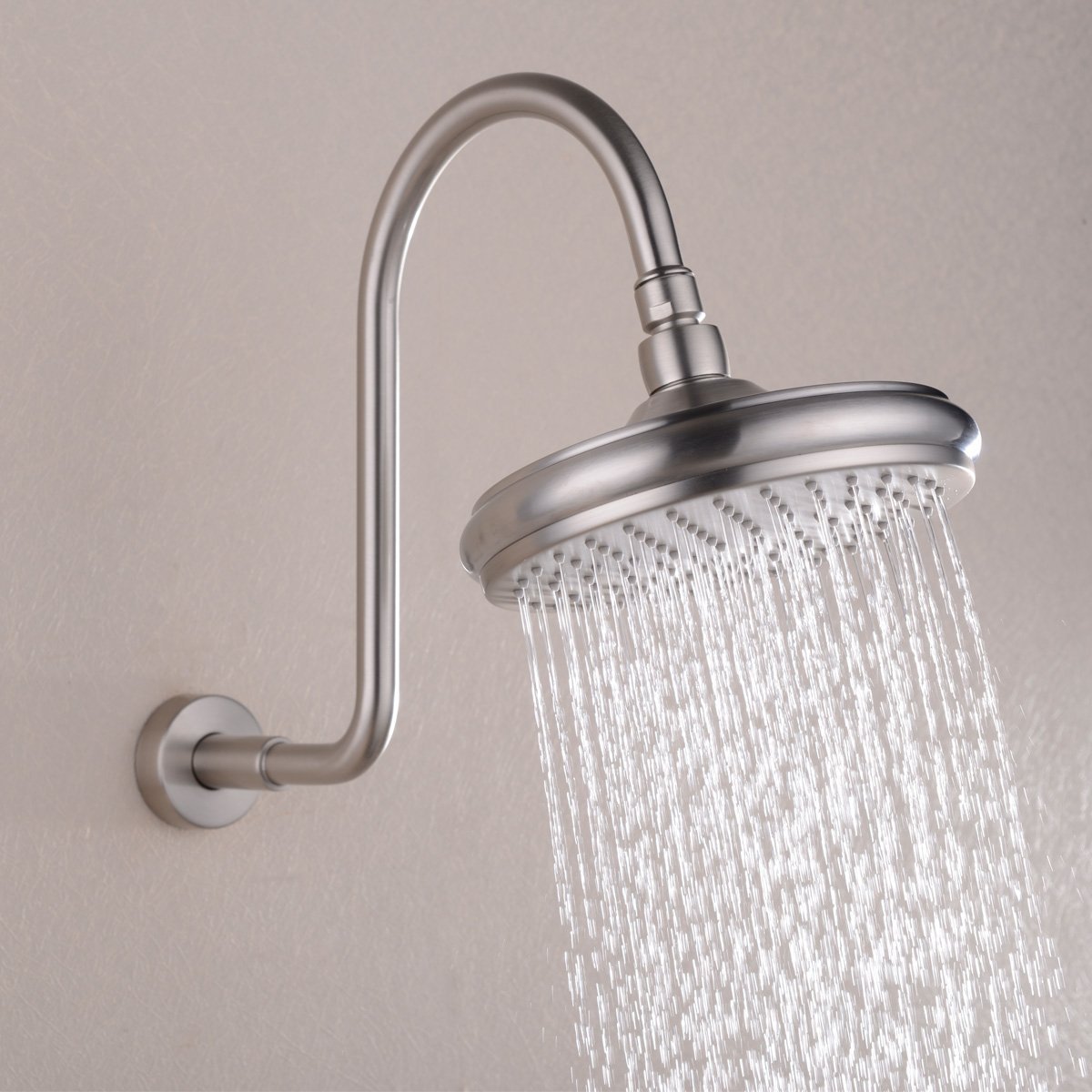

Our Dijon S shape shower arm Or S Curve shower arm was designed to fit a multitude of showerheads in brushed nickel finish available on the market. The dimensions are 13.4 x 7.1 x 0.8 inches. It comes complete with installation accessories and wall flange, as well as mounting instructions. It is easy to install and it matches a great variety of showerheads available on the market. It is made of brass construction, guaranteed to last for many years to come ensures strength and longevity.
Features:
Type: Shower Arm
Item Weight: 12.3 Ounces
Product Dimensions : 13.4 X 7.1 X 0.8 Inches
Color: Brushed Nickel
Item Package Quantity: 1
Model Number: BS1314IZQ
For Commercial, Home, Bar, Etc. Use.
Complete With Mounting Accessories
shower
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
Shower Arm Installation Instructions
Step 1:
shower
installation
Step 2:

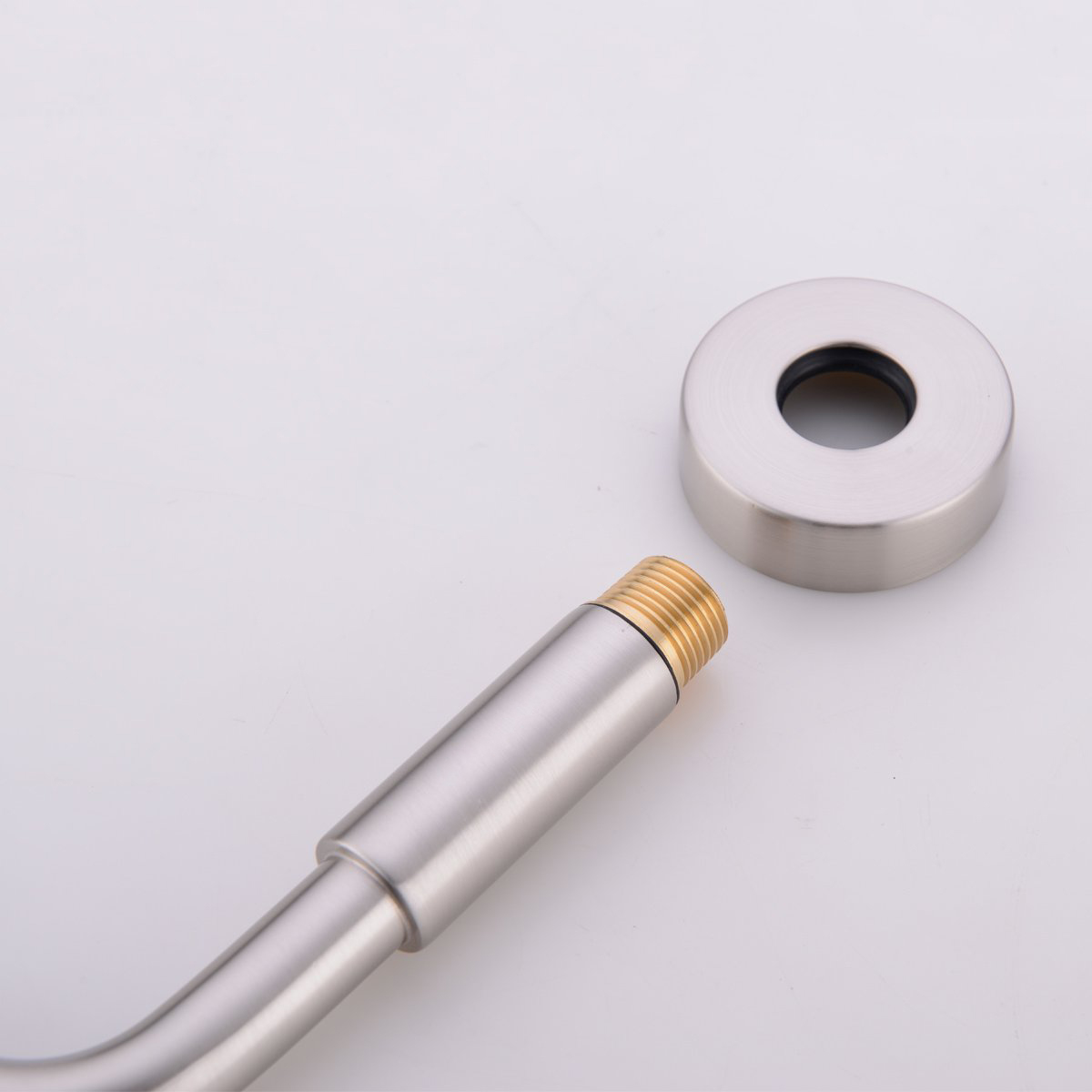

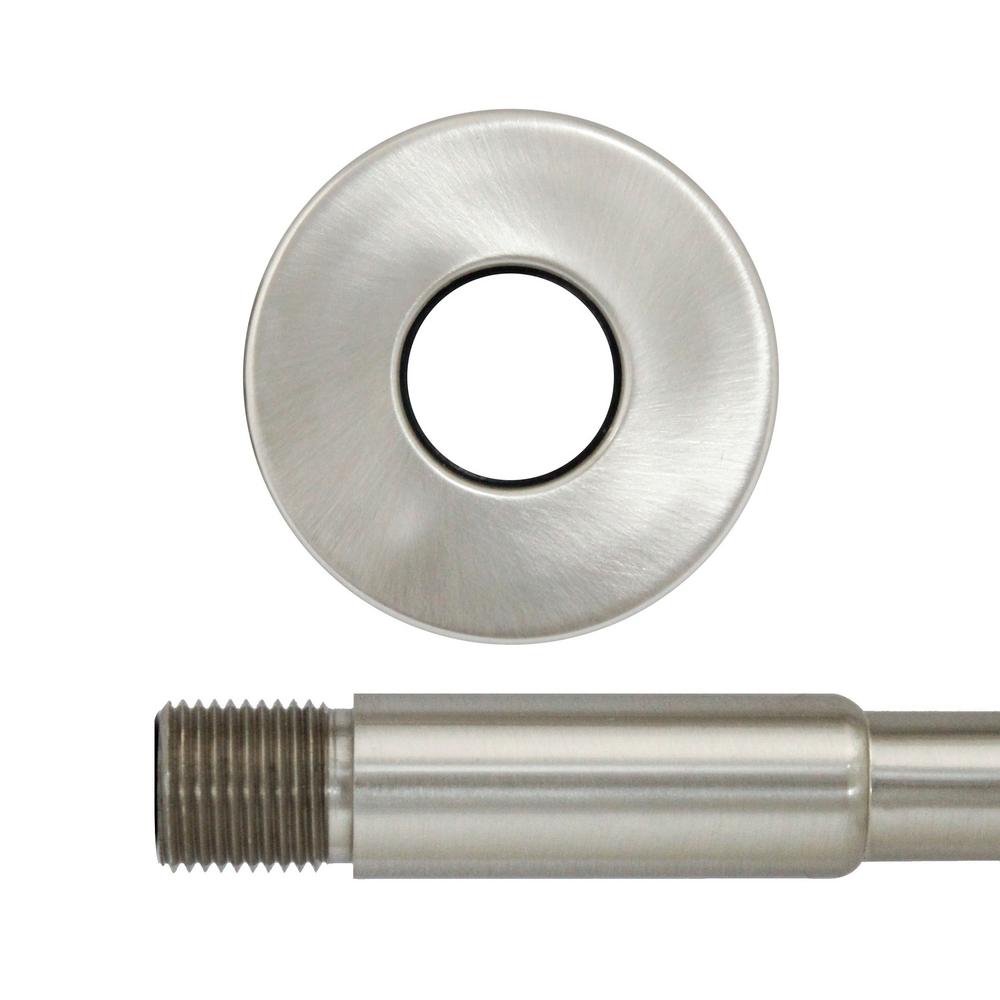

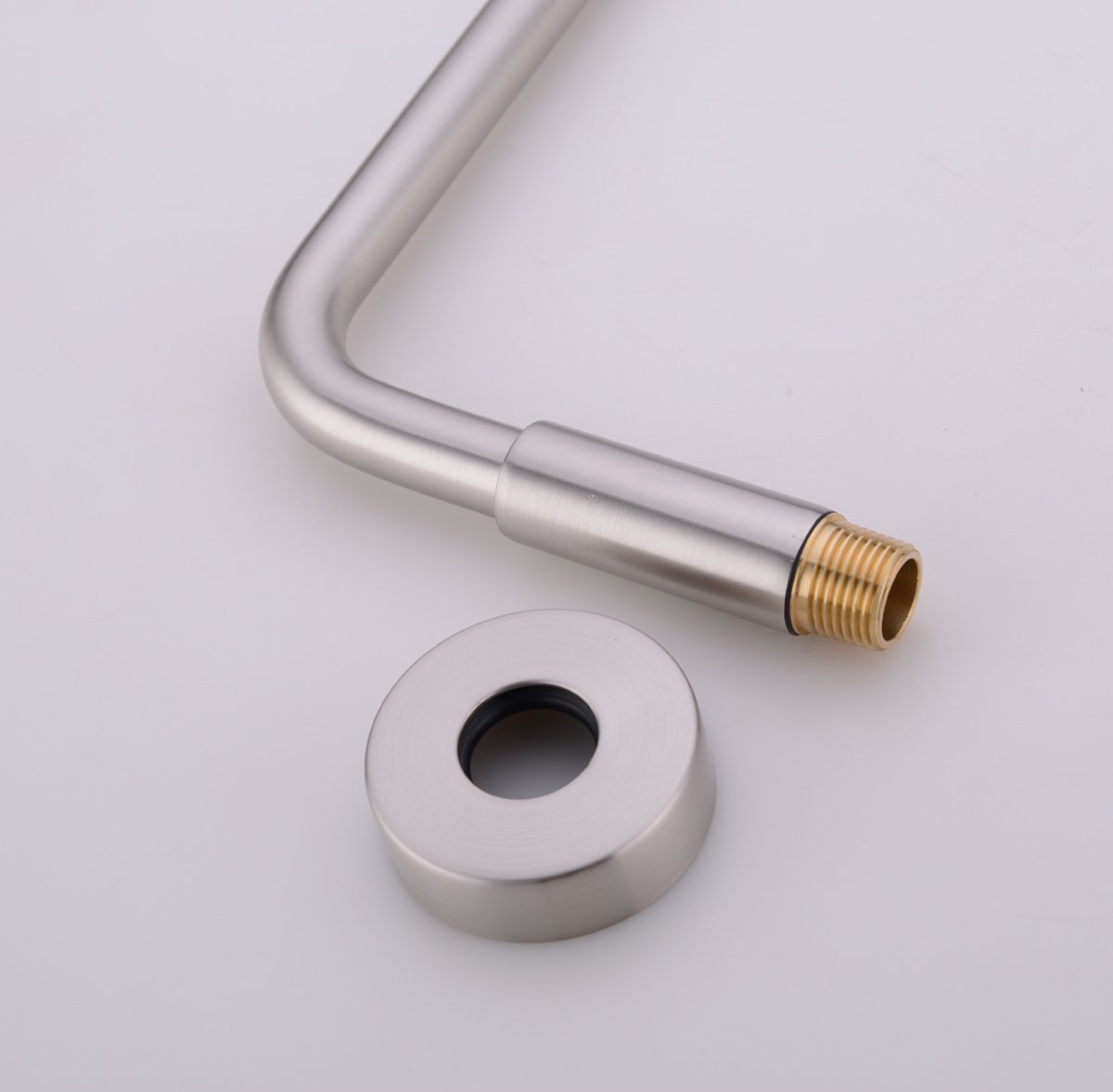

Place the Escutcheon Plate on a flat surface. Push the long end of the Shower Arm down into the plate. This will help the teeth of the plate slide over the arm easier.
Step 3:
Step 4:
Once the Escutcheon Plate is on the shower arm, slide the plate over the Shower Arm.
Apply Teflon Tape to the inlet side of Shower Arm. Thread Shower Arm into Female Pipe Fitting within the wall. Firmly tighten, and make sure Shower Arm Outlet is pointing in a downward position.
Step 5:
Step 6:
Position Escutcheon Plate flat against the wall.
Apply Teflon Tape to the outlet side of the shower arm in a clockwise direction.
Instructions:
1. Attach the flange to strait end of the shower arm. 2. Attach shower arm to water outlet using enclosed plumber's tape (1) to ensure the connection is watertight and curved end pointed towards the floor. 3. Insert washer (2) into shower head fitting. 4. Attach shower head to the shower arm.
