How should the BS-BNS100DP concealed shower valve be positioned to maintain proper trim alignment and long-term serviceability?

Install the solid brass valve body at the manufacturer's finished-wall depth while securing it to rigid framing to prevent movement during operation. Verify that the valve remains perfectly level and centered so the triple-handle trim, escutcheons, and outlet connections align correctly after tile installation without introducing stress into the concealed plumbing.

What commissioning procedure should be followed before operating the rainfall head, six adjustable body jets, and hand shower together?

Flush both supply branches thoroughly before connecting the shower components to eliminate solder residue, pipe scale, and sealant particles. Commission the rainfall outlet, each of the six independently adjustable body jets, and the hand shower separately before testing combined operation to verify balanced hydraulic performance and stable pressure distribution throughout the system.

How should the six 360-degree adjustable body jets be balanced during hydraulic commissioning?

Adjust each solid brass body jet individually while operating the rainfall shower at normal system pressure. Confirm that each jet delivers a uniform spray pattern without pressure starvation or excessive turbulence. Balanced operation demonstrates that the concealed manifold distributes flow evenly across all six body spray branches.

How can installers verify proper anti-scald performance during functional acceptance testing?

Operate the mixer through multiple hot and cold transitions while monitoring outlet temperature with a calibrated thermometer. Simulate moderate inlet pressure variation to verify that the anti-scald design limits sudden temperature fluctuations and maintains stable mixed-water delivery throughout the operating range.

Why should each ceramic valve control be cycled repeatedly before project handover?

Repeated cycling confirms proper ceramic disc seating, smooth rotational torque, accurate outlet selection, and positive shutoff. The commissioning process also identifies debris trapped within the valve, incomplete cartridge seating, or abnormal operating resistance before the concealed assembly becomes difficult to access.

How should the available 8-, 10-, 12-, or 16-inch rainfall shower head be evaluated after installation?

Operate the selected rainfall head independently and inspect the complete spray face for uniform nozzle discharge and even hydraulic coverage. Touch-clean nozzles should produce consistent rainfall distribution without localized dry areas, irregular streams, or edge pressure loss caused by installation debris or inadequate supply flow.

What inspection is recommended before enclosing the concealed plumbing assembly?

Perform both hydrostatic and dynamic pressure testing while the valve body and threaded connections remain fully accessible. Inspect every hot-water, cold-water, mixed-water, body-jet manifold, hand-shower, and rainfall connection for leakage, pressure decay, vibration, or pipe strain before permanently closing the finished wall.

Which preventive maintenance practices maximize the service life of the BS-BNS100DP shower system?

Clean the brushed nickel finish using non-abrasive pH-neutral products, periodically descale the touch-clean rainfall nozzles and adjustable body jets, inspect the ceramic valve controls for smooth operation, and verify that all six body jets maintain unrestricted movement and consistent spray alignment. Routine maintenance helps preserve hydraulic efficiency and long-term commercial reliability.

BathSelect Hospitality Brushed Nickel Shower with Adjustable Body Jets and Mixer-Wall Mount Style

Name: Bath Select
Address: 4270-I Henninger Ct Chantilly, Virginia, VA, 20151, US
Telephone: 800-500-9895
Price range: $100 to $3500

Hotel Brushed Nickel Shower with Adjustable Body Jets and Mixer-Wall Mount Style

LED Shower Set

Alternative Views:

Commercial Price $2,592.00

Price with Selected Options: $2,592.00

Availability: Project Pricing Available Request Quote
Product Code: BS-BNS100DP

Shower Arm:
Shower Head Shape:
Shower Head Size:

Request RFQ

Description

Technical Specs

Extended Technical Information

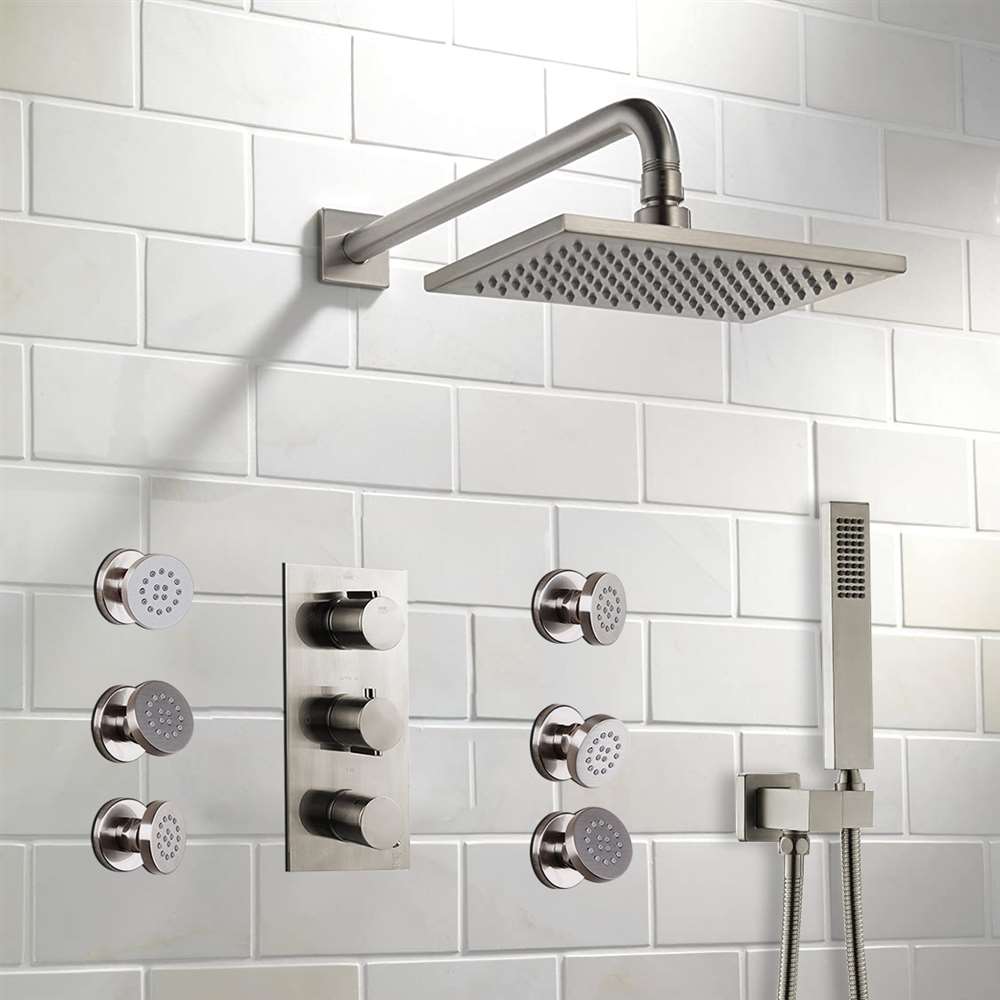

BathSelect Brushed Nickel Shower with Adjustable Body Jets and Mixer-Wall Mount Style

Turn on the fun in your shower just by turning on the water. Solid stainless steel construction with a brushed nickel finish and a ceramic valve core material for long durability that will upgrade your bathroom with a modern and cool look. The Showerhead and 6 body jet have a rainfall function where you can experience the true feeling of rain. You can install the rain shower head and handheld showerhead and body jets where you like just depend on the position of Concealed water pipe.

BathSelect Hotel Brushed Nickel Shower with Adjustable Body Jets and Mixer-Wall Mount Style Features:

Brand Name: BathSelect
Model Number: BS-BNS100DP
Type: Shower Set
Finish: Brushed Nickel
Number of Handles: Triple Handle
Mixer Material: Solid Brass
Anti-scald
Threading Fitting: Fit in any standard shower head
Inclusion: Shower arm
Installation: Wall Mount
Design: Modern Stylish Design Stainless steel finish
Showerhead Material: Stainless Steel

Technical Specs

Material: Solid Brass
Finish: Brushed Nickel
Style: Contemporary Rain Showerhead
Handshower: Included with shower hose
Showerhead Width: Available in 8", 10", 12", or 16"
Showerhead Length: Available in 8", 10", 12", or 16"
Feature: Touch clean shower head
Showerhead Style: Contemporary Rain Shower
Mount Method: Wall Mount
Connection: 1/2" US standard (included)
Shower Arm: Included
Body Jets: Comes with solid brass 360° adjustable Body Jets finished

Features

Hotel Brushed Nickel Shower with Adjustable Body Jets FAQ

Hospitality Shower Dynamics, Adjustable Jet Mechanics & Pressure Equalization

Designed for hospitality environments, this brushed nickel shower system combines adjustable body jets, rainfall delivery, and engineered pressure equalization to provide dependable guest shower performance.

How do adjustable body jets improve hydrotherapy coverage?

Each jet can be redirected to modify spray orientation, allowing targeted water coverage while maintaining consistent outlet pressure.

Why is pressure equalization important in hotel shower systems?

Equalized internal pressure minimizes performance differences between outlets, helping maintain a uniform shower experience during continuous guest use.

How does concealed valve positioning improve maintenance access?

The concealed rough-in valve centralizes hydraulic control while allowing trim components to be serviced without disturbing major plumbing connections.

How does brushed nickel support long-term hospitality maintenance?

The finish helps resist moisture staining, fingerprints, and routine cleaning chemicals, preserving appearance in frequently used guest bathrooms.
