Installation Instructions for Leo all-in-one Thermostatic Commercial Automatic Sensor Faucet Dark Oil Rubbed Bronze Finish

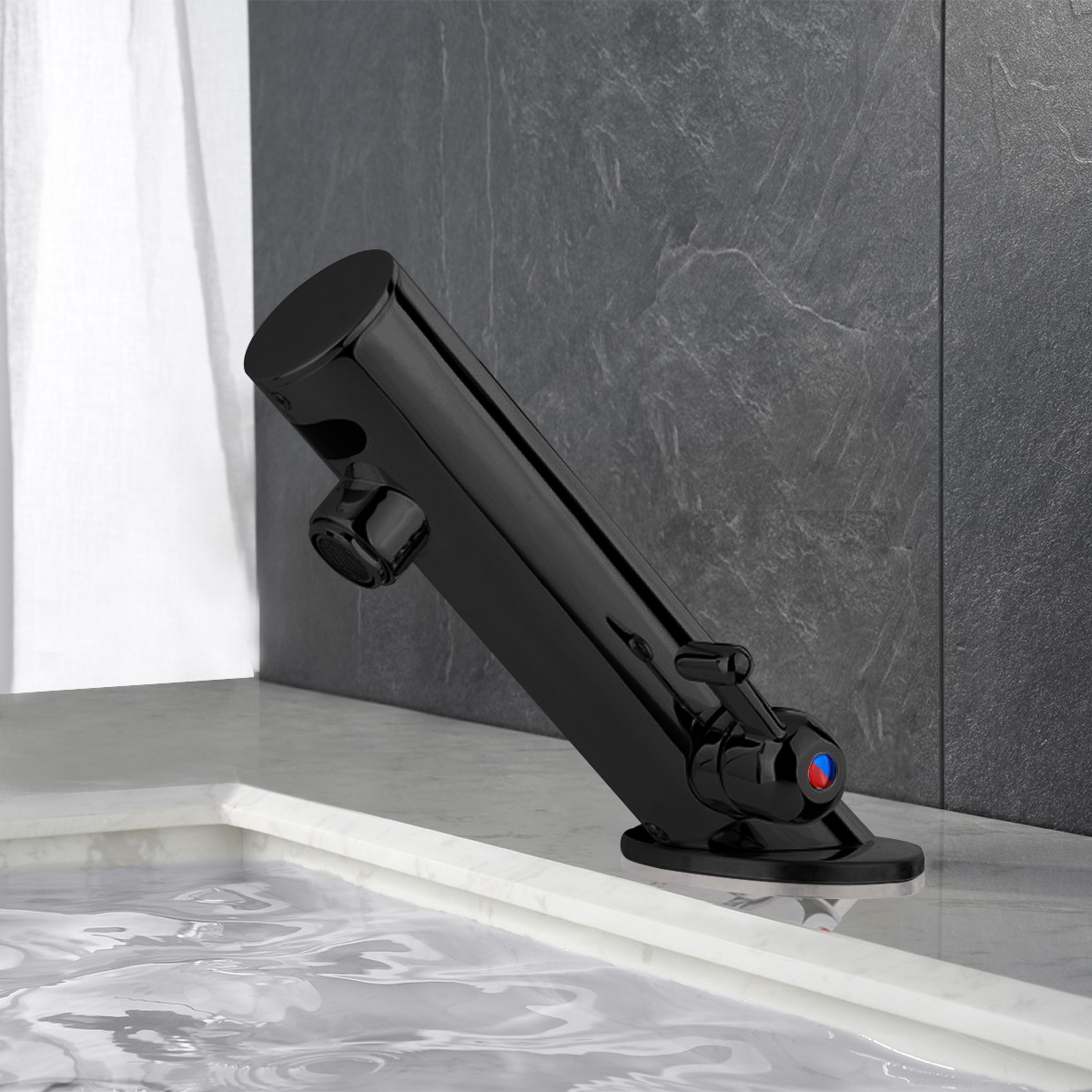

Leo all-in-one Thermostatic Commercial Automatic Sensor Faucet Dark Oil Rubbed Bronze Finish

Leo Oil Rubbed Bronze Commercial Automatic Sensor Faucet with built-in Mixing Valve (Hot & Cold)

Leo Thermostatic Sensor Faucet Product Description

Automatic Faucet with Integral Water Mixing Valve, Chrome Finish

Thermostatic technology that controls the temperature fluctuations at the outlet, preventing scalding,while mixing the water at the desirable temperature at the point of use.

The Leo BST5132 lavatory faucet features an integrated above counter mixer built into the faucet body, an 2-8 inch sensor range, and built in brass solenoid. Maintenance of the BSTHD5132 is simple and can be performed in minimal time. The faucet is equipped with a sensor override and a 60-second time out feature to prevent floods. The Fontana® faucet line is certified to meet ASME A112.18.1/CSA B125.1.

This contemporary angel spout single post AC/DC operated faucets provide facilities with ultimate reliability and easy maintenance. Perfect for hotels, private washrooms and other public commercial lavatories. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Durable solid-brass construction; expertly crafted
Motion detection touchless sensor faucet operation
Drip Free Ceramic Disc Cartridge for Smooth and Long Lasting Operation
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
Solid Brass Construction, Dark Oil Rubbed Bronze Finish
The Oil Rubbed Bronze Finish will not corrode or fade it combines durability with Beauty
Easy to Install - Instructions Included
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant
Stainless Steel Hoses Included
Easily can be installed in new or retrofit applications.
Suitable Places: family bathroom, hotels, office buildings, airports, medical institutions and public restrooms
Usage: Commercial / Residential
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

All Parts in one perfect product;

Ceramic Cartridge;

Built-in check valve;

Sensor control;

Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory!

Sensor Faucet finish is Dark Oil Rubbed Bronze, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.

Leo all-in-one Thermostatic Sensor Faucet Dark ORB Finish

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles.Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features:

Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.

Diameter of inlet pipe	DN15
Diameter of outlet pipe	DN15
Water Pressure	0.05Mpa - 0.7Mpa
Power	DC.6V
Power
Flow Rate	0.5 GPM (1.9 L/min)
Detection Zone	Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature	1 - 45 ℃ / 33.8 -113 ° F
Degree of protection by enclosure	1P56

Heavy Duty Lavatory Automatic Sensor Faucet, Solid Brass, Generally Suitable for High Traffic Commercial and Residential Applications.

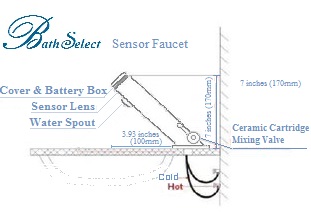

Specifications: Overall Height: 7" (measured from counter top to the highest part of the faucet)
Spout Height: 3-1/2" (measured from counter top to the spout outlet)
Spout Reach: 4" (measured from the center of the faucet base to the center of spout outlet)
Mounting Type: Single hole
Number of Holes Required for Installation: 1
Faucet Centers (Distance Between Handle Installation Holes): Single Hole
Flow Rate: 1.3 GPM (gallons-per-minute)
Maximum Deck Thickness: 1-5/8"
Infrared sensor operation
