Installation Instructions for Venice Round Wall Mount Color Changing LED Rain Shower Head Set

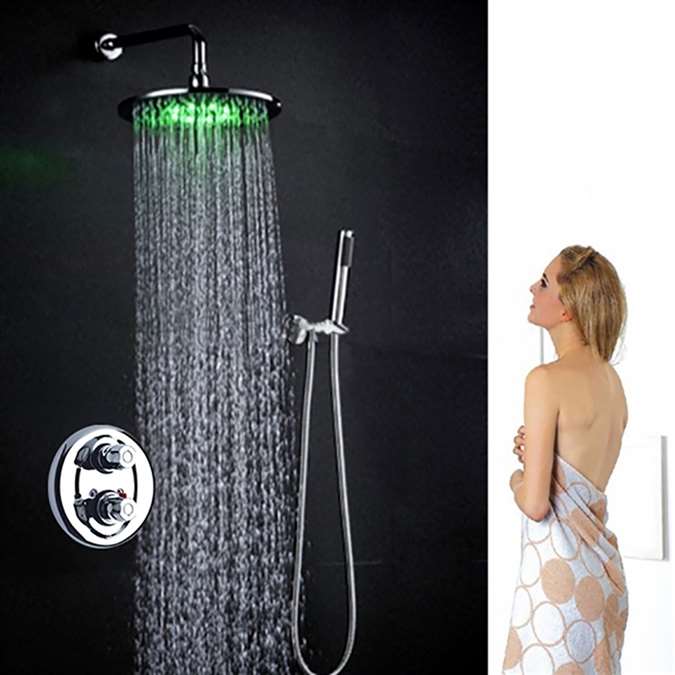

Venice Round Wall Mount Color Changing LED Rain Shower Head Set Venice LED Shower Set comes with a color changing Round LED Shower Head with a Hand Shower and a Cold / Hot Water Mixer. Venice Rain Shower Head Set Specifications Type: Chrome Rain Shower Set Material: Brass Surface Finish: Chrome Accessory Type: Shower Kits Spout Feature: With Diverter Size: 10" Shape: Round Valve: thermostatic Nozzle: Silica Water flow: 7-9L/min Power: water pressure power, no battery needed Water pressure: 0.1-0.6mpa Color: rgb color change by water temperature Function: Rainfall BathSelect® Manufacturer Warranty Information Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the product for any shipping damages. If you find damages, do not install. Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided

Shower Head Installation

5. HOLE LOCATIONS FOR WALL MOUNT

Remove Front Cover (5A) from Wall Mount (5B). Use Wall Mount Screw Holes (5C) to place the desired location. Using a punch or awl, tap the screw hole locations.
Holes must be vertically aligned.

6. ANCHOR INSTALLATION

Drill two 1/4” dia. Holes (6A). If installing into a studs drill two 1/8” dia. holes and do not use Anchors (6B). Insert Anchors (6B) into Holes (6A) and tap flush with the wall.

7. WALL MOUNT INSTALLATION

Place Wall Mount (7A) into wall and inset Mounting Screws (7B) through Wall Mount Holes (7C) and tighten until Wall Mount (7A) is flush with the wall.
Do Not Over Tighten! Insert Front Cover (7D) into Wall Mount (7A)

8. DROP ELBOW & HOSE INSTALLATION

Apply PTFE plumbers tape on both ends of Pipe Nipple (8A) (not included). Screw Pipe Nipple (8A) into the elbow inside the wall.
The Pipe Nipple (8A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (8B) onto Pipe Nipple (8A) and tighten until Drop Elbow (8B) is
property positioned and flush to the finished wall.

Place Rubber Seal (8C) inside Hex Hose Fitting (8D). Connect Hex Hose Fitting (8D) into Drop Elbow Outlet (8E) by turning Hex Hose Fitting (8D).

9. UNIT STARTUP

Turn on hot and cold water supplies, and check all connections for leaks.

10. FINAL FLUSHING

For final flushing, turn the valve on and allow water to run through the Hose (10A) for several minutes.
Allow water to run for several minutes until all foreign matter clears the line.

11. SHOWER ARM INSTALLATION

Place Rubber Seal (11A) inside Tapered Hose Fitting (11B). Conned Hand Shower (11C) to Hose (11D) by turning Tapered Hose Fitting (118) clockwise.
