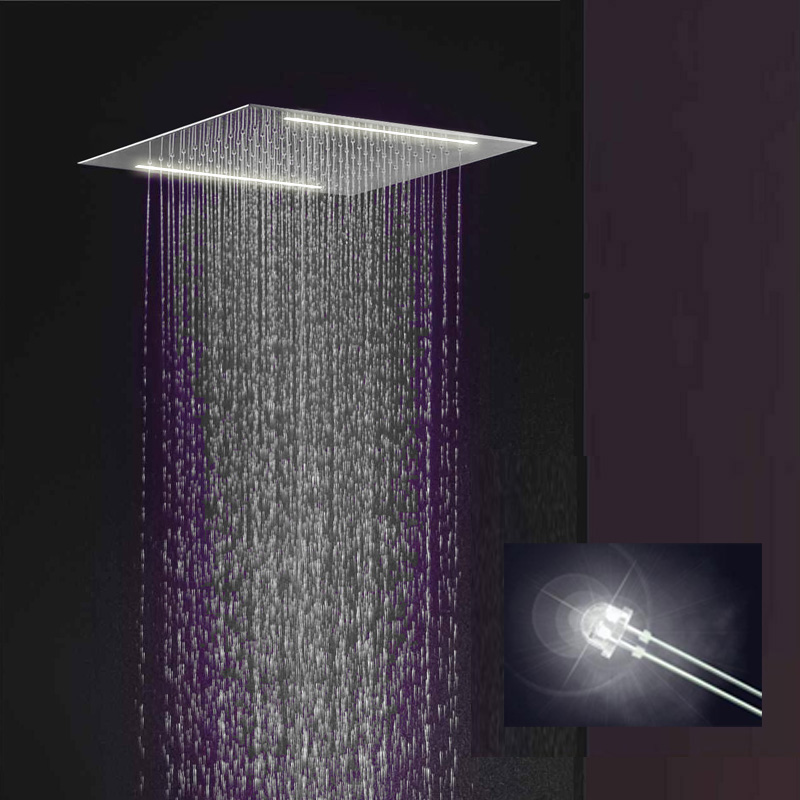

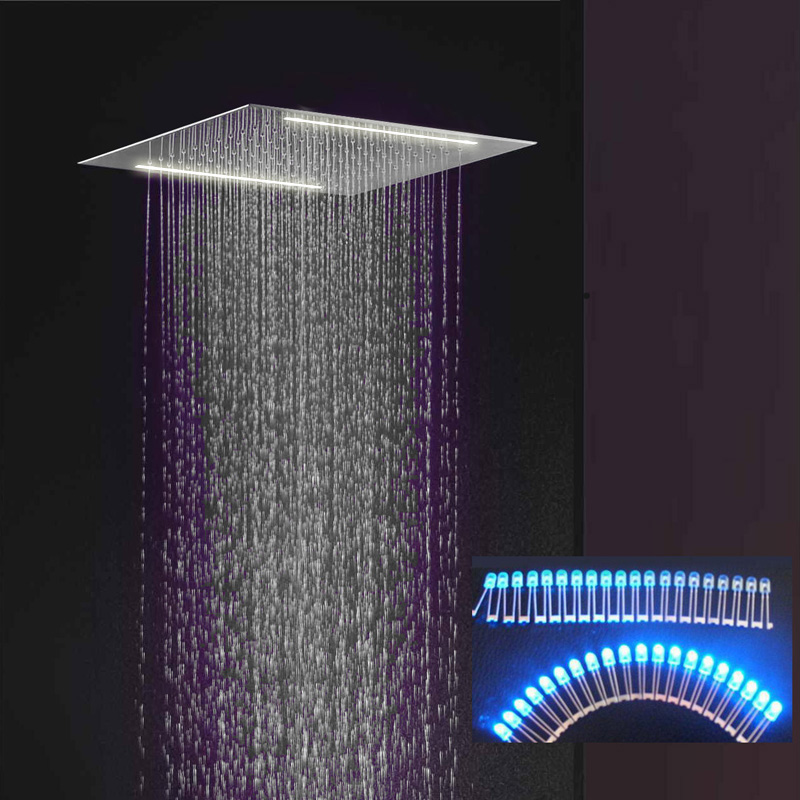

Installation Instructions for Recessed Stainless Steel Electric Rainfall Shower
|
20x14 Inch Stainless Steel Electric Rainfall shower systems
This LED Shower Head is Electric power (12V electric adapter) comes with a single color light. You can choose this electric LED recessed shower head to come in either red, white, blue or green. This is a single color. shower head and will not change color.
|
Technical Information
Material
|
Stainless Steel
|
Power
|
Electric
|
Style
|
Contemporary Rain Shower head
|
Showerhead Height (thickness)
|
0.33 Recessed
|
Showerhead Width
|
14.2"
|
Showerhead Length
|
19.9"
|
LED Power Source
|
Electric 12V
|
LED Color
|
Single Color (will not change)
|
|
|
|
![20" Recessed Stainless Steel Electric Rainfall Shower](https://www.bathselect.com/v/vspfiles/assets/images/HM-BD014-2%20(3).jpg) ![20" Recessed Stainless Steel Electric Rainfall Shower](https://www.bathselect.com/v/vspfiles/assets/images/HM-BD014-2%20(1).jpg) ![20" Recessed Stainless Steel Electric Rainfall Shower](https://www.bathselect.com/v/vspfiles/assets/images/led-shower-head-recessed.jpg)
![](https://www.bathselect.com/v/vspfiles/assets/images/Large%20ceiling%20Shower%20head%20.jpg)
![](https://www.bathselect.com/v/vspfiles/assets/images/2%20Large%20Oil%20Rubbed%20Bronze%20Solid%20Brass%20LED%20Rain%20Shower%20Head%20with%20Body%20Jets%20&%20Handheld%20Shower.jpg) Hole size on ceiling
1.
Drawing the line on the ceiling according above specification
•
Decorative Cover
•
Pipe 1
2.
Connect pipe 1 with decorative cover
3.
Drill the holes on the ceiling according to above hole specification and install 4 pipes.
4.
According right drawing, install four-pipe 2 into pipe 1. Put the screw bolts through the hole on the side to lock pipe 2 with pipe 1.
5.
As the right drawing shown, install four-pipe 2 on the head shower.
6.
After fixing the showerhead on the ceiling, connect the shower hose with 2 water inlet on the showerhead back cover. The other end connect with the water outlet pipe in the wall.
![](https://www.bathselect.com/v/vspfiles/assets/images/5%20Large%20Oil%20Rubbed%20Bronze%20Solid%20Brass%20LED%20Rain%20Shower%20Head%20with%20Body%20Jets%20&%20Handheld%20Shower.jpg) 5. As the right drawing is shown, install four-pipe 2 on the head shower.
6.
After fixing the showerhead on the ceiling, connect the shower hose with 4 water inlet on the showerhead back cover. The other end connects with the water outlet pipe in the wall.
![](https://www.bathselect.com/v/vspfiles/assets/images/1%20Ceiling%20Shower%20Head%20Installation.jpg)
Remarks: Ceiling mounted shower head come with fixing bar installation
1. Draw size on ceiling
2. Install fixing bar on ceiling
![](https://www.bathselect.com/v/vspfiles/assets/images/2%20Ceiling%20Shower%20Head%20Installation.jpg)
3. Install fixing bar on shower head
4. Put shower head bar on ceiling fixing bar.
The showerhead installation is now complete.
|
