Installation Instructions for Milan Brushed Nickel Round Rainfall Shower Set

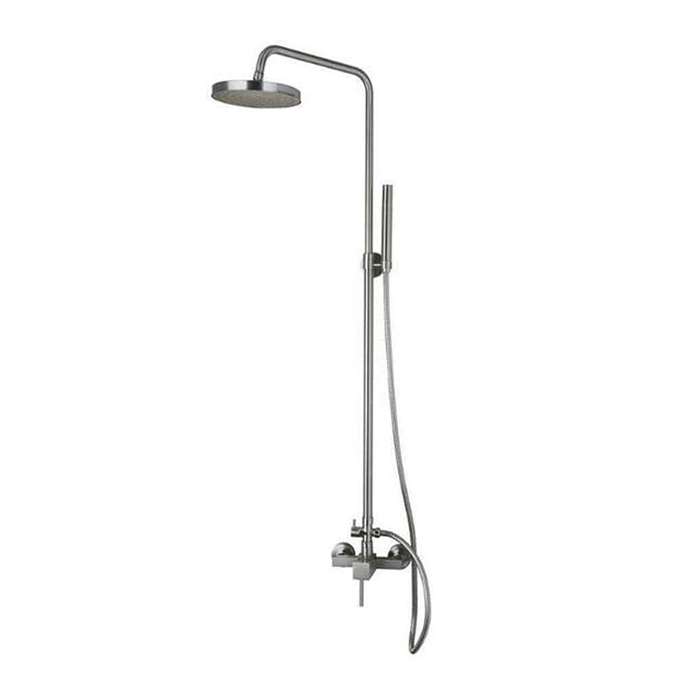

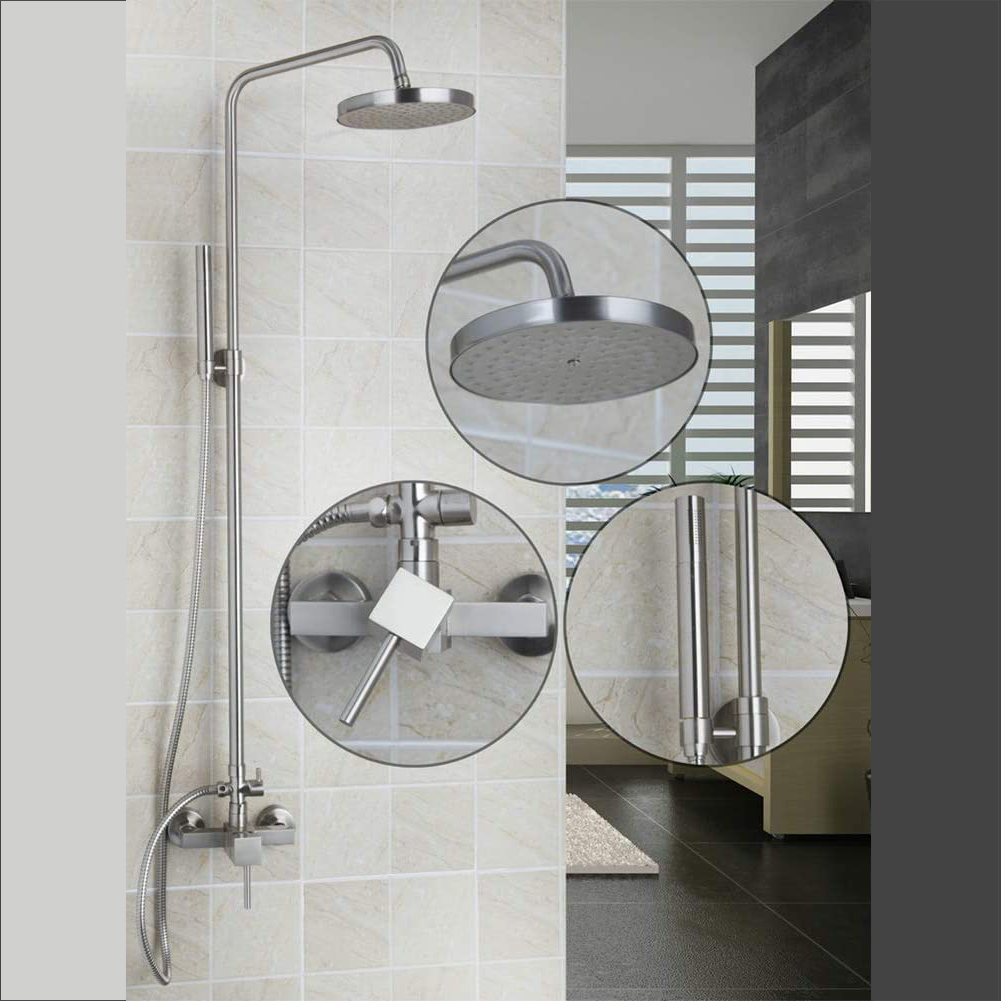

Milan Brushed Nickel Round Rainfall Shower Set

Milan Rainfall Shower Set is a Brushed Nickel Finish Shower that comes with 8 Inch Shower Head & hand shower. The Milan Shower Set is having a single handle & have a water pressure that's ranging from .1-.7 Mpa. The Milan Rainfall Shower Set is highly durable with its brass body & ceramic valve core.

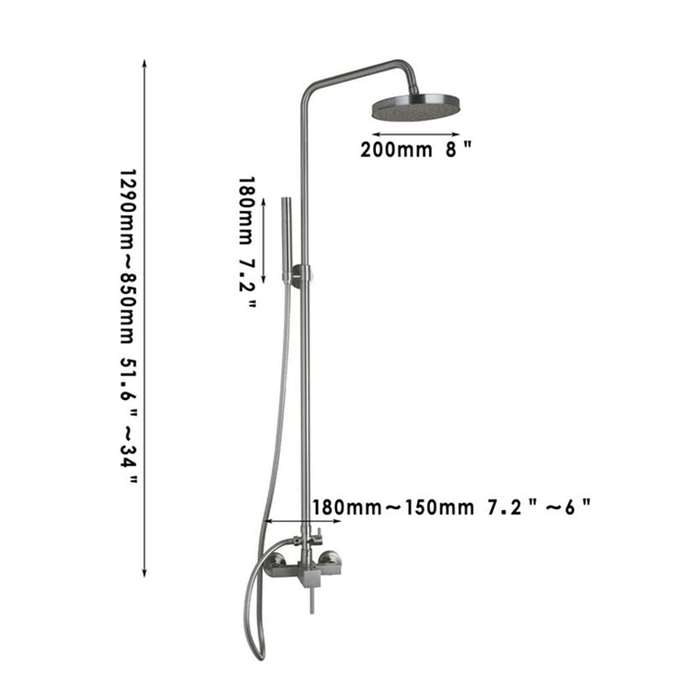

Milan Brushed Nickel Round Rainfall Shower Set Specifications

Type : Shower Set
Installation Type : Wall Mount
Valve Core Material : Ceramic
Style : Contemporary
Surface Treatment : Brushed
Surface Finish : Brushed Nickel
Shower Head Size : 8 Inch
Number of Handle : Single
Water Pressure : 0.1-0.7 Mpa
Cold / Hot Water Control : Yes

BathSelect® Manufacturer Warranty Information

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

1. Brass Adapter
2. Faucet body

3. Washers
4. Diverter
5. Shower bar
6. Hand shower holder
7. Shower bar bracket
8. Shower bar
9. Mounting base
10. Decoration cover
11. Rain shower head
12. Handheld shower

Step 1: Connect the brass adapter provided to the water supply line.

Step 2: Adjust lever and distance to fit the faucet body.

Step 3: Turn the water valve on for a while to let the dust and impurities out.

Step 4: Assemble the shower set.

Step 5: Place a pre-assembled shower in the wall to find the proper position and then mark the mounting hole that needs to be drilled.

Step 6: Drill a hole for the upper part shower bar bracket, screw it.

Step 7: Place the decoration cover to the brass adapters.

Step 8: Install the pre-assembled shower to the connections.

Step 9: Connect shower hose, handheld shower, and rain shower head.
