An LED shower set creates a contemporary focal point and can combine rainfall, handheld and lighting functions in one coordinated system. Its advantages are versatility and ambience, while its disadvantages include more connections and potential servicing needs. Careful rough-in planning, correct valve installation, waterproof penetrations and complete pressure testing are important before tile or wall panels are finished.
Lights are powered by the water pressure - no electrical wiring needed changes color as temperature change.
LED Shower Head
- Saturating Spray
- Massage Spray
- Bubbling Spray
- Saturating Spray & Massage Spray
- Saturating Spray & Bubbling Spray
- Self-powered by water. No battery nor electricity needed.
- Stainless steel shower hose double hooked Ø0.55"
- Anti-twist brass conical nut & brass hex nut

LED Light 1 Year Warranty / The Rest Lifetime Warranty
- The built-in device generating electricity without any battery and no need for any other power.
- Just connect to the water, LED will emit the light.
- When water flows down, the LED will light instantly and automatically as per water temperature.
All Fontana Led Showers change color by detecting water temperature
- When water temperature is ≤89 °F (≤32 °C), Green color will show automatically;
- When water temperature is between 97 to 107 °F (36-42 °C), Blue color will show automatically;
- When water temperature is between 109 to 122 °F ( 43-50 °C), Red color will show automatically;
- When water temperature is above 122 °F (>50 °C), Red color will flash immediately.
- The flow rate is 2.5 GPM
Material:
- Shower Head: Brass
- Hand Shower: ABS
- Shower Faucet: Brass
Led Color:
Blue, Green, Red, Red Flash (According to the water temperature changing)
BathSelect® Manufacturer Warranty Information
Installation Instructions for LED Shower Set
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the product for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided
|
|

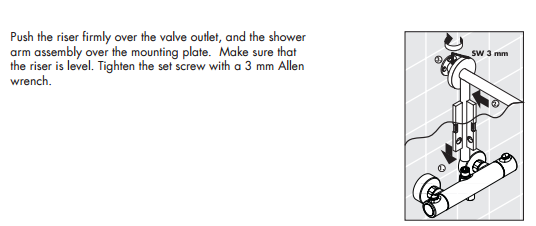

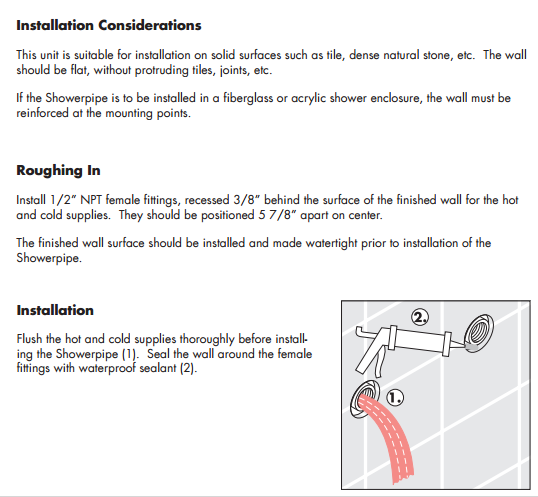

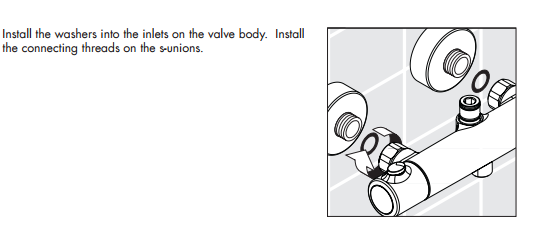

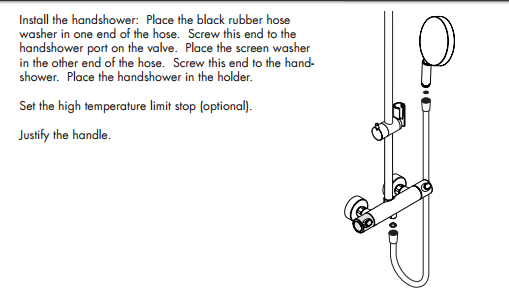

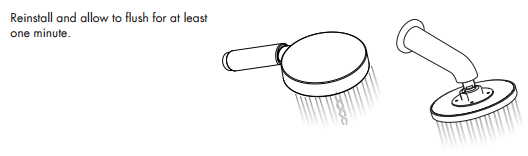

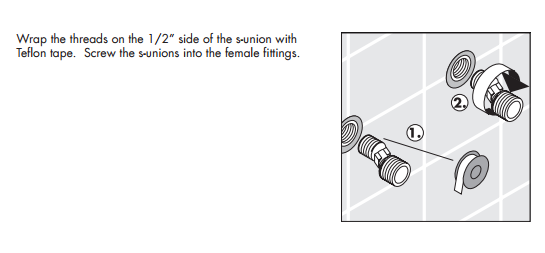

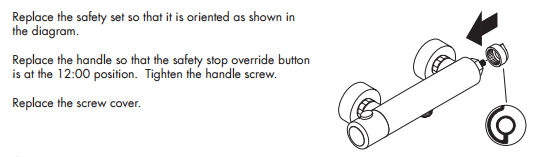

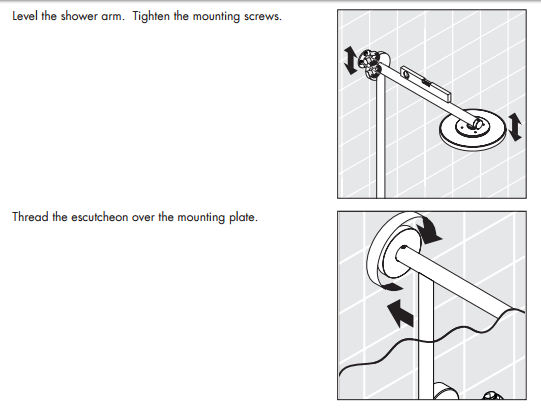

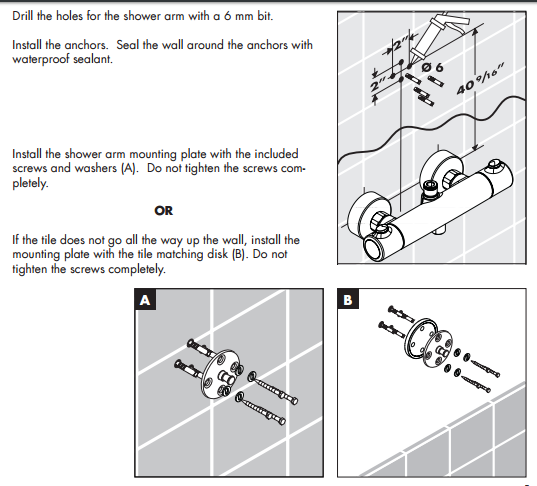

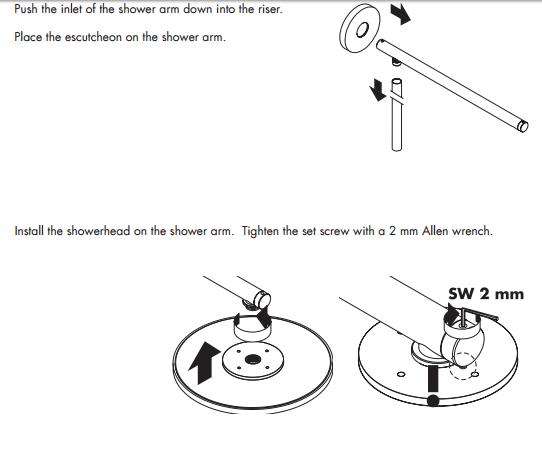

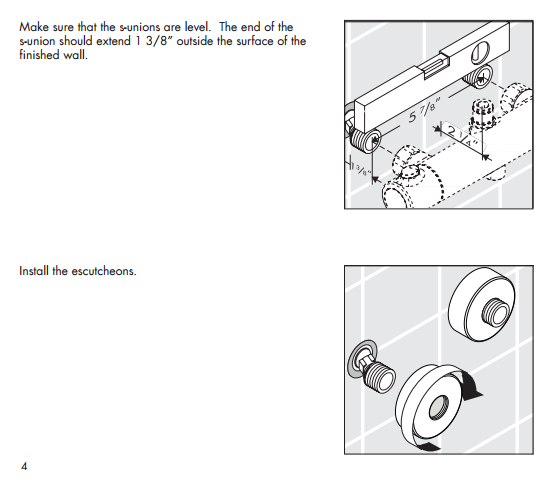

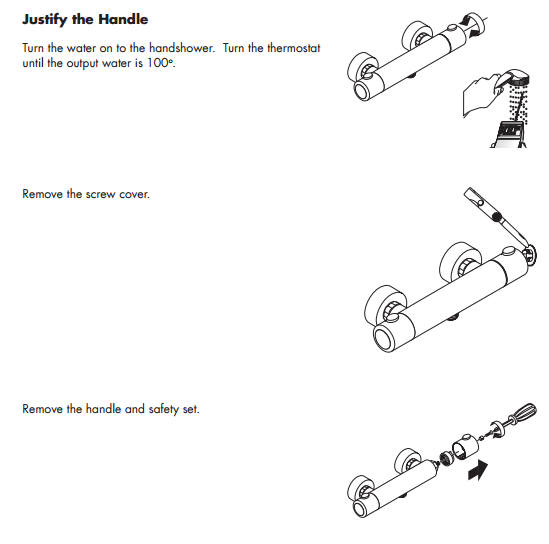

Shower Set INSTALLATION INSTRUCTIONS
|
