Fontana 20 Inch LED Gold Thermostatic Shower Panel Set

This Fontana 20 Inch LED Gold Thermostatic Shower Panel Set will turn your shower into one that looks exceptional. If you already have gold in your bath fixtures, it makes perfect sense to invest in gold shower head Just turn on the fun in your shower by simply turning on the water, the LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. All this with no batteries, everything is self-powered by a built-in dynamo that takes advantage of the water pressure to create the energy to light the bulbs. Fontana 20 Inch LED Gold Thermostatic Shower Panel Set with hand shower & comes in a high-pressure bathroom head shower. The Shower combines temperature control and precise water flow regulation. This shower set has been made with premium-grade material. The valve core material is a high quality of ceramic. It is ceiling shower head. It is your best choice, a choice to enjoy life. The elderly, children and pregnant women can use.

Fontana 20 Inch LED Gold Thermostatic Shower Panel Set Features:
  • Brand Name: BathSelect
  • Model Number: BSGOLD20INCH
  • Type: LED Shower Set
  • Finish: Gold
  • Shower Feature: Waterfall and Rainfall
  • Installation: Ceiling Mount
  • Material- Stainless Steel
  • Size: 14.1 - 19.6 Inches (360*500mm)

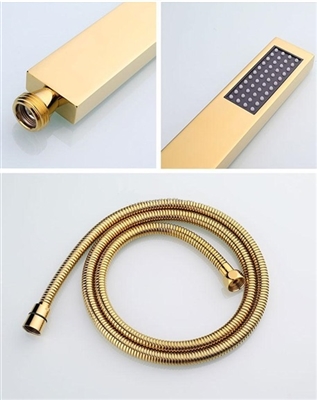

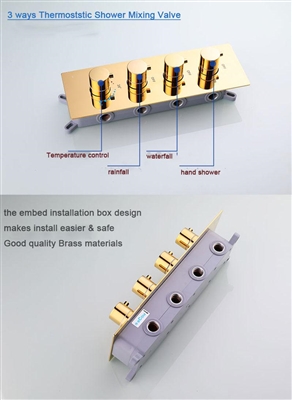

  • The Fontana LED Shower Set Comes complete with Shower Control
  • Number of handles: 4
  • Model Number: BSGOLD20inch
  • Built-in dynamo
  • Led feature: Automatic light change depending on water temperature
  • Fontana 20 Inch LED Gold Thermostatic Shower Panel Set

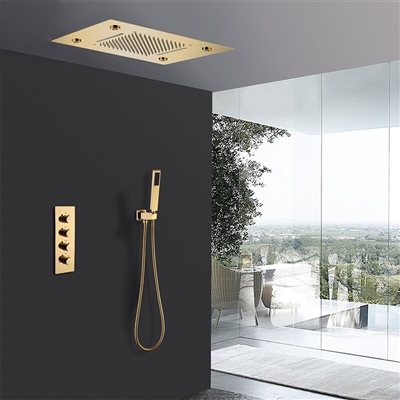

    Fontana 20 Inch LED Gold Thermostatic Shower Panel SetFontana 20 Inch LED Gold Thermostatic Shower Panel SetFontana 20 Inch LED Gold Thermostatic Shower Panel SetFontana 20 Inch LED Gold Thermostatic Shower Panel Set
    BathSelect® Manufacturer Warranty Information

    Installation Instructions for 20 Inch LED Gold Thermostatic Shower Panel Set



    • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
    • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
    • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided












    20 Inch LED Gold Thermostatic Shower Panel Set

    Care & Maintenance

    Keep the surface clean, regular cleaning.

    Using water clean it, using a cotton cloth to wipe dry.


    1. According to the dimensions and shape of the mounting bracket, determine the bracket location to be installed in the ceiling.


    2. According to the 8 mounting holes on the mounting bracket, use Electric drill to make the mounting holes.

    3. Using the two hexagonal nuts adjust the distance between the mounting bracket and the ceiling, and keep the mounting bracket on level.

    Use explosion screw to fix mounting bracket on ceiling, pay attention to the explosion screw, it can adjust the height, and use level tool to adjust the mounting bracket to reach level.

    4. Connecting Circuits

    5. According to the chart shows: Raise the showerhead, Aim at the hole of the bolt, plug the bolt.


    Use a phillips screwdriver screw out the upper cover 4 screws, open the plastic waterproof boxes.

    Note: The same color line docking, brown line for line, blue line is zero line. Use a phillips screwdriver screw out the screws in plastic waterproof box wiring position, then put the fork terminal line connected, then fix it with a phillips screwdriver.




    According to the circuit diagram as shown in step 5, then connect plastic waterproof case, please note that the same color of the wire when connecting circuit to docking.


    6. Connecting water hoses and Tee joints and then connect the water hoses to the water inlet pipe connector.



    7. Connecting 4 pcs water hose to 2 Tee joints and G1/2 joints in the middle and then put another side of the shower hoses through the showerhead side holes.


    8. Installing the shower body by plugging the bolts. (As the above picture )


    Shower Holder Installation

    1. Open the closed cover of the shower holder and take out the screws.

    2. Drill two holes size 6mm on the wall according to the hole position of the shower holder. Use a hammer to break 2 plastic wall plug into two holes. Tighten the screws with the plastic wall plug and locking with the shower holder. Then install the closed cover.

    3. Connect the shower hose with the water outlet connection part and hand shower. Plug the hand shower in the shower holder.


    A.







    Valve Control Installation

    a. Release 4 handwheel levers according to the above directions.
    b. Take apart the embed valve, panel, and handwheel.
    1. Dig the embed space for the pipe on the wall according to the specification of the valve.
    2. Dig 4 holes according to the position of the screws.
    3. Use a hammer to thwack the screws into 4 holes.
    4. Fix the valve body with 4 screws.
    5. Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body.
    6. After connecting all the pipes and before sealing the wall with concrete, confirm no leaking problem occur when you turn on the water.
    7. Fix the decorative panel on the embed valve body.
    8. Screw the handwheel arms with the handwheels.

    BathSelect Ancient Round Antique Rainfall Wall ShoweBathSelect Ancient Round Antique Rainfall Wall Shower Head Installation Instructions Head Installation Instructions
