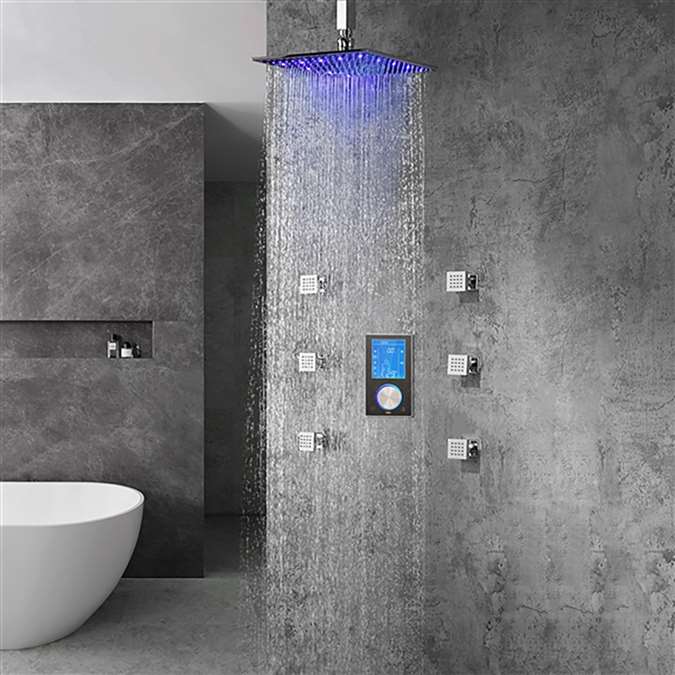

Trialo Solid Brass Color Changing LED Rain Shower Head with Digital Mixer and 360ฐ Adjustable Body Jets

The Trialo Solid Brass Ceiling Mount Led Shower System can experience the true feeling of rain, as well as SPA body massage spray, relieving fatigue and stress. It is your best choice, a choice to enjoy life. The elderly, children and pregnant women can use. This is a touch screen digital temperature control valve LED shower set. When the temperature exceeds 50 degrees will automatically stop working, preventing burns. LED lights can change color with different temperatures automatically. The thermostatic shower system is high flow shower valve, new technological coating layers electroplating to anti-rust, never get rust.
Body JetsTrialo Solid Brass Ceiling Mount Led Shower System Features:

  • Brand Name: BathSelect
  • Model Number: BST-0522CMT
  • Material: Solid Brass
  • Style: Contemporary Rain Showerhead
  • Showerhead Height (thickness): 0.33
  • Body Sprays: 6 body sprays
  • Control Digital Control Thermostatic Mixer: Available in Matching Finish
  • LED Power Source: Water Flow
  • LED Color: Blue, Green, Red
  • Showerhead Length: Available in 16", 20", 24", 31", 40"
  • Mount Method: Ceiling Mount
  • Connection: 1/2" US standard
  • Body Jets: Comes with solid brass 360ฐ adjustable
  • LED light Rain showerhead powered: Hidden dynamo
  • LED light features: dim and brighten when adjusting the pressure
  • Mixer Material: Solid Brass
  • Anti-scald
  • Threading Fitting: Fit in any standard shower head
  • Showerhead Material: Stainless Steel
  • Flow rate: 2.5GPM
  • Digital Installation Instructions
Trialo Solid Brass Ceiling Mount Led Shower System
Trialo Solid Brass Ceiling Mount Led Shower SystemTrialo Solid Brass Ceiling Mount Led Shower SystemTrialo Solid Brass Ceiling Mount Led Shower SystemTrialo Solid Brass Ceiling Mount Led Shower System
BathSelectฎ Manufacturer Warranty Information

Installation Instruction For Trialo Solid Brass Ceiling Mount Led Shower


  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided
Trialo Solid Brass Ceiling Mount Led Shower

Shower Head Installation

  1. Use your hands counter clockwise to unscrew the old showerhead and removed it.
  2. Take out the showerhead, make sure the shower filter is placed in the connector.
  3. Ensure the showerhead full horizontal alignment wall mounted shower arm thread.
  4. Use your hands clockwise to tighten showerhead.






Shower Body-Jet Installation



Multiple Bodyspray Installation
• Water Supply
• Nipple Mamelon Nipple
• Pressure Balancing Loop

1. Route the water supply lines.
2. If installing more than one bodyspray off the same supply line, construct a pressure balancing loop. Locate a tee along the loop at each bodyspray installation location.
3. Do not strap the pipes at this time.

Single Bodyspray Installation
• Nipple Mamelon Nipple
1. Route the water supply line.
2. Install an elbow to the end of the supply pipe at the bodyspray installation location.


Install the Plaster Guard
• Elbow (or Tee)
• Install the plaster guard

Set Piping Depth
Align mark with the front of the stud face
• Thin Wall

Align mark with the front of the stud face
• Standard Wall

Install the plaster guard. Push until the plaster guard is snug against the face of the elbow (or tee).



1. Install the water-resistant wallboard.
2. Cut out a 4" (10.2 cm) to 4-1/4" (10.8 cm) square at each the installation location.
3. Install the finished wall material.


• Escutcheon
• Leak Shield
• Adapter
• Extension
• Socket Wrench With Bit
• Screw
• Waterway Passage

1. Insert the escutcheon into the rough opening. The double ribs of the leak shield should be facing up.
2. If the leak shield makes contact with the elbow: Enlarge the hole in the back of the leak shield to 1-1/4" (3.2 cm).
3. Thread the adapter onto the nipple using the provided 0.4" bit, 11 mm or 7/16" socket, extension and socket wrench. Use masking tape to hold the bit in place, as the bit could fall off and cause damage.
IMPORTANT! The escutcheon should sit loosely at this point. If it is tight against the wall, use a longer pipe nipple.
4. Align the groove in the waterway with the double ribs on the leak shield.
5. Press the waterway into place over the adapter. Secure the waterway to the adapter with the screw provided.
6. Verify that the escutcheon does not turn or shift.



With the ribs of the sprayhead facing up, install the sprayhead to the waterway.



With the ribs of the sprayhead facing up, install the sprayhead to the waterway.


Digital Mixer



Operation

Fly-shuttle switch
Setting
Power on/off
LCD Display

Notice

1. The control panel is sensitive, when you install it, please avoid to let it face directly to the water from hand shower and the head shower because water will get it misoperation or lock the control panel.

2. The touch button is the best sensitive area.

3. The touch panel has water splash protection technology. When the system detects misoperation, no response, and need about 1 second to recover.

Function

1. Water TEMP adjust

2. Hand shower

3. Head Shower

4. Water flow adjust

Operation

1. Power on/off
Power on

After electrify, you can touch to make the system ON. When you hear buzzer sound, the fly-shuttle switch and the LCD panel would be lighting. Water TEMP and water flow will be the same as that you set last time. The cursor will be on the icon you using last time. The default working time is 60 minutes.
Power Off

When the system on, touch again to make the system OFF or the default working time is up, when you hear buzzer sound that means have close all the functions.

NOTE: (the background color of the fly-shuttle switch)

LED show blue color when TEMP below 33ฐ C

LED show orange color when water TEMP between 34ฐ C- 41ฐ C

LED show red color when water TEMP over 41ฐ C

2. Hand shower and head shower switch

When system on, rotating the fly-shuttle button left or right. the cursor would move to icon, pressing the fly-shuttle button to open hand shower or head shower (hand shower and head shower are inter-locked, you can turn on only one time), the corresponding operation icon would brighten up on the LCD panel after turning on. The cursor could move to icon, pressing again the fly-shuttle button to close hand shower or head shower, the corresponding function icon would be dark.
Battery Installation

1. Loose the screws on the battery cover and take it off.

2. Putting 4 pcs rechargeable batteries into the battery slot of the host box.

Attention: When putting the battery into the host box, you need to identify the anode and the cathode.

1. Insert the battery cover into the host box, and Lock it with the screws.


Caution:

• Using rechargeable NI-MH battery [the 5#(AA) and the capacity is more than l000Mah).

• After electrify, forbid using the normal 5#(AA) battery. Otherwise, would cause the battery explosion.

• When the power cut, you can use the high quality normal 5#(AA) dry battery as the emergency measure. But you must unplug the adapter.

• When you install the host box, please put the battery into it. If the product hasn't connected with the power in a long time. Please take out the battery from the host box. This way can avoid affecting the battery working life.

• If you want the battery with a longer working life, you can charge the battery every some months.
Installation of the Control Panel

There are two kinds of installation ways shower controller according to the installation site, one way is to recess mount into the wall. Another way is to build into the shower panel.

1. Build the control panel into the shower panel

Step 1: Open a hole (6.7" X 3.7") on the shower panel, putting some glass cement around the back of the control panel and fit it in the hole of the shower panel as picture shown.

Step 2: Fasten the mounting bracket onto the back of the control panel by screws.

Step 3: Install the host box on the back of the shower panel, connect the cold water and hot water pipe, hand shower, and head shower's pipes.

1. Connect the G1/2" hot and cold water inlet pipes to the host box, tighten it and make sure connection is well sealed (as the picture showed).

2. Connect the G1/2" water inlet pipe of the faucet to the water outlet pipe of the host box, tighten it and make sure connection is well seated (as the picture is shown).
Caution:

• When installation, the hot water pipe, and the cold water pipe cannot mix up. Otherwise, the system cannot work.

• When you tighten the connector nut, torque should not exceed 8NM, GB 2.5NM is OK, otherwise, it will damage the connector of the mixing valve and lead to water leaking.


Step 4: Connect the host box control cable with the control cable of shower faucet as an arrow mark on the picture.

Caution:

When connecting the two control cables, you must follow the arrow mark which is shown in the cable joint. If not, it will damage the cable joint.

Step 5: Connect the power supply cable of the host box with the adapter.

2. Recess mounted into wall

According to the wall thickness, you can choose installation method A or B.

Method A: If the wall is thin, the host box and the shower control panel can be installed in a different position.

Method B: If the wall is thick, the host box and the shower control panel can be installed in the same position.

Installation step of method A:

Step 1: Open two-hole in the wall, and reserve space for the pipes and adapter.
Step 2: Drill four holes by 6mm diameter on the upside hole for install the wall bracket (as the picture) and put the plastic screw into the hole.

Step 3: Drill four holes by 8mm diameter on the downside hole for the host box installation and put the expansion screws into the hole.
Step 4: Install the wall bracket of the control panel and the host box in two holes, according to the pipe's position to set the host box position, adjust the screw of the wall bracket to make sure it is concave the wall surface with a 0.5-1 mm difference.

Step 5: Connect the water pipe and the power supply cable of the host box, get water supply to make sure the pipe has no leak. Connect the host box control cable to the control panel hole and fasten it, using the cement to seal the wall and cover it by the tiles.

Step 6: Connect the control cable between the host box and the control panel put some silicon on the back case of the control panel and put it on the wall bracket.
