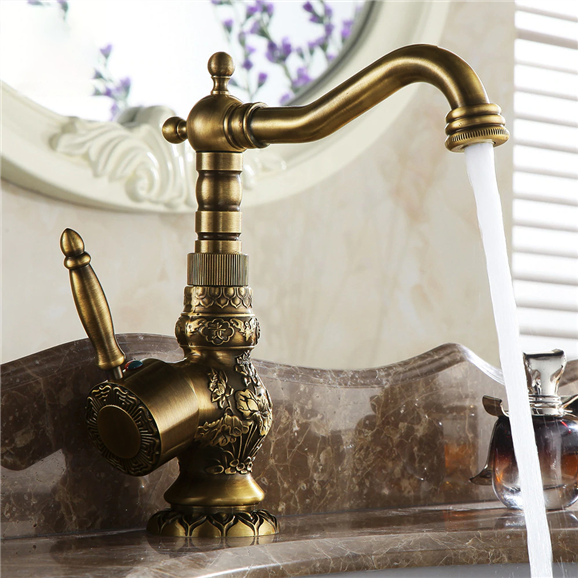

Installation Instructions for Venice Antique Brass Single Handle Faucet | BS-RBAS21
Single Handle Deck Mounted Sink Faucet

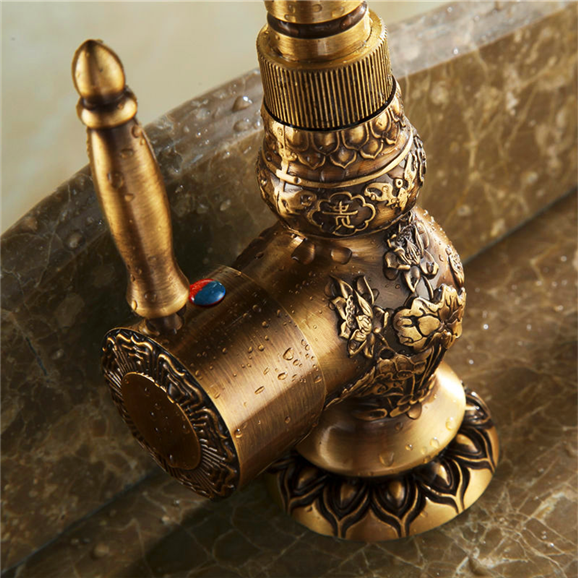

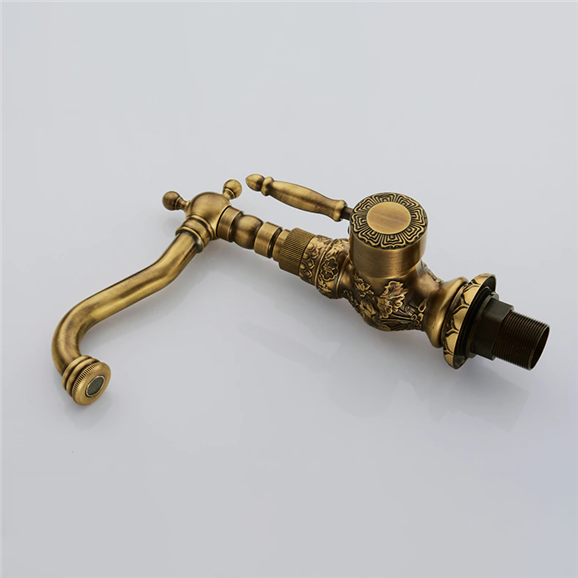

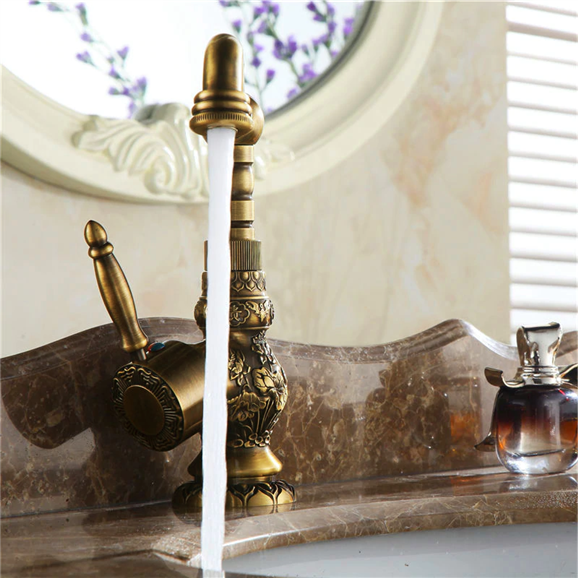

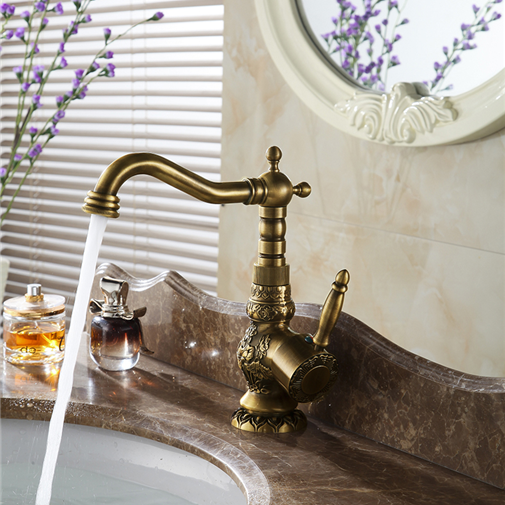

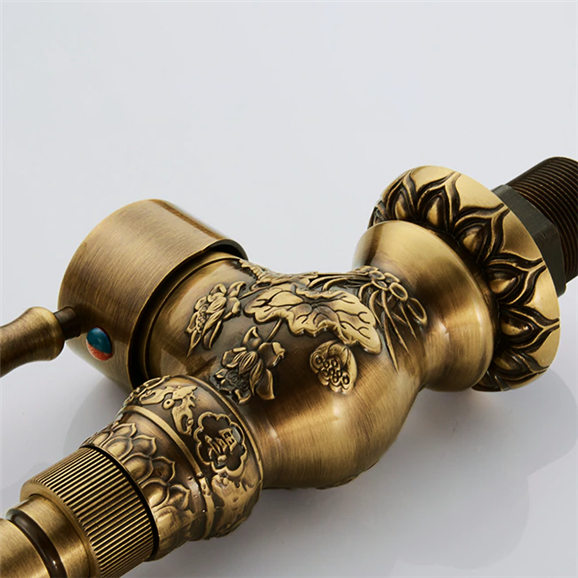

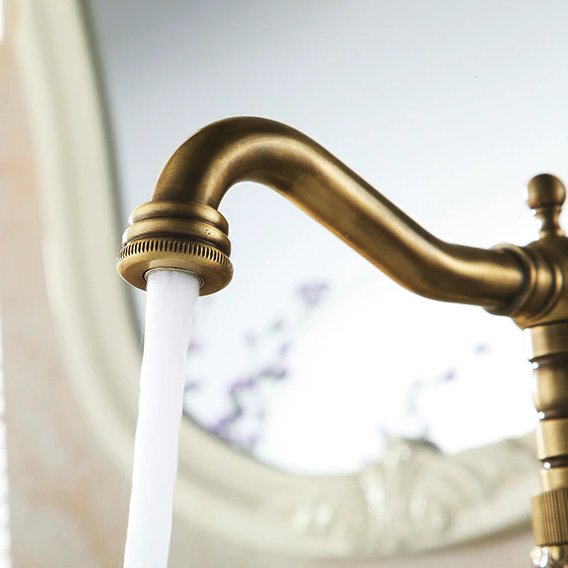

The unique design and the elegant brass antique finish make it a suitable choice for any modern upgrades. It has a single handle and a built-in hot and cold water mixer. It is easy to install – deck mount, only one hole required. Only the best quality materials have been used – the body is made of solid brass, while the valve core material is ceramic, for a long-lasting lifetime. It comes complete with accessories and installation instructions.
Features:
faucet
Brand: Fontana
Installation: Deck mount
Model: HD-267
Finish: Antique
Installation Holes: One Hole
Number of Handles: Single Handle
Finish: Antique
Style: Classical
Flow Rate: 1.4 Gal/Min
Working temperature: 0-90 degree
Valve Type: Ceramic Valve
Faucet center: Single Hole
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
Faucet Installation Instructions
Step 1:
sink faucet
Step 2:
faucet
Step 3:
Step 4:

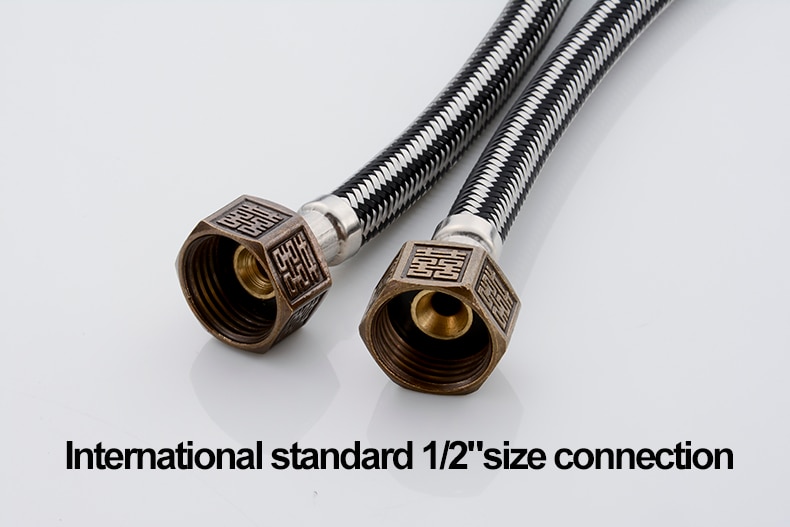

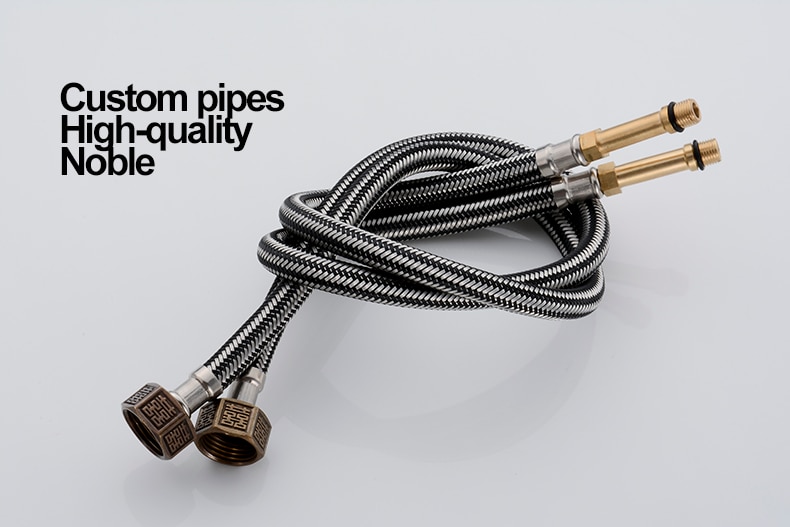

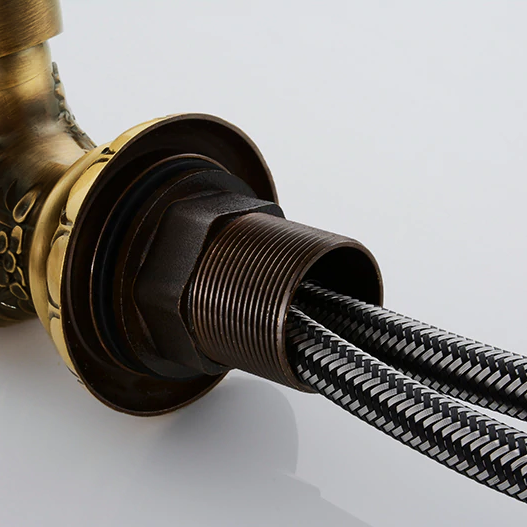

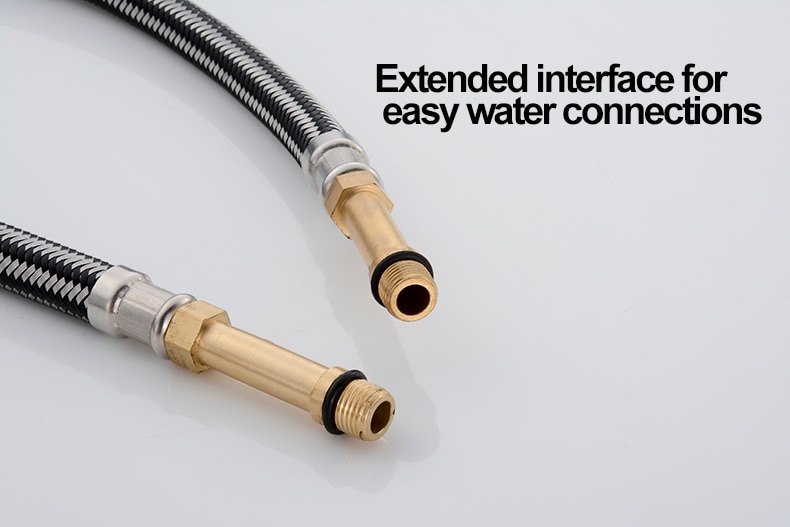

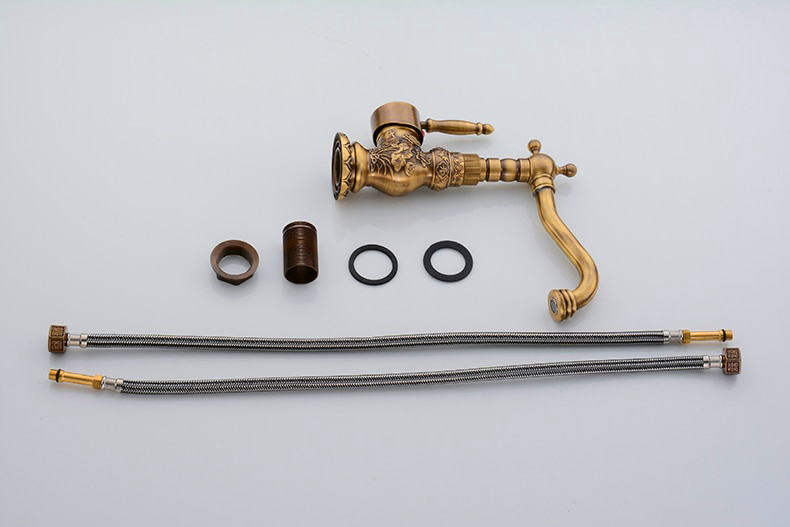

1. Remove the mounting nut, metal washer, and rubber washer from the threaded pipe. 2. Fit the O-ring into the groove of the faucet body. Screw waterlines into the corresponding screw-hole of the faucet body. 3. Insert waterlines and threaded pipe into the hole of the sink. 4. Install rubber washer, metal washer, and mounting nut back to the threaded pipe. Adjust the faucet body correctly and secure with mounting screws tightly. 5. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON). 6. Turn faucet on for 1 minute to flush any debris.
Important: Turn on hot and cold water supplies and flush water lines into a container for one minute. This flushes away any debris that could cause damage to internal parts.
