This oil-rubbed bronze shower combines color-changing LED rainfall with convenient single-handle operation. Its strengths include simple daily control, atmospheric lighting and a coordinated bronze finish. A single control offers less independent adjustment than multihandle arrangements, while bronze requires gentle cleaning. Correct cartridge orientation, valve depth, shower-head support and water-tight connections are critical. Test temperature range and LED performance before final use.

VIEW SINGLE-HANDLE INSTALLATION →

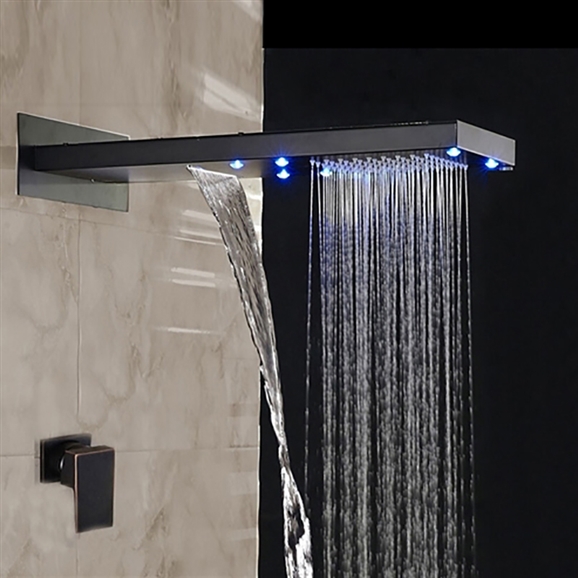

How To Install BathSelect Rainfall LED Color Changes Shower Faucet Single Handle Oil Rubbed Bronze Shower

BathSelect Shower Head

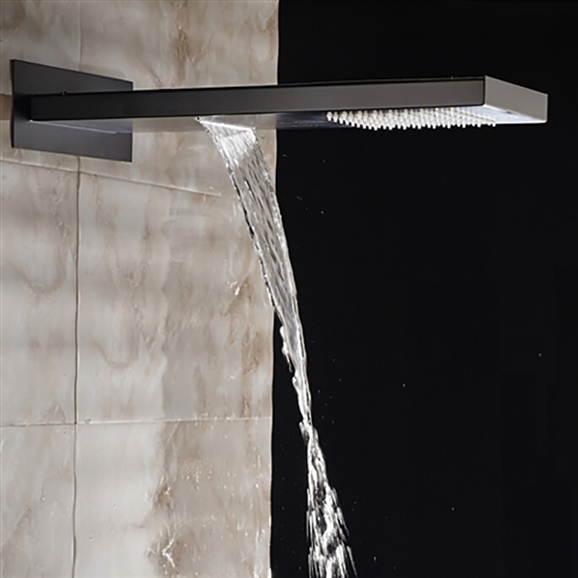

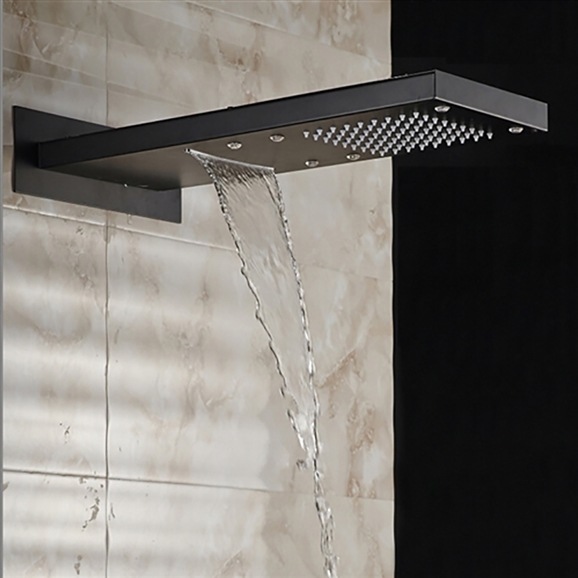

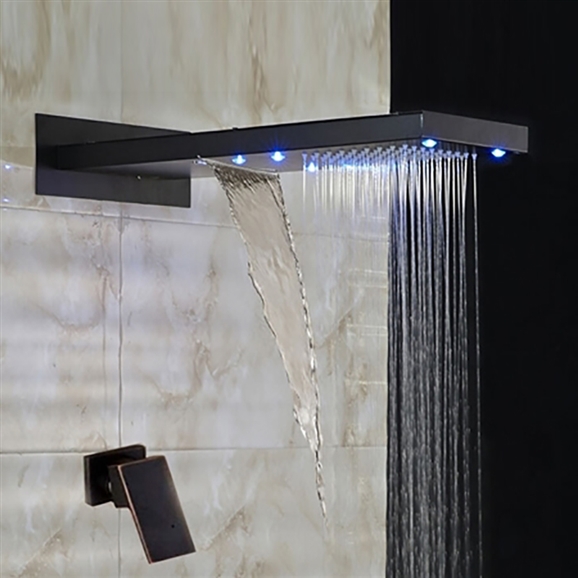

The BathSelect Rainfall LED Color Changes Shower Faucet Single Handle Oil Rubbed Bronze Shower has a modern luxurious look combined with a color-changing led that is a perfect match with any bathroom interior design. It has one single handle design where you can easily adjust temperature and volume to your preference. The rain shower head is made of solid stainless steel. It has 2 spray modes; rainfall & waterfall showerhead. It's a great experience showering with the water falling directly overhead like rain or waterfall, offering you the luxury and relaxing shower enjoyment. Easy wall-mount installation and easy to clean the spray holes with a touch of a finger

Features:		Visit Product Page
Type: Shower Set Brand Name: BathSelect Cold/Hot Water Control Type: Single Holder Dual Control Style: Classic Size: 5-7" [131-200 mm] Number of Handle: Single Handle Surface Treatment: Oil Rubbed Type: Fixed Type Valve Core Material: Ceramic Surface Finish: Oil Rubbed Bronze Bath & Shower Faucet Type: In-Wall Shower Feature: Water Powered LED Light Installation Type: Wall Mount Added Features: Call for Options Shower Head Material: Brass Shower Head Size: 21.6"9" [5523cm] Finish: Oil Rubbed Bronze Distance of center to center: 5.3"-6.7" (13.5cm-17cm) can be adjustable Shower height: 27.5"-47" (70-120cm) can be adjustable	shower

Important Note:

Before you begin, please read the installation instructions below. Observe all local building and safety codes.

Unpack and inspect the product for any shipping damages. If you find damages, do not install.

Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

FEATURE :

Showerhead Length	20"
Showerhead Width	8.6"
Material	Stainless Steel (304 US mirror)
GPM	2.5 GPM
Showerhead Style	RGB Contemporary Rain Shower

Shower Head Installation Instructions

Size:

Step 1: Step 2:

shower

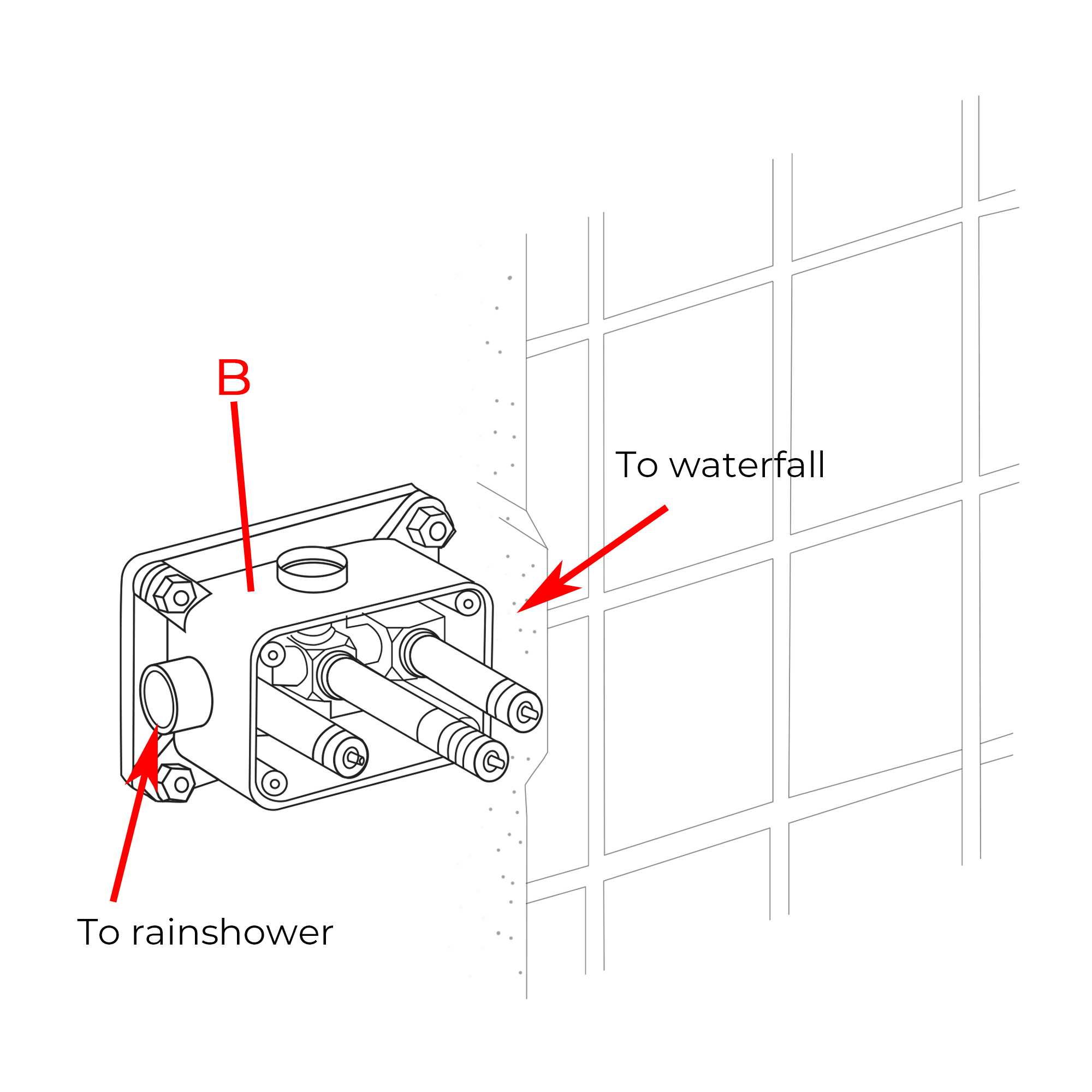

Remove the protective cover (F). Mark the positions and drill holes to suit the anchors (A). Install the anchors (A) and fix the rough-in valve (B) into the wall with screws. Use a level to ensure that the rough-in valve (B) is straight and level. (Important: Flush the water supply to remove any dirt and debris before installing the valve body).
Wrap Teflon tape around the pipe threads and connect water supply lines and in-wall pipes (not included) as desired to the rough-in valve (B). Turn on the water supply and open the cartridge to check for leakage. Then put on the protective cover and finish the wall surrounding the valve. (Note: Test the water pressure after the pipe connections have been made and before the finished wall material is installed).

Shower Head Installation Instructions

Step 3: Step 4:

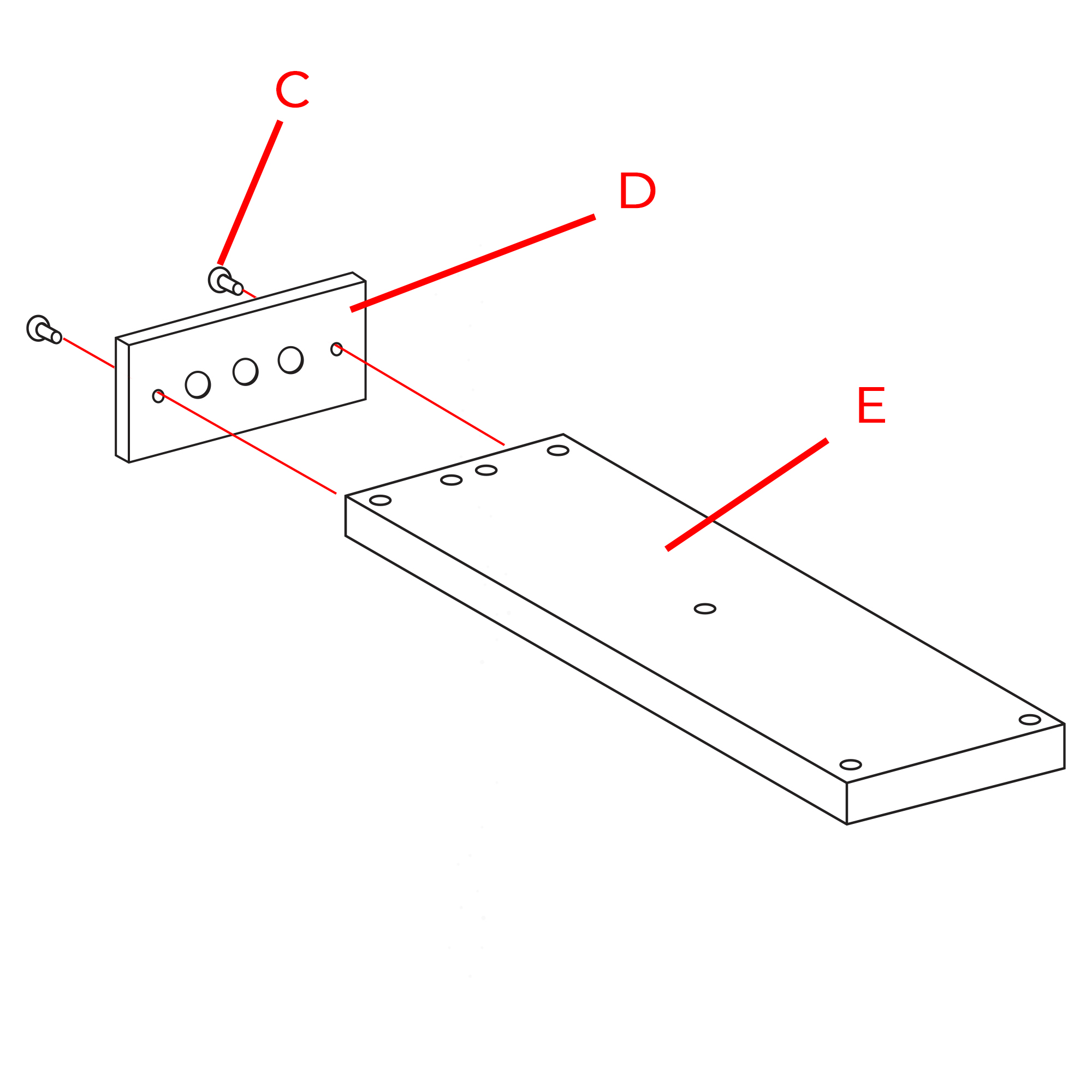

Fix the escutcheon (D) to the showerhead (E) with screws (C).
Remove the protective cover when the finished wall is completed. Then, install the showerhead (E) and press it against the finished wall.

Shower Head Installation Instructions

Open the top cover and drill according to the marked position.
Mark by the position of the four holes.
Take care to avoid wires and pipes to prevent damage.
Be sure to confirm that the four holes are on the same horizontal line.
Two inlet fittings are connected to the pipe joint of the wall; then the nut, expansion screw, and inlet pipe are connected.
Reinstall the top cover.

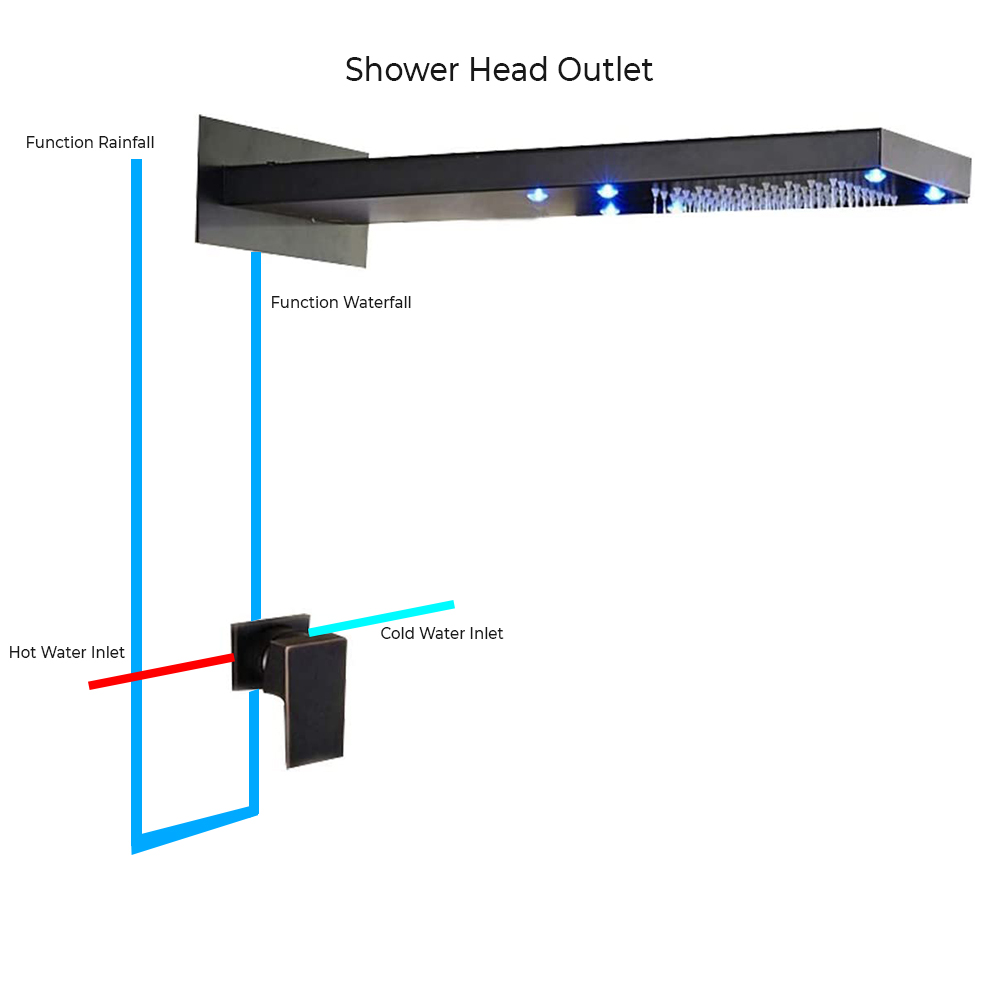

Shower Mixer Installation

STEP 1 :		STEP 2:


STEP 3 :		STEP 4 :


STEP 5 :
