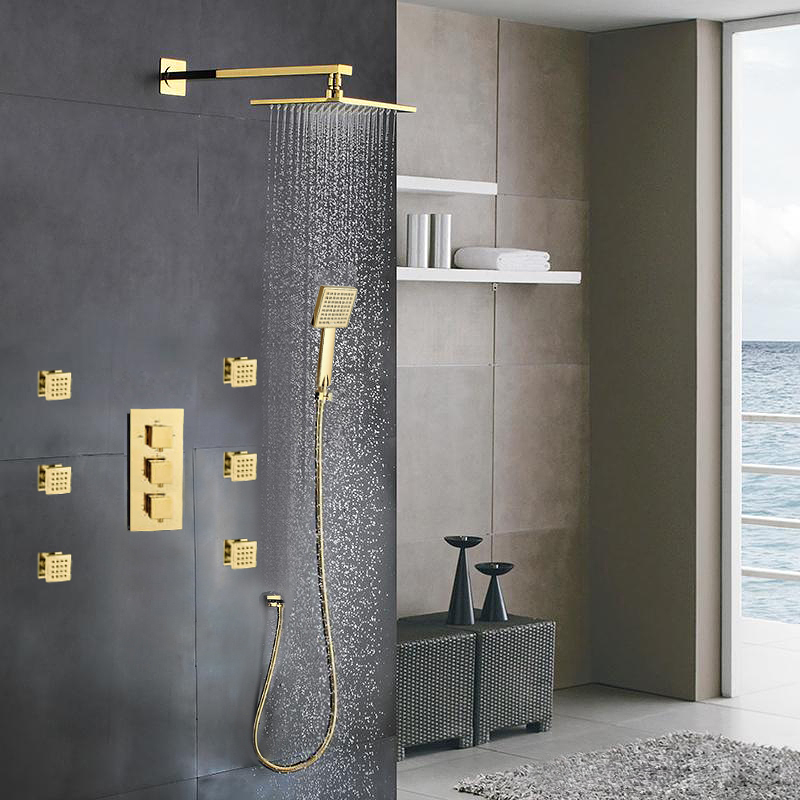

How to Install Napoli LED Rainfall Thermostatic Shower Set In Gold Finish | B617G
Enhance your modern bathroom with the Napoli LED Rainfall Thermostatic Shower Set, which comes complete with the Square/ Round ceiling mount or wall mount shower head with sizes you can choose from 8", 10", 12", 16", six square body jets and the thermostatic triple shower valve. Its LED light experience makes showering experience more soothing and relaxing. Its optimum design and innovative technology allow for voluminous soft droplets to make your showering experience a fun one. Constructed from solid brass and stainless steel with a high-quality gold finish, the thermostatic shower valve features stylish yet easy to use handles that control the flow and temperature of the water and a diverter that allows you to switch between the fixed head, hand shower or the body jets. Made from solid brass that looks sleek and modern but delivers a refreshing showering experience. The shower arm can be wall-mount or ceiling-mount that has been made from brass. The square body jets enhance the overall showering experience and provide an invigorating massage effect, while the hand shower with adjustable slide bar allows for easier rinsing and cleaning. The flow rate is 2.5 GPM. Easy installation, comes with all standard accessories. It is designed to be lightweight, durable and corrosion-resistant and has an automatic anti-scald device.
Features:
Visit Product Page
Brand Name: BathSelect
Model Number: B617G
Type: Shower Set
Finish: Gold
Shower Head Type: Fixed Rotated Type
Shower Head Size: available 8", 10", 12"& 16"
Standard plumbing connection-Shower panel unit is pre-plumbed
All functions work independently to ensure the proper water pressure
Ceramic Disc Technology
½" NPT Inlets and outlets compatible with standard US plumbing connections
Pre-set maximum temperature 104ºfThe recommended pressure for best performance 2 to 75 psi
The flow rate is 2.5 GPM
shower
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided.
Shower Head Installation Instructions
Ceiling Mount Shower Installation Instructions
Step 1:
Step 2:
shower installation
Step 3:
Step 4:
Step 5:
Step 6:
Step 1: Take Out the Old Shower Head You can easily remove it by hand, but depending on how long the rain showerhead has been installed, you might need to use an adjustable wrench. Hence, if you find it difficult to remove, rotate the showerhead with an adjustable wrench in a counterclockwise direction to unscrew it.
Step 2: Keep the Shower Arm Clean and In Good Shape After you have removed the head, check the shower arm threads for any debris and old Teflon tape. If you find any, remove it and clean them off thoroughly. It’s best to use a microfiber cloth when cleaning the thread because it removes Teflon tape perfectly and works great to pick up tiny grits. Once you’re done cleaning, check if it is corroded or leaking. For damaged threads, it will be best you replace it entirely so you can have a comfortable shower experience any time.
Step 3: Time to Add New Teflon Tape Since you have removed the old Teflon tape, you have to replace it with new ones. The reason is that this tape helps to protect the shower from leaking after installing the showerhead. Now apply the new Teflon tape about 3-5 turns on the thread and tear the end part. Use your hands to smooth it out to keep it leveled to the thread. Keep in mind that when applying the tape, you should go in a clockwise motion so that it doesn’t come off when you attach the head in the same direction.
Step 4: Connect the Showerhead As said earlier in the tools needed, we’re using the rubber sealing washer that comes with the showerhead. This tool helps to make the showerhead stay watertight and secured on to the thread. Ensure you place it properly before installing it. After that, reconnect the shower head and tighten it down with your hands. You can employ a chair or ladder to make things easier for you.
Step 5: Tighten the Showerhead On To the Thread You will need to get the adjustable wrench handy to tighten down the shower very well. But make sure you wrap the threads with a terry cloth, so it doesn’t damage the finish when tightening the showerhead. Once you have done that, now use the adjustable wrench to tighten down the showerhead. However, don’t over-tight or force it so that it’s easier to remove in the future.
