Installation Manual For Catania Allure Digital Led Waterfall Shower Set

BathSelect Catania Allure Digital Led Waterfall Shower Set

The Ultimate Bath Showering Experience Durable, dependable and with the luxury of a solid brass rough-in valve. It has been vigorously tested by our professional team of US showerhead experts to highest US quality and performance standards. Different bronze color finishes you can choose on and It comes with a durable easy-to-turn smart controller. The LED ceiling power adapter is between 90-250V. The water flow will be around 15-70 L/min. The surface treatment of the showerhead is polished. It comes super seal technology inside, capable of delivering superior performance with solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time.

BathSelect Catania Allure Digital Led Waterfall Shower Set Features:

Brand Name: BathSelect
Model Number: BST-FT005-N
Material: Solid Brass
Water Flow: Rainfall
Length Size: 20"
Width Size"14"
Finish: Chrome
LED Power Source: Water Flow
Showerhead Style: Contemporary Rain Shower
Feature: Lightweight, durable and corrosion-resistant
Installation Type: Ceiling Mount
Minimum Pressure Required: 29 psi
Maximum Pressure Required: 72.7 psi.
Plumbing Connection: US Standard
Preset Maximum Temperature: 104ºf Automatic Anti Scald Device
Inclusion: All Standard Accessories.
Control: Digital Smart Valve Mixer
Hand Held Shower Hose Length: 1.5m
Led Color: Blue, Red, Green

BathSelect® Manufacturer Warranty Information

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

shower

Recessed Shower Head Installation

Step 1	shower	Step 2	shower
Step 3

Step 1

According to the dimensions and shape of the mounting bracket, determine the bracket location to be installed in the ceiling.

Attention

1. Open packages, check all the goods whether everything is ok.

2. Check the size of the connector and the thread size of the water pipes connector in the wall.

3. Clean the water pipes before installing them.

4. At least 2 water electricians to install the showerhead.

5. Pay attention to the water temperature, not over 70 degrees.

6. Water pressure: 0.05 MPA - 0.5 MPA.

7. Adapter is 100-265 V to 12 V, insurance device rated current less than 30 MA.

Step 2:

According to the four mounting holes on the mounting bracket, use Electric drill play mounting holes.
a) Through the two hexagonal nuts adjust the distance between the mounting bracket and the ceiling, and keep the mounting bracket on the level.
b) Use explosion screw fixed mounting bracket on the ceiling, pay attention to the explosion screw can adjust the height, and use level adjust the mounting bracket to level.

Step 3: Connect 1 pcs water hose to 1 Tee Joints and G1/2, G1/2 joint in the middle, then put another side of the shower hose through the hole of shower head size.
Step 4: Install the decorative panel, use SW4 hexagon wrench tighten 4 screws.

Hand-Held Shower Instructions

Step 1:		Step 2:		Step 3 & 4:
	Hand Held Shower		Hand Held Shower
Handheld Shower		Handheld Shower		Handheld Shower
Step 5:		Step 6 & 7:		Step 8:

Remove Front Cover (A) from Wall Mount (B). Use Wall Mount Screw Holes (C) to place the desired location. Using a punch or awl, tap the screw hole locations.

Holes must be vertically aligned.

3. ANCHOR INSTALLATION

Drill two 1/4” dia. Holes (A). If installing into a studs drill two 1/8” dia. holes and do not use Anchors (B). Insert Anchors (B) into Holes (A) and tap flush with the wall.

4. WALL MOUNT INSTALLATION

Place Wall Mount (A) into wall and inset Mounting Screws (B) through Wall Mount Holes (C) and tighten until Wall Mount (A) is flush with the wall.

Do Not Over Tighten! Insert Front Cover (D) into Wall Mount (A)

5. DROP ELBOW & HOSE INSTALLATION

Apply PTFE plumbers tape on both ends of Pipe Nipple (A) (not included). Screw Pipe Nipple (A) into the elbow inside the wall.

The Pipe Nipple (A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (B) onto Pipe Nipple (A) and tighten until Drop Elbow (B) is property positioned and flush to the finished wall.

Place Rubber Seal (C) inside Hex Hose Fitting (D). Connect Hex Hose Fitting (D) into Drop Elbow Outlet (E) by turning Hex Hose Fitting (D).

6. UNIT STARTUP

Turn on hot and cold water supplies, and check all connections for leaks.

7. FINAL FLUSHING

For final flushing, turn the valve on and allow water to run through the Hose (A) for several minutes.

Allow water to run for several minutes until all foreign matter clears the line.

8. SHOWER ARM INSTALLATION

Place Rubber Seal (A) inside Tapered Hose Fitting (B). Conned Hand Shower (C) to Hose (D) by turning Tapered Hose Fitting (B ) clockwise.

Warning: Make sure Hand Shower (C) is securely tightened to Hose (D).

style="">

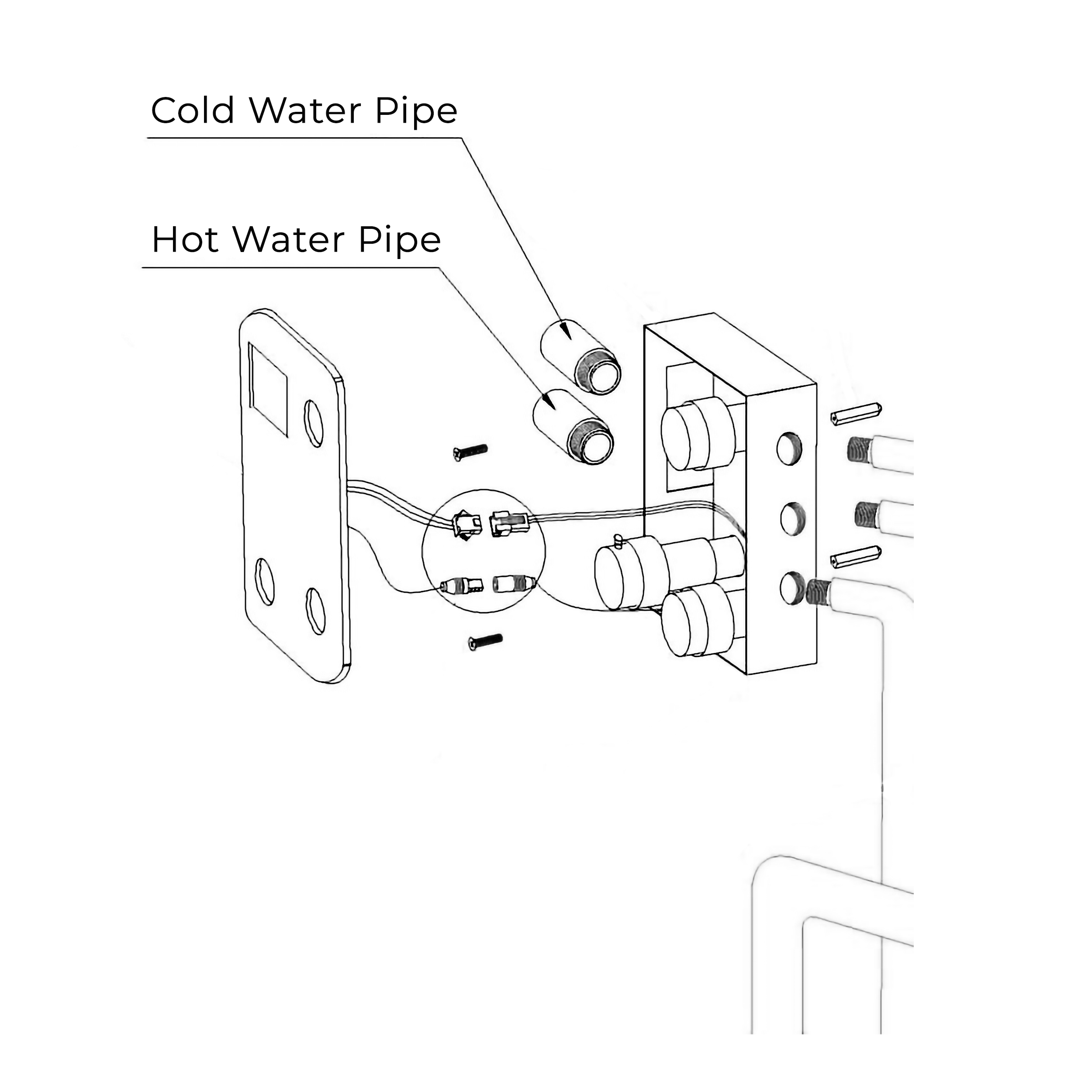

Digital Shower Mixer Installation

These two connections can be connected directly. And pressing part, then can disconnect then.
