BathSelect Timber Spa Collection – Engineering Specification and Design Requirements
Solid Oak Vanities | Stone Vessel Sinks | Spa Collections | Commercial Grade
BathSelect Timber Spa: Engineering Natural Materials for Lasting Performance in Hospitality Environments
The Timber Spa collection represents the pinnacle of natural material engineering, combining solid oak construction with precision stone fabrication for hospitality, luxury residential, and commercial spa applications.
Key engineering features:
- • Solid white oak construction with moisture-resistant engineering
- • Natural stone vessel sinks (marble, granite, travertine options)
- • Coordinating faucets and accessories in multiple finishes
- • Furniture-grade joinery with soft-close hardware
- • Full CAD, BIM, and specification documentation
Solid Oak Construction
FSC Certified Available
Natural Stone
Soft-Close Hardware
Water-Resistant Finish
Commercial Grade
ENGINEERING DIAGRAM: Timber Spa vanity showing solid oak construction, dovetail joinery, and stone sink integration.
Timber Spa: Where Natural Materials Meet Precision Engineering
Each piece is engineered from select materials and crafted to withstand the demands of high-end hospitality while maintaining natural beauty.
Solid Oak Vanities
Furniture-grade white oak with moisture-resistant finish

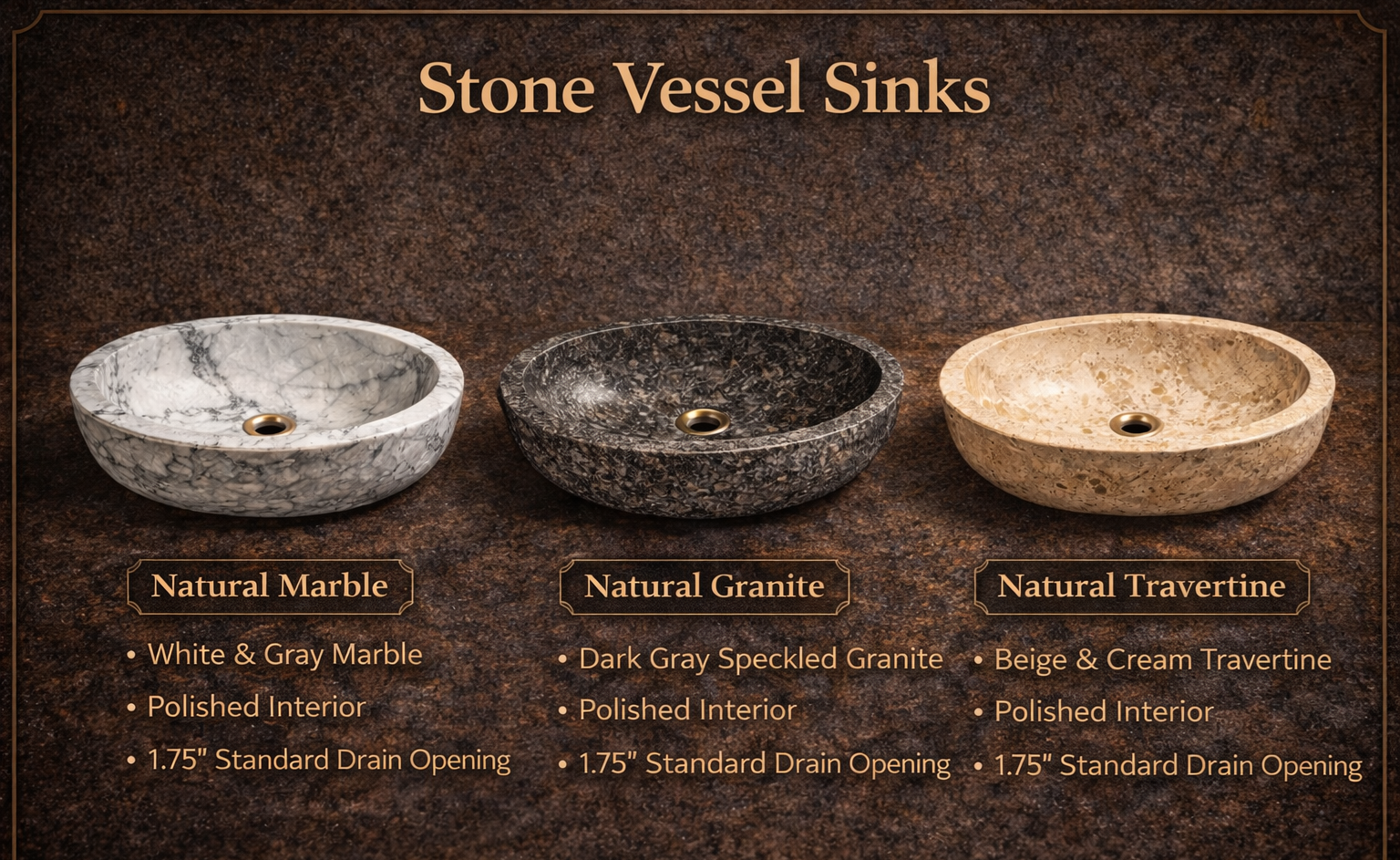

Stone Vessel Sinks
Natural marble, granite, and travertine options
Soft-Close Hardware
Precision-engineered drawer slides and hinges

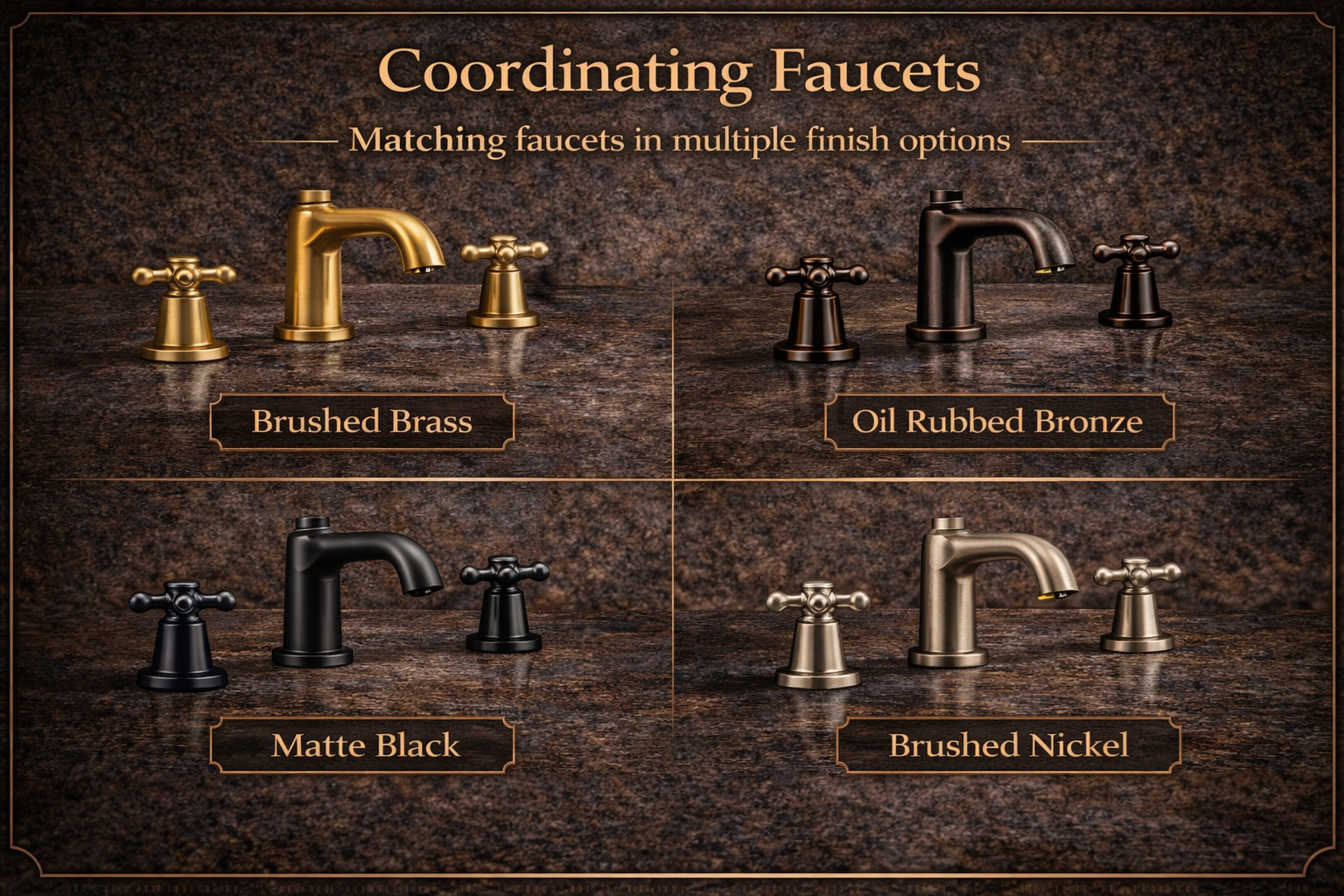

Coordinating Faucets
Matching faucets in multiple finish options
Materials Engineering and Construction
Solid Oak Engineering
Timber Spa vanities are constructed from solid white oak (Quercus alba) selected for dimensional stability and natural beauty. Kiln-dried to 6-8% moisture content for optimal performance in bathroom environments. Furniture-grade joinery includes dovetail drawers and mortise-and-tenon frame construction.
Stone Sink Engineering
Natural stone vessel sinks are precision-cut from select marble, granite, and travertine. Each sink is sealed with penetrating stone sealer to resist staining and moisture absorption. Wall thickness minimum 12mm for durability. Polished or honed finishes available.
Finish Engineering
Multi-layer catalyzed lacquer finish provides moisture resistance while allowing natural wood grain to show. Tested to 500 hours moisture exposure. Available in natural, walnut, and weathered gray stains. All finishes are low-VOC and compliant with commercial indoor air quality requirements.
Engineering Diagrams & Technical Visuals
Engineering Specifications
Vanity Construction
- Material: Solid white oak (Quercus alba), kiln-dried
- Joinery: Dovetail drawers, mortise-and-tenon frame
- Hardware: Soft-close drawer slides, European hinges
- Finish: Multi-layer catalyzed lacquer, low-VOC
- Moisture resistance: 500 hours tested
- Weight capacity: 200 lbs drawer capacity
Stone Sink Specifications
- Materials: Marble, granite, travertine options
- Wall thickness: 12mm minimum
- Finish: Polished or honed
- Sealer: Penetrating stone sealer included
- Drain size: Standard 1.75" or 1.5" with overflow
- Weight: 25-40 lbs depending on size
Code Compliance and Standards
| Wood Sourcing | FSC Certified available upon request. Chain of custody documentation provided. |
|---|
| Indoor Air Quality | CARB Phase 2 compliant. Low-VOC finishes meet LEED v4 requirements. |
|---|
| Stone Standards | ASTM C503 for marble, ASTM C615 for granite. Certified for dimensional stability. |
|---|
| Accessibility | ADA 2010 Standards compliant models available with appropriate knee clearance. |
|---|
| Plumbing Codes | All faucets and drains meet ASME A112.18.1 and NSF 61 requirements. |
|---|
| AEC Documentation | CAD, BIM, cut sheets, submittals, and installation manuals included. All documentation available at BathSelect Technical Library. |
|---|
Primary Engineering References
FSC Certified
CARB Phase 2
LEED v4
ASTM C503
ASTM C615
ADA 2010
ASME A112.18.1
NSF 61
Installation and Rough-In Requirements
Vanity Installation
- Wall reinforcement: Required for wall-mount models. Provide blocking between studs.
- Floor-mount: Leveling feet included for uneven floors.
- Plumbing rough-in: Standard 8" or 12" centers. Verify sink drain location.
- Clearance: Minimum 30" width for ADA compliance.
- Ventilation: Maintain 1/4" per foot slope for drain lines.
Stone Sink Installation
- Support: Full perimeter support required. Use stone clips or adhesive.
- Sealant: 100% silicone sealant recommended. Allow 24-hour cure time.
- Drain rough-in: Standard 1.5" or 1.75" drain. Verify sink drain size.
- Faucet holes: Pre-drilled for standard 4" centers or single-hole.
- Overflow: If sink has overflow, verify drain compatibility.
Technical Specifications – Timber Spa Collection
| Collection Type | Complete bathroom suites including vanities, sinks, faucets, and accessories |
|---|
| Vanity Materials | Solid white oak, kiln-dried to 6-8% moisture content |
|---|
| Sink Materials | Natural marble, granite, travertine. Minimum 12mm wall thickness. |
|---|
| Vanity Sizes | 24", 30", 36", 48", 60", 72" widths. Custom sizes available on request. |
|---|
| Sink Configurations | Single vessel, double vessel, undermount, integrated |
|---|
| Finish Options | Natural oak, walnut stain, weathered gray. Custom stains available. |
|---|
| Stone Finishes | Polished, honed, leathered. Multiple stone varieties available. |
|---|
| Hardware | Soft-close drawer slides, European hinges. 200 lb load capacity. |
|---|
| Faucet Compatibility | Standard 4" centers or single-hole. All BathSelect faucets compatible. |
|---|
| Certifications | FSC available, CARB Phase 2, LEED v4 contributing, ADA options |
|---|
| Warranty | Limited lifetime (residential), 5-year limited (commercial) |
|---|
Timber Spa Specification Checklist
Codes & Standards
- ☐ FSC certification required?
- ☐ CARB Phase 2 compliance
- ☐ LEED v4 contribution
- ☐ ADA compliance (if required)
- ☐ Local code amendments
Material Selection
- ☐ Wood species (oak standard)
- ☐ Stain color specified
- ☐ Stone type selected
- ☐ Stone finish (polished/honed)
- ☐ Faucet finish coordinated
Installation
- ☐ Vanity size confirmed
- ☐ Wall reinforcement verified
- ☐ Plumbing rough-in locations
- ☐ Drain size compatibility
- ☐ Access requirements met
Timber Spa Collection Models (15 Total)
The following 15 models represent the complete Timber Spa collection, engineered for various applications from luxury hotels to luxury residential spas.
TSP-1000 – 24" Solid Oak Vanity
Compact single sink vanity. Solid oak construction. Soft-close drawer. Natural oak finish. Marble vessel sink included.
TSP-1001 – 30" Solid Oak Vanity
Single sink vanity with soft-close doors and drawer. Solid oak. Natural finish. Granite vessel sink included.
TSP-1002 – 36" Double Door Vanity
36" vanity with two doors and soft-close drawer. Solid oak. Walnut stain. Travertine vessel sink included.
TSP-1003 – 48" Double Sink Vanity
48" double sink vanity. Two soft-close drawers and doors. Solid oak. Weathered gray finish. Marble sinks.
TSP-1004 – 60" Double Sink Vanity
60" double sink with extensive storage. Four drawers, two doors. Solid oak. Custom stain available.
TSP-1005 – 72" Double Sink Vanity
72" commercial-grade double sink vanity. Heavy-duty construction. Solid oak. Suitable for hospitality.
TSP-1006 – Wall-Mount Vanity 30"
Space-saving wall-mount design. Solid oak. Natural finish. Marble vessel sink. ADA compliant.
TSP-1007 – Wall-Mount Vanity 36"
36" wall-mount vanity with soft-close doors. Solid oak. Weathered gray. Granite vessel sink. ADA.
TSP-1008 – Marble Vessel Sink
12mm thick Carrara marble. Polished finish. 16" round. Standard 1.75" drain opening.
TSP-1009 – Granite Vessel Sink
Black Absolute granite vessel. Polished finish. 18" round. 12mm thickness. Standard drain.
TSP-1010 – Travertine Vessel Sink
Natural travertine with honed finish. 16" round. Filled and sealed. Standard drain.
TSP-1011 – Coordinating Faucet Chrome
Widespread faucet in Polished Chrome. Ceramic disc cartridge. Solid brass. 1.2 GPM.
TSP-1012 – Coordinating Faucet Nickel
Single-hole faucet in Brushed Nickel. 1.2 GPM. Solid brass. Ceramic cartridge.
TSP-1013 – Coordinating Faucet Bronze
Wall-mount faucet in Oil Rubbed Bronze. 1.2 GPM. Solid brass. For vessel sinks.
TSP-1014 – Rectangular Vessel Sink
18" x 13" rectangular marble sink. Polished. Standard drain. Coordinates with all vanities.
🌲
Digital Resources & Technical Documentation
Where can I download BIM/CAD and installation manuals?
Access the complete BIM library, installation manuals, CAD drawings, and specification sheets for all Timber Spa models.
📐
BIM / CAD Library
Download Revit families, CAD blocks (DWG/DXF), and 3D models for all Timber Spa vanities and sinks.
RFA / DWG / DXF
📄
Installation Manuals (PDF)
Step-by-step installation instructions, rough-in diagrams, and technical specifications.
PDF
🎥
Installation Videos
Visual guides for vanity installation, stone sink mounting, and faucet rough-in procedures.
MP4 / YouTube
AEC Resources and Specification Support
Technical Documentation Library
Project Coordination
For hospitality projects, we offer custom sizing, finish matching, and consolidated submittal packages.
Specification Support: [email protected]
Hospitality Desk: (888) 555-1234 ext. 3
Frequently Asked Questions: Engineering & Specification
What wood is used for Timber Spa vanities?
+
All Timber Spa vanities are constructed from solid white oak (Quercus alba) selected for dimensional stability and natural beauty. Wood is kiln-dried to 6-8% moisture content for optimal performance in bathroom environments.
Are FSC-certified options available?
+
Yes. FSC-certified oak is available upon request. Chain of custody documentation can be provided for LEED v4 contributions.
What stone types are available?
+
Timber Spa offers Carrara marble, Absolute Black granite, and natural travertine. Custom stone types available for volume projects.
What is the weight capacity of drawers?
+
All drawers feature soft-close slides rated for 200 lbs (90 kg) load capacity.
Are vanities suitable for commercial use?
+
Yes. Timber Spa vanities are engineered for hospitality and commercial applications with 5-year commercial warranty.
What finish options are available?
+
Standard finishes: Natural oak, walnut stain, weathered gray. Custom stains available.
Are ADA compliant models available?
+
Yes. Wall-mount models (TSP-1006, TSP-1007) and select floor-mount models meet 2010 ADA Standards.
Can I get custom sizes?
+
Yes. Custom sizes are available for hospitality and commercial projects. Contact specification support.
Where can I download BIM/CAD files?
+
|
|
