17 Engineering Specifications to Evaluate Before Buying a Thermostatic Shower System

A complete technical evaluation guide for architects, engineers, developers, hospitality groups, and luxury residential specifiers selecting thermostatic shower systems for performance, compliance, safety, and lifecycle durability.

Thermostatic Mixing Valves Anti-Scald Protection Flow & Pressure Balancing Commercial Compliance

Watch Engineering Overview Explore the 17 Specs

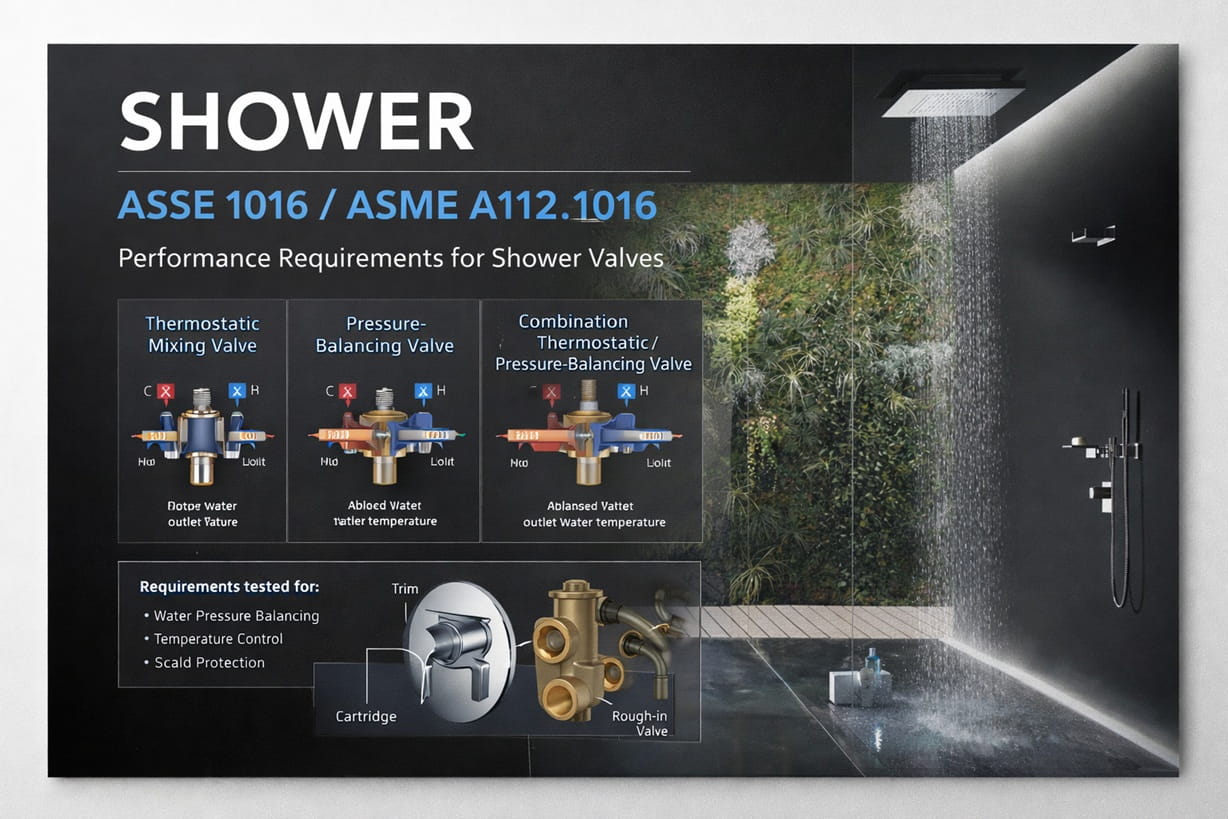

ASSE 1016 / ASME A112.1016

Performance Requirements for Shower Valves

Defines temperature control accuracy, pressure compensation, and anti-scald safety requirements.

View Standard →

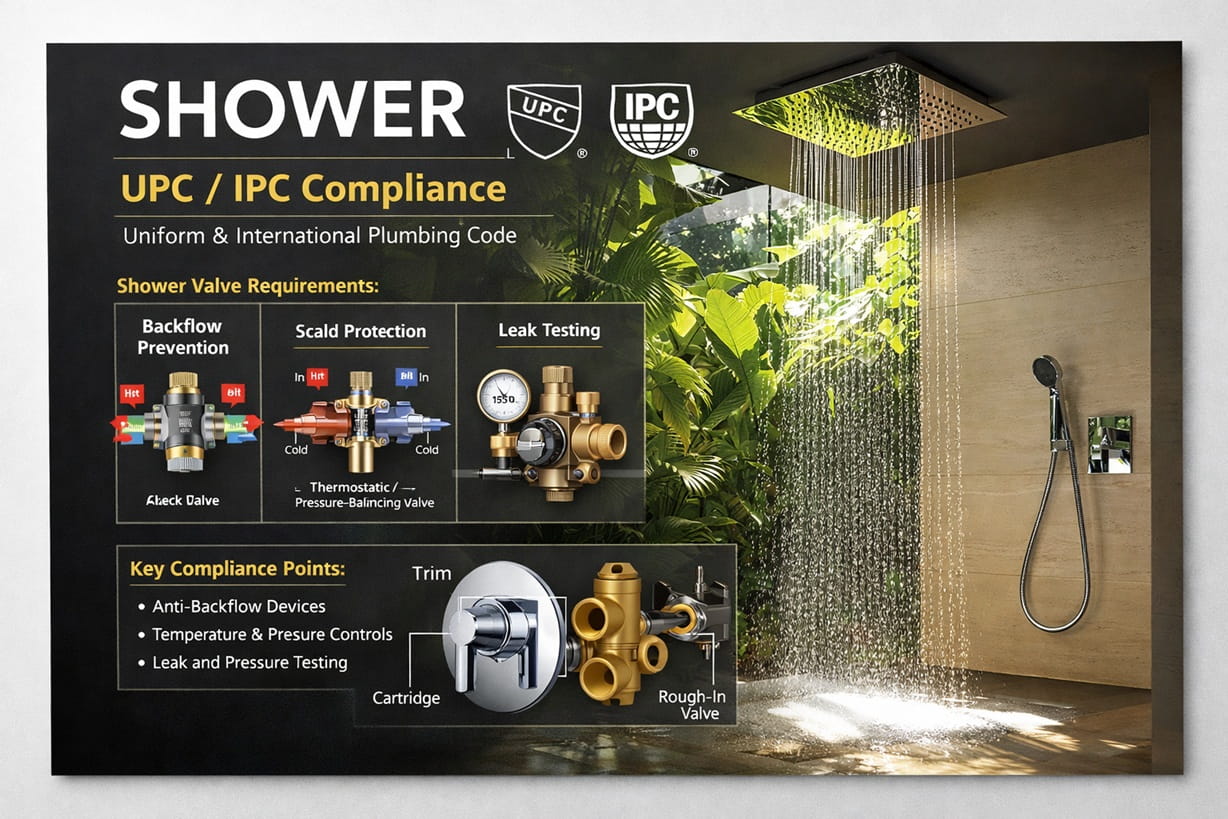

UPC / IPC Compliance

Uniform & International Plumbing Code

Verify approved valve listings and maximum temperature limits for occupancy type.

UPC IPC

CSA / cUPC

Third-Party Certification

Independent testing validates temperature stability, pressure compensation, and safety shutoff thresholds.

Verify Certification →

Thermostatic Shower System Types

Choose the correct engineering platform before evaluating specifications.

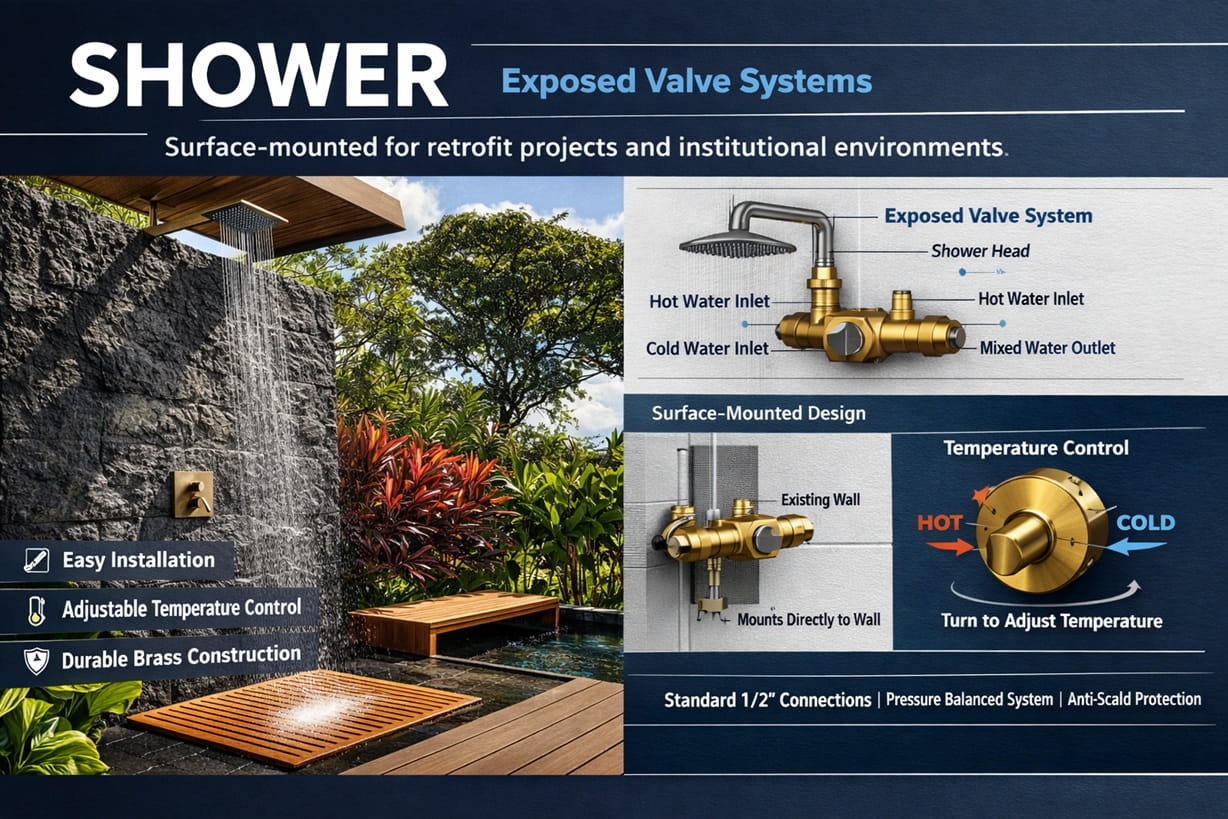

Exposed Valve Systems

Surface-mounted for retrofit projects and institutional environments.

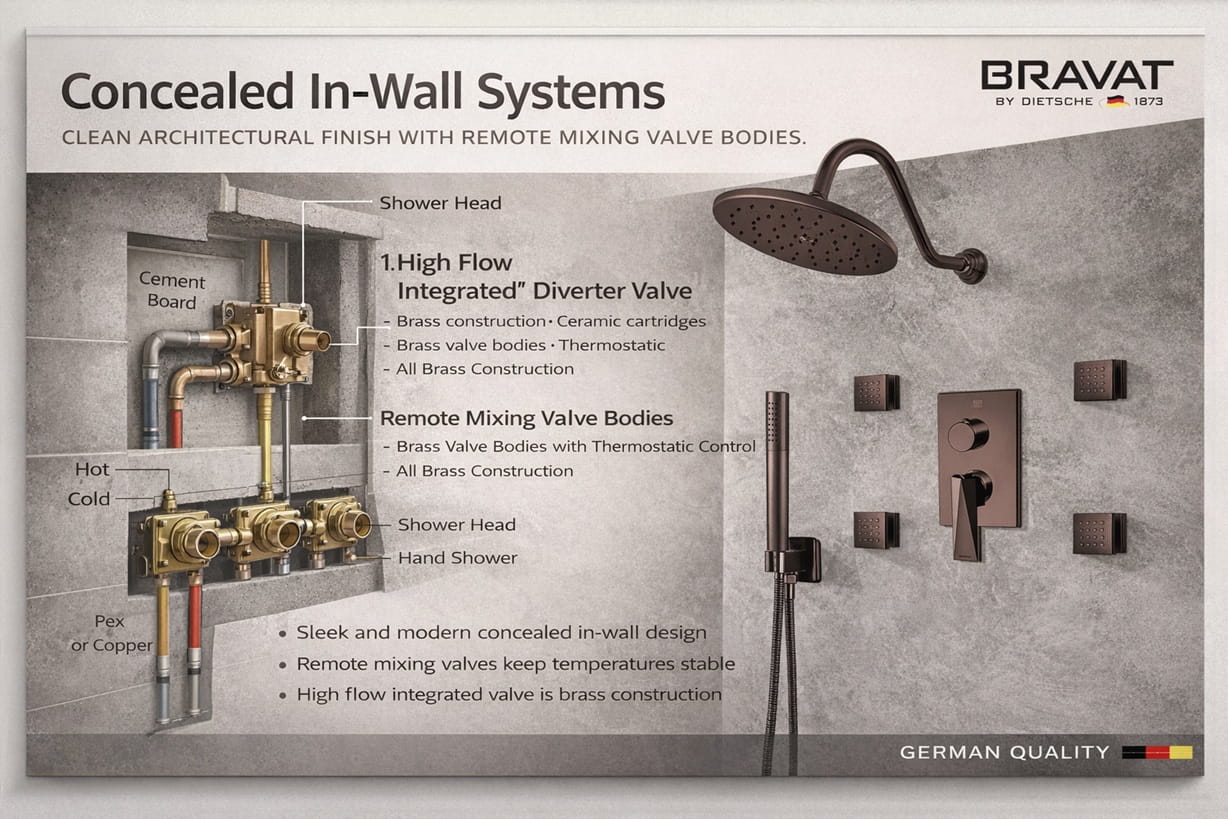

Concealed In-Wall Systems

Clean architectural finish with remote mixing valve bodies.

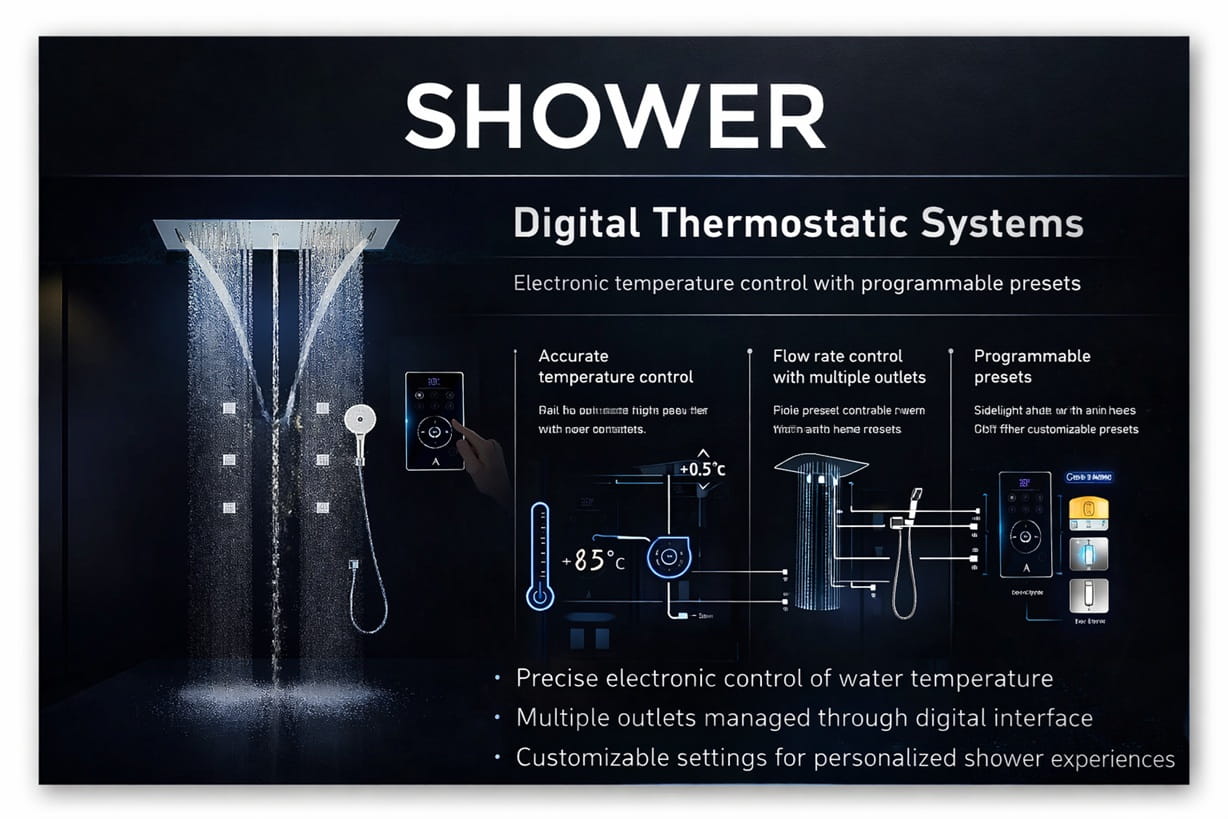

Digital Thermostatic Systems

Electronic temperature control with programmable presets.

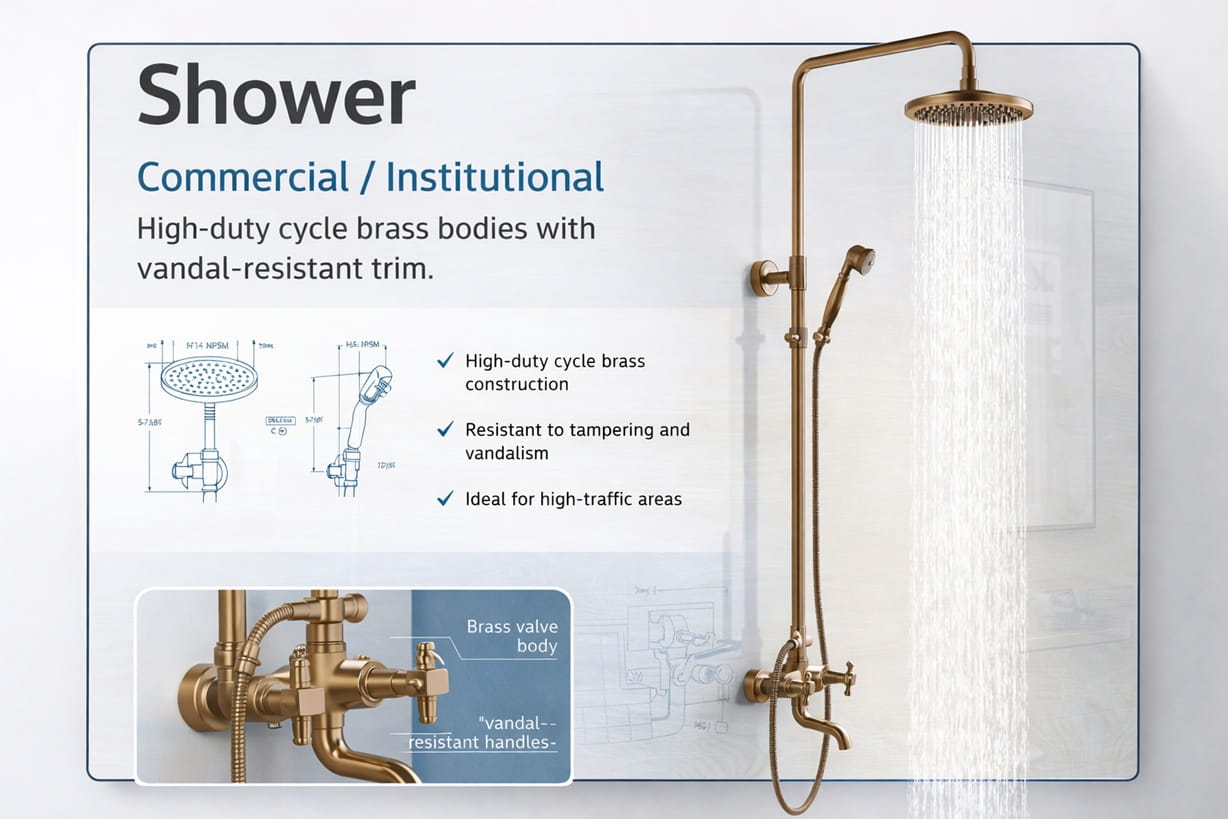

Commercial / Institutional

High-duty cycle brass bodies with vandal-resistant trim.

Thermostatic shower specification should be evaluated as a hydraulic and temperature-control system rather than as a collection of visible shower outlets. Engineers and hospitality design teams should coordinate available hot- and cold-water pressure, simultaneous outlet demand, valve flow capacity, thermostatic cartridge response, pressure loss, temperature-stop settings, check-valve strategy, concealed service access, and the operating sequence of rainfall heads, handheld showers, body sprays, and other connected functions. Project teams can compare BathSelect thermostatic shower systems for controlled-temperature applications, review smart and dual shower configurations where thermostatic control must support multiple water-delivery zones, and evaluate complete shower systems with coordinated valves, diverters, rainfall outlets, handhelds, and body sprays when translating fixture selections into valve sizing, supply planning, commissioning requirements, and maintainable concealed-wall assemblies.

The 17 Critical Engineering Specifications

Temperature Accuracy ±1–2°F

Ensures stable outlet temperature despite supply pressure changes.

Response Time

Valve must compensate within 1–2 seconds during pressure fluctuations.

Anti-Scald Shutoff

Automatic cold-water fail-safe protection.

Flow Rate Capacity

Minimum 6–12 GPM for multi-outlet luxury systems.

Minimum Operating Pressure

Typically 20–30 PSI; verify for low-pressure buildings.

Maximum Working Pressure

Rated up to 145 PSI or greater.

Thermostatic Cartridge Material

Wax element vs. bi-metal vs. digital sensors.

Body Construction

Solid brass, dezincification-resistant (DZR), or stainless steel.

Serviceability Access

Front-access cartridge replacement preferred.

Integral Check Valves

Prevents cross-flow contamination.

Volume Control Separation

Independent volume vs temperature adjustment.

Temperature Stop Limit

Factory preset at 100–110°F adjustable onsite.

Thermal Disinfection Capability

Supports periodic 160°F flushing (healthcare).

Pressure Drop Rating

Evaluate Cv values for system design.

Noise Rating

Acoustic classification for hospitality projects.

Finish Durability

PVD vs electroplated coatings.

Warranty & Lifecycle Rating

Minimum 10–15 year mechanical warranty recommended.

Engineering Explainer Videos

Lifecycle Maintenance Plan

Interval	Task	Purpose
Annually	Inspect cartridge & seals	Maintain temperature accuracy
Every 2–3 Years	Replace thermostatic element	Prevent drift or slow response
As Required	Descale internal components	Maintain flow performance

Frequently Asked Engineering Questions

What is the difference between pressure-balancing and thermostatic valves?

Pressure-balancing reacts to pressure only; thermostatic valves regulate actual outlet temperature regardless of supply variation.

What temperature accuracy should be specified?

High-quality valves maintain ±1–2°F accuracy under dynamic load conditions.

Are thermostatic systems required for healthcare?

Yes. Healthcare and senior living typically mandate thermostatic mixing valves with anti-scald fail-safe.

Can thermostatic valves support multi-outlet showers?

Yes, provided flow capacity and Cv ratings match total fixture demand.
