12 Performance Metrics That Define a High-Efficiency Rainfall Shower Head

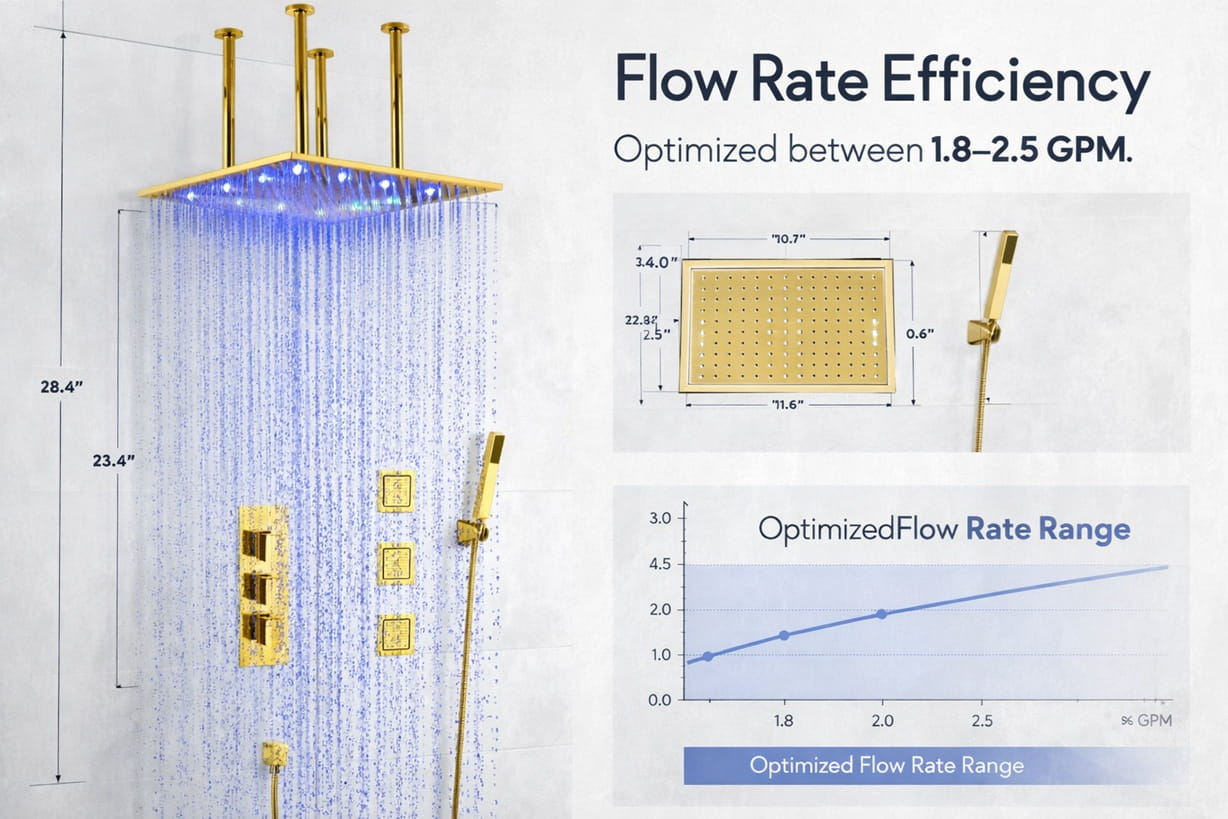

What is the ideal GPM for a high-efficiency rainfall shower head?

The optimal flow rate typically ranges between 1.8 and 2.0 gallons per minute to balance hydraulic density and regulatory compliance. Within this range, properly engineered internal channels maintain droplet cohesion and full spray-face activation without exceeding EPA WaterSense volumetric thresholds or compromising perceived pressure.

Does larger diameter always improve rainfall coverage?

No. Spray uniformity is determined primarily by nozzle density, hydraulic chamber balancing, and flow equalization geometry. A 12-inch head with poor internal pressure distribution can produce uneven saturation, while a properly engineered 8-inch model may deliver superior droplet consistency and full-body dispersion.

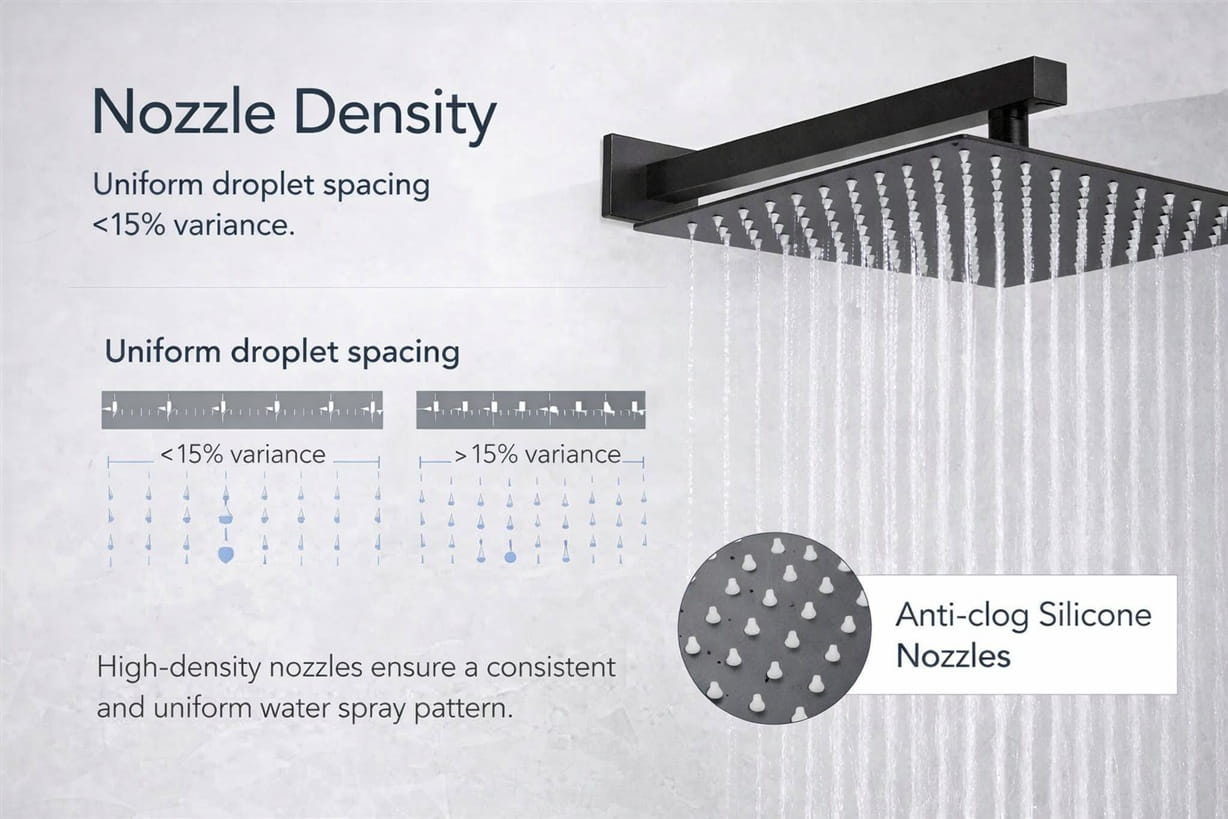

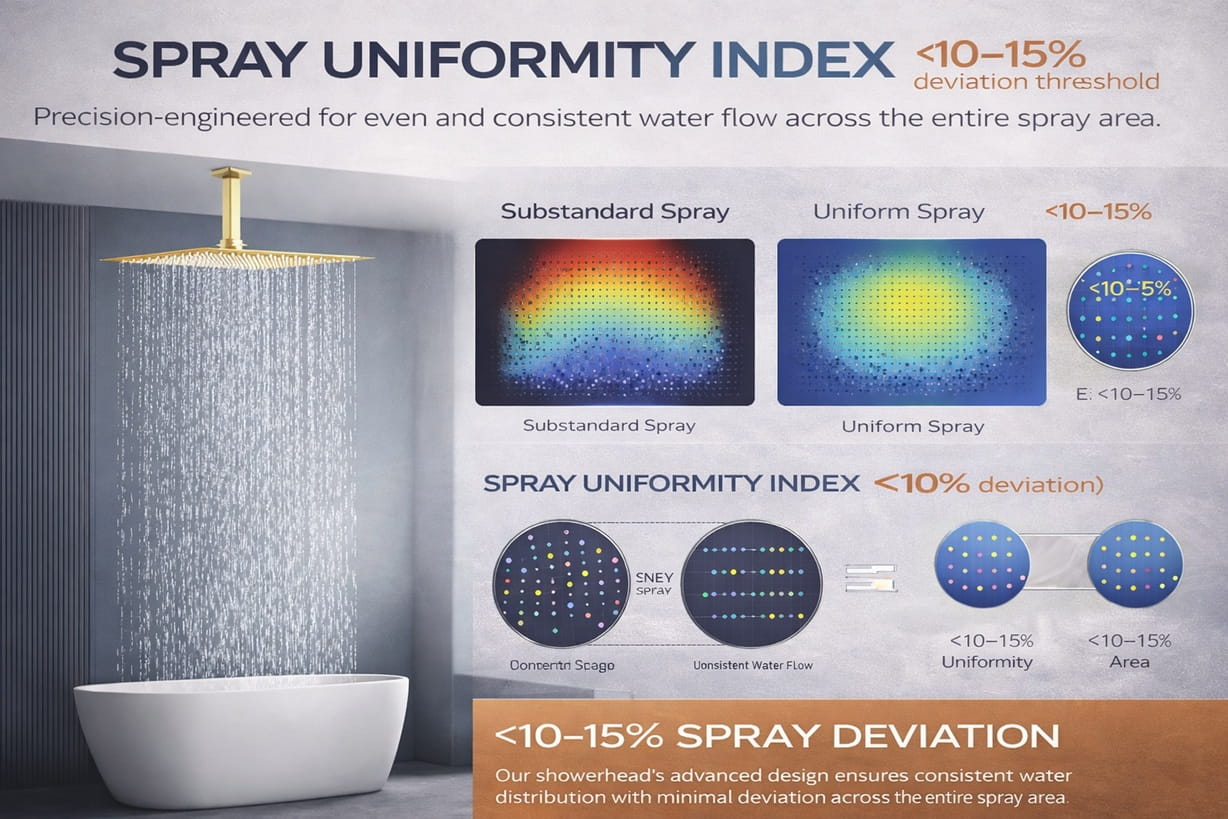

How is spray uniformity measured in laboratory testing?

Spray uniformity is evaluated using calibrated distribution grids beneath the spray face to measure droplet density and coverage deviation. Acceptable engineering standards typically allow less than 10–15% variance across active nozzles under controlled PSI conditions and consistent temperature parameters.

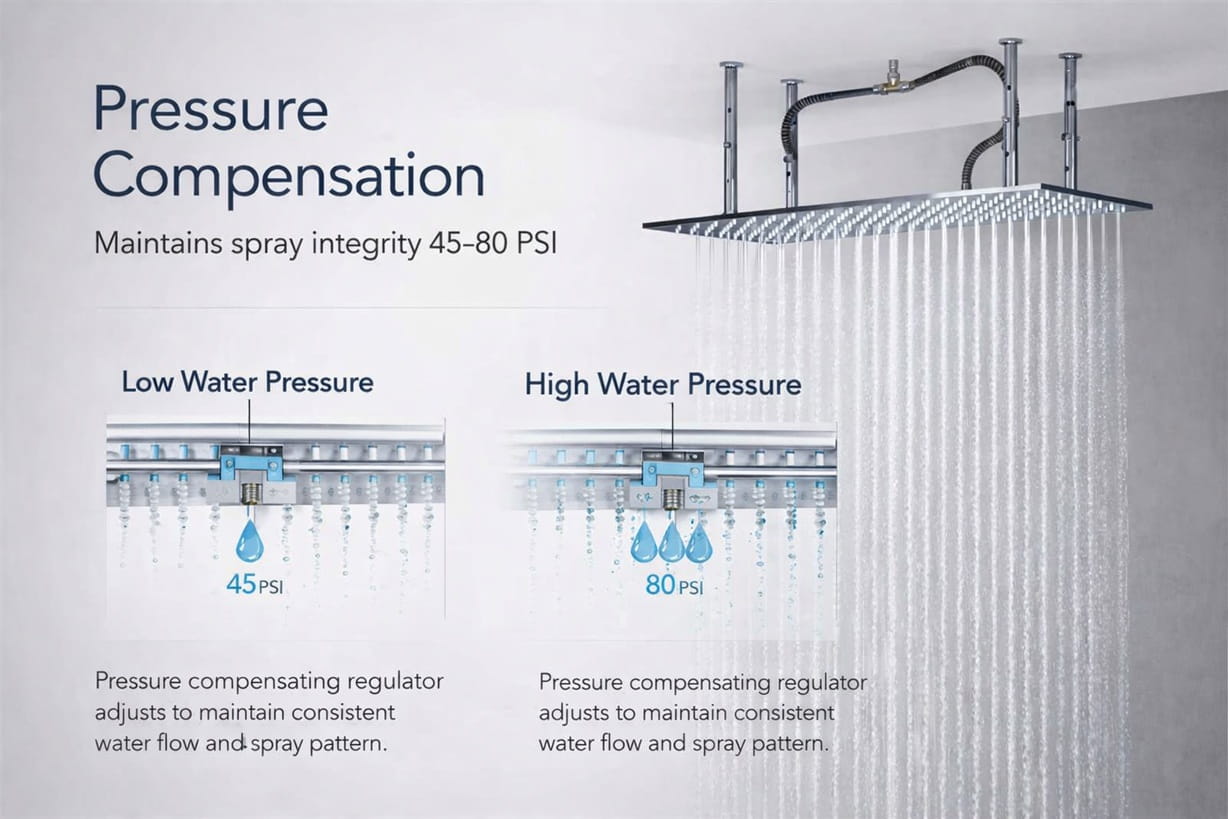

What role does pressure compensation play in rainfall systems?

Pressure-compensating flow regulators stabilize volumetric output across fluctuating supply pressures, typically between 45 and 80 PSI. Without compensation, droplet distortion, channel starvation, and uneven spray activation may occur, reducing both comfort performance and compliance reliability.

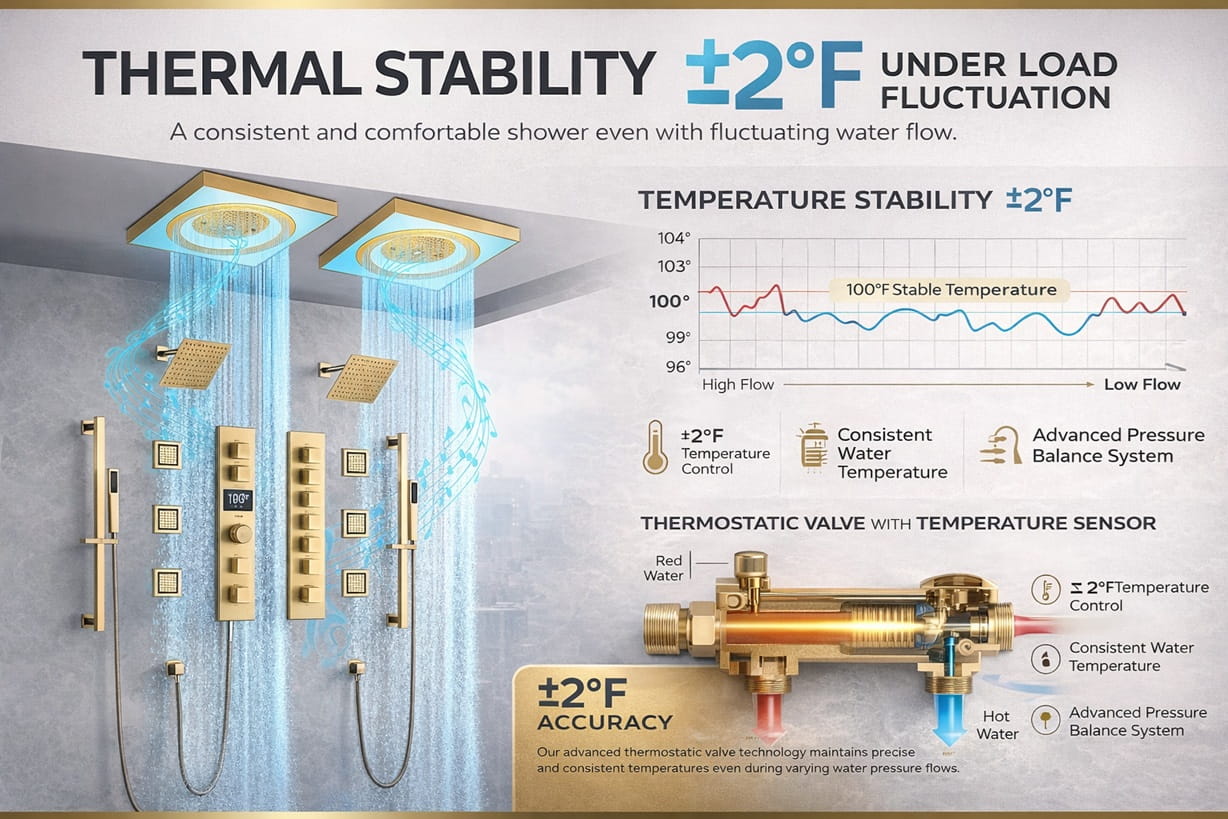

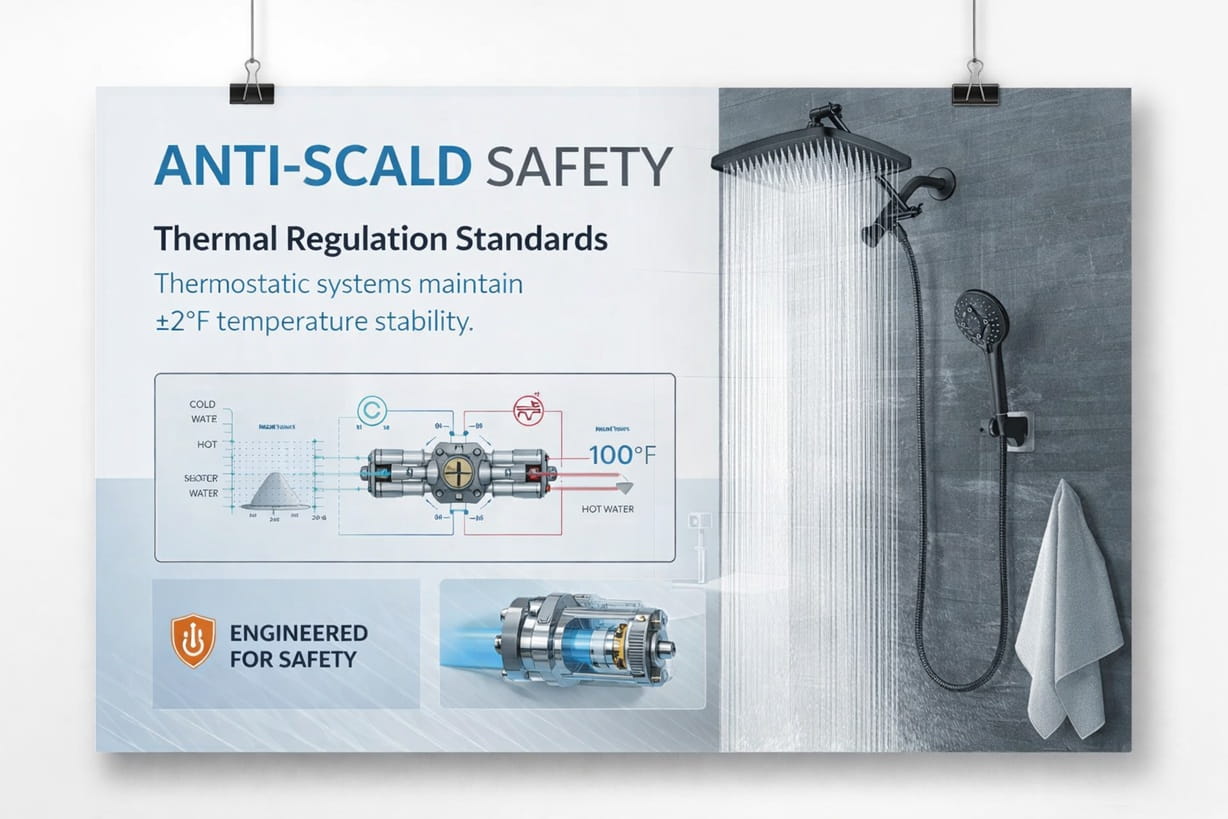

How is thermal stability verified in high-efficiency shower heads?

Thermal stability is tested by introducing controlled pressure fluctuations into hot and cold supply lines while measuring outlet temperature deviation. High-performance systems maintain temperature consistency within ±2°F, preventing scald risk and ensuring compliance with anti-scald safety standards.

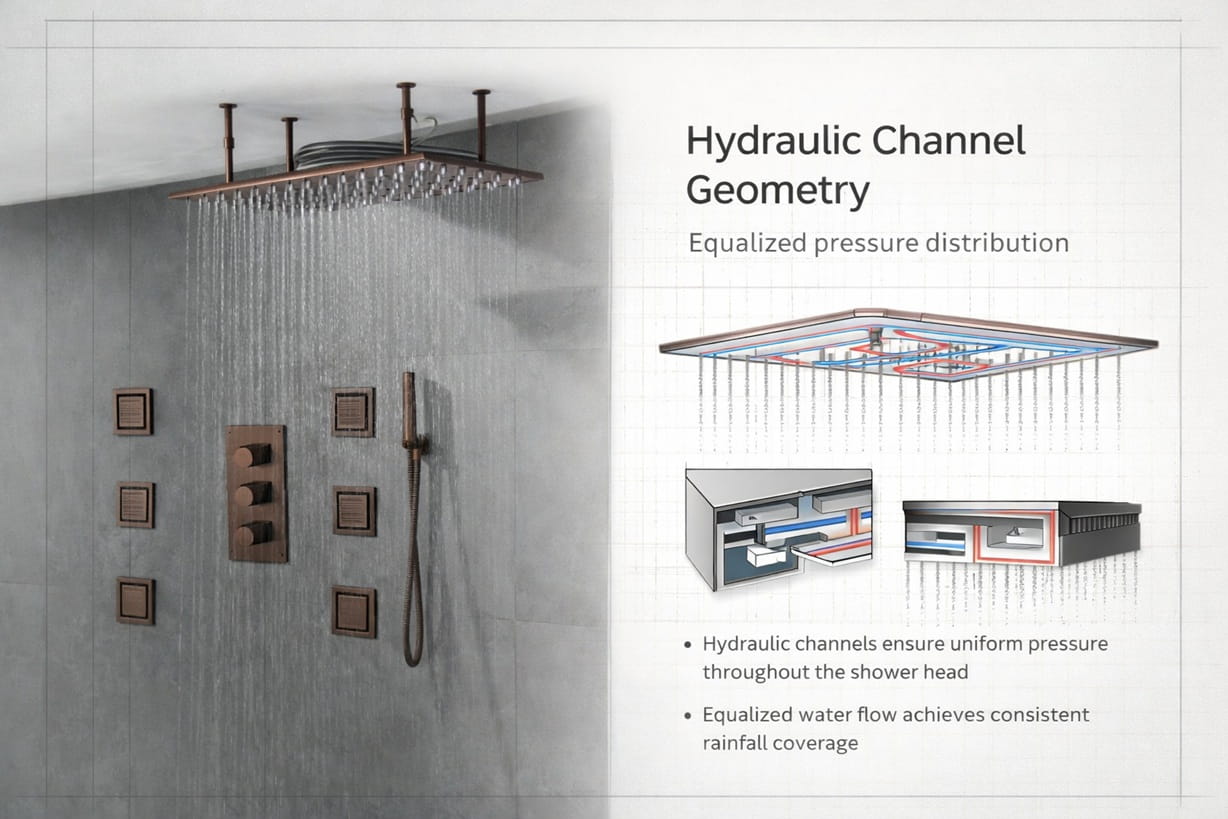

Why is internal hydraulic chamber design critical?

The internal chamber geometry redistributes incoming water evenly across the spray plate. Poor chamber design leads to center-heavy flow bias or edge starvation. Precision-machined manifolds ensure balanced droplet velocity and synchronized nozzle discharge under varying supply pressures.

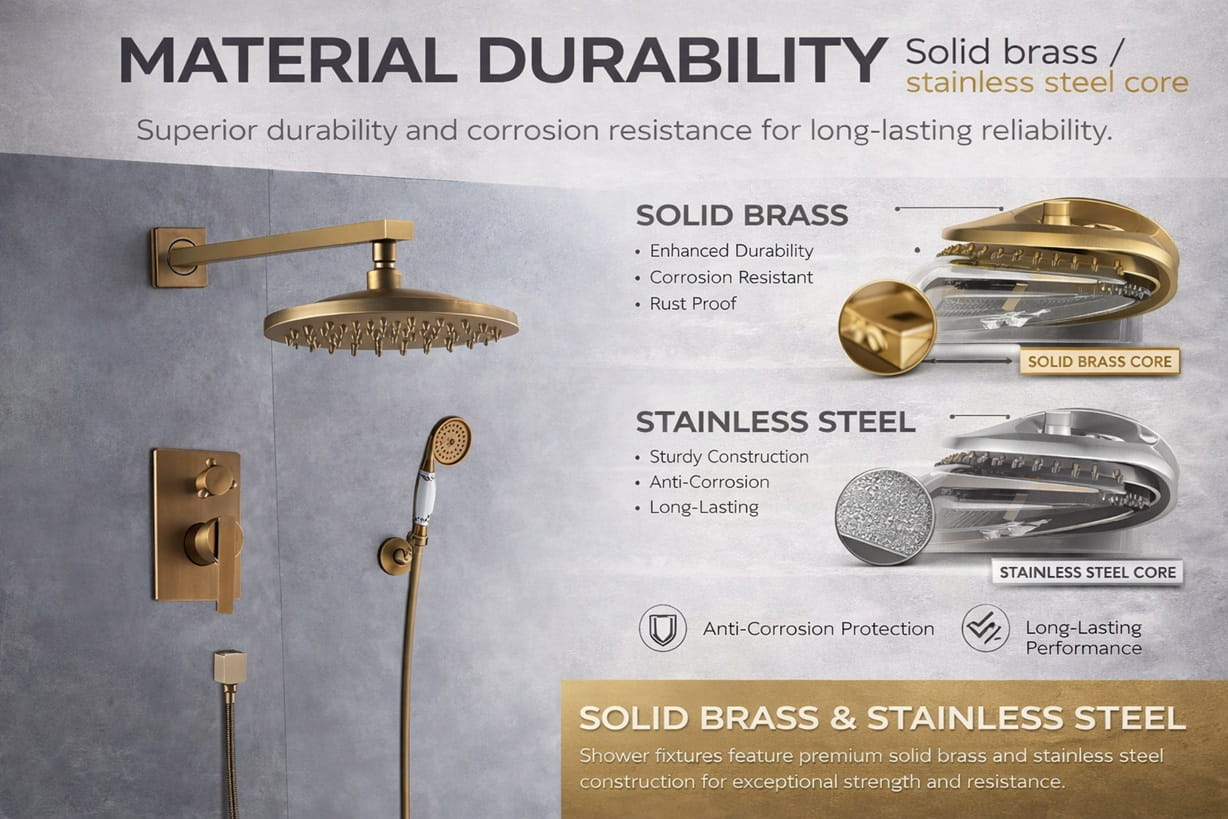

What materials provide optimal long-term durability?

Solid brass and 304/316 stainless steel cores provide superior corrosion resistance and structural stability under continuous thermal cycling. Inferior zinc alloys may degrade over time, especially in hard water regions with high mineral content and elevated chloride levels.

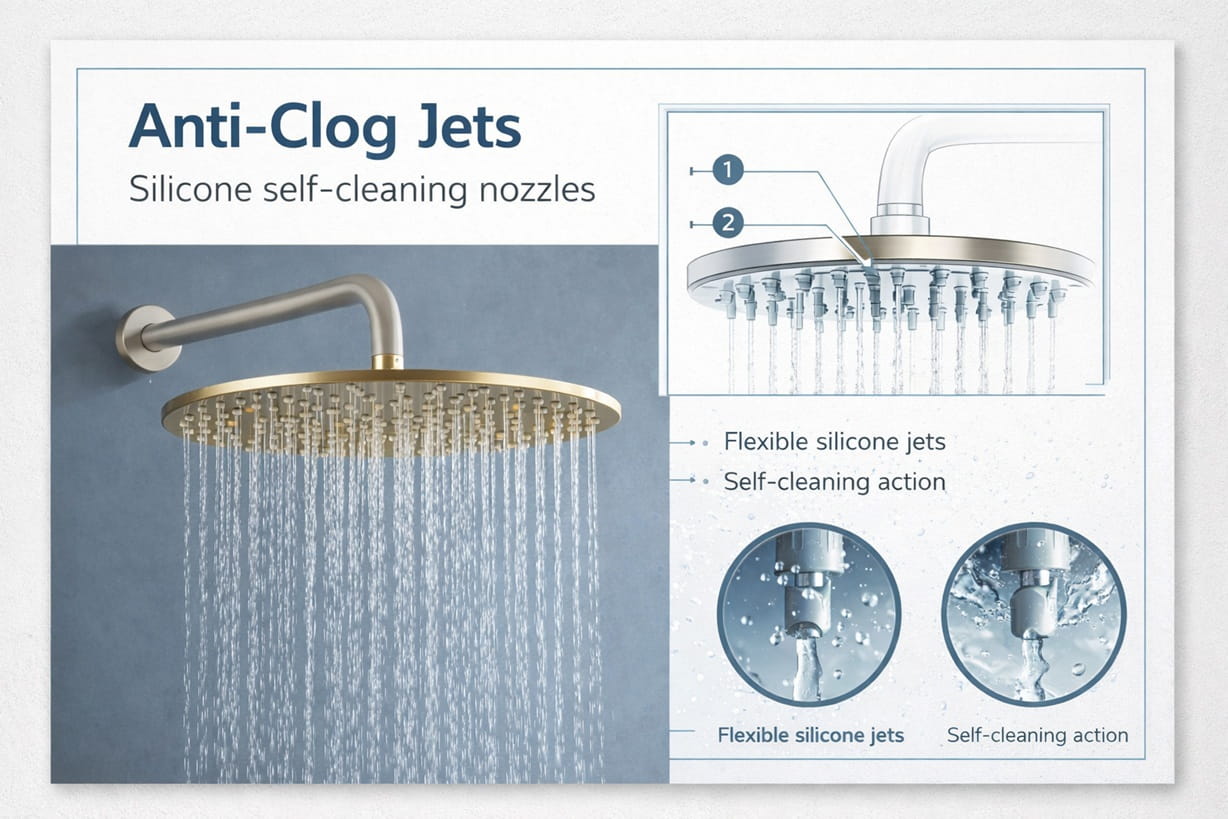

How do anti-clog silicone nozzles function?

Flexible thermoplastic elastomer nozzles allow manual or passive mineral shedding. As water pressure cycles, micro-flexing reduces calcium buildup adhesion. This design significantly extends service intervals in high-hardness environments compared to rigid metal outlet ports.

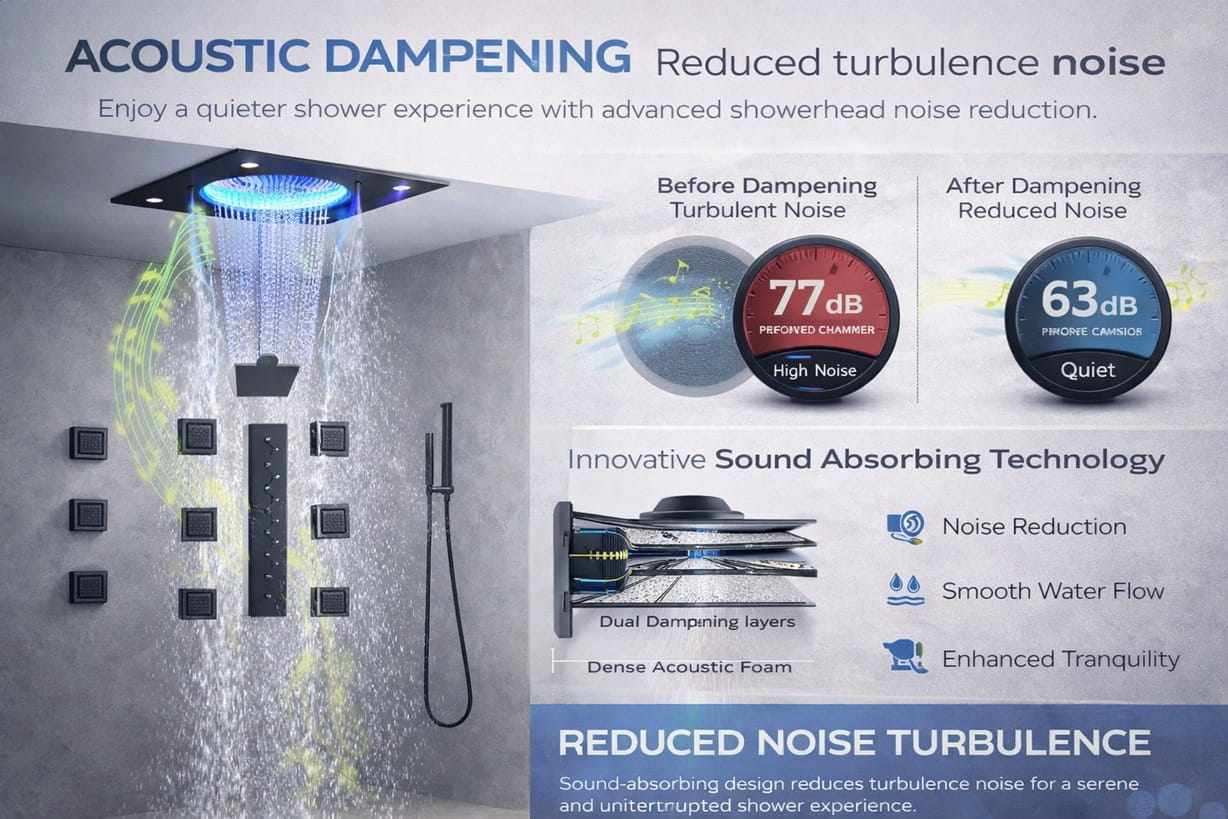

What acoustic thresholds define quiet operation?

High-efficiency rainfall systems aim to maintain turbulence-generated sound levels below 60–65 decibels under standard residential pressure. Internal dampening chambers and laminar flow optimization reduce vibration resonance within ceiling-mounted installations.

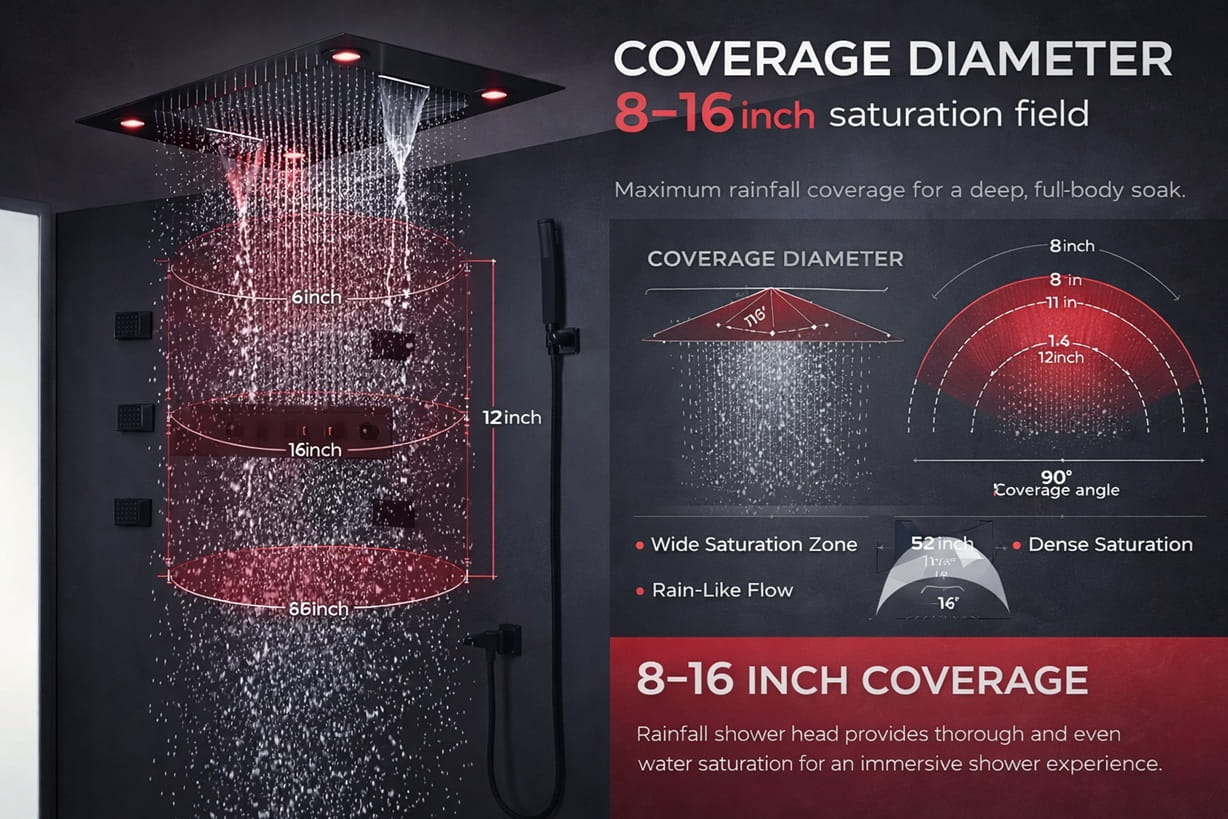

How is coverage diameter validated?

Coverage diameter is validated using calibrated floor mapping systems that measure droplet reach and density distribution. Full-body saturation typically requires an 8–16 inch active spray field with minimal peripheral drop-off beyond 5% intensity deviation.

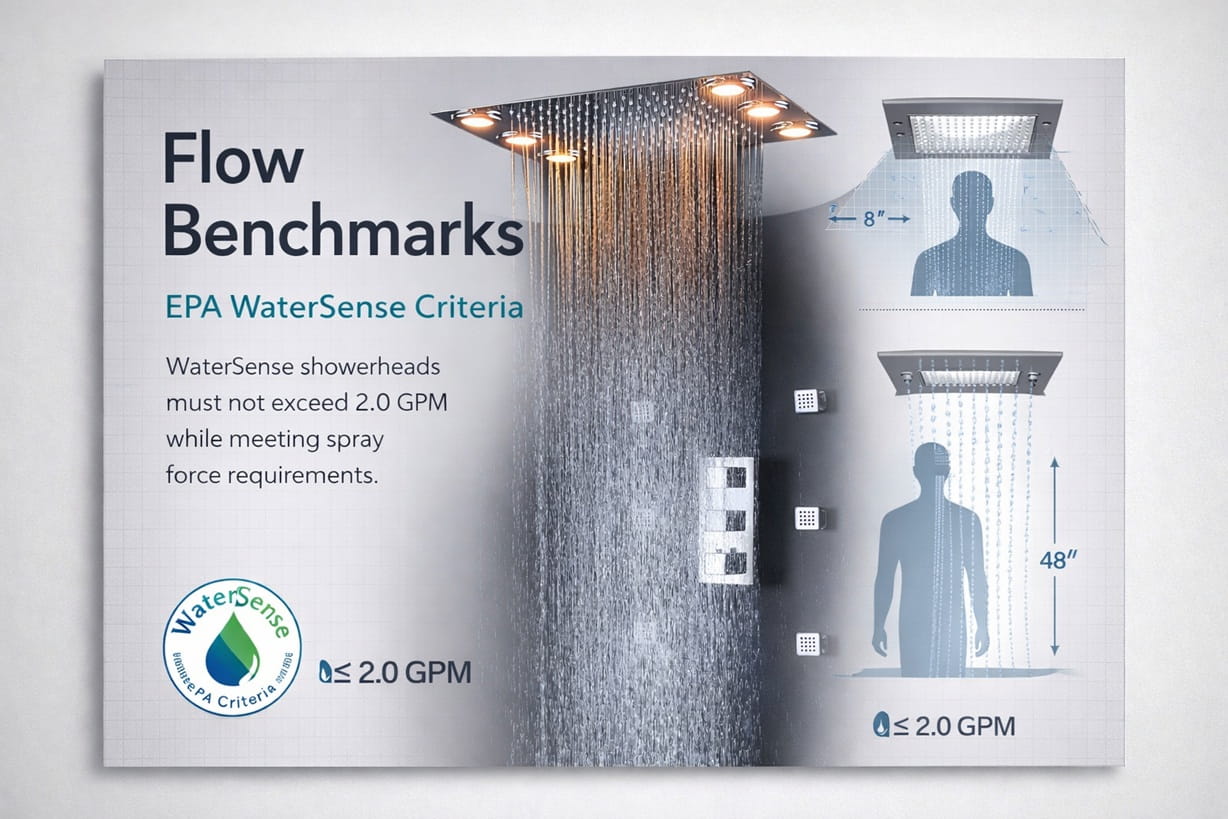

Are all rainfall heads eligible for WaterSense certification?

Only models that meet EPA volumetric limits, spray force performance thresholds, and third-party verification standards qualify. Certification requires laboratory validation confirming both maximum 2.0 GPM flow rate and minimum force output benchmarks.

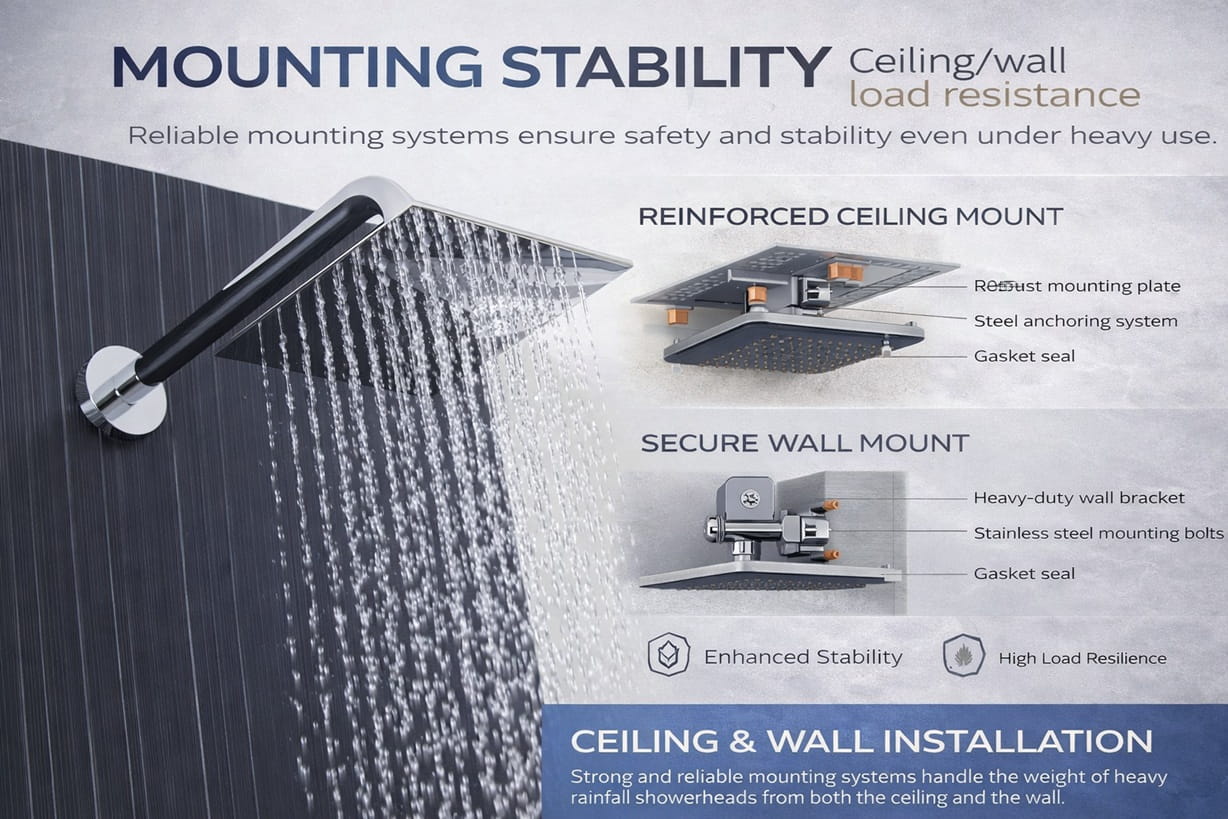

How does mounting orientation affect hydraulic performance?

Ceiling-mounted rainfall heads require perfectly level installation to prevent chamber bias and uneven distribution. Minor angular deviation can alter internal pressure equalization, affecting droplet consistency and long-term structural load distribution.
