Why specify coordinated faucet & dispenser sets?

Coordinated sets ensure finish harmony, aligned sensor ranges, and unified service parts. Installers can share a transformer for both devices, copy policy settings (dose, dwell, max‑run), and streamline submittals with one cut‑sheet package, reducing approval and installation time.

What soap types are supported?

Liquid soaps (approx. 1–3000 cP) are supported with standard pumps; foam‑specific pumps/modules are available for foaming soaps. All dispensers feature adjustable dosing, anti‑drip nozzles, and purge/prime modes to mitigate clogs.

How do these sets support hygiene and maintenance?

Laminar outlets reduce splash/aerosols, hygiene‑flush/thermal purge features are available on select faucets, and dispensers include anti‑drip valves and sensor lockouts. IP‑sealed electronics tolerate aggressive housekeeping. Front‑access filters and bulk‑fill tanks simplify service; remote 5 L tanks are optional for high‑traffic counters.

Are the sets code‑ and ADA‑minded?

Yes. Faucets are designed to conform to ASME A112.18.1/CSA B125.1 and lead‑free NSF/ANSI 61/372, and pair with ASSE 1070 mixing for scald protection. Touchless activation eliminates operating force; submittals provide ADA/ICC A117.1 reach and clearance guidance.

What power options are available?

Battery and AC are available for both faucet and dispenser. A shared‑transformer kit can power both devices from a single supply (check load). Low‑power drivers and sealed battery packs extend maintenance intervals in high‑traffic venues.

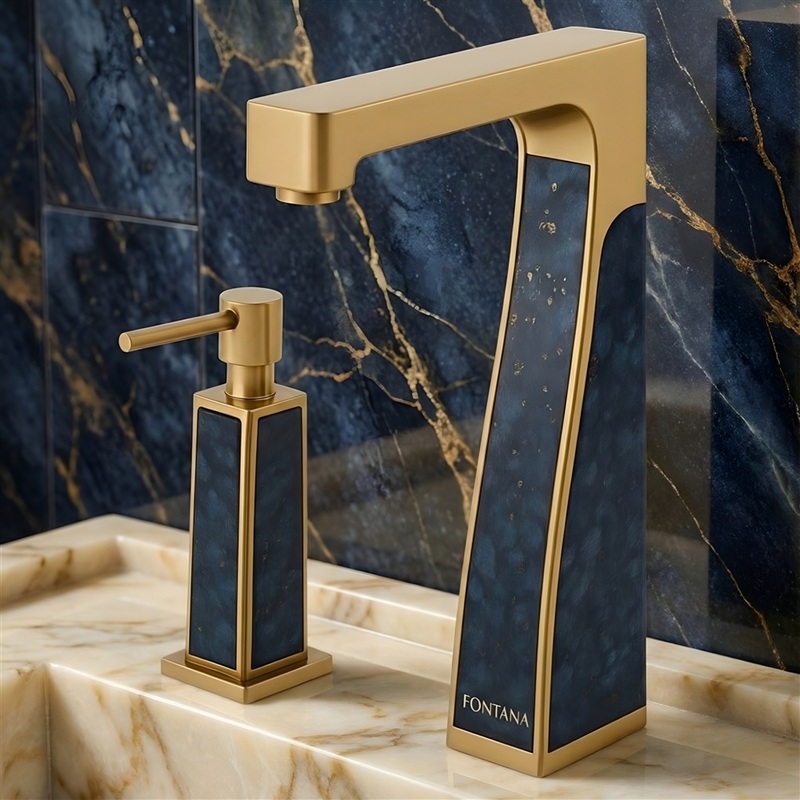

Soap Dispensers and Touchless Faucets Set Models

BathSelect® Duet Series — Touchless Faucet & Automatic Soap Dispenser Sets

Purpose‑built for airports, smart buildings, hospitality, education, and civic projects. The Duet Series introduces new, design‑forward set names and delivers finish‑matched, spec‑grade faucet + dispenser pairs with unified controls, simplified submittals, and faster installs.

Coordinated finishes (Chrome · Brushed Nickel · Matte Black · Brushed Gold) 0.35–0.5 gpm faucets · 1000 mL dispensers Laminar/aerated outlets · anti‑drip nozzles Battery or AC · shared transformer option ADA/UPC minded · ASSE 1070 compatible

Quick Selection Guide

Set	Best‑Fit Environments	Faucet Flow	Dispenser Capacity	Soap Type	Mounting	Highlights
Duet Arc™	Airports, corporate HQ, premium public	0.35/0.5 gpm	1000 mL (5 L remote opt.)	Liquid; foam module avail.	Deck faucet + deck/under‑counter tank	Laminar outlet; shared transformer
Duet Axis™	Universities, civic, high‑traffic	0.35/0.5 gpm	1000 mL	Liquid	Deck faucet + deck dispenser	Adjustable dose 0.8–1.5 mL; anti‑drip
Duet Halo™	Healthcare public, spa, hospitality	0.35/0.5 gpm (laminar)	1000 mL	Foam	Deck faucet + deck foam dispenser	FoamLogic™ anti‑clog; hygiene purge
Duet Linea™	Interiors, galleries	0.35/0.5 gpm	1000 mL	Liquid/foam	Deck faucet + through‑counter feed	IR/ToF hybrid; mirror compensation
Duet Prime™	Smart buildings, enterprise	0.35/0.5 gpm (mixer)	1000 mL	Liquid	Deck faucet + deck dispenser	Touchless mixing; BLE snapshot export

Finishes: Chrome Brushed Nickel (PVD) Matte Black (PVD) Brushed Gold (PVD)

BathSelect Duet Arc™ Set ArcFlow™ Faucet + ArcDose™ Dispenser

Positioning: Premium, finish‑matched pair for high‑visibility counters. Unified controls, splash‑controlled laminar outlet, and service‑friendly bulk fill.

Design & Hygiene

Laminar outlet reduces splash and aerosols on shallow bowls.
Matching finishes across faucet, dispenser bezel, and escutcheons.
Anti‑drip nozzle and timed purge help keep counters clean.

Key specifications

Faucet Flow

0.35 or 0.5 gpm (pressure‑compensated)

Sensor

IR/ToF hybrid; mirror/glare compensation

Dispenser

1000 mL bulk‑fill; 5 L remote tank option

Soap

Liquid standard; foam pump module available

Power

Battery or AC; optional shared transformer

BathSelect Duet Axis™ Set AxisFlow™ Faucet + AxisDose™ Dispenser

Positioning: High‑traffic performer for universities and civic buildings. Adjustable dosing and vandal‑minded details lower callbacks.

Control & Durability

Dose control 0.8–1.5 mL with anti‑drip valve.
Shielded outlets and IP‑sealed electronics for aggressive cleaning.
Max‑run and obstruction lockouts mitigate intentional misuse.

Key specifications

Faucet Flow

0.35/0.5 gpm

Mounting

Deck faucet + deck/through‑counter dispenser

Capacity

1000 mL bulk‑fill

Compliance

ADA minded; ASME A112.18.1/CSA B125.1; NSF/ANSI 61/372

Power

Battery or AC; surge‑protected driver

BathSelect Duet Halo™ Set HaloFlow™ Faucet + FoamLogic™ Dispenser

Positioning: Healthcare‑friendly pairing with laminar water and foam soap dosing to minimize splash and residue.

Hygiene First

Laminar outlet and tuned start/stop for shallow basins.
FoamLogic™ pump with anti‑clog purge & prime modes.
Rounded edges and seamless bezels for easy wipe‑downs.

Key specifications

Flow

0.35/0.5 gpm (laminar preferred)

Foam Dose

0.4–0.6 mL per cycle

Capacity

1000 mL foam reservoir

Power

Battery or AC; low‑power standby

Finish

Chrome · Brushed Nickel · Matte Black · Brushed Gold

BathSelect Duet Linea™ Set LineaFlow™ Faucet + LineaDose™ Dispenser

Positioning: Design‑centric set for luxury interiors; slim profiles, precise sensing, and quiet actuation.

Design & Experience

IR/ToF hybrid rejects mirror/gloss artifacts.
Softened corners and minimal seams suit premium counters.
Coordinated bezels and escutcheons maintain finish continuity.

Key specifications

Flow

0.35/0.5 gpm; aerated/laminar options

Capacity

1000 mL; remote tank option

Soap

Liquid standard; foam module available

Power

Battery or AC; optional shared transformer

Docs

BIM/Revit, CSI 22 42 39, cut sheets, warranty

BathSelect Duet Prime™ Set PrimeMix™ Faucet + IntelliDose™ Dispenser

Positioning: Smart‑building ready with touchless mixing and optional BLE snapshot export for commissioning reports.

Smart Controls

Touchless temperature mixing; ASSE 1070 compatible.
BLE snapshot export (optional) for settings/dose logs.
Policy cloning across banks of sets for uniform behavior.

Key specifications

Flow

0.35/0.5 gpm

Dose

0.8–1.5 mL adjustable; anti‑drip nozzle

Power

Battery or AC; sealed pack; shared transformer option

Compliance

ASME A112.18.1/CSA B125.1; NSF/ANSI 61/372; ADA minded

Finish

Chrome · Brushed Nickel · Matte Black · Brushed Gold

Frequently Asked Questions

Why specify coordinated faucet & dispenser sets?: Sets provide finish harmony, unified controls, and a single submittal package. Installers can share a transformer, clone settings (dose, dwell, max‑run), and maintain one spares kit. The result is faster approvals, cleaner counters, and fewer callbacks.
What soap types are supported?: Liquid soaps from ~1–3000 cP are supported out of the box; foaming soaps require the foam pump module. All dispensers include adjustable dose, anti‑drip valves, and purge/prime to prevent clogs after long idle periods.
Do the sets meet ADA and typical plumbing codes?: Yes. Touchless activation eliminates operating force. Faucets are designed to conform to ASME A112.18.1/CSA B125.1 and lead‑free NSF/ANSI 61/372, and pair with ASSE 1070 for scald protection. Submittals provide ADA/ICC A117.1 reach/clearance guidance.
How are maintenance and refills handled?: Front‑access filters and quick‑release valves reduce service time. Dispensers use bulk‑fill 1000 mL tanks; optional remote 5 L tanks minimize refill frequency in high‑traffic areas. BLE snapshot export (Duet Prime™) can document dose settings for SOPs.
What is the warranty?: Typical coverage: 5 years on faucet body/finish, 3 years on electronics/sensors, and 1 year on power packs and accessories. Project‑specific statements are included in submittals; extended options available for portfolio rollouts.

Top Reviews

Architect Review — International Terminal (Duet Arc™)

“Finish‑matched faucet and dispenser read as one composition. Laminar water and anti‑drip dosing kept our terrazzo counters pristine during peak traffic.”

Rating: ★★★★★ · Focus: Aesthetics, Hygiene, Counter Cleanliness

Designer Review — HQ (Duet Linea™)

“The slim bezels and consistent PVD tones align perfectly with our hardware palette. Sensing is predictable even around mirrors.”

Rating: ★★★★★ · Focus: Finish Match, Sensing Precision

Contractor Review — University Rollout (Duet Axis™)

“Shared transformers and bulk‑fill tanks sped up installation. Adjustable dosing and lockouts cut down on after‑hours issues.”

Rating: ★★★★★ · Focus: Install Speed, Vandal Resistance

Engineer Review — Smart Building (Duet Prime™)

“Touchless mixing plus BLE snapshots made commissioning and documentation painless. Flows held within spec across pressure fluctuations.”

Rating: ★★★★★ · Focus: Commissioning, Documentation, Stability

Developer/Operator Review — Hotel Portfolio (Duet Halo™)

“Foam dosing and laminar water improved guest perception while lowering cleanup time. Refill intervals are predictable with 1000 mL tanks.”

Rating: ★★★★★ · Focus: Guest Experience, Ops Efficiency

Ready to Specify?

Request coordinated submittals (BIM/Revit, CSI), finish samples, dispenser compatibility guidelines, and shared‑transformer wiring diagrams. We’ll help with basin pairing, ADA/ASSE 1070 notes, and bank‑wide policy templates.
