BathSelect® Heritage Series: Touchless Faucet + Automatic Soap Dispenser Sets

Introducing six coordinated sets named after iconic design eras: Bauhaus™, Deco™, Modernist™, Renaissance™, Neoclassic™, Brutalist™. Finish‑matched, spec‑grade, ADA/UPC‑minded, with BIM/Revit packs and wiring diagrams. Perfect for hospitality, civic, education, and smart buildings.

ADA Compliant ASSE 1070 Compatible Lead-Free NSF/ANSI 372 5-Year Warranty

Quick Selection Guide

Set	Environment	Flow	Dispenser	Soap Type	Highlights
Bauhaus™	Museums, airports	0.35/0.5 gpm	1000 mL	Liquid/Foam	Laminar outlet, mirror compensation
Deco™	Universities, civic	0.35/0.5 gpm	1000 mL	Liquid	Adjustable dose 0.8–1.5 mL
Modernist™	Smart buildings	0.35/0.5 gpm mixer	1000 mL	Liquid	Touchless mixing, BLE snapshot
Renaissance™	Healthcare, spa	0.35/0.5 gpm	1000 mL	Foam	Foam anti-clog, hygiene purge
Neoclassic™	Interiors	0.35/0.5 gpm	1000 mL	Liquid/Foam	IR/ToF hybrid, slim profile
Brutalist™	Transit hubs, parks	0.35/0.5 gpm	1000 mL	Liquid	IP-sealed, vandal-minded

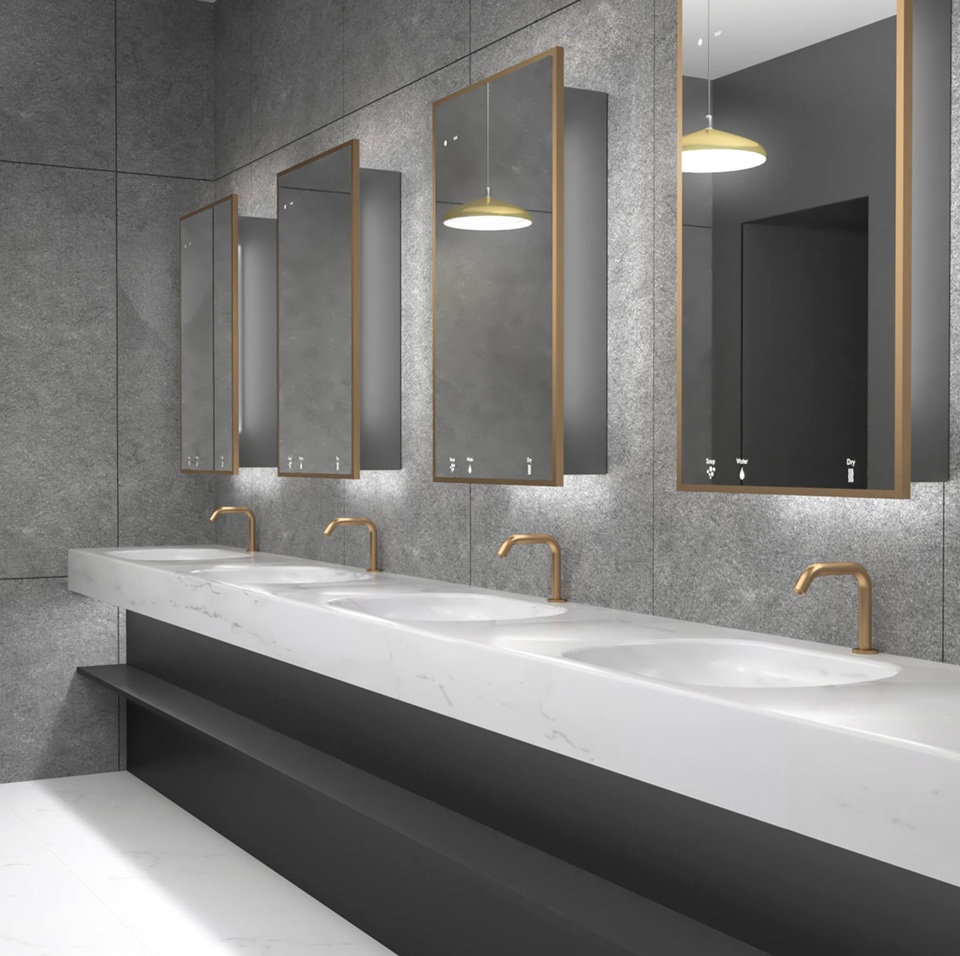

Finishes available: Chrome Brushed Nickel Matte Black Brushed Gold

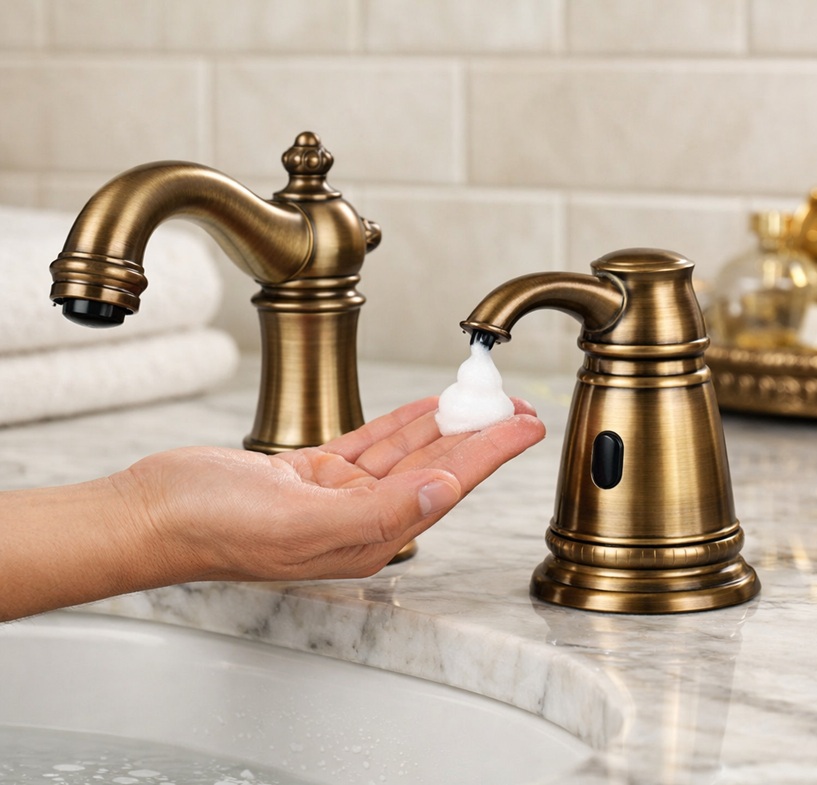

Heritage Bauhaus™ BauhausFlow™ Faucet + BauhausDose™ Dispenser

Design & Hygiene

Laminar outlet reduces splash & aerosols.
Mirror/gloss compensation for glass counters.
Anti-drip dosing, timed purge cycle.

Specifications

Flow

0.35 or 0.5 gpm

Sensor

IR + ToF assist

Power

Battery or AC, shared transformer option

Downloads: BauhausFlow.rfa (BIM) · BauhausDose.rfa · Wiring Diagram PDF

Heritage Deco™ DecoFlow™ Faucet + DecoDose™ Dispenser

Key Features

Adjustable dose 0.8–1.5 mL
High-traffic durability
Anti-drip nozzle

Capacity

1000 mL bulk-fill

Compliance

ADA minded, ASME A112.18.1

Downloads: DecoFlow.rfa · DecoDose.rfa

Heritage Modernist™ ModernistMix™ Faucet + ModernistDose™ Dispenser

Smart Integration

Touchless temperature mixing (ASSE 1070)
BLE connectivity for usage snapshot

Mixer type

Electronic mixing valve

Power

AC with low-voltage backup

Downloads: ModernistMix.rfa · Wiring Diagrams

Heritage Renaissance™ RenaissanceFlow™ Faucet + FoamRenaissance™ Dispenser

Foam Hygiene

0.4–0.6 mL foam dose per cycle
Purge/prime to prevent clogs
Laminar water outlet

Foam Type

Foaming soaps (1-3000 cP)

Warranty

5-year commercial

Downloads: RenaissanceFlow.rfa · FoamRenaissance.rfa

Heritage Neoclassic™ NeoclassicFlow™ Faucet + NeoclassicDose™ Dispenser

IR/ToF hybrid sensor with mirror compensation, slim-profile design, available in four PVD finishes. Ideal for luxury hotels and galleries.

Downloads: NeoclassicFlow.rfa · NeoclassicDose.rfa

Heritage Brutalist™ BrutalistFlow™ Faucet + BrutalistDose™ Dispenser

IP-sealed electronics, lockout timers, front-access filters. Vandal-resistant construction for transit hubs and high-abuse public spaces.

Downloads: BrutalistFlow.rfa · BrutalistDose.rfa

Frequently Asked Questions

Why choose the Heritage Series design theme?: The Heritage Series offers a memorable, design‑era naming convention that resonates with architects while preserving spec‑grade performance. Each set coordinates finish, sensing geometry, and service parts.
What power options are supported?: Battery (AA) or AC powered; shared transformer option within VA rating with dedicated low‑voltage runs.
Are these sets ADA/UPC minded?: Yes. Touchless activation eliminates operating force. Designed to meet ASME A112.18.1/CSA B125.1 and lead‑free NSF/ANSI 61/372.
