BathSelect Aurelia Classic Wall-Mount Faucets – Engineering Specification and Design Requirements
Wall-Mount Faucets | Classic Design | Solid Brass | Commercial Grade
BathSelect Aurelia Classic Wall-Mount Faucets: Engineering Excellence, Timeless Design, and Precision Performance
The Aurelia Classic collection represents the pinnacle of European-inspired design engineering, combining timeless aesthetics with precision hydraulic performance for hospitality, luxury residential, and commercial applications.
Key engineering features:
- • Precision-engineered wall-mount configuration for architectural flexibility
- • Solid brass construction with dezincification-resistant options
- • Ceramic disc cartridges rated for 500,000+ cycles
- • Adjustable centers for retrofit and new construction applications
- • Full CAD, BIM, and specification documentation
ASME A112.18.1 Certified
ADA Compliant
WaterSense Available
Solid Brass Construction
NSF 61 Certified
Ceramic Disc Cartridge
Adjustable Centers 6-16"
ENGINEERING DIAGRAM: Aurelia Classic wall-mount faucet showing internal construction, rough-in dimensions, and waterway engineering.
Aurelia Classic: Where Engineering Meets Artistry
Inspired by classical European design principles, the Aurelia Classic collection is engineered for those who demand both timeless beauty and uncompromising performance.
Classic Cross Handles
Precision-machined solid brass handles with ergonomic design for smooth operation
Elegant Lever Options
Refined lever designs for contemporary classic applications
Spout Engineering
Optimized flow dynamics for laminar or aerated stream options
Premium Finishes
PVD finishes including Polished Chrome, Brushed Nickel, Oil Rubbed Bronze, and Polished Gold
Engineering Design and Hydraulic Performance
Wall-Mount Engineering
Aurelia Classic faucets are engineered for wall-mount installation, providing architectural flexibility and ease of cleaning. Adjustable centers (6"–16") accommodate various sink configurations and retrofit applications. Rough-in brackets ensure precise alignment during construction.
Flow Rate Engineering

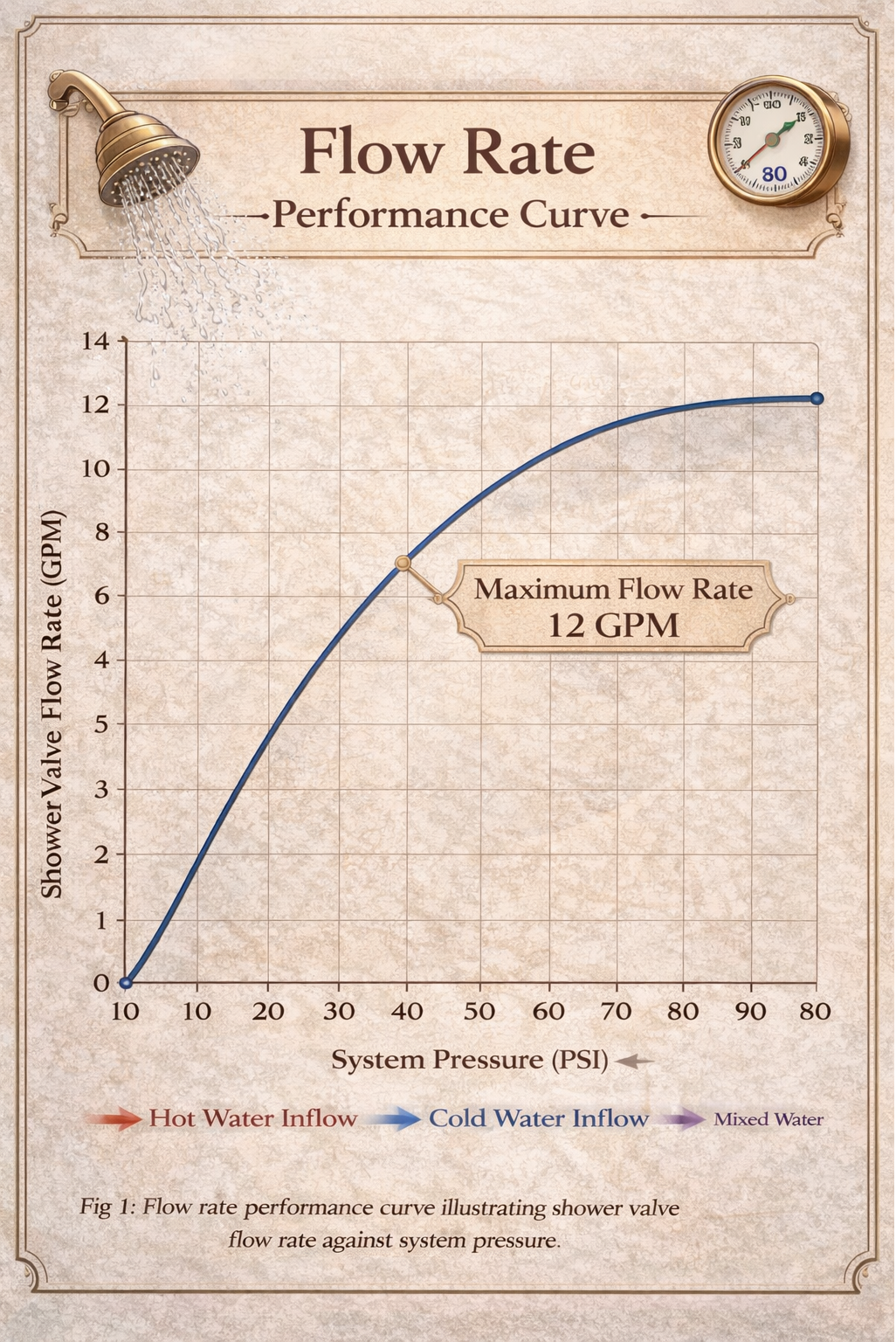

Standard flow: 1.2 GPM at 60 psi (WaterSense compliant models)
Commercial flow: 1.5–2.2 GPM available for hospitality applications
Laminar flow options: Reduce splashing and improve accessibility compliance
Cartridge Engineering

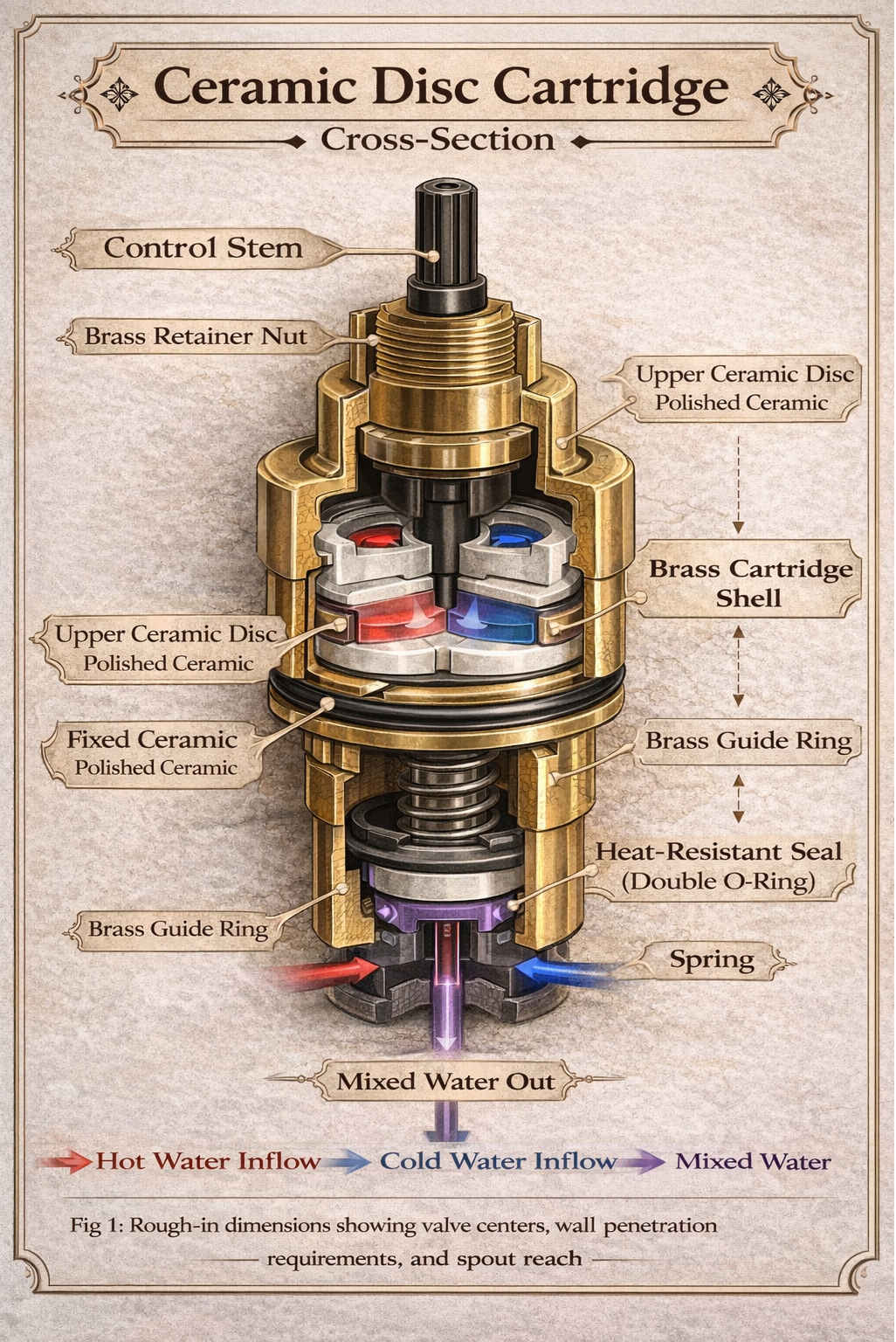

Precision-ground ceramic disc cartridges provide smooth operation and drip-free performance. Tested to 500,000 cycles (25-year equivalent residential use). Replaceable without removing faucet body. 1/4-turn operation for intuitive temperature and volume control.
Engineering Diagrams & Technical Visuals
Materials and Construction Engineering
Solid Brass Construction
Precision-machined solid brass faucet bodies (ASTM B283) ensure structural integrity and corrosion resistance. Dezincification-resistant brass (DZR) available for aggressive water conditions. Lead-free compliant to NSF 61 for potable water.
Ceramic Disc Cartridge
Engineered for 500,000+ cycles, smooth 1/4-turn operation, and drip-free performance. Replaceable without removing faucet body. Compatible with both standard and commercial flow rates.
PVD and Multi-Layer Finishes
Physical Vapor Deposition (PVD) finishes provide superior abrasion and chemical resistance. Available in Polished Chrome, Brushed Nickel, Oil Rubbed Bronze, Polished Gold, and Matte Black. Tested to ASTM B368 (500+ hours salt spray).
Aerator Engineering
Pressure-compensating aerators maintain consistent flow regardless of pressure variations. Laminar flow options available for accessibility compliance. Easy-clean nozzles resist mineral buildup.
Handle Engineering
Solid brass handles available in cross, lever, and porcelain options. Precision-machined handle adapters ensure smooth operation and positive stop. Temperature memory available on selected models.
Supply Line Integration
Standard 1/2" NPT connections with integral stops for easy maintenance. Flexible supply lines available for retrofit applications. Check valves prevent crossflow between hot and cold supplies.
Code Compliance and Engineering Standards
| Plumbing Fittings Standard | ASME A112.18.1/CSA B125.1 – Certified for materials, performance, and durability. |
|---|
| Materials Safety | NSF 61/9 – Certified for lead-free compliance and potable water contact. |
|---|
| Accessibility | ADA 2010 Standards – Compliant models available with lever handles and appropriate spout reach. |
|---|
| Water Efficiency | WaterSense certified models available (1.2 GPM). CALGreen compliance where adopted. |
|---|
| Flow Rate Options | 1.2 GPM (WaterSense), 1.5 GPM, 1.8 GPM, 2.2 GPM (commercial). Specify model for flow rate. |
|---|
| Backflow Prevention | Integrated check valves on all inlets where applicable. Meets plumbing code requirements for crossflow prevention. |
|---|
| AEC Documentation | CAD, BIM, cut sheets, submittals, and installation manuals included. All documentation available at BathSelect Technical Library. |
|---|
Primary Engineering References
ASME A112.18.1
NSF 61/9
ADA 2010
WaterSense
CALGreen
ASTM B283
ASTM B368
ANSI A117.1
Installation and Rough-In Requirements

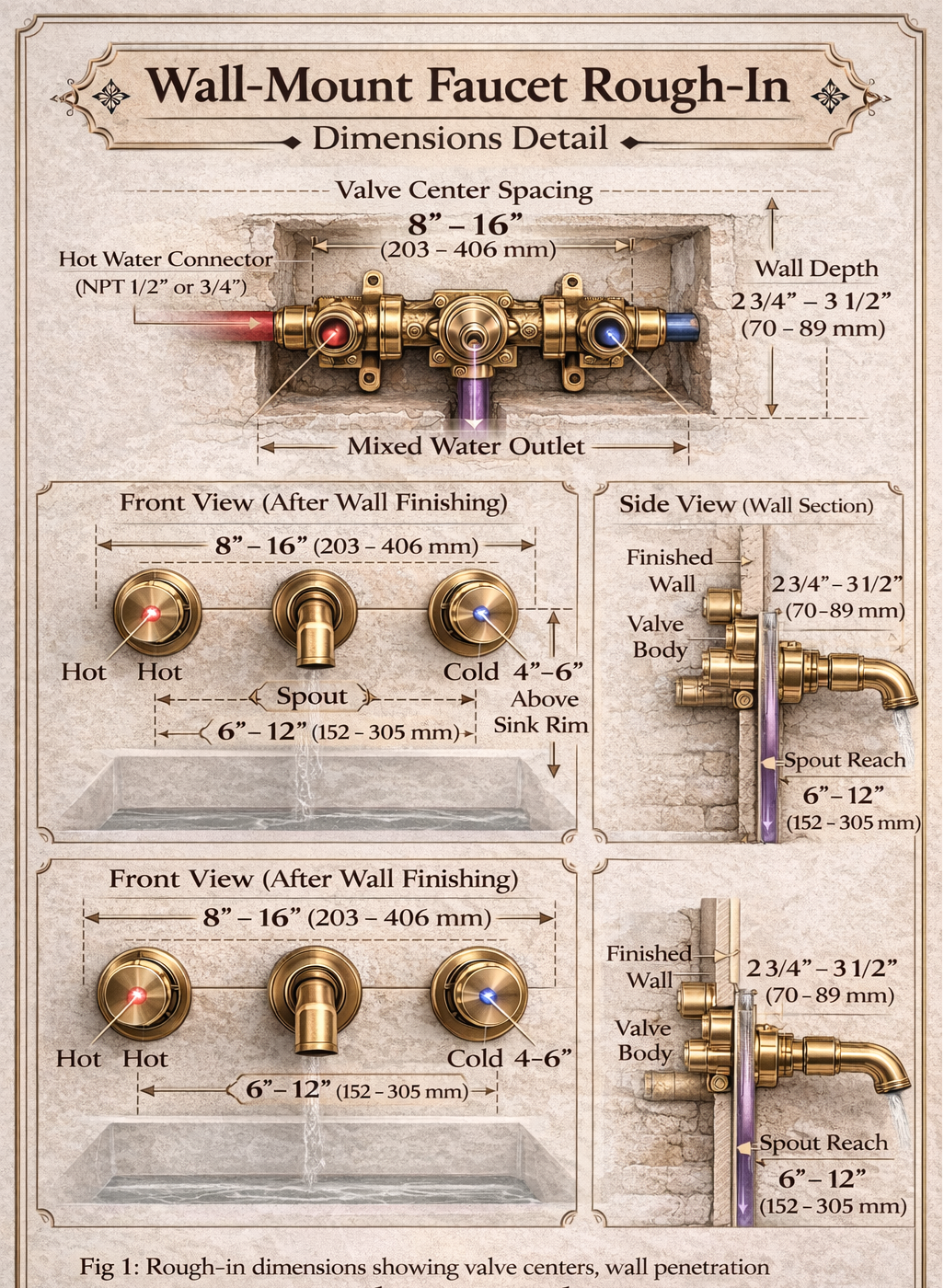

Rough-In Specifications
- Valve centers: Adjustable 6"–16" (152mm–406mm). Specify required centers when ordering.
- Wall penetration: 1-1/8" minimum diameter for supply lines.
- Spout reach: 6"–10" depending on model. Verify sink dimensions.
- Valve height: Standard 4"–6" above finished floor for ADA compliance.
- Rough-in brackets: Included for precise alignment during construction.
- Connections: 1/2" NPT female inlets. Integral stops included.
Installation Considerations
- Wall reinforcement: Required for wall-mount installation. Provide blocking between studs.
- Access panels: Recommend for service access to valves and connections.
- Retrofit applications: Adjustable centers accommodate existing rough openings.
- Water hammer arrestors: Recommended for commercial applications with quick-closing valves.
- Pressure requirements: Minimum 20 psi, maximum 80 psi. Optimal 45–60 psi.
- Temperature limits: Maximum 140°F (60°C) continuous, 180°F (82°C) intermittent.
Technical Specifications – Aurelia Classic Wall-Mount Faucets
| Faucet Type | Wall-mount, single-hole or widespread configurations available |
|---|
| Valve Centers | Adjustable 6"–16" (152mm–406mm) depending on model |
|---|
| Flow Rates | 1.2 GPM (WaterSense), 1.5 GPM, 1.8 GPM, 2.2 GPM (commercial). Specify model. |
|---|
| Pressure Requirements | Minimum 20 psi, maximum 80 psi. Optimal 45–60 psi dynamic. |
|---|
| Materials | Solid brass faucet bodies (ASTM B283), ceramic disc cartridges, brass handles, stainless steel supply lines |
|---|
| Cartridge Type | Ceramic disc, 1/4-turn, 500,000+ cycle rated, replaceable |
|---|
| Finishes | PVD and multi-layer: Polished Chrome, Brushed Nickel, Oil Rubbed Bronze, Polished Gold, Matte Black. Tested to ASTM B368. |
|---|
| Connections | 1/2" NPT female inlets. Integral stops included. Supply lines available separately. |
|---|
| Spout Reach | 6"–10" depending on model. Specify required reach. |
|---|
| Certifications | ASME A112.18.1/CSA B125.1, NSF 61/9, ADA compliant options, WaterSense available on select models |
|---|
| Warranty | Limited lifetime (residential), 5-year limited (commercial) |
|---|
Aurelia Classic Specification Checklist
Codes & Standards
- ☐ ASME A112.18.1/CSA B125.1
- ☐ NSF 61/9 lead-free
- ☐ ADA compliance (if required)
- ☐ WaterSense flow rate
- ☐ CALGreen (if adopted)
- ☐ Local code amendments
Hydraulic Design
- ☐ Flow rate specified (1.2/1.5/1.8/2.2 GPM)
- ☐ Pressure verified (20–80 psi)
- ☐ Temperature limits confirmed
- ☐ Laminar vs. aerated flow
- ☐ Backflow prevention required
- ☐ Water hammer protection
Installation
- ☐ Valve centers specified (6"–16")
- ☐ Wall reinforcement verified
- ☐ Spout reach confirmed
- ☐ Access panel locations
- ☐ Supply line connections
- ☐ Finish selection confirmed
Aurelia Classic Wall-Mount Faucet Models (12 Total)
The following 12 models represent the complete Aurelia Classic collection, engineered for various applications from powder rooms to luxury hospitality installations.
AFC-1000 – Wall-Mount Faucet with Cross Handles
Classic cross handle design. 1.2 GPM (WaterSense). Solid brass. Adjustable centers 6"-12". Available in all finishes.
AFC-1001 – Wall-Mount Faucet with Lever Handles
Elegant lever handle design. 1.2 GPM (WaterSense). Solid brass. Adjustable centers 6"-12". Available in all finishes.
AFC-1002 – Wall-Mount Faucet with Porcelain Handles
Traditional porcelain cross handles. 1.2 GPM (WaterSense). Solid brass. Adjustable centers 6"-12". Available in all finishes.
AFC-1003 – Commercial Wall-Mount Faucet
1.5 GPM flow rate. Heavy-duty construction for hospitality. Lever handles. Adjustable centers 8"-16".
AFC-1004 – High-Flow Commercial Faucet
2.2 GPM for commercial applications. Solid brass. Lever handles. Adjustable centers 8"-16".
AFC-1005 – Widespread Wall-Mount Set
Three-hole widespread configuration. Cross handles. 1.2 GPM. Adjustable centers 8"-16".
AFC-1006 – Single-Hole Wall-Mount
Single-hole configuration with lever handle. 1.2 GPM. Compact design for smaller spaces.
AFC-1007 – ADA Compliant Wall-Mount
ADA compliant with lever handles and appropriate spout reach. 1.2 GPM. Adjustable centers.
AFC-1008 – Gooseneck Wall-Mount
Elegant gooseneck spout design. 10" reach. 1.2 GPM. Cross or lever handle options.
AFC-1009 – Bridge-Style Wall-Mount
Classic bridge design with cross handles. 1.2 GPM. Solid brass. Adjustable centers 8"-12".
AFC-1010 – Laminar Flow Wall-Mount
Laminar flow technology for splash-free operation. 1.2 GPM. ADA compliant. Lever handles.
AFC-1011 – Wall-Mount Faucet with Side Spray
Includes coordinated side spray. 1.2 GPM. Cross handles. Adjustable centers 8"-12".
📚
Digital Resources & Technical Documentation
Where can I download BIM/CAD and installation manuals?
Access the complete BIM library, installation manuals, CAD drawings, and specification sheets for all Aurelia Classic models. All resources available through official BathSelect channels.
📐
BIM / CAD Library
Download Revit families, CAD blocks (DWG/DXF), and 3D models for all Aurelia Classic faucets. Compatible with major AEC software platforms.
RFA / DWG / DXF
📄
Installation Manuals (PDF)
Step-by-step installation instructions, rough-in diagrams, and technical specifications for all Aurelia Classic wall-mount faucets.
PDF
🎥
Installation Help Videos
Visual guides for wall-mount faucet installation, maintenance tips, and troubleshooting tutorials.
MP4 / YouTube
AEC Resources and Specification Support
Technical Documentation Library
Project Coordination
For project-specific submittals, contact specification support with your model numbers, finish requirements, and flow rate specifications. We can provide consolidated documentation packages aligned with your project requirements.
Specification Support: [email protected]
Technical Phone: (888) 555-1234 ext. 2
Frequently Asked Questions: Engineering & Specification
What are the rough-in requirements?
+
Aurelia Classic wall-mount faucets feature adjustable centers from 6" to 16" depending on model. Standard rough-in requires 1/2" NPT supply lines with integral stops. Wall reinforcement is required between studs. For ADA compliance, mount faucet 4"–6" above finished floor. Verify spout reach (6"–10") relative to sink dimensions.
Are they WaterSense certified?
+
Yes. Models specified with 1.2 GPM flow rate (AFC-1000 through AFC-1011, excluding AFC-1003/1004) are WaterSense certified and meet EPA water efficiency criteria. Commercial models (AFC-1003, AFC-1004) are available with higher flow rates for hospitality applications.
What certifications apply?
+
Aurelia Classic faucets are certified to ASME A112.18.1/CSA B125.1 for plumbing fittings, NSF 61/9 for lead-free compliance and potable water safety. ADA compliant models meet 2010 ADA Standards for accessible design.
What finishes & durability?
+
Available in Polished Chrome, Brushed Nickel, Oil Rubbed Bronze, Polished Gold, and Matte Black. Finishes utilize Physical Vapor Deposition (PVD) technology for maximum durability, tested to ASTM B368 (500+ hours salt spray resistance).
Can they be retrofitted?
+
Yes. Adjustable centers (6"–16") accommodate most existing rough openings. For retrofit applications, verify existing supply line locations and wall condition. Access panels may be required for valve service. Integral stops allow for isolation without shutting off building supply.
What materials are used?
+
Precision-machined solid brass faucet bodies (ASTM B283). Ceramic disc cartridges rated for 500,000+ cycles. Dezincification-resistant brass (DZR) available for aggressive water conditions. Lead-free compliant to NSF 61.
Where to download CAD/BIM?
+
Cartridge lifespan?
+
Precision-ground ceramic disc cartridges are engineered for 500,000+ cycles (25-year equivalent residential use). Replaceable without removing faucet body. 1/4-turn operation for smooth control.
Suitable for commercial?
+
Yes. Fully compliant with hospitality and commercial requirements. Commercial models (AFC-1003, AFC-1004) offer 1.5-2.2 GPM flow rates. All models feature solid brass construction and ceramic cartridges suitable for high-frequency use. 5-year limited commercial warranty.
|
|
Engineering Authority and Specification Support
BathSelect Aurelia Classic wall-mount faucets represent a complete engineering solution for architectural, hospitality, commercial, and luxury residential applications requiring precision performance and timeless design integration. Each model is manufactured from solid brass with advanced ceramic disc cartridge technology, ensuring long-term durability, hydraulic stability, and consistent operational performance under varied pressure and usage conditions.
The collection supports adjustable installation configurations, ADA-compliant options, and multiple flow rate specifications to meet diverse project requirements. Comprehensive technical documentation—including CAD drawings, BIM models, installation manuals, and detailed specification sheets—is available to support architects, engineers, designers, and contractors throughout all project phases, from design development through final installation and commissioning.
All Aurelia Classic models are engineered to comply with recognized plumbing performance and material safety standards, including ASME A112.18.1, NSF 61, and applicable accessibility and water efficiency requirements. For project-specific specification assistance, submittal documentation, or technical coordination, refer to the BathSelect technical resource library or contact specification support to ensure proper model selection, installation compliance, and long-term operational reliability.
|
|
|
