ToF is Defining the Active Area in a Busy Shared Space

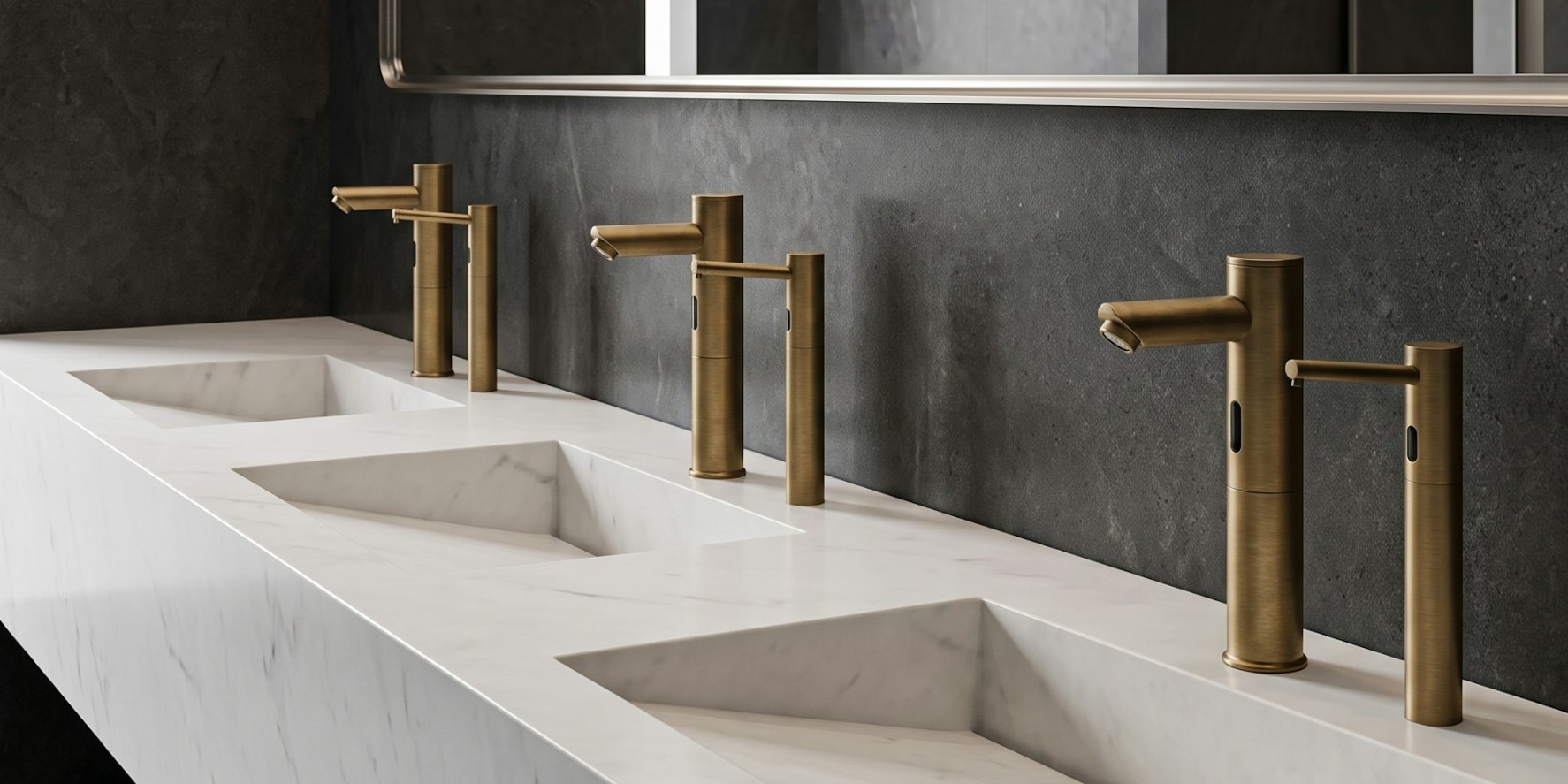

A station may work well when tested alone and behave differently when several people move through the space at once. Someone can walk past, pause beside a neighboring station, or stand at an angle while another person is using the next position. These everyday movements make the boundaries of the active area an important design consideration.

Distance Is Only Part of the Picture

Time-of-Flight sensing provides distance information, but a reliable response also depends on how that information is used. The system must recognize activity in the intended position while avoiding an unwanted response to movement nearby. The sensor selected, its field of view, its mounting position, and its configuration all contribute to that result.

This matters most where stations sit close together. If the active area extends too far into a neighboring position or a circulation path, people may experience a response they did not intend. If it is too restricted, a visitor may need to adjust their position before the station responds. The aim is an area that feels natural during ordinary use.

Test the Space as People Actually Use It

Check Adjacent Movement

Commissioning should include more than one person standing directly in front of a single station. Have someone use one position while another person approaches or passes the next. Repeat the check from the directions people will take when entering and leaving the space. This can reveal interactions that an isolated test would miss.

Check Different Positions

Visitors do not all stand at the same height, distance, or angle. Testing several natural positions helps the project team confirm that the response occurs where it is expected. Any adjustments should be checked again at neighboring stations so that improving one position does not create an issue at another.

Record the Final Configuration

Once the installed arrangement performs as intended, the final settings should be documented for the facility team. A record of the mounting position, configured area, and commissioning checks gives staff a useful reference if a component is serviced or replaced later.

A good active area is rarely noticed by the visitor. People approach, complete their routine, and leave without thinking about what happened behind the scenes. Achieving that result requires attention to the full row of stations and the movement around them, not just a successful test at one position.
