How to install Lima Thermostatic Brushed Gold Shower Set With 4 Pieces SPA Massage Jets And 2-Way Mixer Valve



  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.



shower

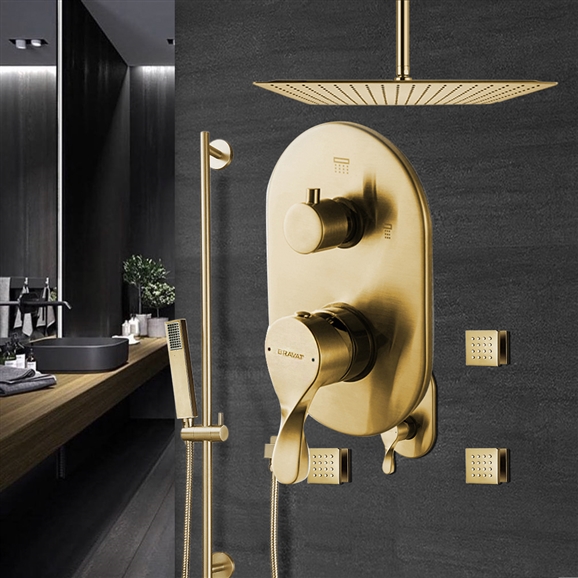

Lima Thermostatic Brushed Gold Shower Set With 4 Pieces SPA Massage Jets And 2-Way Mixer Valve

Shower Head Installation Instructions



Shower Head Parts Included:
  • Ceiling Mounting Arm
  • Locking nut
  • Ceiling trim
  • Shower arm
  • Showerhead
  • Fixing screws and wall plugs (not shown)
Ceiling Mount Square Showerhead Easy Step by Step Installation

Step 1: Step 2: Step 3:
Ceiling Mount Square Showerhead Showerhead Showerhead
Ceiling Mount Square Showerhead

Step 1: Take Out the Old Shower Head
You can easily remove it by hand, but depending on how long the rain showerhead has been installed, you might need to use an adjustable wrench.
Hence, if you find it difficult to remove, rotate the showerhead with an adjustable wrench in a counterclockwise direction to unscrew it.

Step 2: Keep the Shower Arm Clean and In Good Shape
After you have removed the head, check the shower arm threads for any debris and old Teflon tape.
If you find any, remove it and clean them off thoroughly. It’s best to use a microfiber cloth when cleaning the thread because it removes Teflon tape perfectly and works great to pick up tiny grits.
Once you’re done cleaning, check if it is corroded or leaking. For damaged threads, it will be best you replace it entirely so you can have a comfortable shower experience any time.

Step 3: Time to Add New Teflon Tape
Since you have removed the old Teflon tape, you have to replace it with new ones. The reason is that this tape helps to protect the shower from leaking after installing the showerhead.
Now apply the new Teflon tape about 3-5 turns on the thread and tear the end part. Use your hands to smooth it out to keep it leveled to the thread.
Keep in mind that when applying the tape, you should go in a clockwise motion so that it doesn’t come off when you attach the head in the same direction.

Step 4: Connect the Showerhead
As said earlier in the tools needed, we’re using the rubber sealing washer that comes with the showerhead. This tool helps to make the showerhead stay watertight and secured on to the thread. Ensure you place it properly before installing it.
After that, reconnect the shower head and tighten it down with your hands. You can employ a chair or ladder to make things easier for you.

Step 5: Tighten the Showerhead On To the Thread
You will need to get the adjustable wrench handy to tighten down the shower very well. But make sure you wrap the threads with a terry cloth, so it doesn’t damage the finish when tightening the showerhead.
Once you have done that, now use the adjustable wrench to tighten down the showerhead. However, don’t over-tight or force it so that it’s easier to remove in the future.


HandHeld Shower Installation Instructions

Hand- Held Shower Installation Instructions


HandHeld Shower Installation Instructions
Step 1: Step 2: Step 3:
Hand held shower
hand
held
shower
Hand held shower
Hand Hand held shower
  • Open the closed cover of the shower holder and take out the screws.
  • Drill two holes size 0.2" (6mm) on the wall according to the hole position of the shower holder.
  • Use a hammer to break 2 plastic wall plug into two holes. Tighten the screws with the plastic wall plug and locking with the shower holder. Then install the closed cover.
  • Connect the shower hose with the water outlet connection part and hand shower. Plug the hand shower in the shower holder.
Body Sprays Installation Instructions

Shower Body Jets Installation Instructions


Body Sprays Installation Instructions
Step 1: Step 2: Step 3:

Body
Sprays
Body
Sprays
Set the decorative cover on the body jet. Roll the raw material belt in the thread screws.
Use a wrench to tighten 6 body jets on
the water outlet holes in a clockwise direction.

Mixer Installation Instructions

Thermostatic Shower Mixer Installation Instructions


Thermostatic Shower Mixer
Step 1:
Parts List Parts List:

  • Shower Valve
  • Hot Water Inlet
  • Cold Water Inlet
  • Diverter Knob
  • Handle
  • Set Screw
  • Allen Key
  • Indication Button
  • Escutcheon













Step 2: Step 3:
Thermostatic Shower Mixer Shower
Mixer
