Thermostatic Mixer Installation Instructions

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided

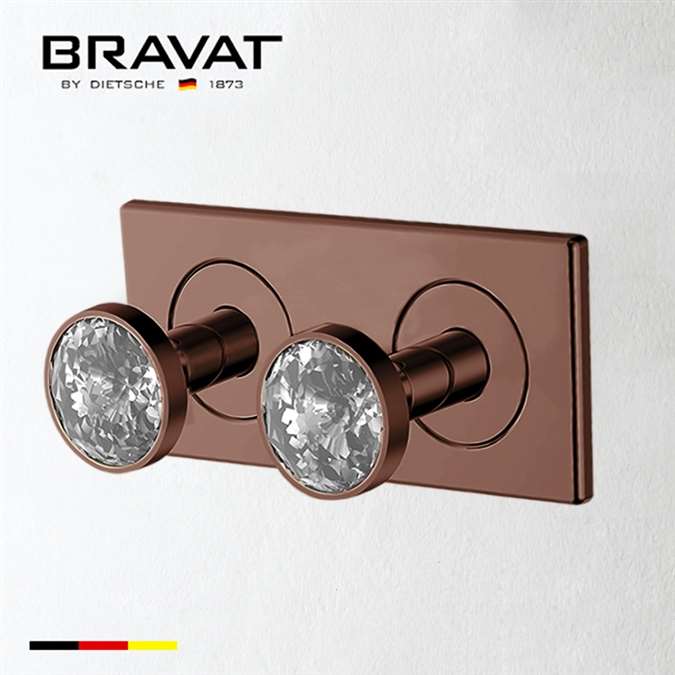

mixer mixer Bravat Wall Mount Two Crystal Handle Thermostatic Bathroom Shower Mixer In Light Oil Rubbed Bronze Finish

Two Handle Thermostatic Mixer Installation Instructions

Step 1

mixer Step 2 mixer Step 3

Step 4 Step 5

Step 6

Step 7

Step 8

1. Attach shower valve to the wall
Place the shower valve in the required position and mark the centers of the fixing holes onto the wall. Drill suitable holes and insert the wall plugs. Securely attach the shower valve to the wall using the screws supplied.

2.Connect water supply pipes
Insert 15mm hot and cold water supply pipes into the inlet connections and tighten nuts, ensuring the olives are fitted.

3. Plumb in outlets
Insert 15mm pipework into the top and bottom outlets and plumb into the users chosen products. Ensure the olives are fitted when tightening the nuts.

4. Fit concealing plate Note:
The concealing plate can be used as a template by drawing around the plate and measuring in by 10mm to give sufficient clearance. See page 18 for concealing plate adjustment. Run a bead of waterproof silicone sealant around the inner edge of the concealing plate. Slide the concealing plate onto the shower valve control handles and apply firm pressure to ensure silicon sealant spreads.

5. Fit Handles
Push the spline adaptors (if required) onto the valve spindles. Push the handles onto the spline adaptors and secure by tightening the grub screw and push-fit the cap into position.
