How to install Installation Instructions BathSelect Taranto Polished Gold Finish Round Massage Shower Body Jets Spray

Installation Instruction for Installation Instructions BathSelect Taranto Polished Gold Finish Round Massage Shower Body Jets Spray

BathSelect Taranto Polished Gold Finish Round Massage Shower Body Jets Spray


Are you looking for something that will give you a brand new showering experience? Why not try adding a set of awesome round body jets? This is one shower fixture that will surely complement any contemporary bathroom! You can have 4, 6, or even 8 of these installed for a better shower massage experience. When it comes to new bathroom upgrades, we offer shape, finishes, and styles that you've looking for. Give your bathroom an elegant glance with sink faucets and fixtures. This is one of the trendiest finishes across decor styles in the bathroom. The faucet has elegant flowing ideal for hand washing and other everyday tasks. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes. It comes super seal technology inside, capable of delivering superior performance with solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time.

BathSelect Taranto Polished Gold Finish Round Massage Shower Body Jets Spray Features
  • Brand Name: BathSelect
  • Model Number: BSTINTShower-4217R
  • Type: Shower Add-On
  • Finish: Polished Gold
  • Material: Solid Brass
  • Rotatable: 45 degrees to the left or right
  • Temperature: range 20 - 50 deg C.
  • Feature: Easy-To-Clean Silicone Nozzle
  • Jet Shape: Round
  • BathSelect Taranto Polished Gold Finish Round Massage Shower Body Jets Spray

    BathSelect® Manufacturer Warranty Information BathSelect Product Warranty
    • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
    • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
    • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.


    Shower
    installation

    Shower Body Jets Installation Instructions

    Step 1: (Rough-in)Step 2:
    BodySprays





    Step 3:Step 4:





    Step 5:Step 6:





    Step 7: (Pressure Balancing Loop)


    1. Apply plumber tape to the pipe nipple (1). Thread trim body (2) onto pipe nipple. Tighten securely with a wrench.

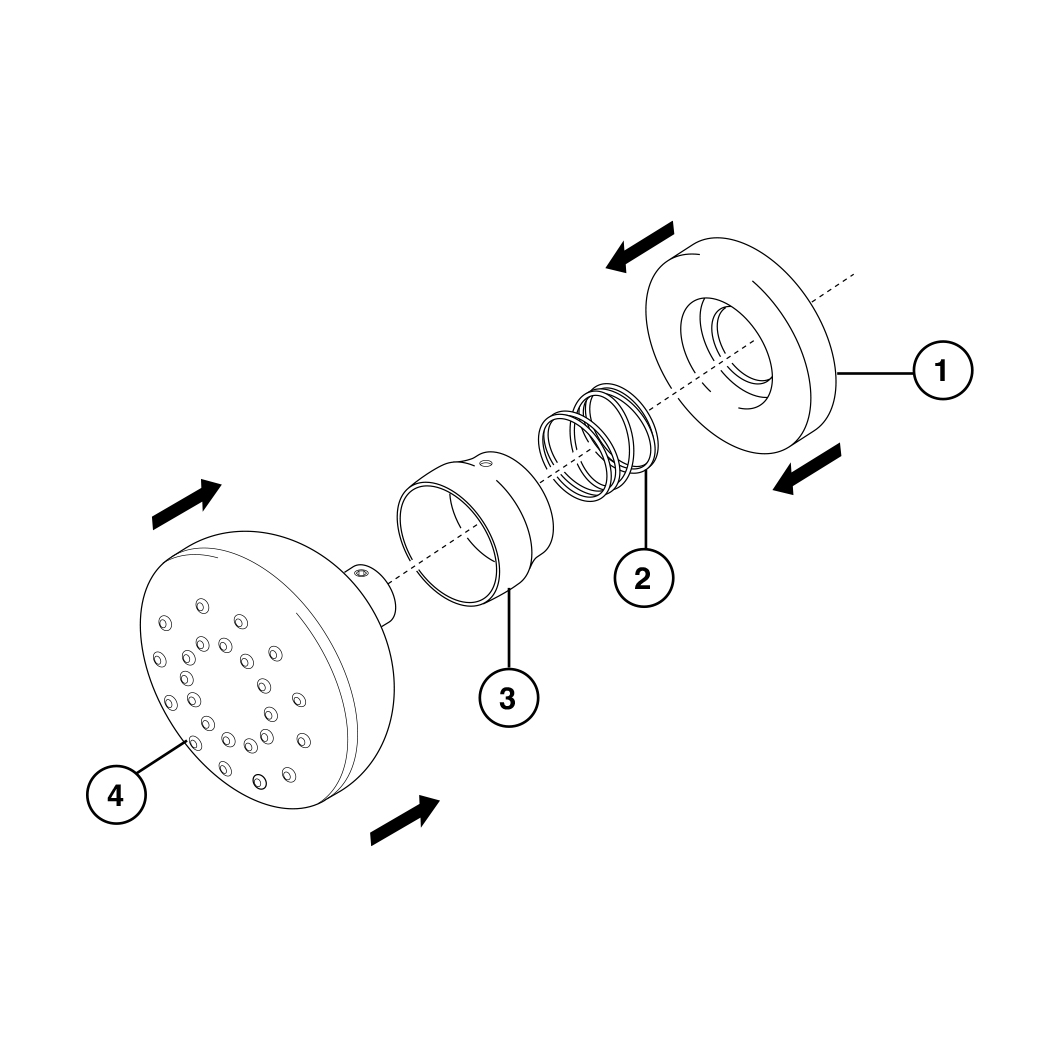

    2. Assemble escutcheon (1), spring (2), trim bonnet (3) and spray face (4).
    3. Apply silicone to the back of the escutcheon (1). Slide spray assembly over the trim body nipple (2) and secure with set screw (3).

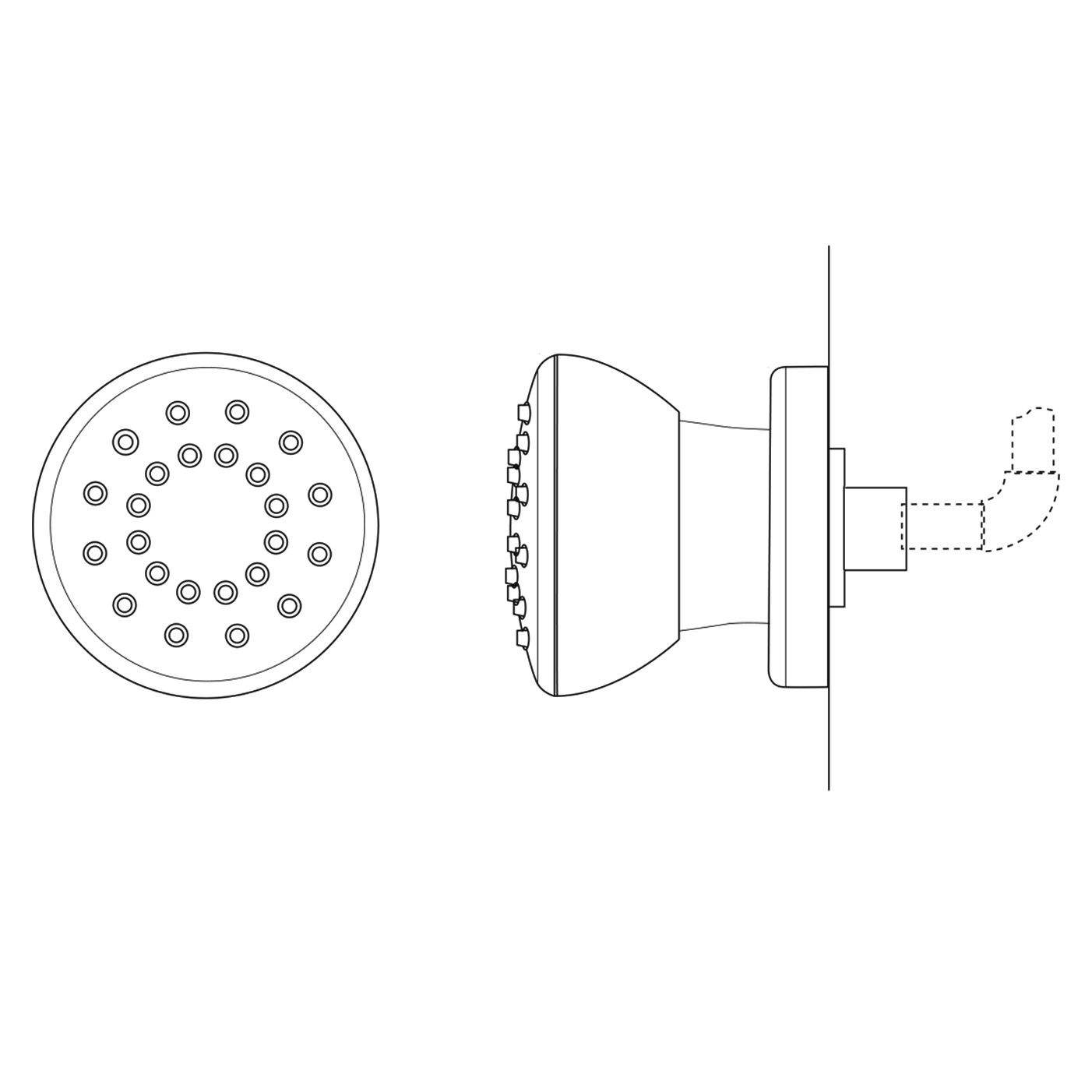

    Rough-in Suggestion:

    This installation requires a 1/2" male threaded pipe fitting to extend 1/4" beyond the finished surface. The plumber should install a properly anchored 1/2" female pipe fitting (i.e. a drop-ear ell) recessed into the wall, into which a brass pipe nipple of proper length can be fitted once the finished wall is complete.


    Bodyspray placement:

    Custom shower systems are sized to the user or users. Bodysprays are normally placed at the upper back, middle back, and upper thigh. Always position bodysprays according to the preferences of the user(s).

    Pressure Balancing Loop:
    If installing bodysprays in a bank of 3 or fewer, a pressure balancing loop is not necessary.
    If installing bodysprays in a bank of 4 or greater, a pressure balancing loop must be used to keep the pressure even between the bodysprays.



    Instructions
    Body jets should be arranged in your system to provide the necessary spray outlets to suit the application.
    1. Identify all components and check for completeness, particularly before arranging fitting.
    2. Depending on the application the body jet can be panel mounted using a backnut (not supplied) or set into the wall on rigid pipe work. If panel mounting care should be taken to ensure connection can be made after securing with the backnut.
    3. Connect body jet to pipe work using recommended ½” BSP connections (not provided) with thread sealing compound where necessary.
    Note: - Before finishing wall turn on water supplies to check both correct system function and for leaking from joints/connections.
    4. Complete wall finish.



    Massage Showers & Jetted Body Showers
    Why settle for raindrops falling when you can have them coming from all directions? These shower jets can be rotated so you can point them wherever you please. When it comes to new bathroom upgrades, we offer shape, finishes, and styles that you've looking for. Give your bathroom an elegant glance with sink faucets and fixtures. This is one of the trendiest finishes across decor styles in the bathroom. It comes super seal technology inside, capable of delivering superior performance with solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time.

    One of the main benefits of a body jet shower system is that it helps invoke the benefits of hydrotherapy. It produces various effects that benefit the body in different ways.
    1. Relief from muscle pain and relaxing effect
    2. Heal and Rehabilitate injured muscles
    3. Pressure Point Relief
    4. Refresh after a long day

    Since the water jets can be positioned individually and are adjustable, they can be targeted at specific muscle groups of the body to soothe and massage specific areas, thus providing effective relief from muscle pain. As well, since flowing water has a soothing effect, being targeted by body jets helps your body release endorphins which act as a natural pain reliever.

    Whether you shower as a way to get energized for the morning, or as a way to wind down after a long day at work, a Shower System with Jets creates an amazing spa-like experience.

    Shower Body Sprays are basically small, side-mounted showerheads that are attached at strategic points on the wall. Body sprays in the shower are most often found in multiples of 2, 3, or 4, and be installed on the same, or opposing walls. Regardless of where the spray heads are placed, body sprays are normally plumbed as a group.
