The Wella Goose Neck Automatic Commercial Sensor Faucet|Installation

Wella Oil Rubbed Bronze Goose Neck Automatic Touchless Commercial Sensor Faucets

Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Wella Goose Neck Automatic Commercial Sensor Faucet B510 - Gold Tone Finish

Goose Neck Automatic Commercial Sensor Faucet Product Description

  • Touchless Operation
  • Sensitive Sensor with Infrared AI Smart-Chip

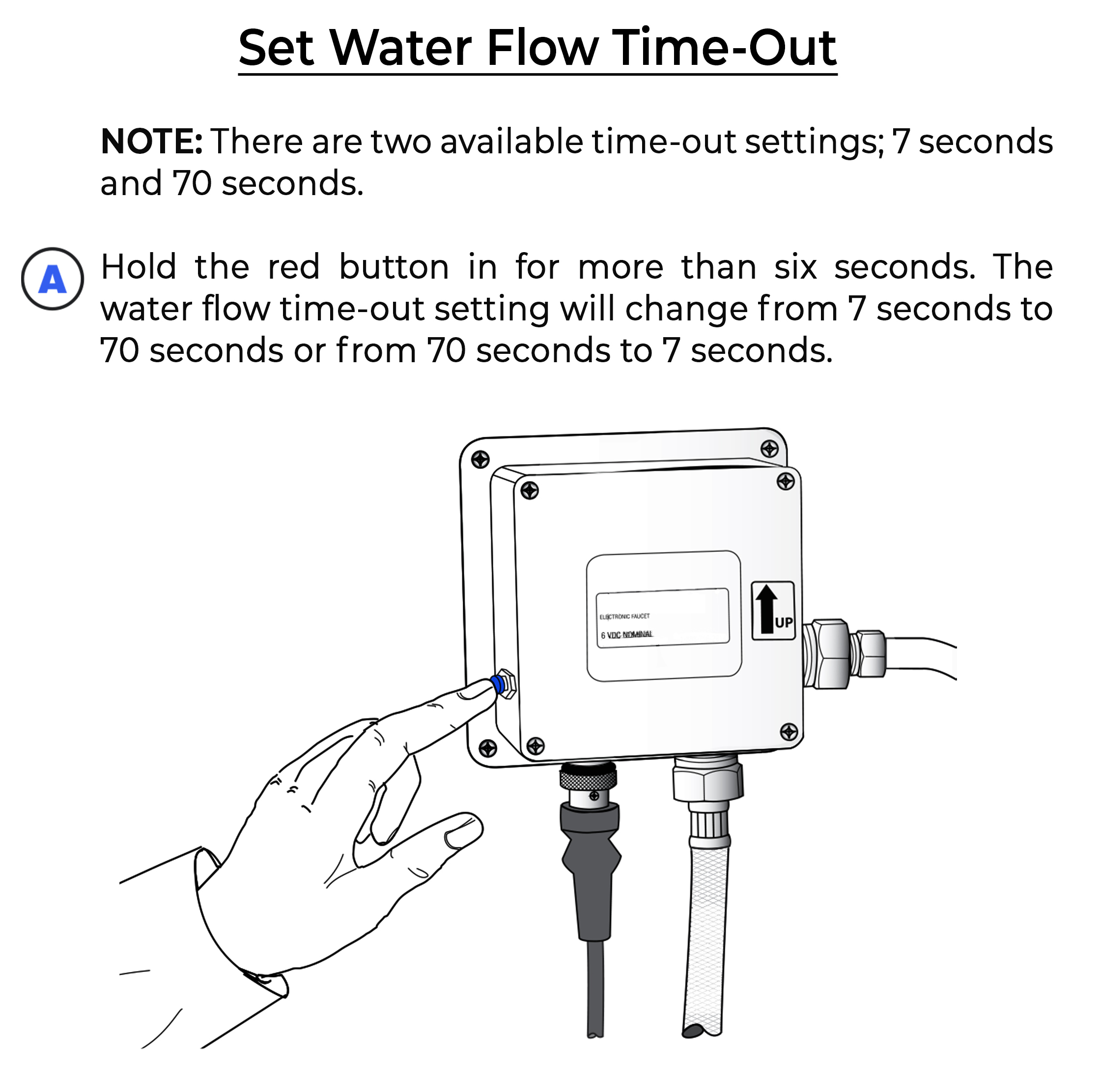

  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Oil Rubbed Bronze Finish
  • Easy to Install - Instructions Included
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life

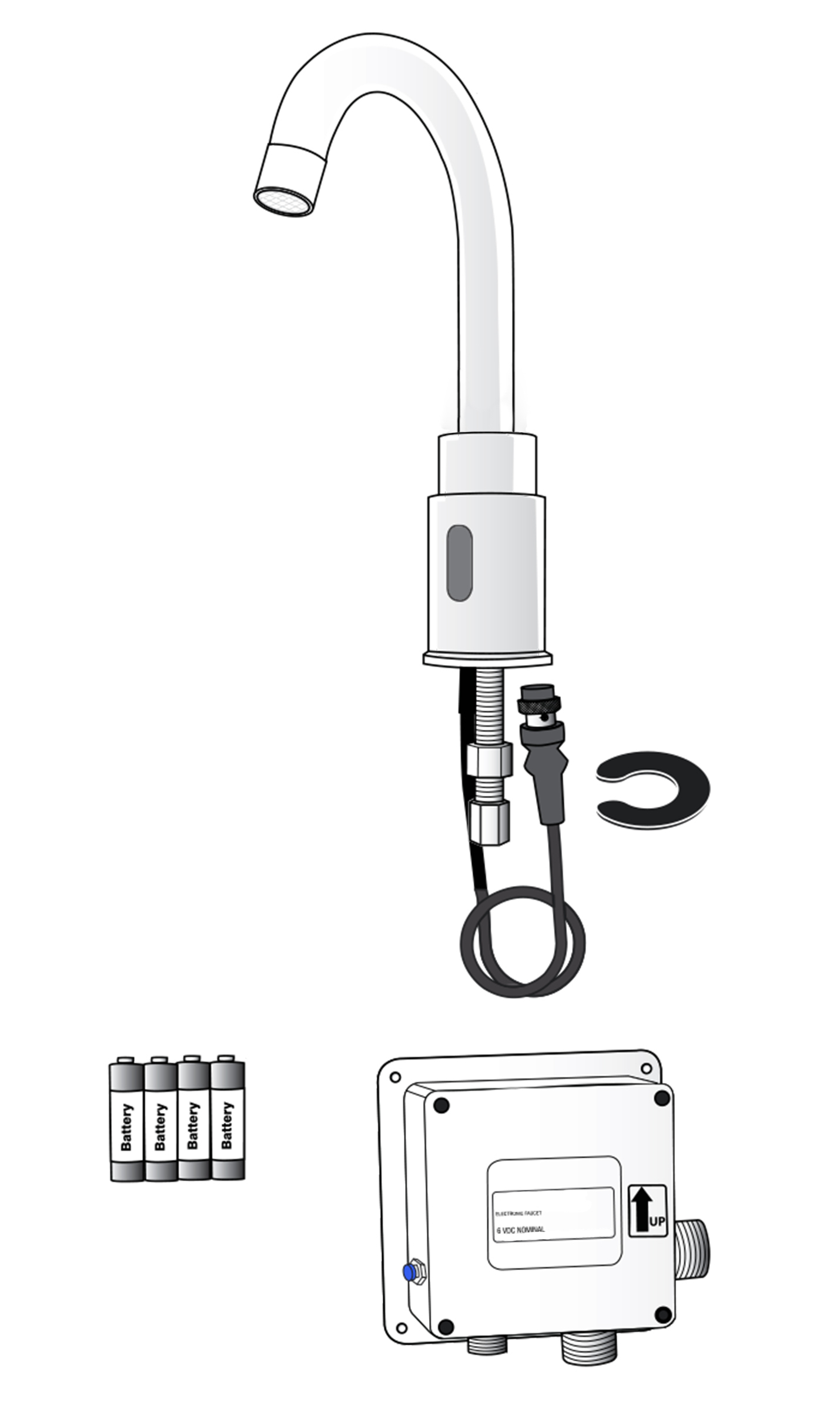

  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant
  • Easily can be installed in new or retrofit applications.
  • Sensor Faucet Applications: Residential & Commercial use.
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Wella Goose Neck Automatic Commercial Sensor Faucet B510 - Gold Tone Finish

ADA Compliant. Heavy Duty Automatic Sensor Faucet, Solid Brass, 360 degree rotating neck. Generally Suitable for Heavy Traffic Environments such as Food Handling Facilities, Laboratories, Clinics as well as Residential Applications. Perfect for Bathroom or Kitchen.
Wella Goose Neck Automatic Commercial Sensor Faucet B510 - Gold Tone Finish

Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory! Sensor Faucet has built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.

Comes complete with Hoses & AccessoriesAdvanced energy saving design for long lasting battery lifeSolid Brass Construction, Oil Rubbed Bronze Finish
Wella Goose Neck Automatic Commercial Sensor Faucet B510 - Gold Tone Finish wella Water resistant solenoid enclosureWella Goose Neck Automatic Commercial Sensor Faucet B510 - Gold Tone Finish

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping and lathering hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant.
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Usage: Commercial / Residential

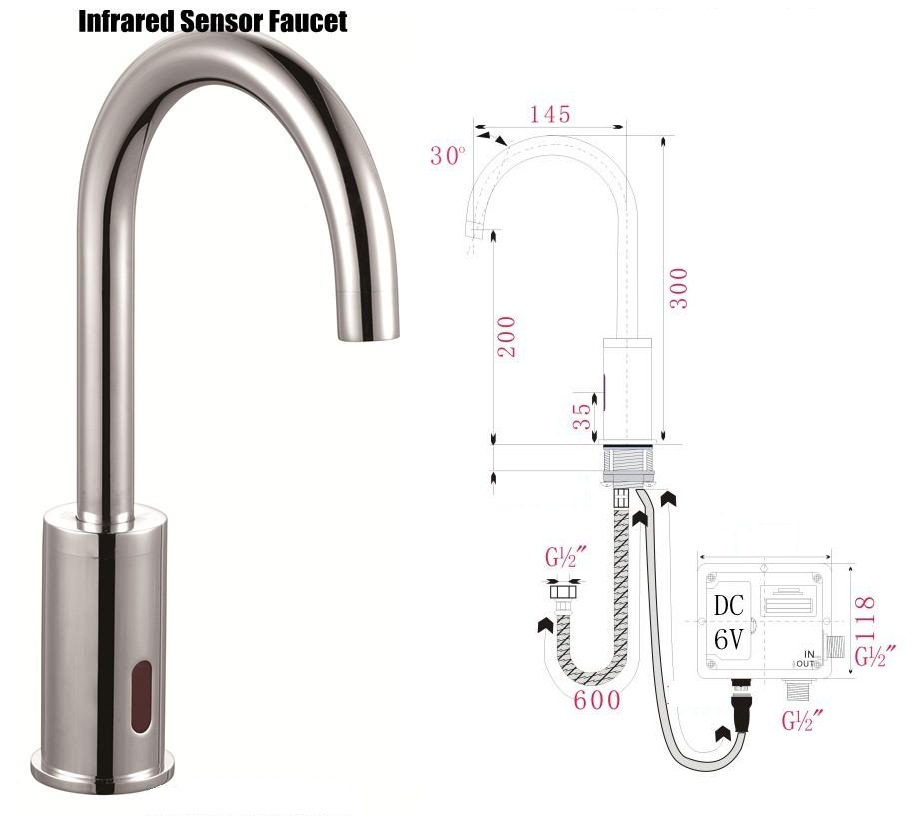

Technical Details of Wella Goose Neck Sensor Faucet B510 - Gold Tone Finish

Diameter of outlet pipe DN15
Water Pressure 0.05Mpa - 0.7Mpa
Power DC.6V
Detection Zone Factory set 25cm(based on standard inductive board)
Ambient Temperature 1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure 1P56
Wella Goose Neck Automatic Commercial Sensor Faucet B510 - Gold Tone FinishWella Goose Neck Automatic Commercial Sensor Faucet B510 - Gold Tone Finish

  • Overall Height: 11- 1/2" (measured from counter top to the highest part of the faucet)
  • Spout Height: 7-3/4" (measured from counter top to the spout outlet)
  • Spout Reach: 5-1/2" (measured from the center of the faucet base to the center of spout outlet)
  • Mounting Type: Single hole
  • Number of Hole Required for Installation: 1
  • Faucet Centers (Distance Between Handle Installation Holes): Single Hole
  • Flow Rate: 1.3 GPM (gallons-per-minute)
  • Maximum Deck Thickness: 1-5/8"
  • Infrared sensor operation
  • Faucet Body Material: Brass
  • Faucet Finish: Gold
  • Flow Rate: 1.3 GPM (gallons-per-minute)
  • Maximum Deck Thickness: 1-5/8"
  • Infrared sensor operation
BathSelect® Manufacturer Warranty Information


Before installing, read entire Installation Instructions. Observe all local building and safety codes.

For the following The your new product, it is assumed that any old fixtures have been removed and any repairs or modifications to the water supply have been completed. Unpack and inspect the product for any shipping damages. If you find damages, do not install it.

We recommend consulting a professional if you are unfamiliar with installing bathroom fixtures

TOOLS AND MATERIALS:

Adjustable Wrench
Silicone Sealant
Damp Cloth
