How to install a wall mount brushed nickel automatic sensor controlled shower set

Wall Mount Brushed Nickel Sensor Controlled Automatic Shower Set

The shower will automatically shut off after being used for more than 2 minutes. The sensor features a low battery level indicator. Touch-free electronic shower control: The shower is activated automatically when the user steps within the sensor range. No need to have a valve to turn off after Shower. Water-efficient faucet reduces overall water usage without sacrificing water pressure. It is very convenient and clean. Brushed Nickel finished Solid brass construction for reliability and long-lasting performance. Enables users to have a shower without touching the shower control, saves water, prevents cross-contamination and keeps the showers cleaner, especially ideal for spas, hotels, and care homes.

    Wall Mount Brushed Nickel Sensor Controlled Automatic Shower Set Features:

    • Easy to install and retrofit product
    • Material: Solid all-brass construction
    • 3 products in 1: replace the mixer shower, the thermostatic mixing valve and operates by an infrared sensor.
    • Vandal-resistant stopper cup upon request
    • Hidden wall mounting screws for security
    • State-of-the-art design
    • Motion Touchless Operation
    • Sensitive Sensor with Infrared AI Smart-Chip
    • Fit for residential or commercial use applications.
    • Factory set to 30-second Auto Shutoff (can be adjusted).
    • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
    • Solid Brass Construction, Brushed Nickel Finish
    • Easy to Install - Instructions Included
    • Water-resistant solenoid enclosure
    • Advanced energy-saving design for long-lasting battery life
    • Power Supply: AC110V And DC6V (batteries not included)
    • AC/DC power option.
    • ADA Complaint
    • Easily can be installed in new or retrofit applications.

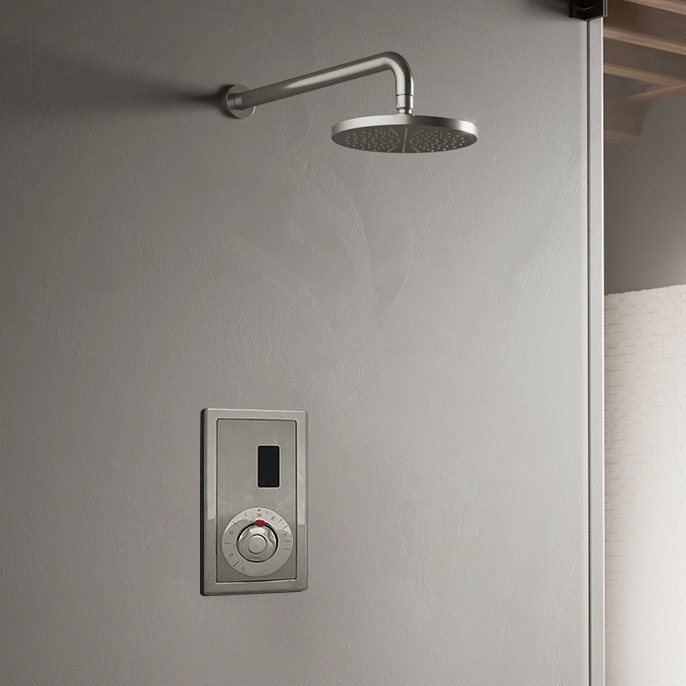

    BathSelect Wall Mount Brushed Nickel Sensor Controlled Automatic Shower Set
    BathSelect® Manufacturer Warranty Information
    • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
    • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
    • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided
    shower shower

    Shower Head & Sensor Mixer Installation Instructions

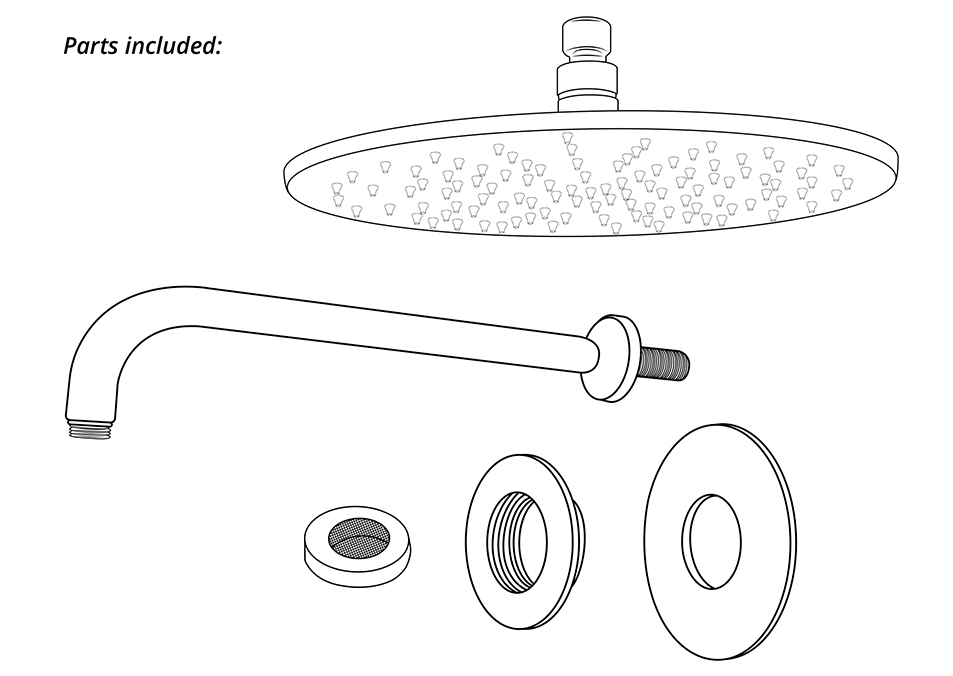

    Shower Head Parts Included:
    • Wall Mounting Arm
    • Locking nut
    • Wall trim
    • Shower arm
    • Showerhead
    • Fixing screws and wall plugs (not shown)

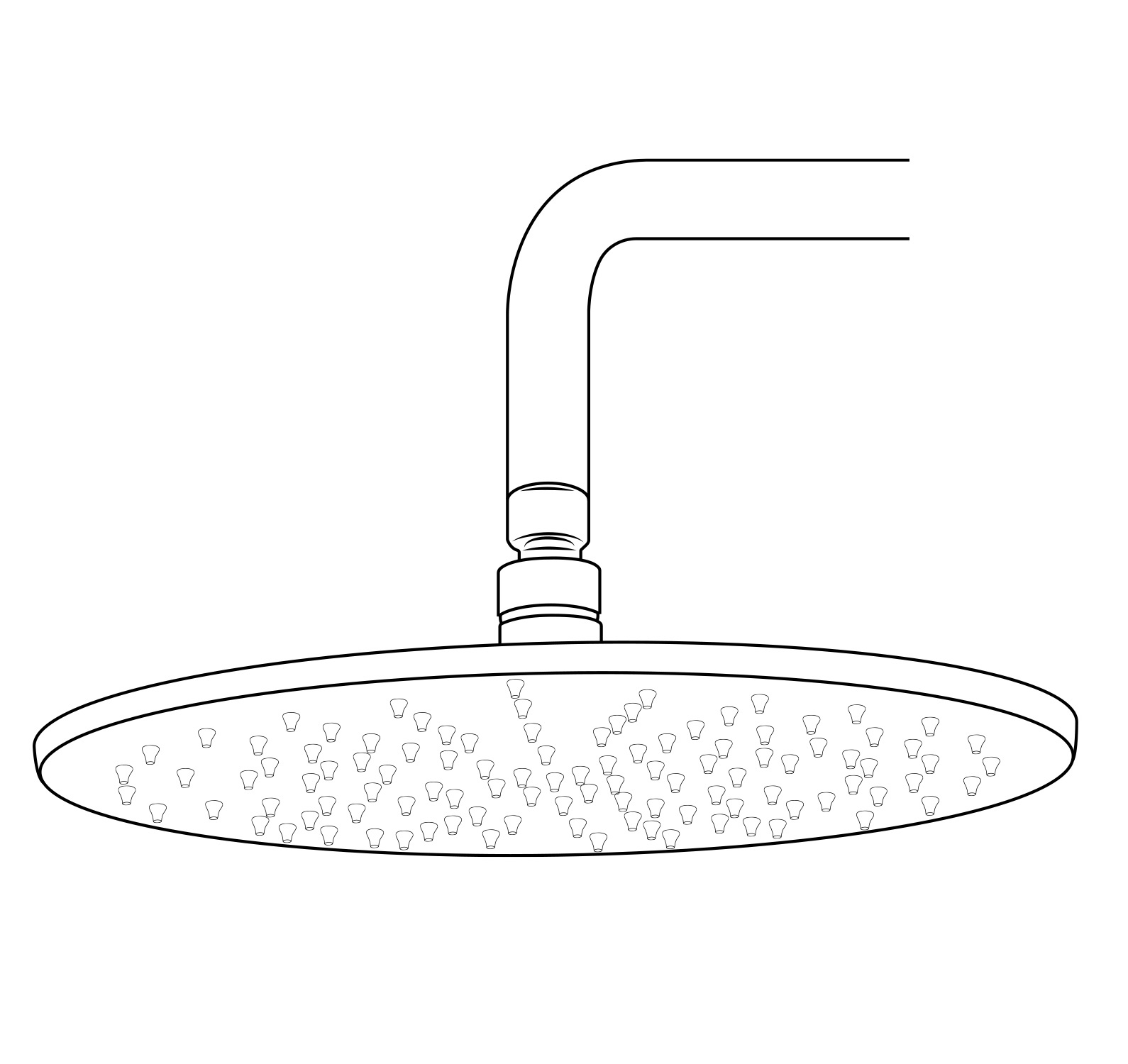

    shower Shower Head shower
    Step 1

    Shower Head
    Step 2

    Shower Head
    Step 3

    Shower Head
    Step 4

    Shower Head
    Step 5

    Shower Head
    Step 6

    Shower Head
    Step 7

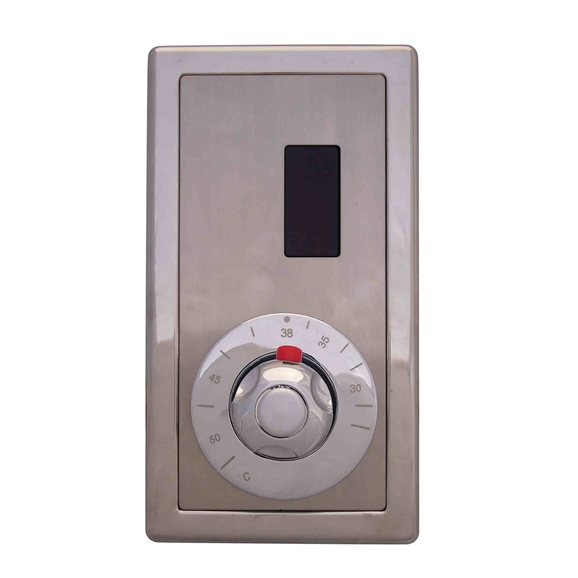

    sensor mixer
    Step 8

    sensor mixer

    • Use your hands counter clockwise to unscrew the old showerhead and removed it.

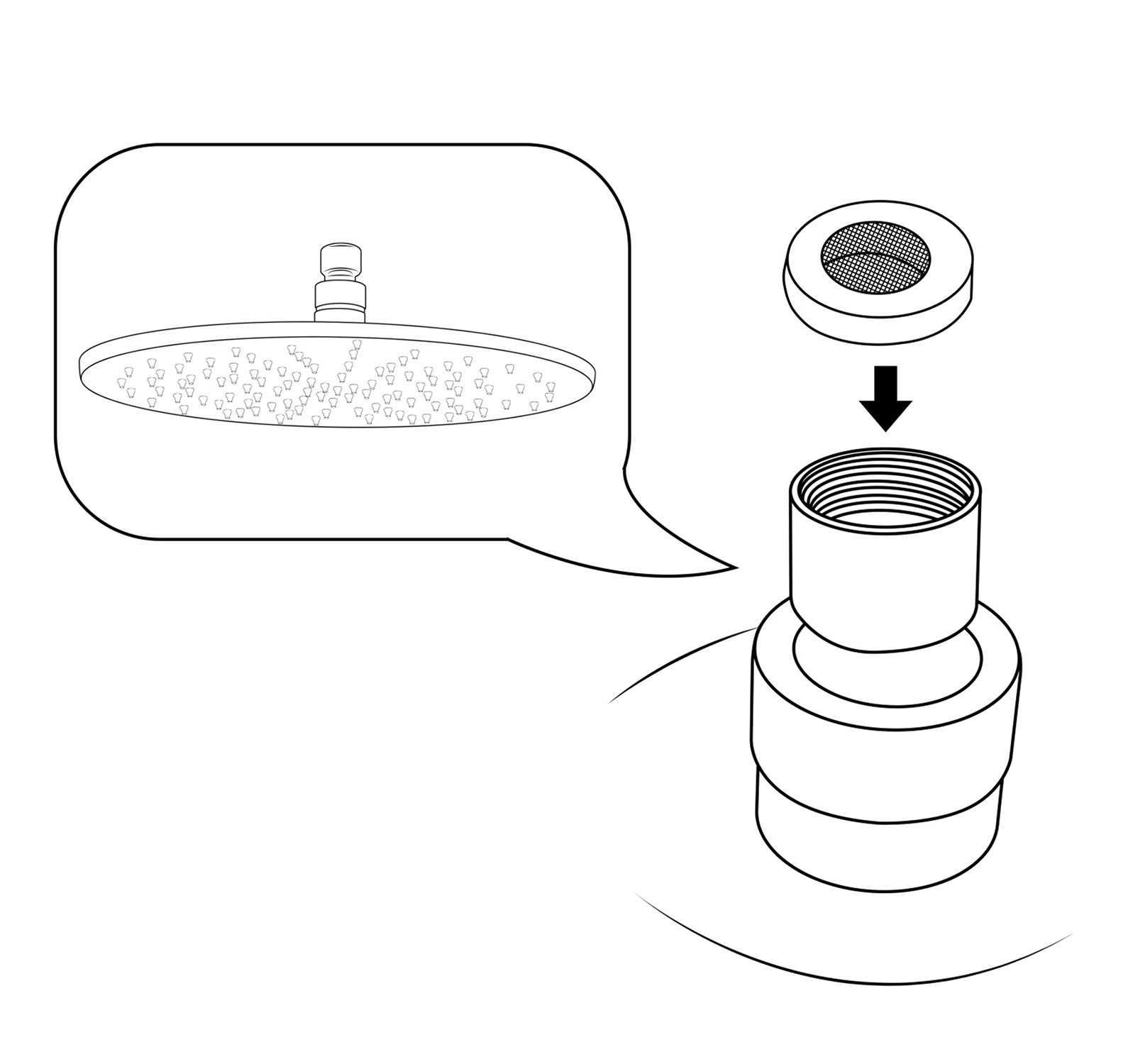

    • Take out the showerhead, make sure the shower filter is placed in the connector.
    • Ensure the showerhead full horizontal alignment wall mounted shower arm thread.
    • Use your hands clockwise to tighten showerhead.

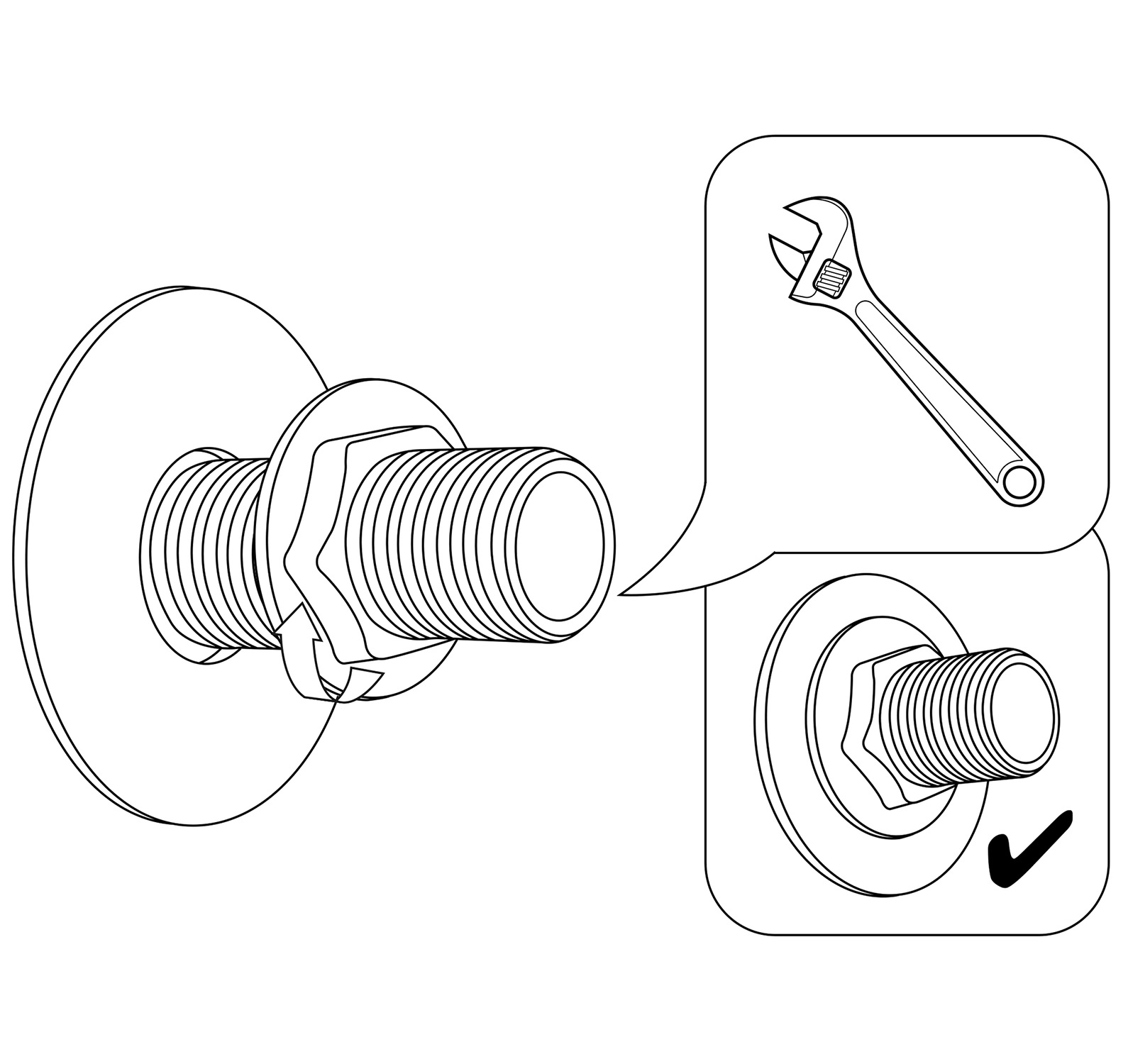

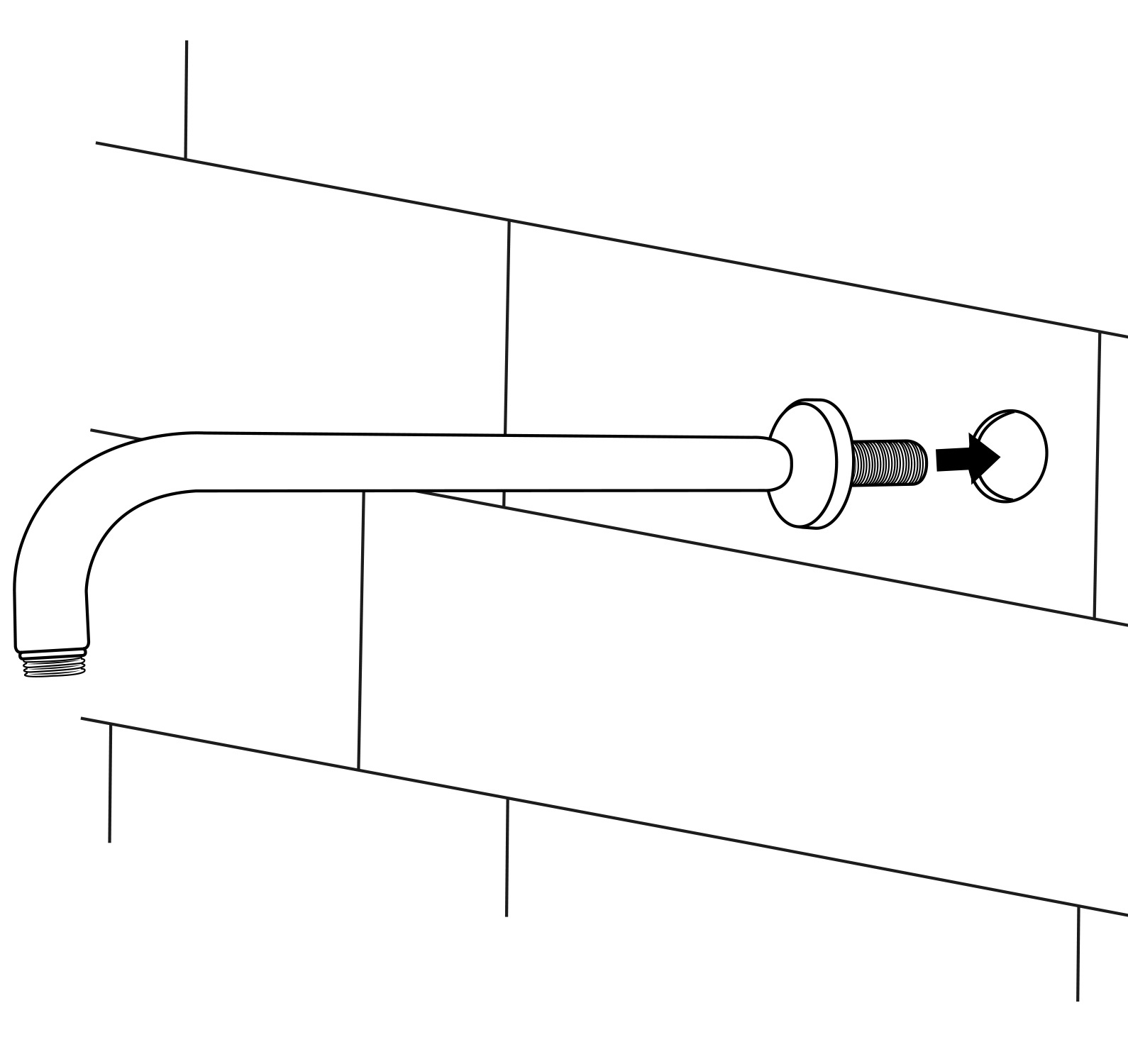

    • Insert the long end of the shower arm (2) through the flange (1) and wrap plumbers’ tape around the threaded end of the shower arm (2) in a clockwise direction, as shown. Screw the shower arm into pipe elbow inside of the wall.

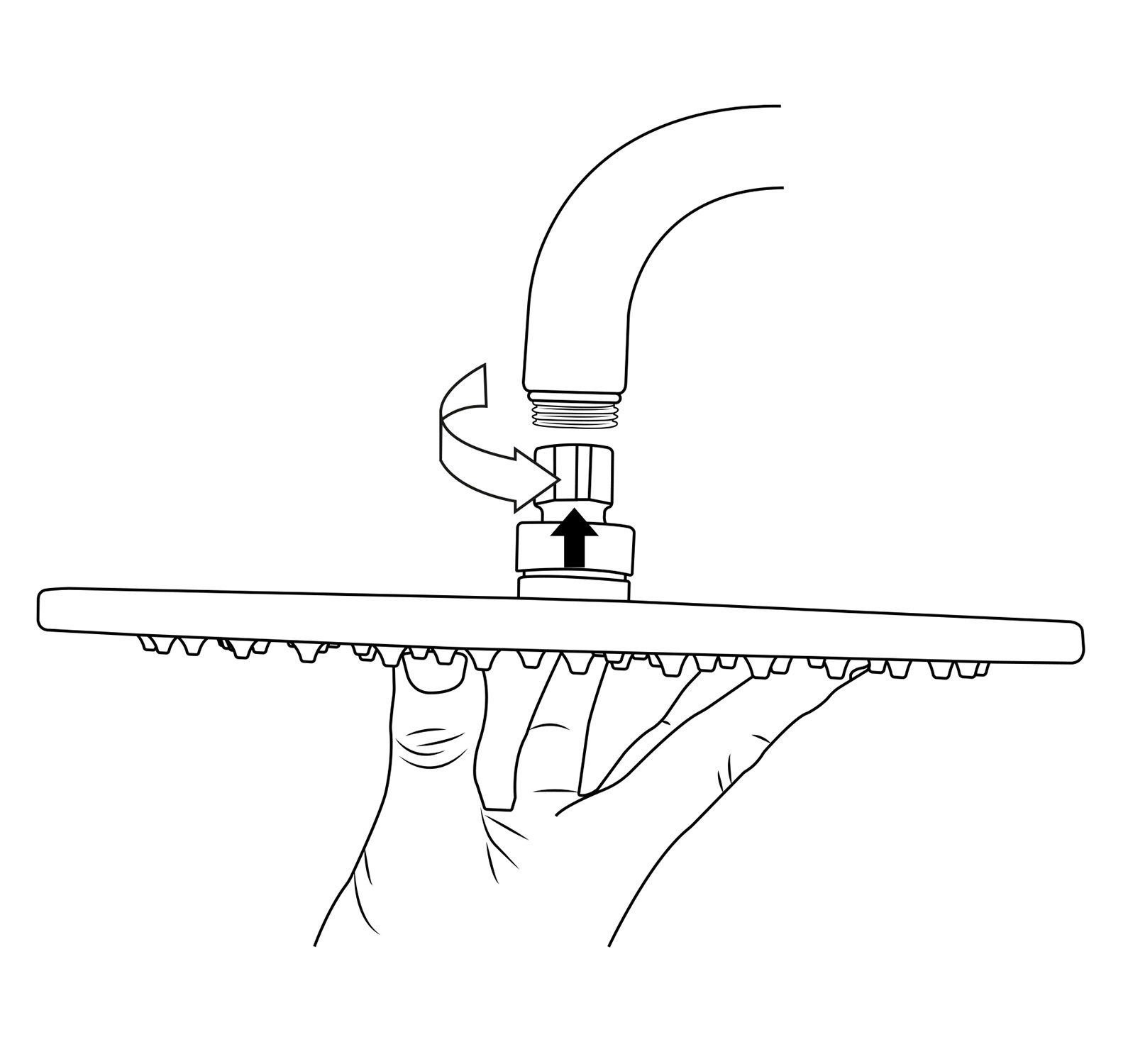

    • Install new shower head on shower arm. Thread the ball onto the shower arm clockwise.
