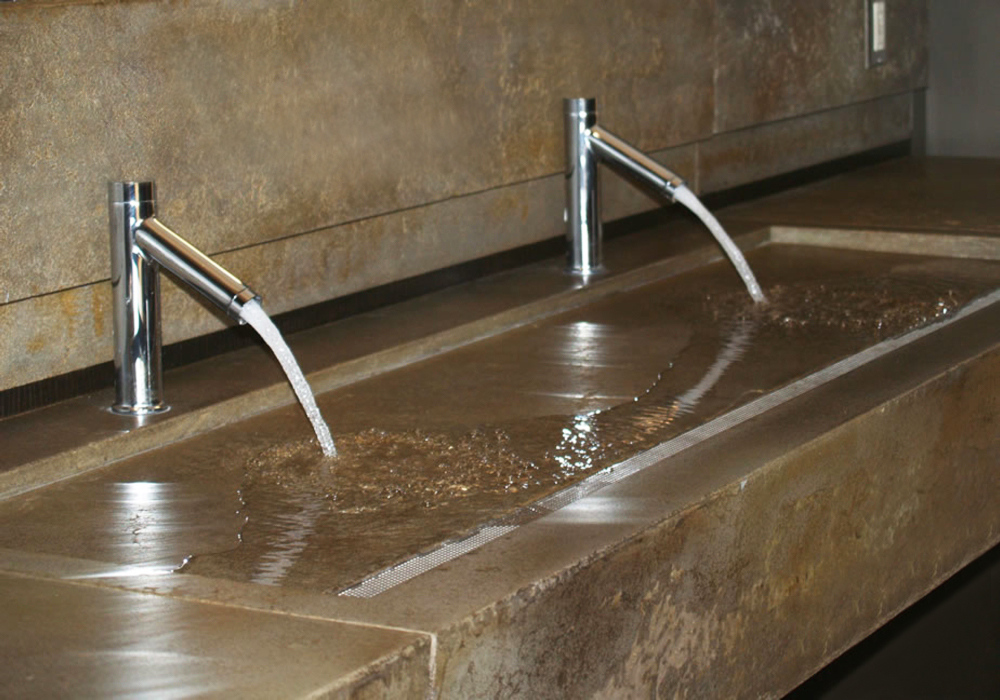

The Tripod Commercial Automatic Electronic Hands Free Faucet - Installation Details Commercial Automatic Hands Free Motion Sensor Faucet Tripod Commercial Sensor Faucet Product Description The Tripod contemporary touchless, sensor activated bathroom faucet comes with self-setting detection range; is a low maintenance, and has an easy access screen to protect working components from debris and natural waterborne elements. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.Fits all standard US plumbing.Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Motion detection touchless sensor faucet operation Sensitive Sensor with Infrared AI Smart-Chip Factory set to 30-second Auto Shutoff (can be adjusted). Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi Solid Brass Construction, Polished Chrome Finish Easy to Install - Instructions Included Water resistant solenoid enclosure Advanced energy saving design for long lasting battery life Comes complete with Hoses & Accessories Power Supply: AC110V And DC6V (batteries not included) AC/DC power option. ADA Compliant. Easily can be installed in new or retrofit applications. Usage: Commercial / Residential Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing. Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory ! Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles.Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow. Sensor Activated Faucet Special Features: Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function. Meaning of the codes are described in the installation instructions. Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean Faucet can be mount to any sink surface. ADA Compliant. Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries. Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted. Diameter of inlet pipe DN15 Diameter of outlet pipe DN15 Water Pressure 0.05Mpa - 0.7Mpa Power DC.6V Detection Zone Factory set 25cm/10" (based on standard inductive board) Ambient Temperature 1 - 45 ℃ / 33.8 -113 °F Degree of protection by enclosure 1P56 BathSelect® Manufacturer Warranty Information

Prior to installation

Before installing the sensor faucet, please open the box to check the packing list whether it includes all the items as the above.

Installing iqua sensor faucet

Please install touchless sink faucet per installation instruction. Note: We don’t supply inlet pipe. Before installing Control module assembly, please check your inlet pipe whether it could be connected to the deck enough.

Please shut off the water valve of inlet pipe before installation.

Please check whether detection zone factory set as “SPECIFICATION” meets your requirements; otherwise please adjust it complying with your requirement. The steps as follows:

Adjustment of sensor distance

: Loosen the 600MM flex hose deasil from faucet assembly. Loosen two nuts under the base gasket using head screwdriver, please push the “sensor eye” slightly and take it out. Loosen six nuts from the control module assembly, open and take out battery compartment, put 4AA alkaline batteries into battery compartment. Connect fiber optic cable battery compartment. (Note: When connect optic cable to battery, without sensor object near the sensor location) Please use your hand to approach the “sensor eye” slowly from exceeding 30cm, When your hand in sensor location, you will hear beep from the battery compartment, meanwhile, the LED in the “sensor eye” flash red. A small nut is on the chipset located on the basis of “sensor eye”, turn around the small nut anti-clockwise to long or short of sensor distance. When finished adjustment, please take off fiber optic cable from battery compartment, meanwhile take out the batteries. Put the “sensor eye” into faucet assembly, put the faucet assembly together with fiber optic cable through the holes into the base of trim plate without border & base gasket, and then screw the two nuts of gasket.

Connect flex hose to basis of spout

(direction towards without nut).

Screw the two studs into trim plate with head screwdriver.

Put two (2) fender washers on the holes on top of deck which for inserting two studs. 5. Insert faucet assembly and fiber optic cable together with flex hose and studs through holes in deck. 6. Using two (2) fender washers into the two studs from below deck, and then put two (2) finger nuts supplied into two studs, screw them into studs from below deck to secure trim plate on deck.

Install Control module assembly

Before install Control module assembly, please check the place of deck and installation place of Control module assembly. If confirmed, please put the Control module assembly onto the wall first, and use drill bit to anchor the four holes. (Figure 4 Control module assembly)

1. Using ø6mm drill bit follow the four anchors to drill four holes into wall.
2. Using hammer knock the four plastic wall anchors supplied into wall.
3. Installing Control module assembly to wall, knock four self–tapping screws into four plastic wall anchors. Then the Control module assembly is installed onto wall.

Connect flex hose to solenoid valve

Use wrench to connect the free end of the flex hose to the outlet side of the solenoid valve.

Connect fiber optic cable

(Figure Connect Fiber Optic Cable)
1. Connect the free end of fiber optic cable to the Control module assembly.
2. Thread the connector cap with nut onto the Control module assembly to secure the connection.

Note: Please keep the sensor plastic cable clean and dry when install it, in order to keep the machine workable.

Note: When installation is finished, please use a small piece of soft and dry cloth to wipe away the “sensor eye” slightly.

Battery installation

Note: DO NOT INSTALL THE BATTERIES UNTIL THE FAUCET IS COMPLETELY INSTALLED. If the batteries are installed before the fiber optic cable has been connected to the Control module assembly, the faucet will not properly set the sensing range for the sink on which it has been installed. Loosen the cap of control module assembly with head screwdriver, and loosen the cap of battery compartment. To ensure proper operation, inset four (4) new C-size alkaline batteries. Check that the orientation of each battery matches the positive (+) and negative (-) symbols shown in the bottom of the battery compartment. Make sure that spout is properly centered and that no objects are in the sink. Close the cap of battery compartment and cap of the control module assembly follow the above steps.

Connect inlet pipe

Please connect inlet pipe to control module assembly.

Note: Please use the proper inlet pipe into diameter of inlet on solenoid valve.

Very Important: Please turn off the inlet pipe valve to install the inlet pipe.

Turn on the inlet pipe valve

Please turn on the inlet pipe valve, to check whether water flowing and sensor distance meets your requirements. If not, Please follow the above ways to adjust the sensor distance again. BATTERY REPLACEMENT PROCEDURE Battery powered faucet with 4AA alkaline batteries can be used for 2 years at 200 cycles a day. When the batteries are low and need to be replaced, the faucet will signal you, when your hand approach the sensor location, the LED will flash red three times quickly without water out; when without object to approach the sensor location, the LED will red one time per four second. At this point we recommend battery replacement. To replace batteries: Note：Water supply to the faucet does not need to be turned off when replacing batteries. Loosen the cap of control module assembly with head screwdriver, and loosen the cap of battery compartment. To ensure proper operation, inset four (4) new C-size alkaline batteries. Check that the orientation of each battery matches the positive (+) and negative (-) symbols shown in the bottom of the battery compartment. Make sure that spout is properly centered and that no objects are in the sink. Close the cap of battery compartment and cap of the control module assembly follow the above steps. Upon installation of the batteries, faucet will begin a new self calibration procedure. SOLENOID SCREEN FILTER CLEANING PROCEDURE Before cleaning the screen filter, turn off the water supply at the supply stop(s). Turn off the inlet pipe. Activate the faucet to relieve any pressure in the system. Clean the screen filter using fresh tap water. If necessary, use a small brush to clean. Use caution while cleaning to prevent damage to the solenoid screen filter. Connect the inlet pipe; turn on the water supply at the supply stop(s). Activate the faucet to purge any air from the system lines. Check for leaks and repair as necessary.

Operation:

1. Place hands under spout and directly in front of neck mounted sensor, water will begin to flow out in less than a second, water flow rate is governed by aerator and supply pressure, water temperature is governed by position of water mixture selector, as well as water temperature in supply pipes. Please remember, automatic faucets employ presence” not “motion” sensors. An idle object placed directly underneath spout will immediately activate faucet.
2. Remove hands, water will cease to flow within 1-3 seconds.
3. If hands are left underneath spout for more than 60 seconds, water will automatically shut off. To initiate flow again move hands away from faucet and start at step 1.
4. When attempting to run water over small objects such as tooth brush, it may be necessary to bring object closer to sensor to initiate water flow, when water begins to flow, move object back under stream of water. Once user “gets the feel” of the faucet this step may be skipped.
5. Faucets with water mixture selector above the sink. Water mixture ratio is adjusted from hot to cold and anywhere in between by moving lever. Battery Replacement Instructions: Batteries should provide 12 to 36 months of reliable service mostly depending on the make of battery used and the frequency of usage among other factors. Battery weakness is indicated by constantly flashing led light within the sensor capsule.

When replacing batteries please follow these simple steps:

1. Unplug Battery from faucet.
2. Unfasten the 4 Philips screws that hold the enclosure cover on, pull enclosure cover off.
3. Replace batteries with 4 AA Alkaline batteries, make sure batteries are placed in their proper
   position.
4. Re-install battery pack into the Faucet.
5. Test faucet prior to placing enclosure cover back on.

Trouble Shooting: Faucet does not operate, red light does not blink:

1. Batteries need replacing, replace batteries, see battery replacement instructions.
2. Sensor wire loose, unplugged, plugged improperly, plug sensor wire properly. See installation instructions.

Water flows out of faucet even though hands or objects are not present under spout:

1. Objects (such as sink lip) are present in front of sensor. (See special installation note at the back page).
2. Battery wire not plugged in, batteries need replacing.

Faucet does not operate, red light blinks in response to approaching objects:

1. No water, very low water pressure in supply pipes, supply valves closed.
2. Water pressure very high, well above 115 PSI.
3. Screen filter severely clogged up.
4. Supply hoses severely kinked.


   Faucet leaks, drips:

   Constant leaks or drips indicate defective solenoid valve, send Faucet Automator for repair or contact an authorized plumbing professional.

   Faucet continues to run for 30 -60 seconds after hands are removes:

   This very rare condition generally occurs due to over sensitivity on the part of the sensor, system water pressure well above 70psi and an over lit bathroom environment.
