Installation Instructions for Trio Oil Rubbed Bronze Automatic Commercial Sensor Faucet
Trio Automatic Commercial Hands Free Sensor Faucet
Automatic Commercial Sensor Activated Touchless Faucet

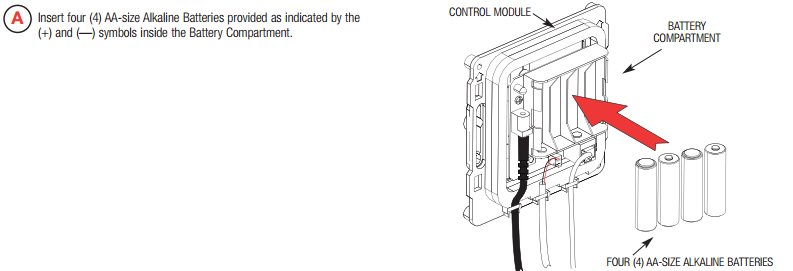

Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
- Sensor faucet complete motion detection operation.
- Commercial and residential use.
- Sensitive Sensor with Infrared AI Smart-Chip

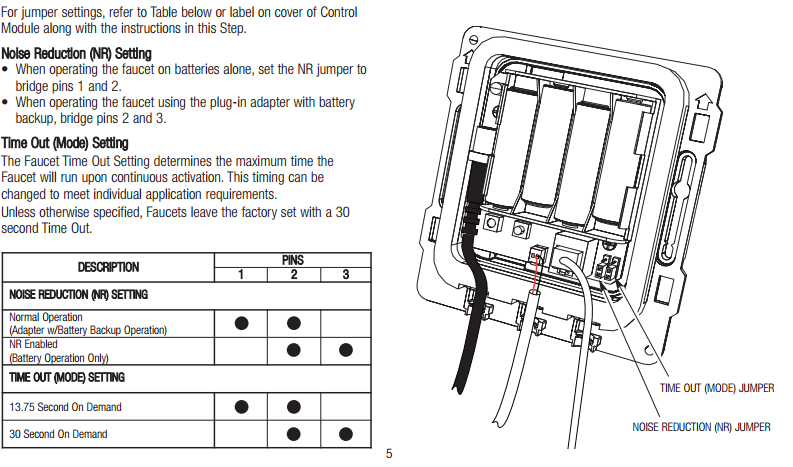

- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
- Solid Brass Construction, Polished Chrome Finish
- Easy to Install - Instructions Included
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life

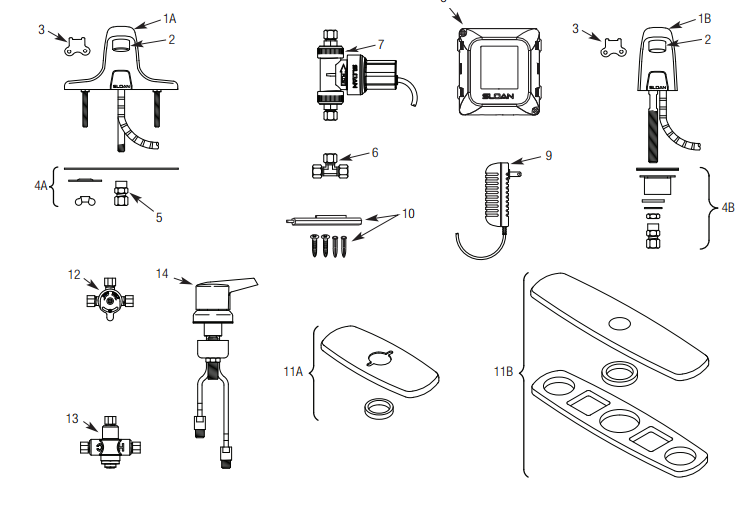

- Comes complete with Hoses & Accessories

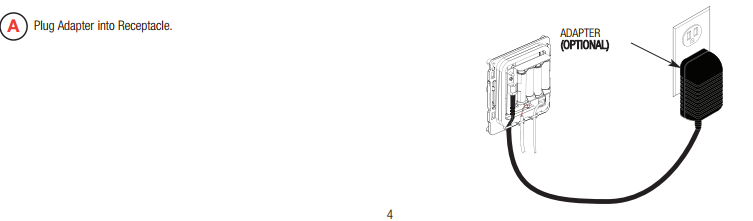

- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant.
- Easily can be installed in new or retrofit applications.
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
|

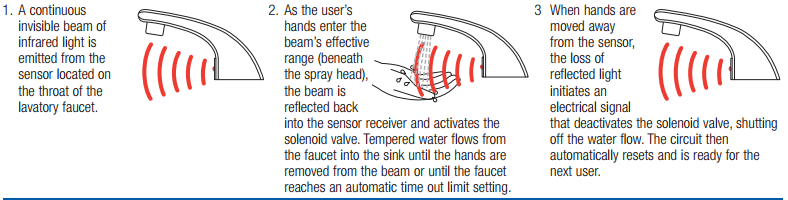

Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory !Sensor Faucet finish is Dark Oil Rubbed Bronze, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.
|
The faucet will self adjust its best detection zone as per the color and shape of lavatory Low power consumption: 4AA alkaline batteries can be used for 2 years at 200 cycles a dayConvenient to maintain: Built-in strainer prevents sundries from entering the solenoid valve and the strainer is easy to clean
A touchless operation reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles.Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features: Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.

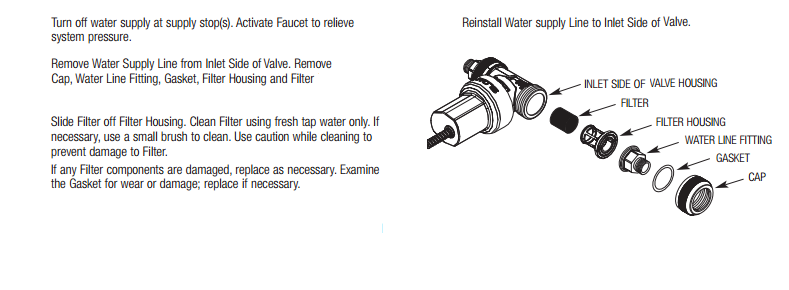

- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mount to any sink surface.
- ADA Compliant.
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.

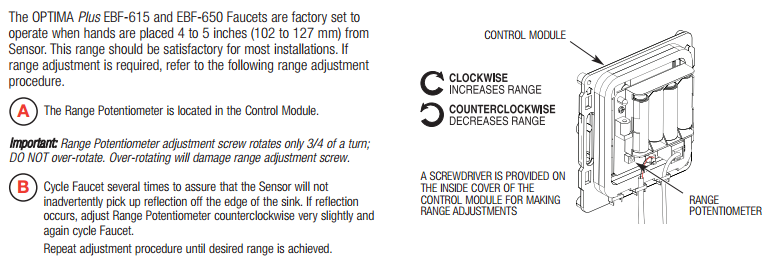

- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
- Usage: Commercial / Residential
Diameter of inlet pipe
|
DN15
|
Diameter of outlet pipe
|
DN15
|
Water PressureFlow Rate
|
0.05Mpa - 0.7Mpa0.5 GPM
|
Power and Voltage
|
DC.6V
|
AC.220V - 50/60Hz
|
Power Consumption
|
0.5MW
|
<2W
|
Detection Zone
|
Factory set 25cm/10" (based on standard inductive board)
|
Ambient Temperature
|
1 - 45 ℃ / 33.8 -113 °F
|
Degree of protection by enclosure
|
1P56
|
