Installation Instructions for Platinum Shower Set with 5 Functions Thermostatic Mixer with LED Ceiling Shower Head

Platinum Shower Set with 5 Functions Thermostatic Mixer with LED Recessed Ceiling Shower Head 4 Function Rain Waterfall Spray Mist and Curtain

BathSelect Lisbon Platinum Shower Set with 5 Functions Thermostatic Mixer comes in a high-pressure bathroom LED Ceiling Shower Head. This thermostatic shower set has been made with premium-grade lightweight. The valve core material is a high quality of ceramic. Turn on the fun in your shower and experience the true feeling of rain, as well as SPA body massage spray, relieving fatigue and stress just by turning on the water in a high-pressure bathroom head shower. This shower set has been made with premium-grade material and the LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. All this with no batteries, everything is self-powered by a built in dynamo that takes advantage of the water pressure to create the energy to light the bulbs. Its showerhead is a multifunctional mode like mix mode, rainfall mode, waterfall, mode. This shower set also comes with a hand shower and a triple valve mixer for convenient use.

Lisbon Platinum Shower Set with 5 Functions Thermostatic Mixer with 700x380 LED Ceiling Shower Head Features:

  • Brand Name: BathSelect
  • Model Number: BZ-5928
  • Shower Head Installation Type: Recessed Ceiling Mount
  • Shower Head SizeL 27.55"x7.87" (700x200mm SUS304)
  • Shower Head Shape: Square
  • Material: Stainless Steel
  • Finish Polished Chrome
  • Surface Finish: Stainless Steel
  • Features: LED therapy
  • Shower Function: Waterfall, Rainfall, Mist Shower
  • Shower Set Typ: Thermostatic
  • Flow Rate: 2.5 GPM

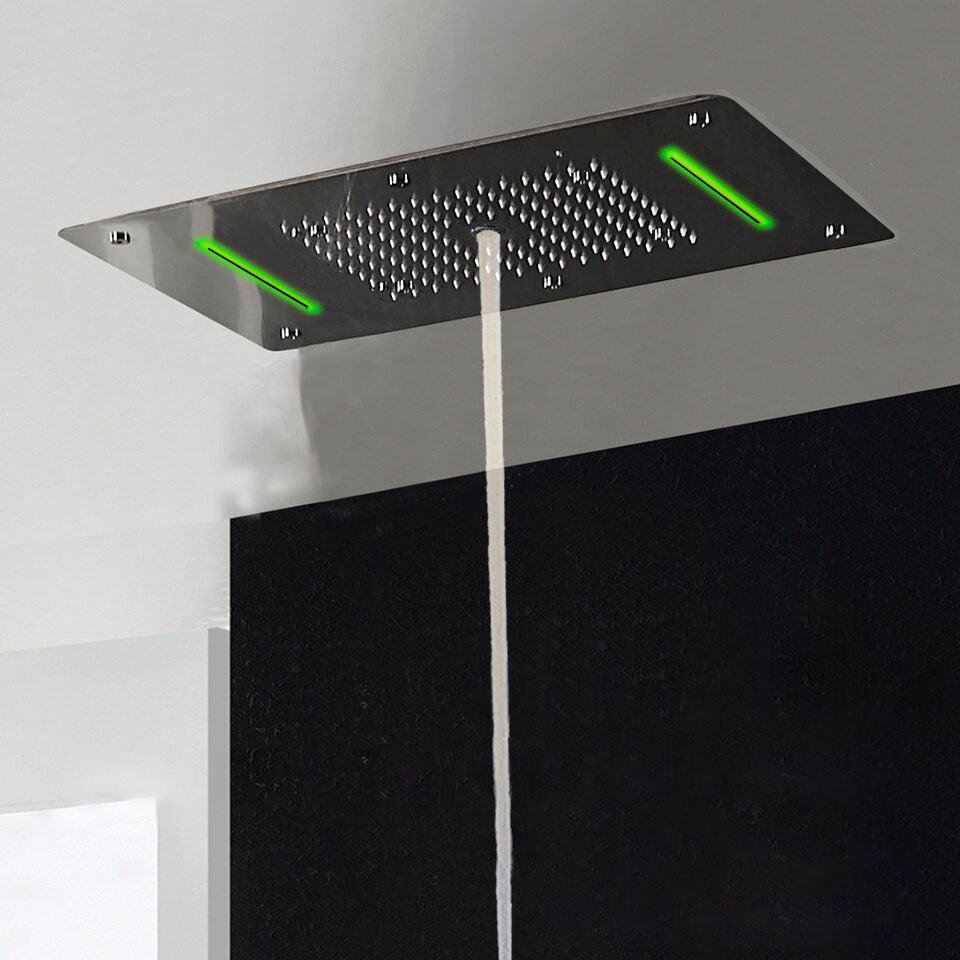

  • Lisbon Platinum Shower Set with 5 Functions Thermostatic Mixer with 700x380 LED Ceiling Shower Head
    Lisbon Platinum Shower Set with 5 Functions Thermostatic Mixer with 700x380 LED Ceiling Shower Head Lisbon Platinum Shower Set with 5 Functions Thermostatic Mixer with 700x380 LED Ceiling Shower Head Lisbon Platinum Shower Set with 5 Functions Thermostatic Mixer with 700x380 LED Ceiling Shower Head

    -
    Lisbon Platinum Shower Set with 5 Functions Thermostatic Mixer with 700x380 LED Ceiling Shower Head Lisbon Platinum Shower Set with 5 Functions Thermostatic Mixer with 700x380 LED Ceiling Shower Head
    BathSelect® Manufacturer Warranty Information
    • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
    • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
    • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided

    Shower



    No.

    Name

    Quantity

    No.

    Name

    Quantity

    1.

    Bracket

    1

    5.

    Hexagon Wrench

    1

    2.

    M10 Explosion
    Screw

    4

    6.

    Power

    1

    3.

    Shower
    Assembly

    1

    7.

    Water Inlet
    Connecting Pipe

    4

    4.

    Lock Screws

    4







    1. Use a hexagon wrench to lose the lock screws then separate the showerhead assembly and bracket.



    2. Dig 4 Ø10 holes on the ceiling according to the dimension of the screws.


    3. Use a hammer to thwack the 4 screws into 4 holes.


    4. Install the bracket on the expansion screws then use copper sleeve wrench to lock 4 screws.



    5. Make sure all the water inlet pipe connected well without leaking before insert the power plug into the socket.


    6. Fix the shower assembly on the bracket by turn the locking bolt.


    Mixer



    First, carve a rectangular slot in the wall that 1000mm high from the ground and two inlet water pipeline (the overall height shall not be greater than 1670mm).

    Put the concealed box into the slot on the wall and fixed with the screws (no slipping, no loosening).

    Link the hot and cold water pipes, then tighten the screws (Attention: Filter washer must be installed to avoid dirt clogging), finally paste up the tiles as the picture shows.
