Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles.Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Oil Oil Rubbed Bronze Sensor Faucet Installation Instructions
Wella Sensor Activated Faucet Special Features:
Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
ADA Compliant. Heavy Duty Automatic Sensor Faucet, Solid Brass, 360 degree rotating neck. Generally Suitable for Heavy Traffic Environments such as Food Handling Facilities, Laboratories, Clinics as well as Residential Applications. Perfect for Bathroom or Kitchen....Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory!Sensor Faucet finish is Dark Oil Rubbed Bronze, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.
Technical Details of Oil Rubbed Bronze Sensor Faucet
Diameter of outlet pipe
DN15
Water Pressure
0.05Mpa - 0.7Mpa
Power
DC.6V
Detection Zone
Factory set 25cm(based on standard inductive board)
Ambient Temperature
1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure
1P56

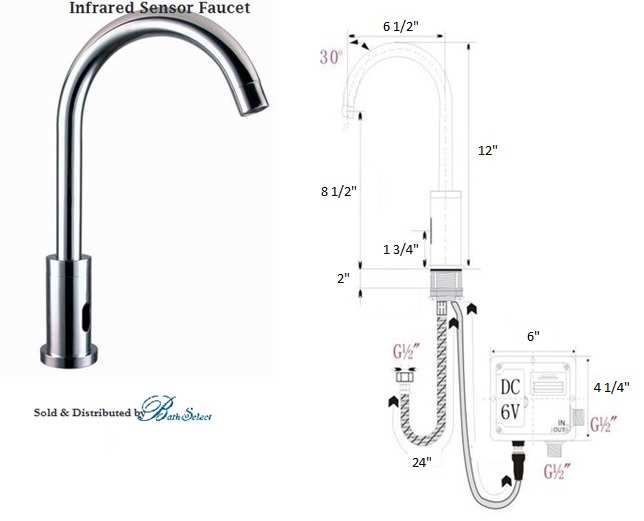

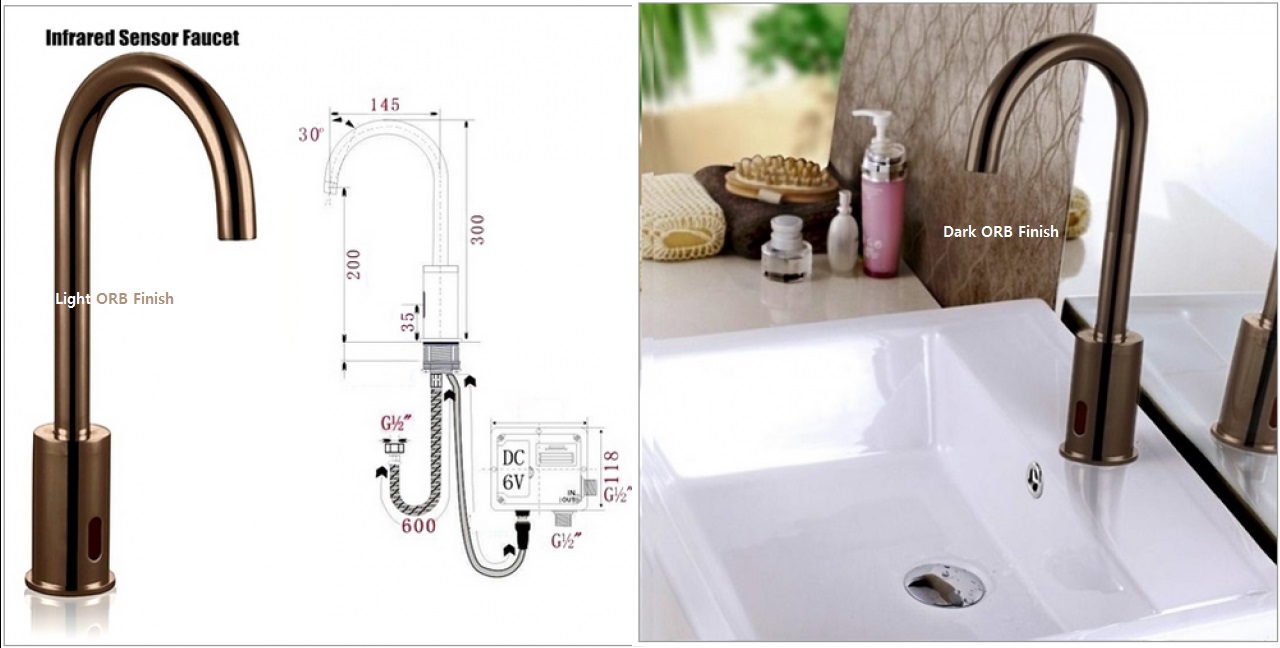

Overall Height: 11- 1/2" (measured from counter top to the highest part of the faucet)
Spout Height: 7-3/4" (measured from counter top to the spout outlet)
Spout Reach: 5-1/2" (measured from the center of the faucet base to the center of spout outlet)
Mounting Type: Single hole • Number of Holes Required for Installation: 1
Faucet Centers (Distance Between Handle Installation Holes): Single Hole
Before installing, read entire Installation Instructions. Observe all local building and safety codes.
For the following The your new product, it is assumed that any old fixtures have been removed and any repairs or modifications to the water supply have been completed. Unpack and inspect the product for any shipping damages. If you find damages, do not install it.
We recommend consulting a professional if you are unfamiliar with installing bathroom fixtures
