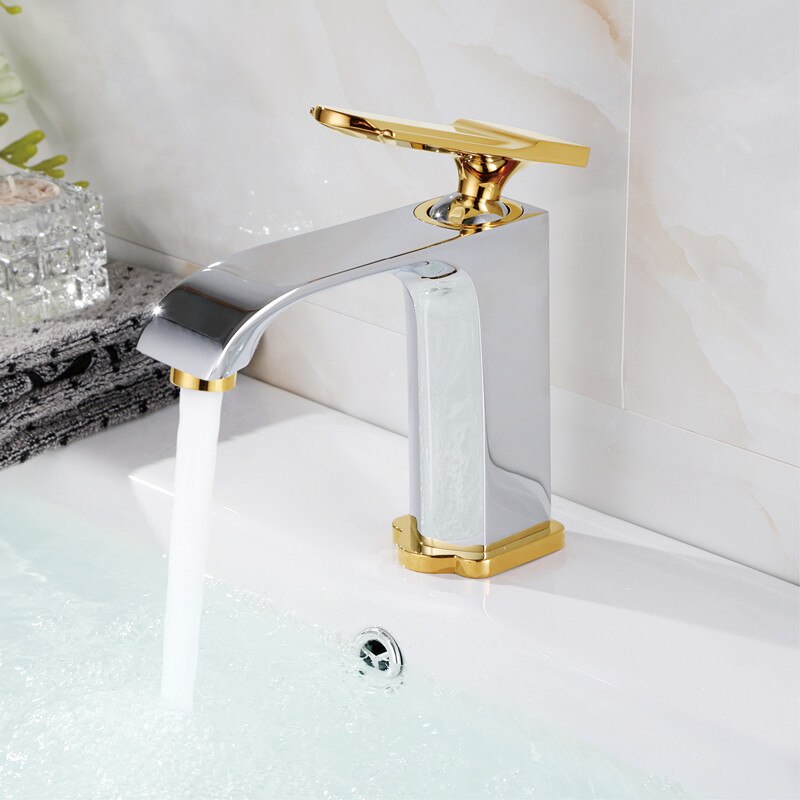

Installation Instructions for Naples Bathroom Sink Faucet With Chrome & Gold Finish | BS129JSC
Single Handle Deck Mounted Sink Faucet
| The Naples Bathroom Sink Faucet comes Single Handle & requires just one hole for Installation. The Naples Faucet has a Hot & Cold Water Mixer. | |  | | |
|
| | | | Features: | faucet | | - Type : Sink Faucet
- Faucet Mount : Single Hole
- Type : Ceramic Plate Spool
- Valve Core Material : Brass
- Style : Contemporary
- Hot & Cold Water : Yes
- Number of Handle : Single Handle
- Installation Type : Deck Mount
- Surface Treatment : Chrome
| |
|
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
|
|
Faucet Installation Instructions
|
Step 1: (Assemble Parts)
|
sink faucet
|
Step 2: (Mount Faucet)
|
faucet
|
|
|
|
|
|
|
|
|
|
|
Step 3: (Flush Debris)
|
|
Step 4: (Connect Water pipelines)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1. Remove the mounting nut, metal washer, and rubber washer from the threaded pipe.
2. Fit the O-ring into the groove of the faucet body. Screw waterlines into the corresponding screw-hole of the faucet body.
3. Insert waterlines and threaded pipe into the hole of the sink.
4. Install rubber washer, metal washer, and mounting nut back to the threaded pipe. Adjust the faucet body correctly and secure with mounting screws tightly.
5. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON).
6. Turn faucet on for 1 minute to flush any debris.
Important: Turn on hot and cold water supplies and flush water lines into a container for one minute.
This flushes away any debris that could cause damage to internal parts.
Maximum 1.5 GPM 60 PSI (5.7 L/min)
Water pressure: 0.60.05 MPa
|
|
|
|
|
|
