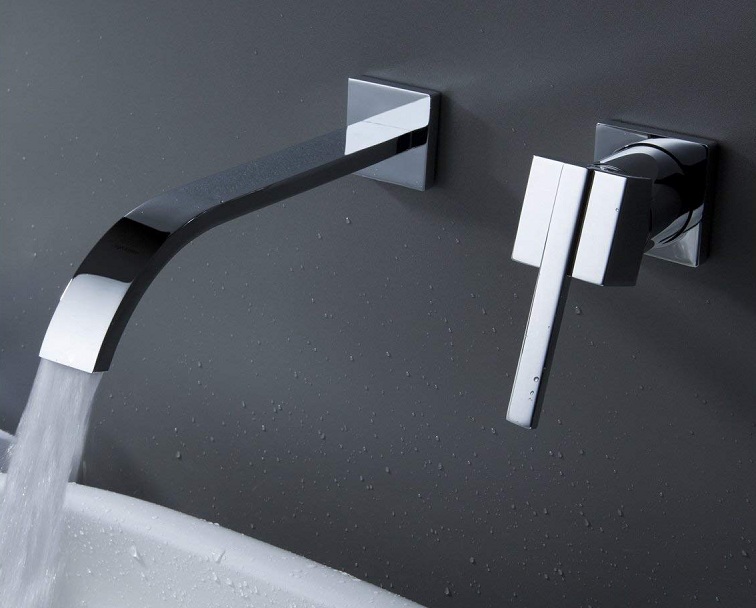

Installation Instructions for Lyon Wall Mount Single Handle Bathtub Faucet In Chrome Finish
|
|
- Install spout trim ring onto spout shank.
- Loosen set screw from the valve.
- hutch sport to spout shook
- a)Slide bock spout body from spout end.
- b)Slide spout onto spout mounting shank. Tighten set screw with the hex wrench.
- C)Slide spout body to spout trim ring.
- Install the handle trim ring, sleeve, and cap onto handle valve.
- Install handle with cartridge by tihtening set screw. Put the insert.
- After installing the faucet, remove the aerator and turn on the water to remove any left-over debris. Re-assemble aerator.
- Remove rubber washer (4), friction ring (5) and locknut (6) from the drain assembly.
- Place a ring of silicone sealant beneath the lip of drain collar (3) and place it in the opening of the sink. Press down firmly to secure the drain collar (3).
- Screw rubber washer (4), friction ring (5) and locknut (6) onto drain collar
For drain cartridge replacement or cleaning
- Remove cartridge (2) from drain: a)Push stopper to raised position. Unscrew the stopper cap from the cartridge. b)Using a wrench or pliers, unscrew the cartridge from drain collar and remove from drain.
5. Reinstall cartridge (2) into drain collar: a) Thread on stopper cap.
|
|
|
