Home > Installation Instructions Lano LED Shower Set

LED Shower Head LED Handheld Shower & Shower Faucet


  • Saturating Spray
  • Massage Spray
  • Bubbling Spray
  • Saturating Spray & Massage Spray
  • Saturating Spray & Bubbling Spray
  • Self-powered by water. No battery nor electricity needed.
  • Stainless steel shower hose anti-twist brass conical nut & brass hex nut

LED Light 1 Year Warranty / The Rest Lifetime Warranty

  1. The built-in device generating electricity without any battery and no need for any other power.
  2. Just connect to water, LED will emit the light.
  3. When water flows down, the LED will light instantly and automatically as per water temperature.

All Fontana Led Showers change color by detecting water temperature

  • When water temperature is ≤89 °F (≤32 °C), Green color will show automatically;
  • When water temperature is between 97 to 107 °F (36-42 °C), Blue color will show automatically;
  • When water temperature is between 109 to 122 °F ( 43-50 °C), Red color will show automatically;
  • When water temperature is above 122 °F (>50 °C), Red color will flash immediately.
  • The flow rate is 2.5 GPM

Material:

Led Color: Blue, Green, Red, Red Flash (According to the water temperature changing)Lano LED Shower Set - Round Waterfall Shower Head (LED0518)

    Led Color: Blue, Green, Red, Red Flash (According to the water temperature changing)

    BathSelect® Manufacturer Warranty Information

    Installation Instructions for Lano LED Shower Set - Round Waterfall Shower Head




    • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
    • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
    • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided

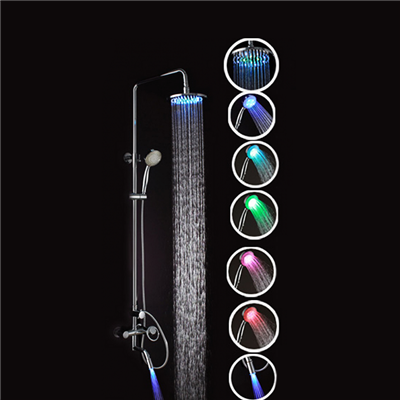

    Lano LED Shower Set - Round Waterfall Shower Head







    1. Brass Adapter
    2. Faucet body
    3. Washers
    4. Diverter
    5. Shower bar
    6. Hand shower holder
    7. Shower bar bracket
    8. Shower bar
    9. Mounting base
    10. Decoration cover
    11. Rain shower head
    12. Handheld shower

    Step 1: Connect the brass adapter provided to the water supply line.
    Step 2: Adjust lever and distance to fit the faucet body.
    Step 3: Turn the water valve on for a while to let the dust and impurities out.
    Step 4: Assemble the shower set.
    Step 5: Place a pre-assembled shower in the wall to find the proper position and then mark the mounting hole that needs to be drilled.
    Step 6: Drill a hole for the upper part shower bar bracket, screw it.
    Step 7: Place the decoration cover to the brass adapters.
    Step 8: Install the pre-assembled shower to the connections.
    Step 9: Connect shower hose, handheld shower, and rain shower head.
