Installation Instructions For Wall Mount Commercial Sensor Faucet with Matching Auto Soap Dispenser

Fontana Wall Mount Commercial Sensor Faucet with Sensor Soap Dispenser

Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Motion Faucet with Soap Dispenser specifics

Type Motion Faucet with Matching Liquid Soap Dispensers
Model Number BST57061SP
Liquid Soap Dispenser Type Automatic Soap Dispenser
Feature Sensor Faucet & Foam Soap Dispenser
Brand Name Fontana Showers
Main Material Stainless Steel

Fontana Wall Mount motion sensor touchless faucet Technical

Model No. BST57061SP
Faucet Body Material Stainless Steel
Hygienic Operates automatically, o dour-free and eliminates cross-contamination.
Activation Infrared sensor
Sensor Range Self-adjusting
Activation time < 1 second
Flow Rate 1-4.5ML/S
Sensor life 10000 times
Solenoid Valve Life Over 500000 flushes
Battery life 108000 flushes(4 x AA alkaline battery)
Inlet/outlet diameter G-1/2″

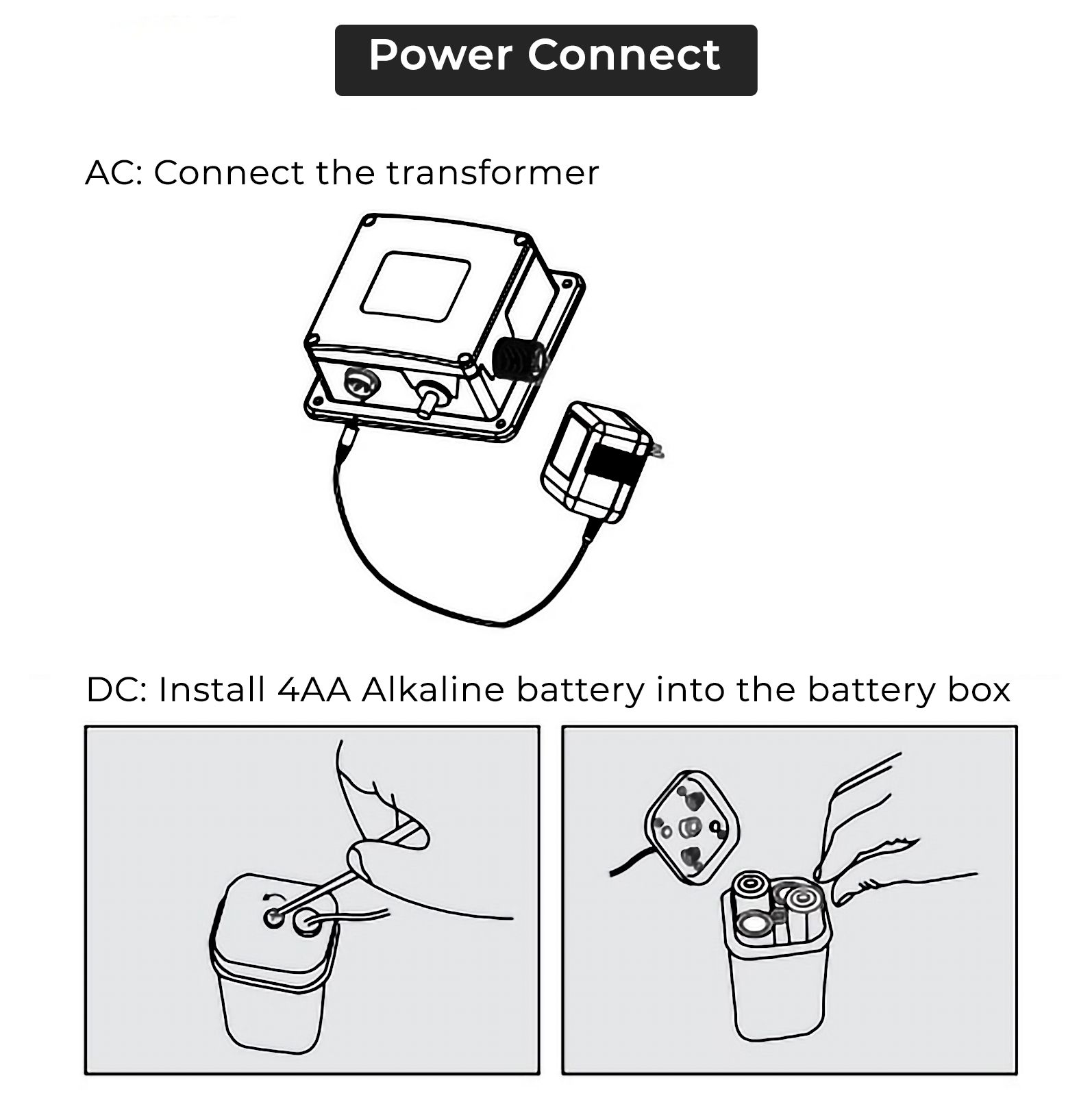

Power Supply DC:6v(4 x AA alkaline battery) AC:220v-240v; 50/60Hz
Soap saving Infra-red sensor activation kitchen sink soap dispenser
Installation feature Exposed design; involving easy installation and is user friendly.
Ambient temperature 0~55°C
Facilities Commercial washrooms,such as airport, hotel, office building, shopping mall ,hospital, school etc.


Fontana Wall Mount Commercial Sensor Faucet with Matching Auto Soap DispenserFontana Wall Mount Commercial Sensor Faucet with Matching Auto Soap Dispenser
BathSelect® Manufacturer Warranty Information

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

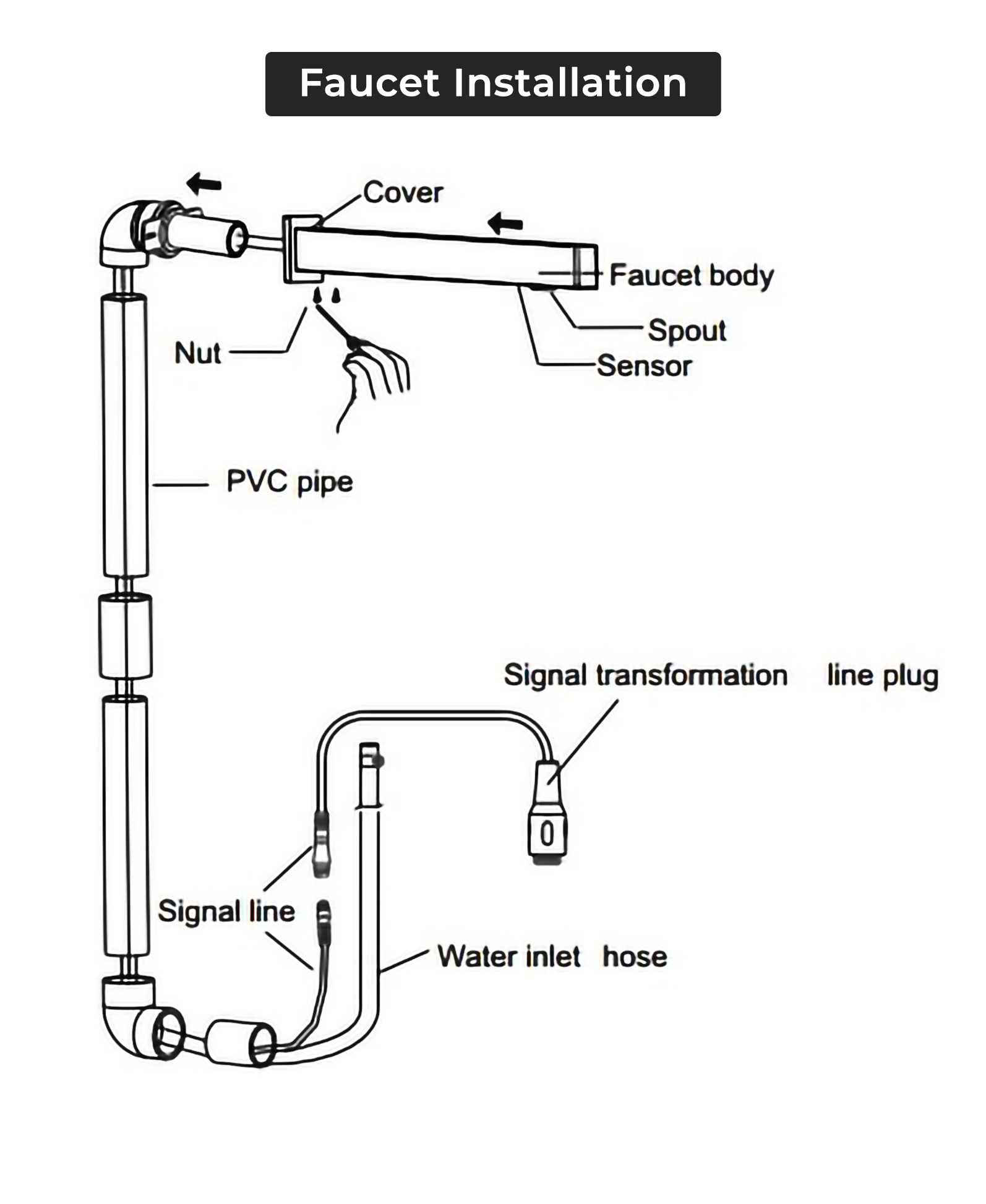

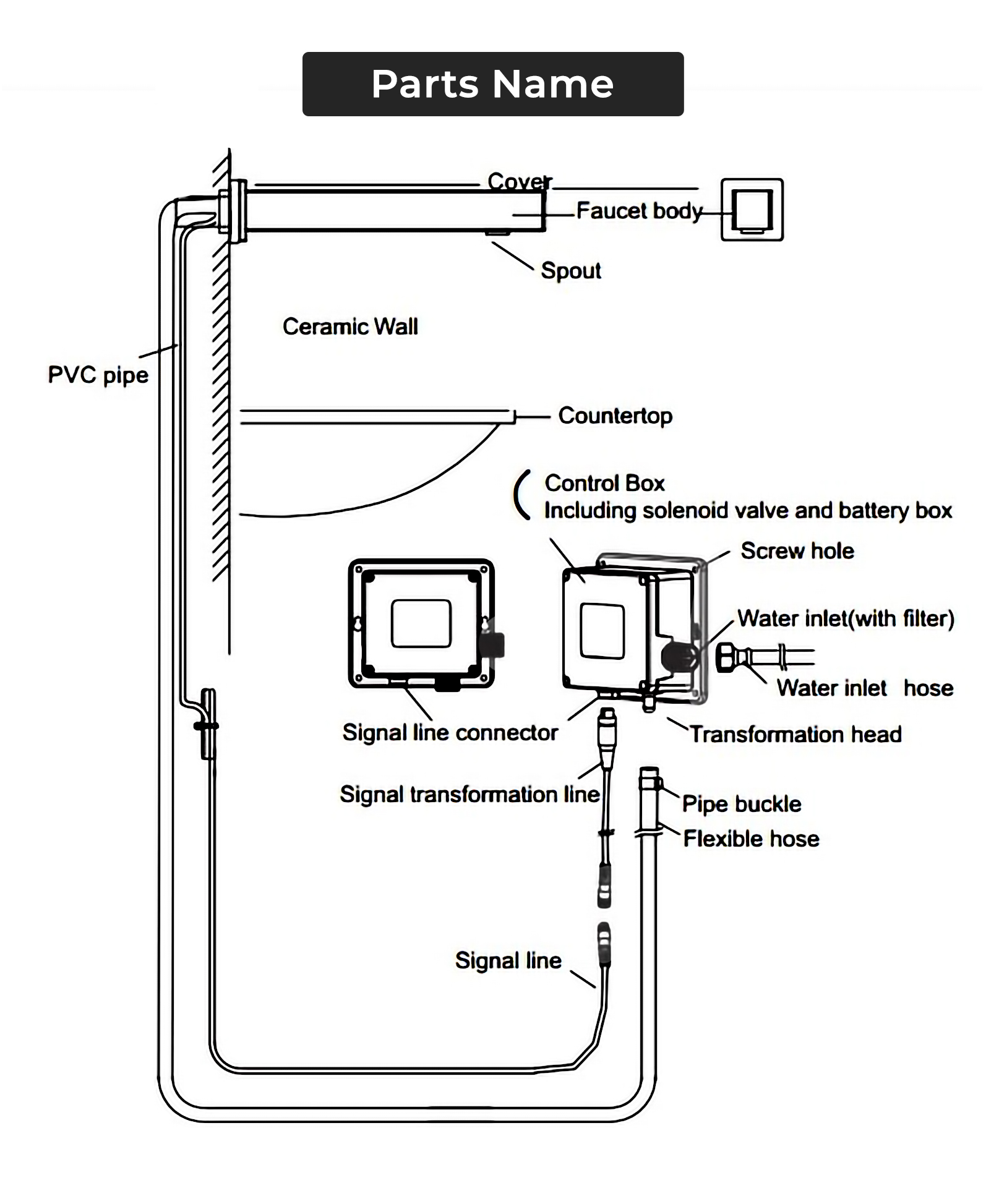

1) Insert PVC hose on wall, in order that install faucet body and the signal line.
2) Put the signal line and water inlet hose inside the PVC hose.
3) Screw fixed joint and nut of faucet on tightly, then close the cover.

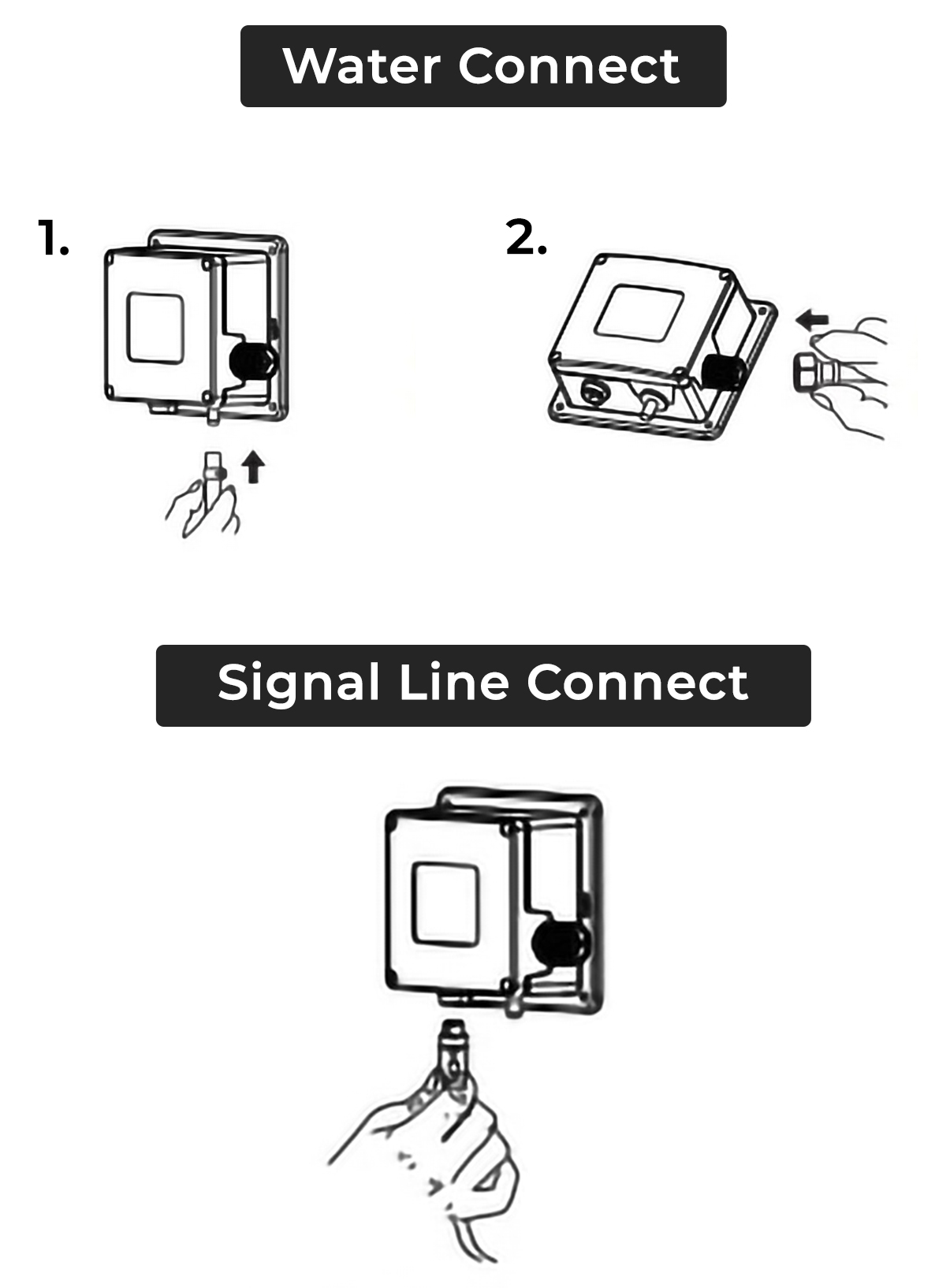

1) Water outlet, hose connect, connect the faucet body with control box by flexible hose, screw the pipe buckle tightly.
2) Water inlet, hose connect, connect 4" water supply hose with water inlet.
Note: Be sure no water leakage after connecting water.
connect the signal line with the control box, then screw tightly.

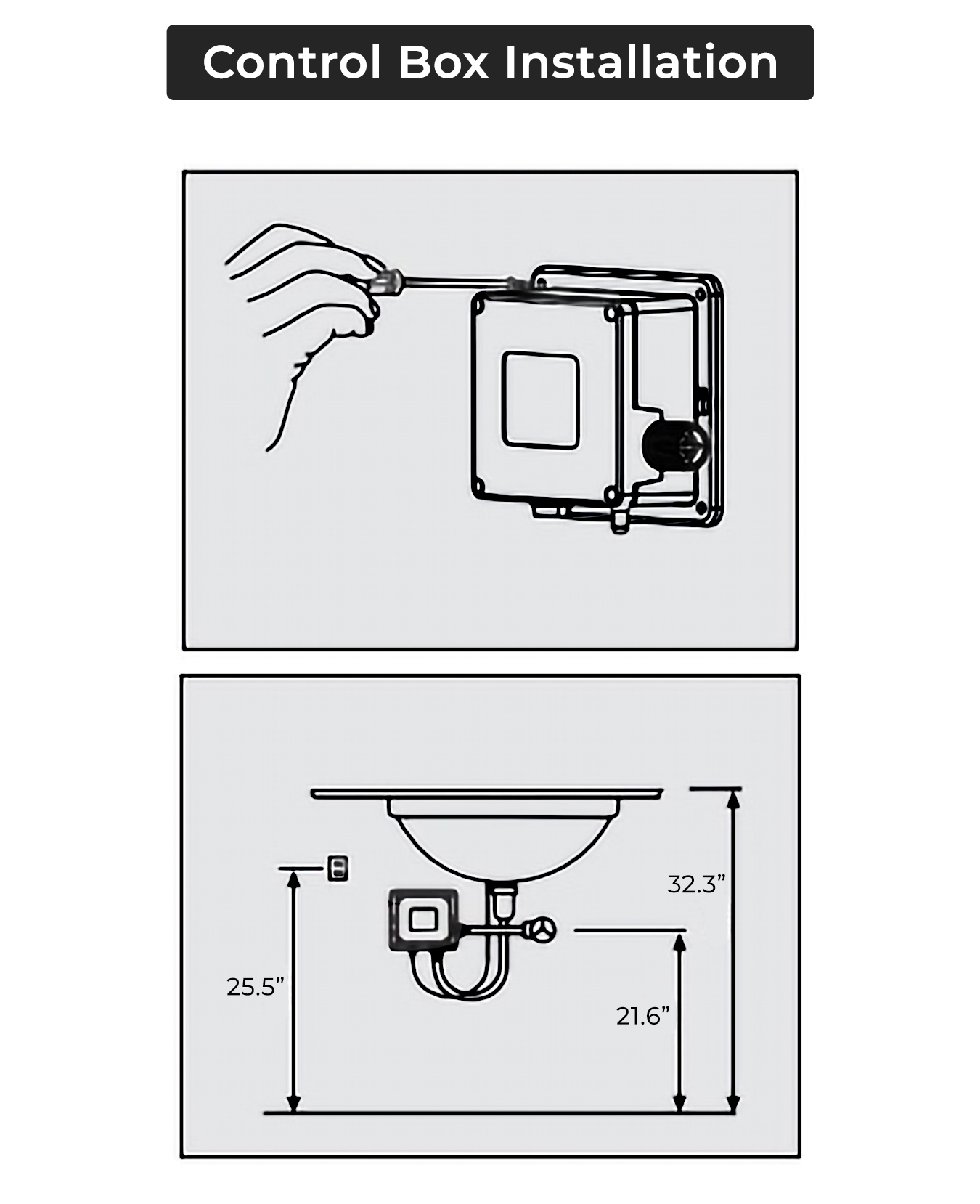

1) Put the control box on the wall, drill four holes, then insert the plastic bulged tube.
2) Fix the control box on wall by screw.

Note:
1) Please close the water supply and power supply before install.
2) Be sure to install the control box correct, don't put upside down.
3) For easy to maintain, should choose a suitable place install the control box.

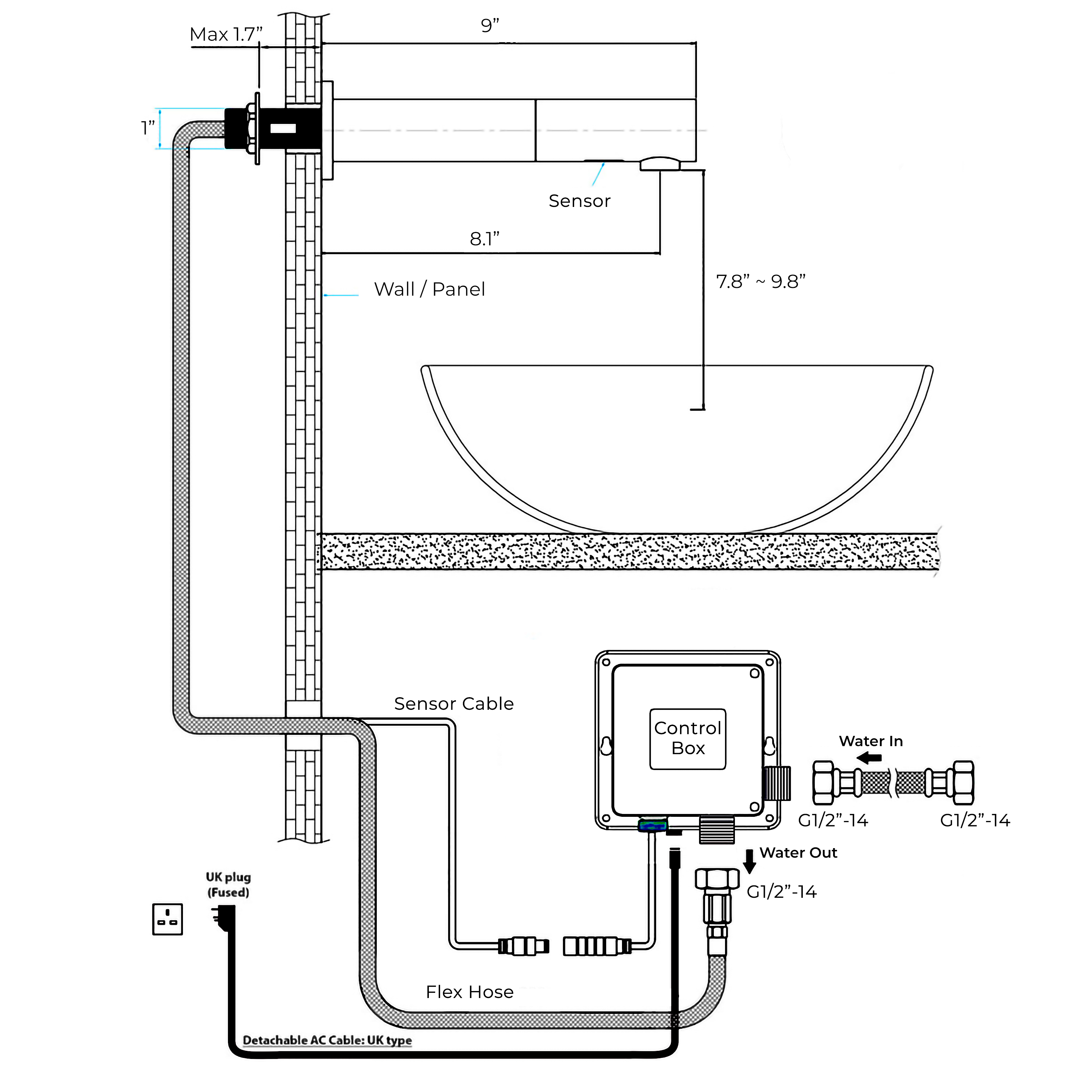

Meanwhile, it must less than 19.6inches(50cm) distant from the basin(Please check the above picture).The installation drawing of control box.

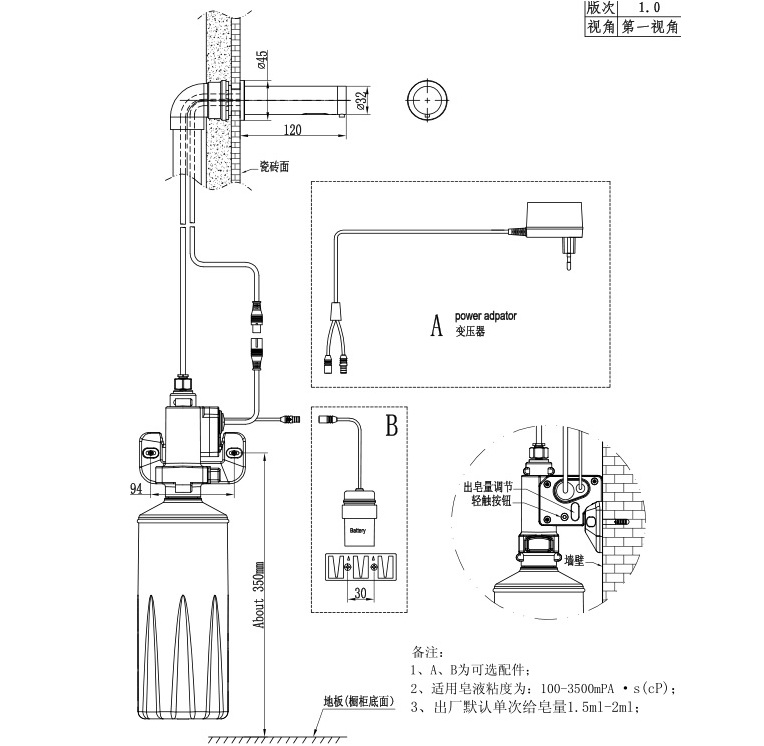

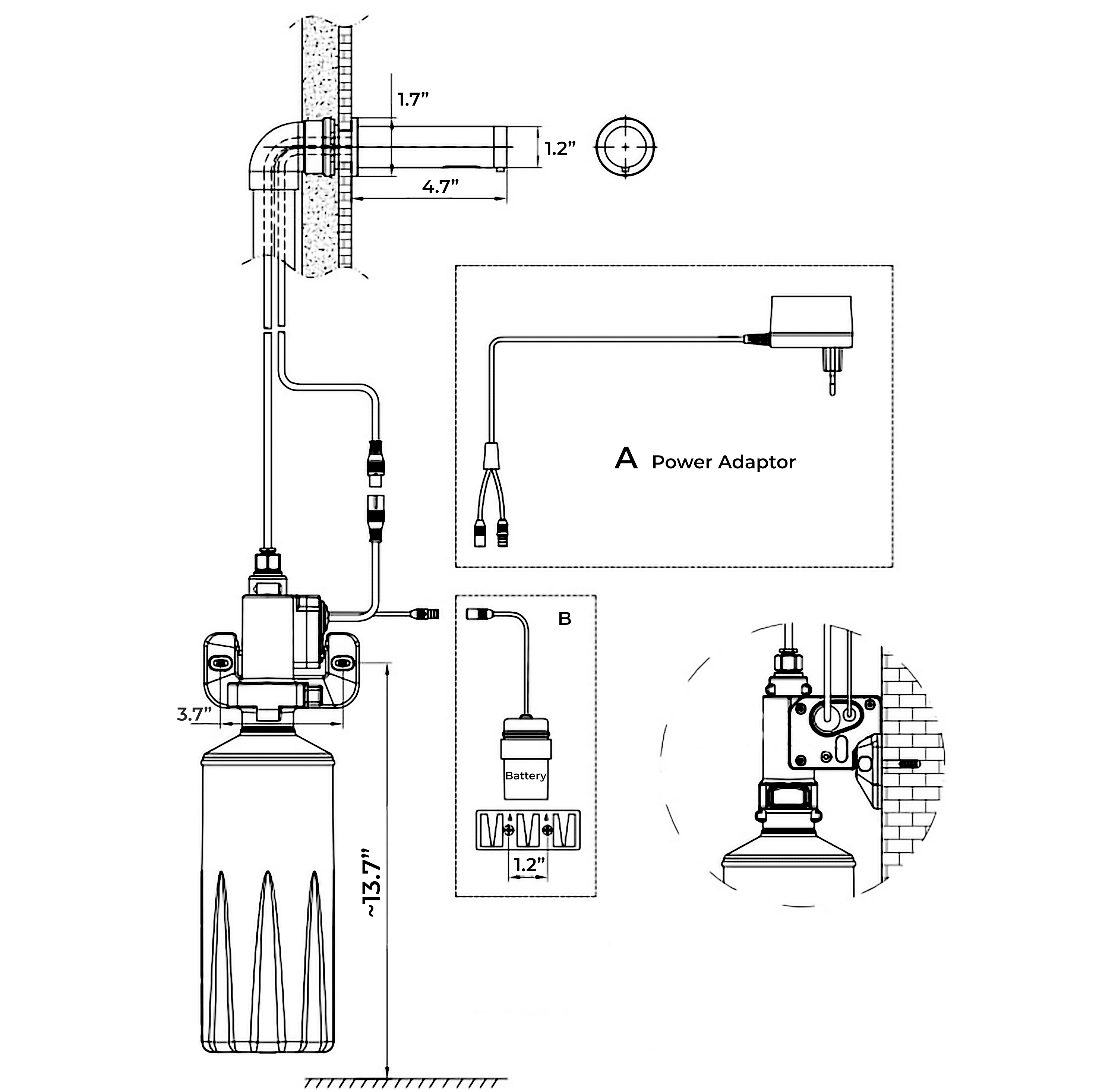

Soap Dispenser Installation
