Installation Instruction for BathSelect Massage Showers Body Jet Chrome

Shower Massage Body Jets

This is one of the trendiest finishes across decor styles in the bathroom. Give your bathroom an elegant glance with sink faucets and fixtures. The faucet has elegant flowing ideal for hand washing and other everyday tasks. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes. Upgrade your showering experience by having a set of these Gold body Jet set installed in your bathroom. Why settle for raindrops falling when you can have them coming from all directions? These shower jets can be rotated so you can point them wherever you please. Each of these shower jets are made from solid brass construction so you can be sure that they will keep in good working condition for a long time. It comes super seal technology inside, capable of delivering superior performance with solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time.

Massage Showers & Jetted Body Showers

Modern Solid Brass Square Chrome Plates Body Shower Jets (unit price)

BathSelect® Manufacturer Warranty Information BathSelect Product Warranty

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

Shower
installation

Shower Body Jets Installation Instructions

Step 1: (Rough-in)		Step 2:
	BodySprays

Step 3:		Step 4:



Step 5:		Step 6:


Step 7: (Pressure Balancing Loop)

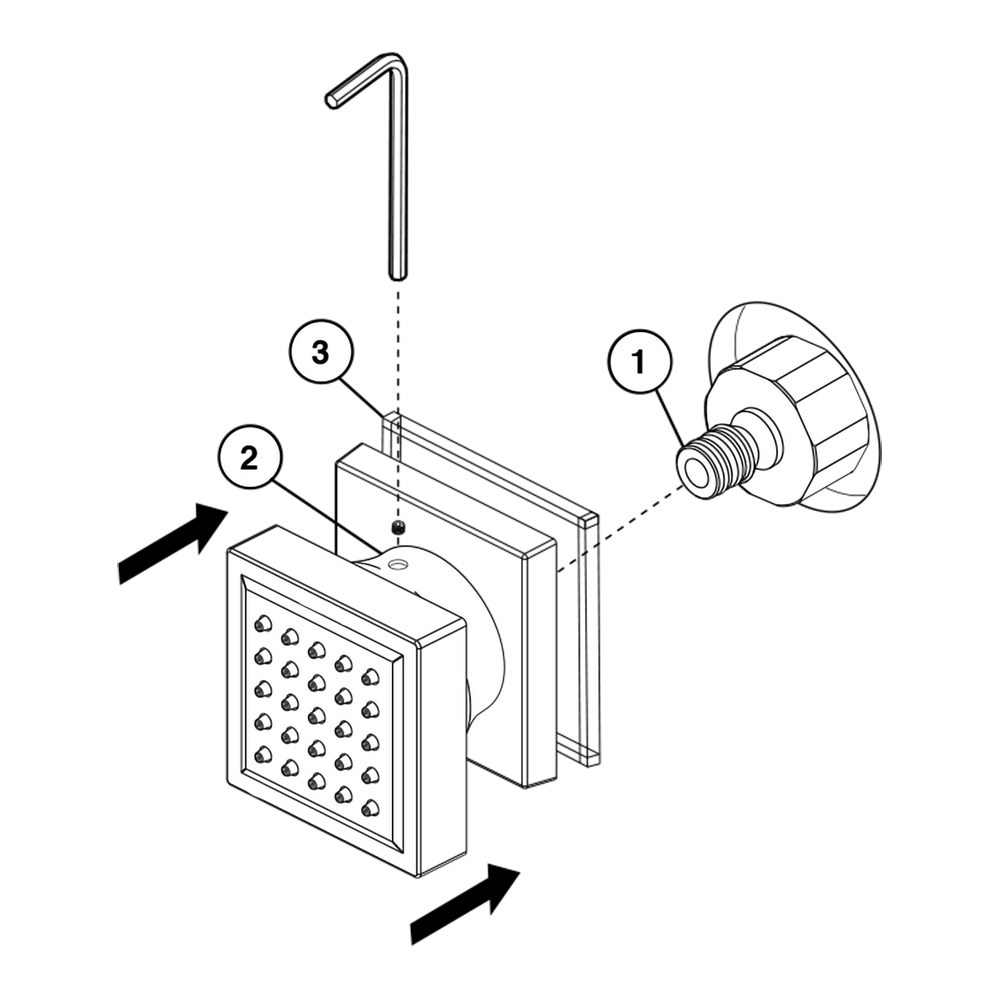

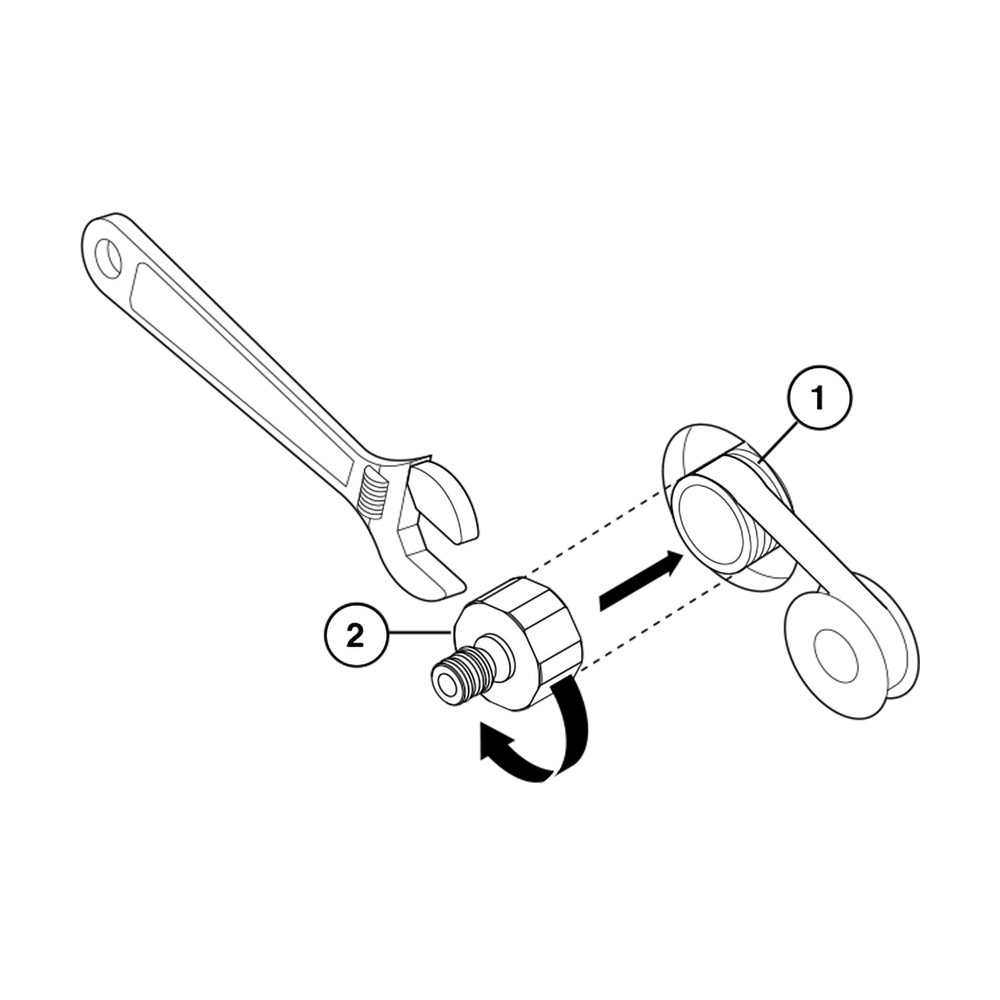

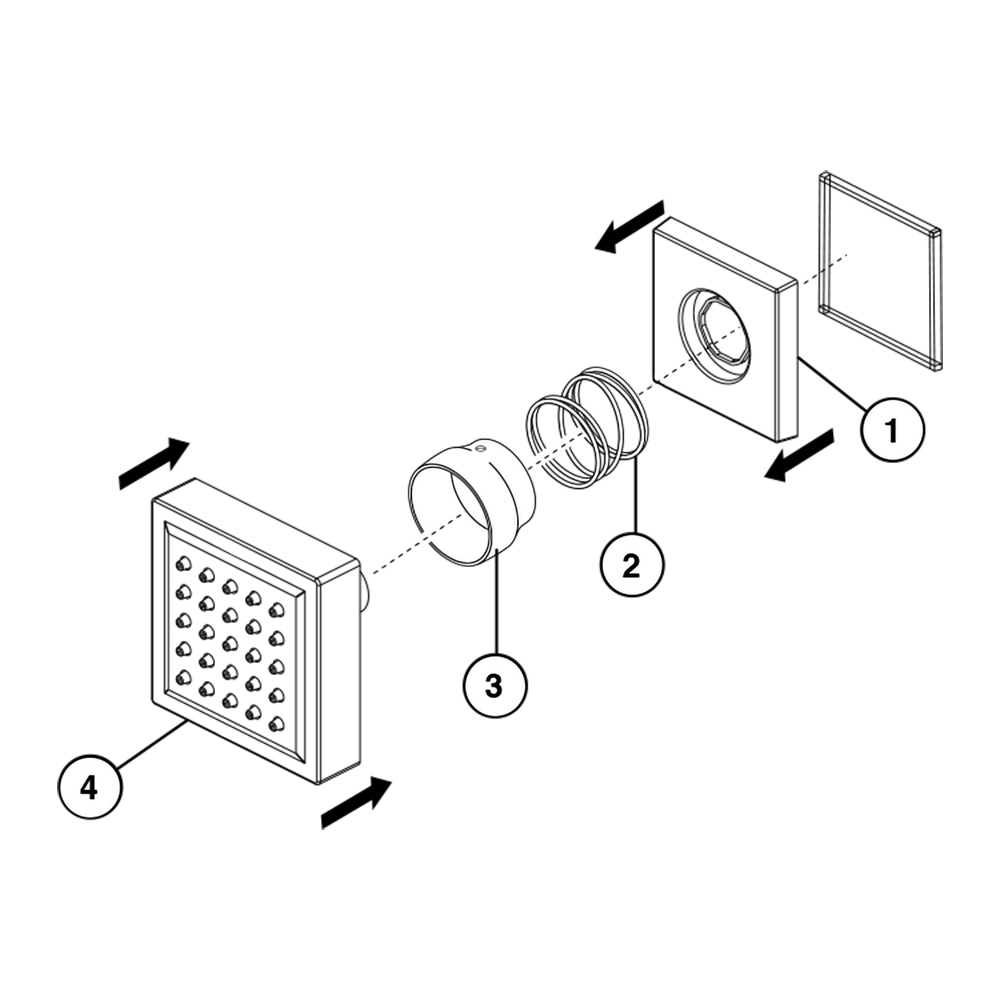

1. Apply plumber tape to the pipe nipple (1). Thread trim body (2) onto pipe nipple. Tighten securely with a wrench. 2. Assemble escutcheon (1), spring (2), trim bonnet (3) and spray face (4). 3. Slide spray assembly over the trim body nipple (1) and secure with set screw (2). Note: Be sure gasket (3) is compressed against the finished wall. Rough-in Suggestion: This installation requires a 1/2" male threaded pipe fitting to extend 1/4" beyond the finished surface. The plumber should install a properly anchored 1/2" female pipe fitting (i.e. a drop-ear ell) recessed into the wall, into which a brass pipe nipple of proper length can be fitted once the finished wall is complete. Note: The hole size opening should be 1.5" max diameter. Bodyspray placement: Custom shower systems are sized to the user or users. Bodysprays are normally placed at the upper back, middle back, and upper thigh. Always position bodysprays according to the preferences of the user(s). Pressure Balancing Loop: If installing bodysprays in a bank of 3 or fewer, a pressure balancing loop is not necessary. If installing bodysprays in a bank of 4 or greater, a pressure balancing loop must be used to keep the pressure even between the bodysprays.

Instructions
Body jets should be arranged in your system to provide the necessary spray outlets to suit the application. 1. Identify all components and check for completeness, particularly before arranging fitting. 2. Depending on the application the body jet can be panel mounted using a backnut (not supplied) or set into the wall on rigid pipe work. If panel mounting care should be taken to ensure connection can be made after securing with the backnut. 3. Connect body jet to pipe work using recommended ½” BSP connections (not provided) with thread sealing compound where necessary. Note: - Before finishing wall turn on water supplies to check both correct system function and for leaking from joints/connections. 4. Complete wall finish.

Massage Showers & Jetted Body Showers Why settle for raindrops falling when you can have them coming from all directions? These shower jets can be rotated so you can point them wherever you please. When it comes to new bathroom upgrades, we offer shape, finishes, and styles that you've looking for. Give your bathroom an elegant glance with sink faucets and fixtures. This is one of the trendiest finishes across decor styles in the bathroom. It comes super seal technology inside, capable of delivering superior performance with solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. One of the main benefits of a body jet shower system is that it helps invoke the benefits of hydrotherapy. It produces various effects that benefit the body in different ways. 1. Relief from muscle pain and relaxing effect 2. Heal and Rehabilitate injured muscles 3. Pressure Point Relief 4. Refresh after a long day Since the water jets can be positioned individually and are adjustable, they can be targeted at specific muscle groups of the body to soothe and massage specific areas, thus providing effective relief from muscle pain. As well, since flowing water has a soothing effect, being targeted by body jets helps your body release endorphins which act as a natural pain reliever. Whether you shower as a way to get energized for the morning, or as a way to wind down after a long day at work, a Shower System with Jets creates an amazing spa-like experience. Shower Body Sprays are basically small, side-mounted showerheads that are attached at strategic points on the wall. Body sprays in the shower are most often found in multiples of 2, 3, or 4, and be installed on the same, or opposing walls. Regardless of where the spray heads are placed, body sprays are normally plumbed as a group.
