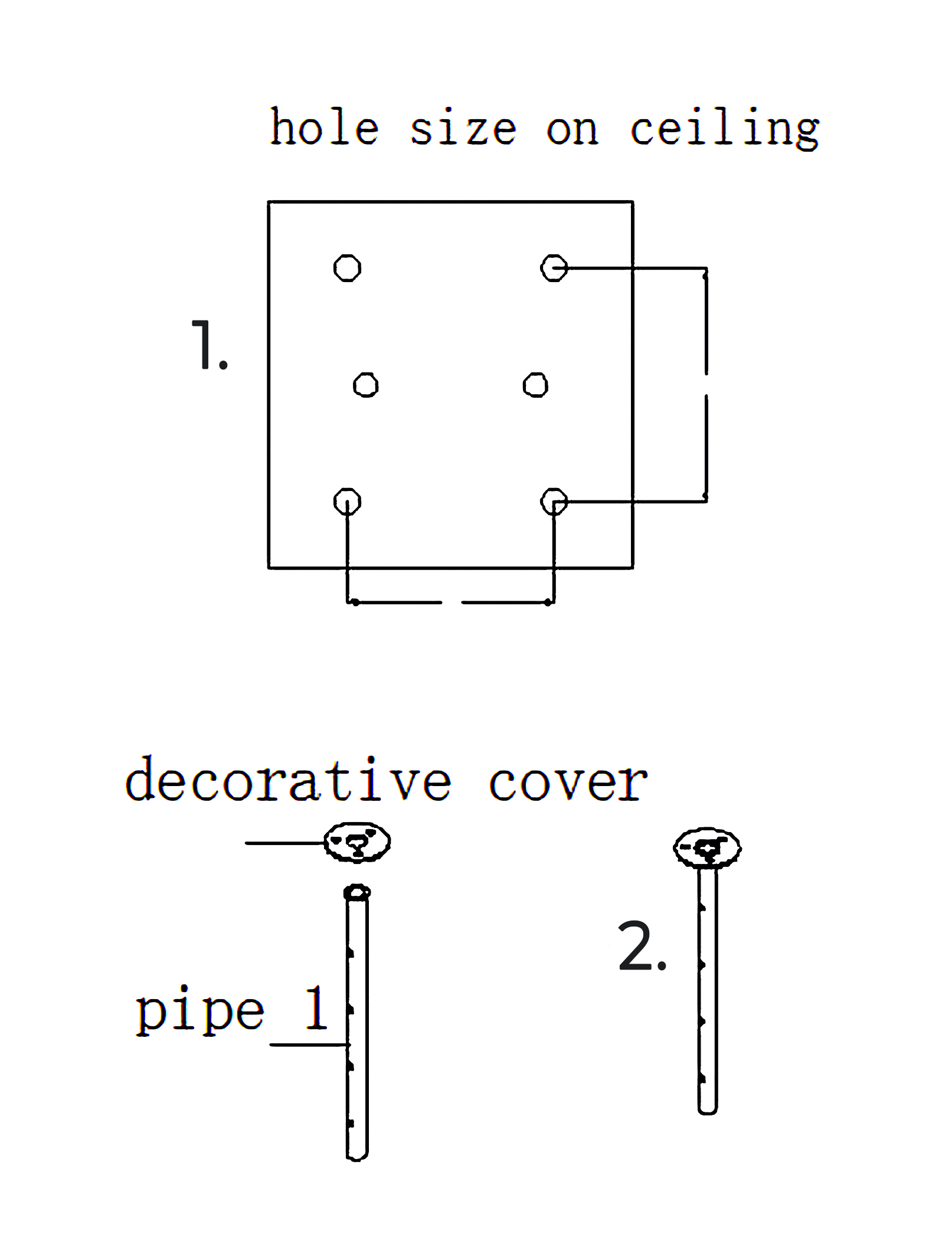

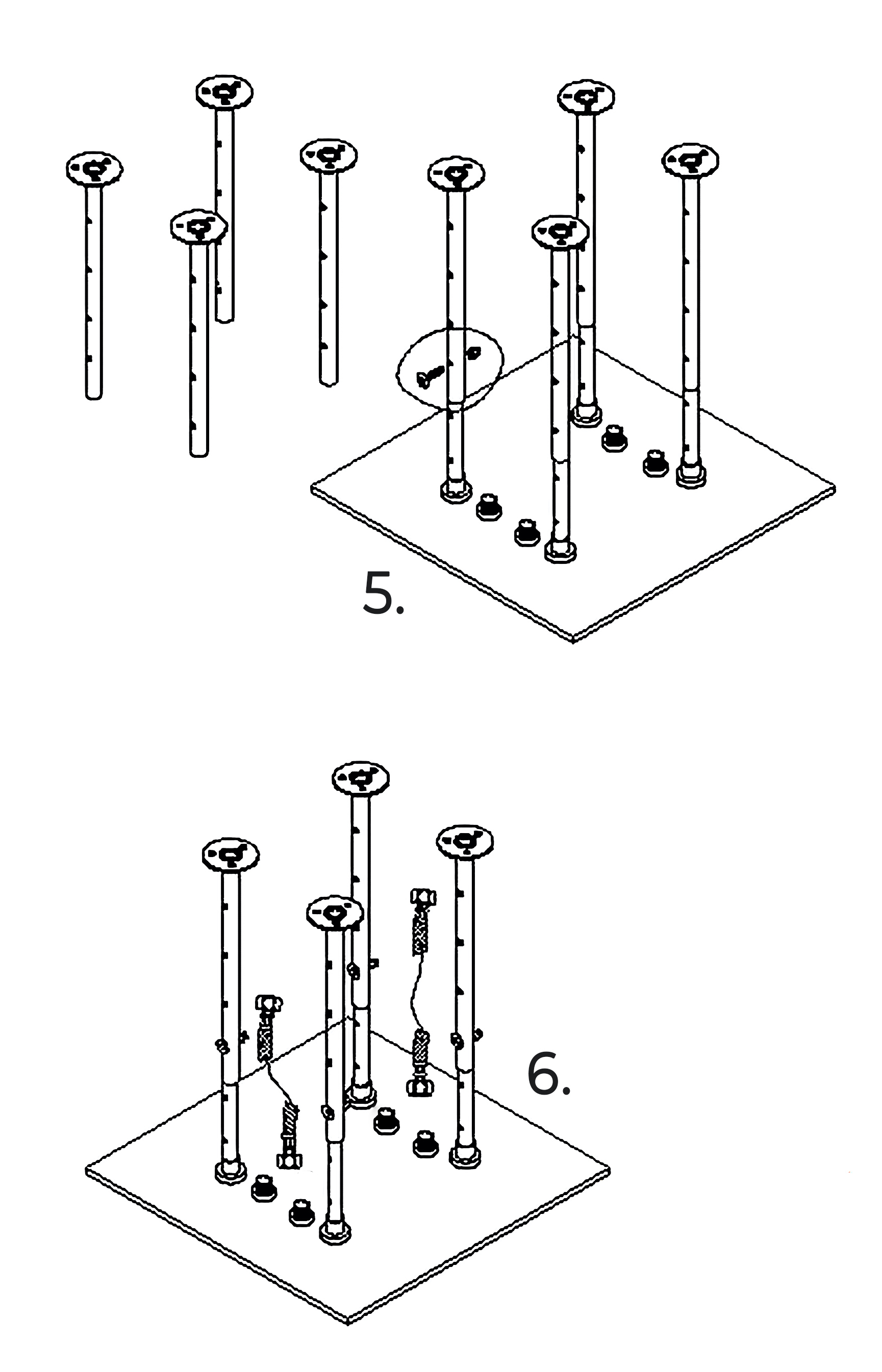

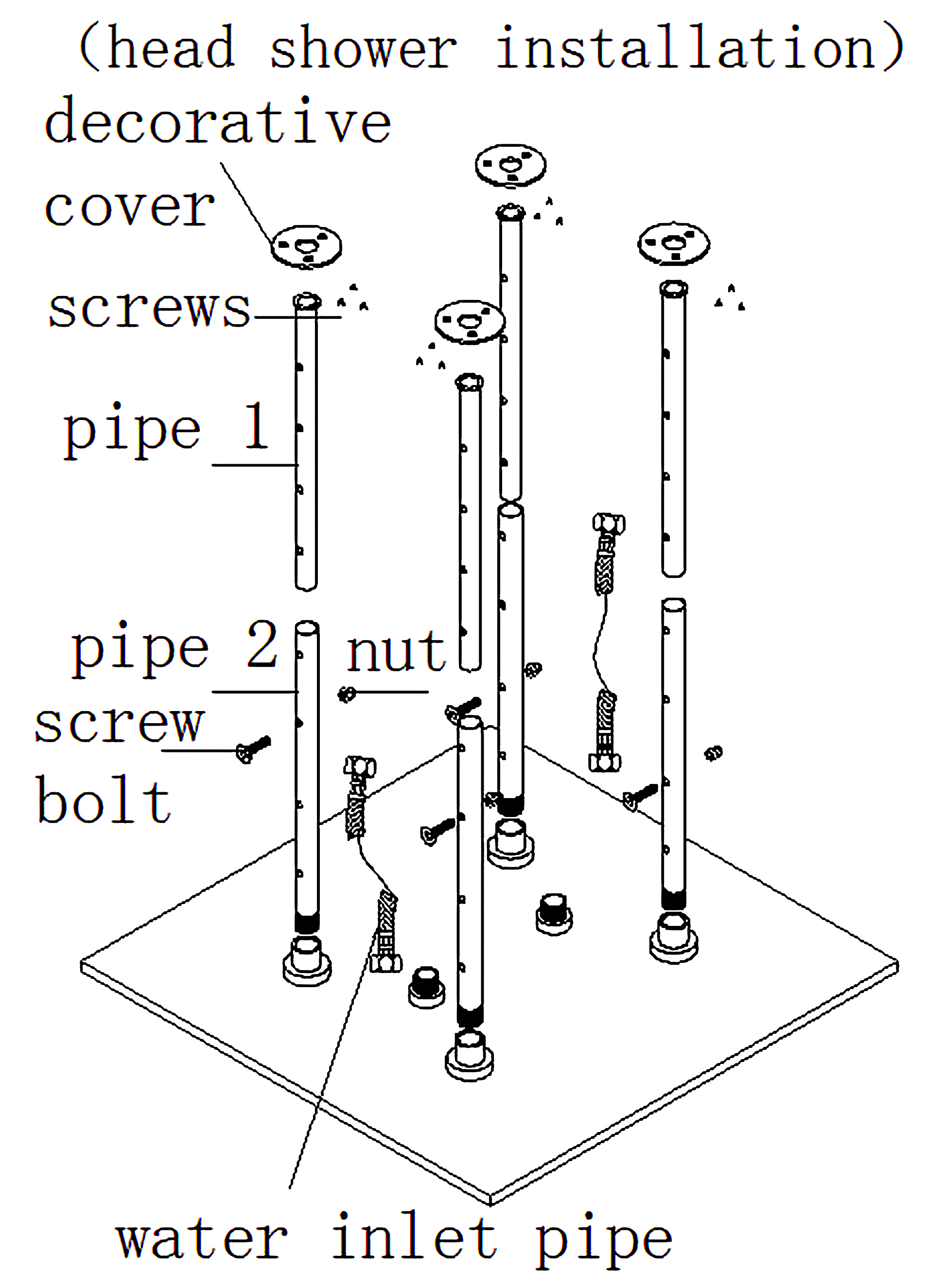

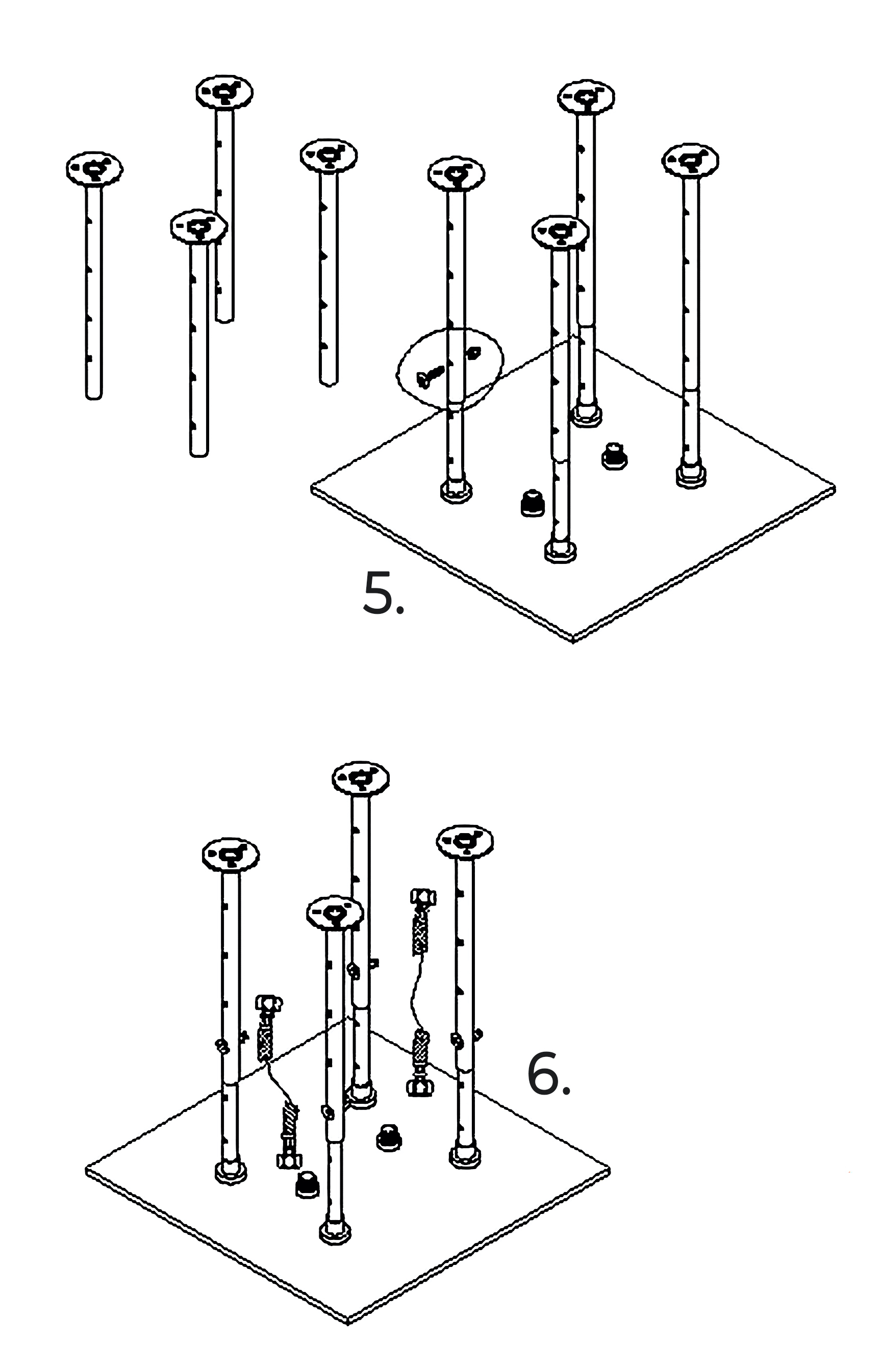

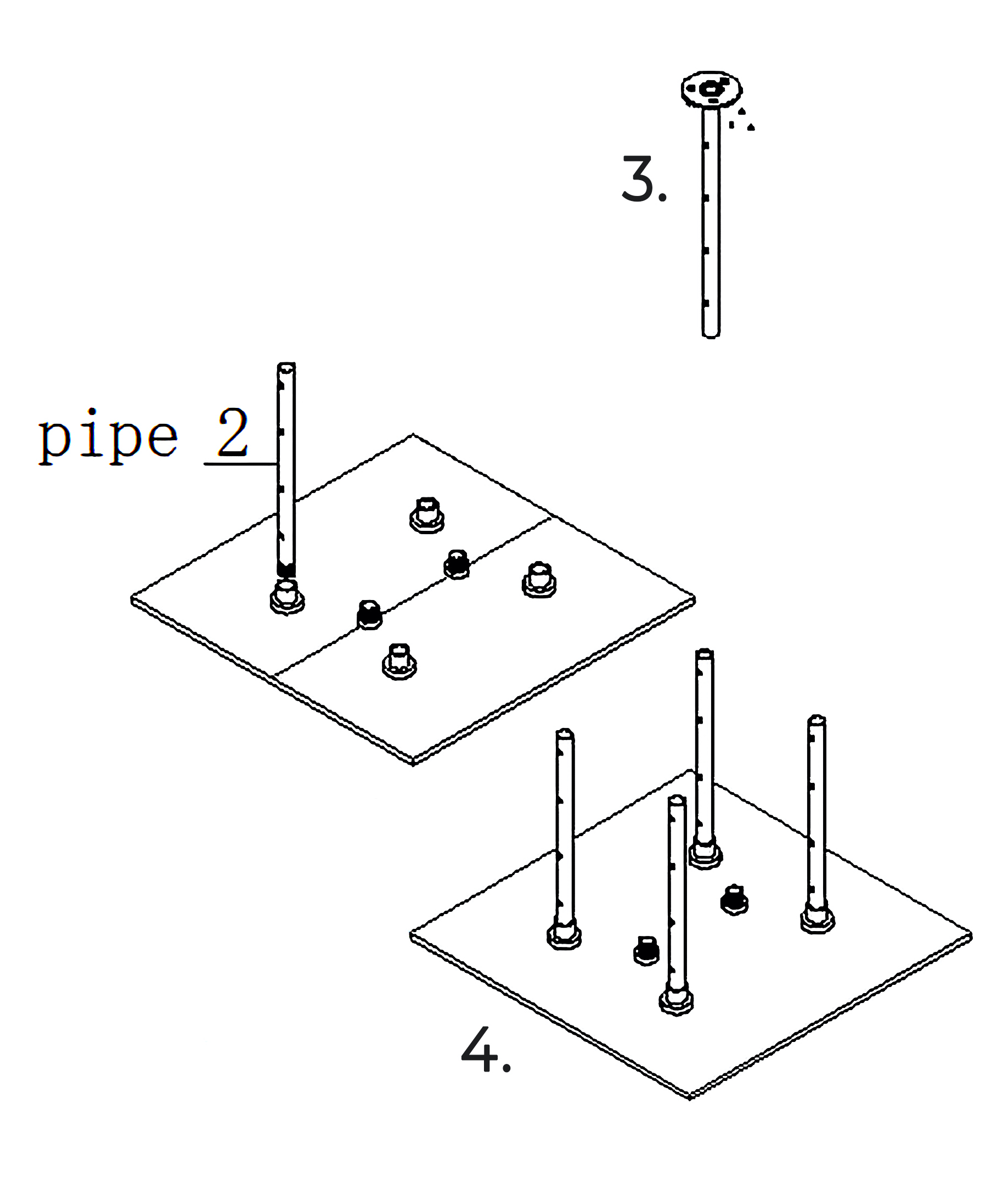

Water Supply Nipple Mamelon Nipple
·
Pressure Balancing Loop 1. Route the water supply lines.
2. If installing more than one
bodyspray off the same supply line, construct a pressure balancing loop. Locate
a tee along the loop at each bodyspray installation location.
3. Do not strap the pipes at this
time.
Single
Bodyspray Installation
·
Nipple Mamelon Nipple
1. Route the water supply line.
2. Install an elbow to the end of
the supply pipe at the bodyspray installation location.
|
Install
the Plaster Guard
·
Elbow (or Tee)
·
Install the plaster guard
Set
Piping Depth
Align mark
with the front of the stud face
·
Thin Wall
Align mark
with the front of the stud face
·
Standard Wall
Install the plaster guard. Push
until the plaster guard is snug against the face of the elbow (or tee).
|
|
1. Install the water-resistant wallboard.
2. Cut out a 4" (10.2 cm) to
4-1/4" (10.8 cm) square at each of the installation location.
3. Install the finished wall
material
|

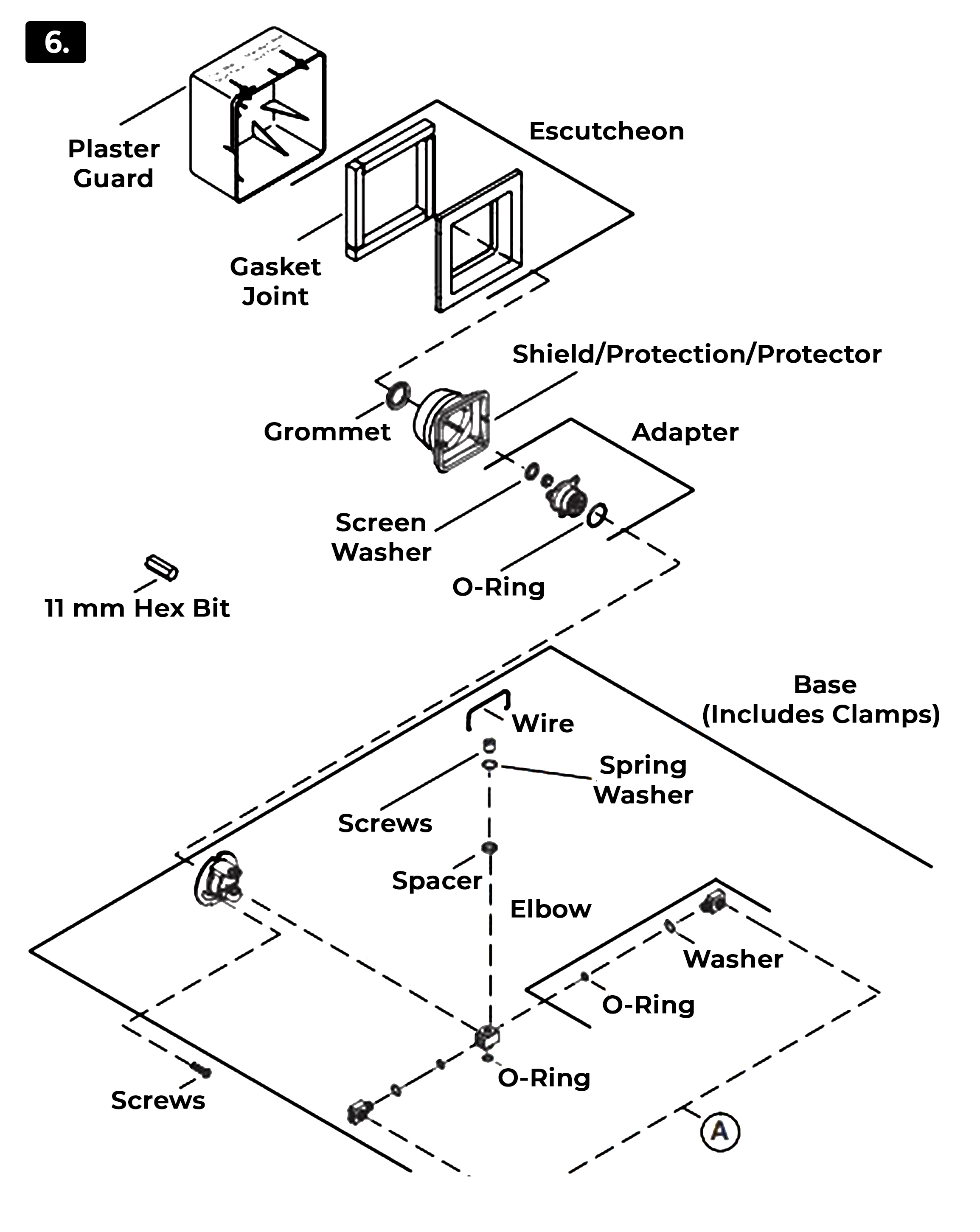

1. Insert the escutcheon into the
rough opening. The double ribs of the leak shield should be facing up.
2. If the leak shield makes contact with the elbow: Enlarge the hole
in the back of the leak shield to 1-1/4" (3.2 cm).
3. Thread the adapter onto the
nipple using the provided 11 mm bit, 11 mm or 7/16" socket, extension and
socket wrench. Use masking tape to hold the bit in place, as the bit could fall
off and cause damage.
IMPORTANT! The
escutcheon should sit loosely at this point. If it is tight against the wall,
use a longer pipe nipple.

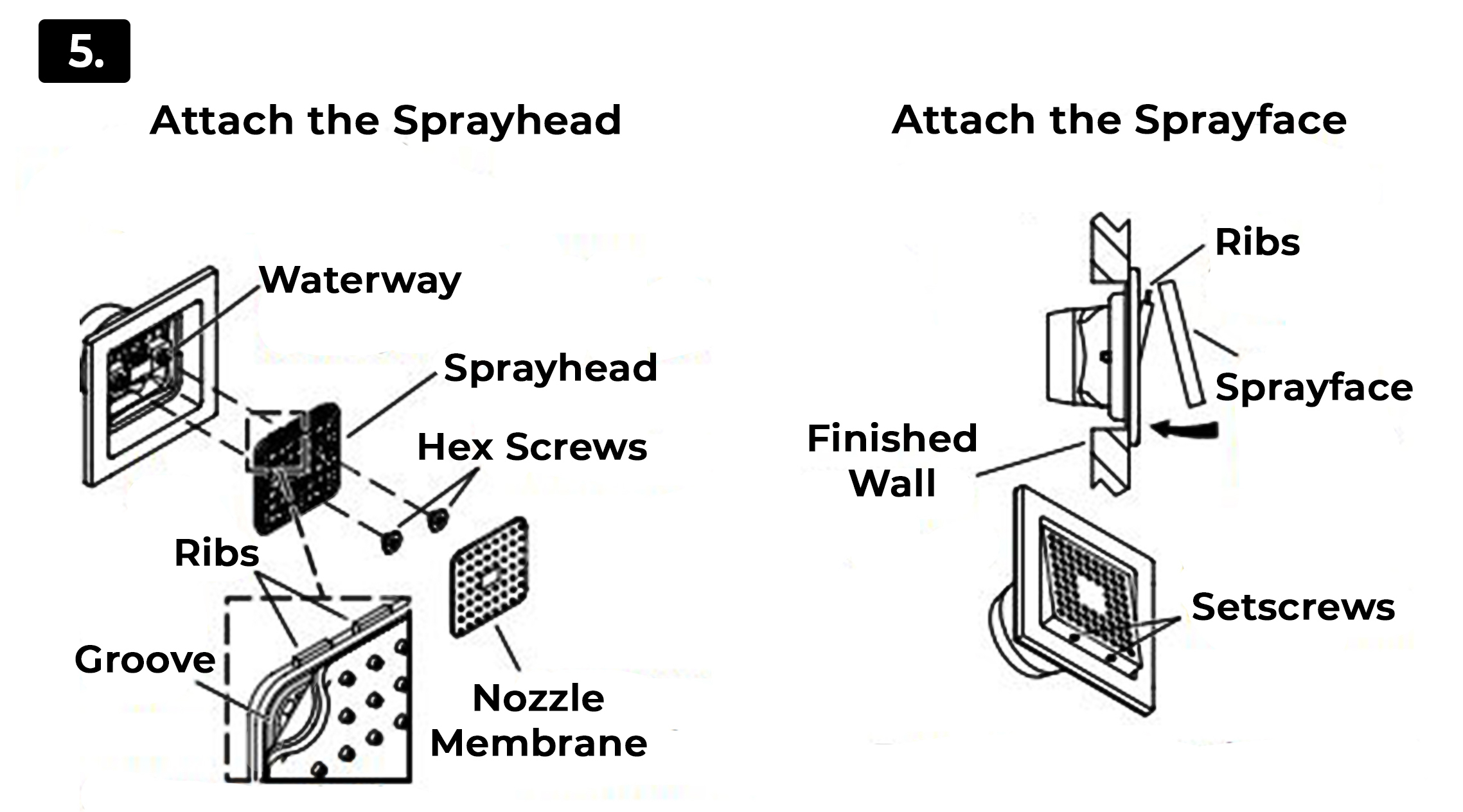

4. Align the groove in the waterway
with the double ribs on the leak shield.
5. Press the waterway into place
over the adapter. Secure the waterway to the adapter with the screw provided.

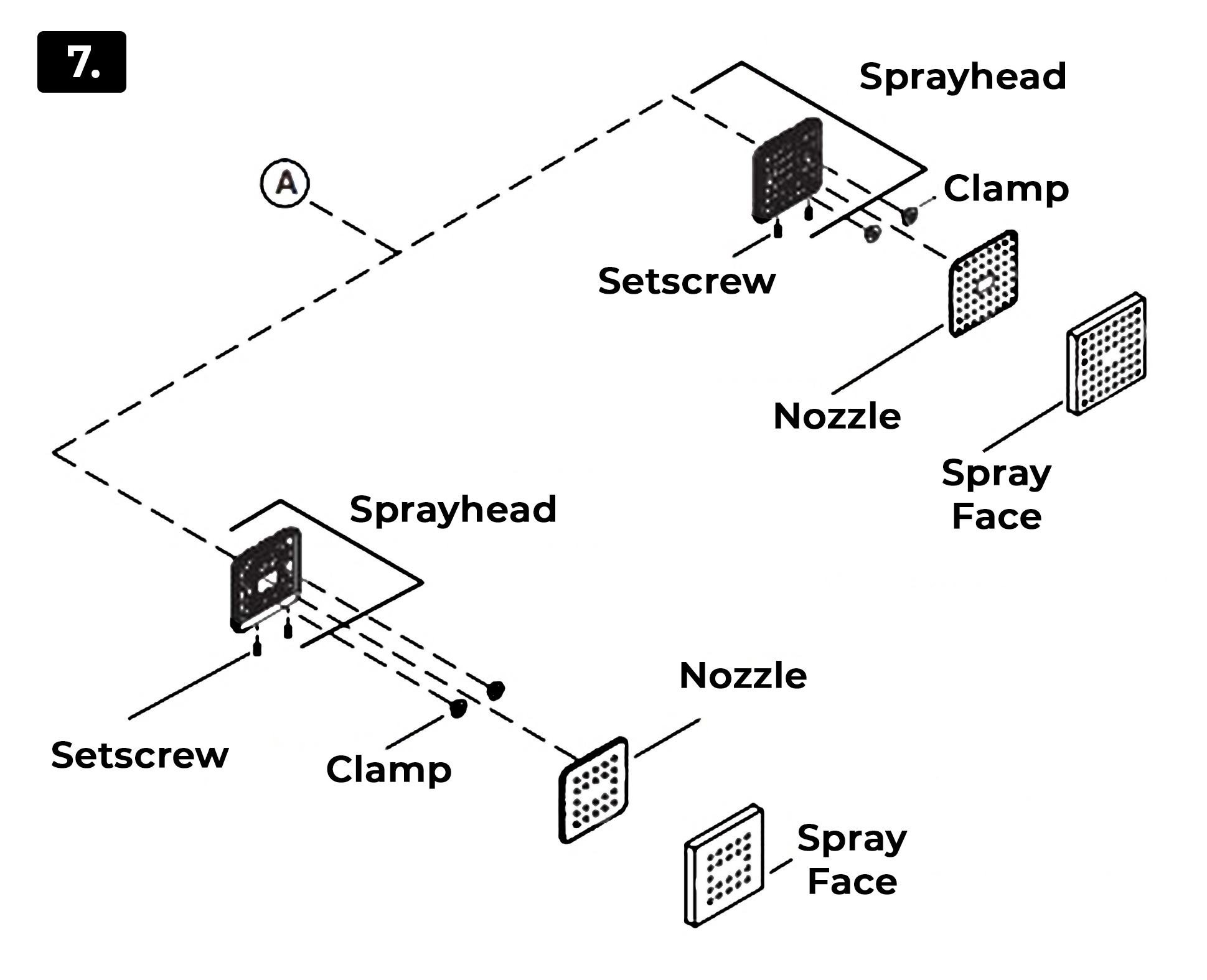

6. Verify that the escutcheon does
not turn or shift.
·
Escutcheon ·
Leak Shield ·
Adapter ·
Extension ·
Socket Wrench With Bit ·
Screw ·
Waterway Passage
|
|
