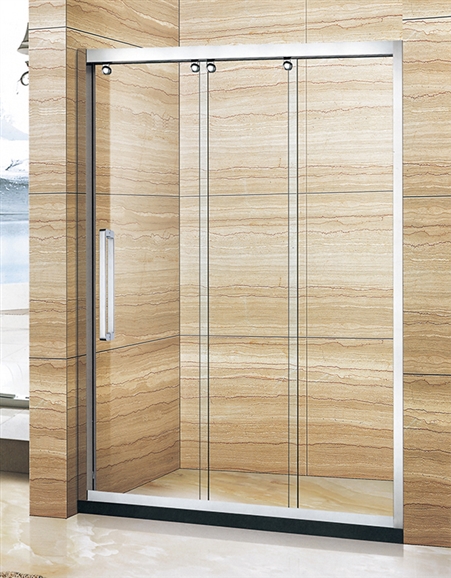

How to Install Single Door Aluminium Framed 3 Panel
Square Shape Sliding Shower Door | BST9973
When you are looking to have a unique shower door this tempered glass sliding
shower door may be ideal for you. There are many elements that you can
customize when you select a customized door.
You can pick what type of glass you want, such as opaque or frosted. You can
pick the size specifications, making it perfect for those who have a
uniquely sized shower opening.
And you can select the type of door, such as a fixed shower door, or a sliding door.
This Designer tempered glass shower enclosure is a perfect attraction in
any bathroom which can provide quick splash which is quite invigorating
and provide the ultimate pampering experience even
in outdoor as well as indoor areas.
These products are highly known for their features like well-built constructions, rust
resistance, longer life service and low prices. Moreover, these products
are made under the direction of highly knowledgeable engineers
industry using highly developed technology and latest
machines. In addition to this, we offer these products in
varied designs, shapes and technical specifications.
Model Number
|
BST9973
|
Glass Shape
|
Square
|
Frame Style
|
Frame-less
|
Frame Material
|
Aluminum Alloy
|
Frame Surface
Finish
|
Polished
|
Opening Style
|
Sliding
|
Glass Thickness
|
0.31/ 0.39 inches (8/10 mm)
|
Glass Type
|
Polished glass
|
Material
|
Stainless steel + glass
|
Style
|
Modern Bathroom Door
|
Application
|
Indoor/ Outdoor Shower Room
|
Name
|
Glass shower room
|
Usage
|
Bathroom
|
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install them.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
Glass Shower Door Installation Instructions
Specs
|
Installation
|
Size(L*H)
|
39" 31" 47",31" 47",35
54", 31", 54", 35
(L & W with 0.70" adjustment)
|
Height Option
|
73", 75", 76", 78',82"
|
Opening Size
|
15.3", 19.2", 23.2"
|
Shape
|
Straight
|
Open Style
|
Sliding
|
Glass
|
Tempered Safey Clear Glass
|
Thickness of Glass
|
0.31" , 0.40"
|
Base
|
CUPC Acrylic Tray or Artificial
Stone Base for Option
|
Profile finish
|
Chrome, Stain, Brush
|
Step 1
|
|
Parts Name:
|
|
shower door
|

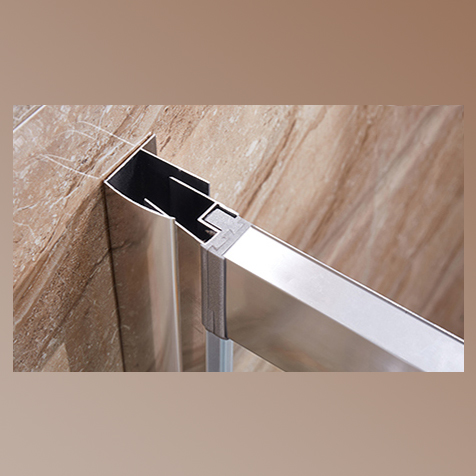

1. Wall Stainless Steel
2. Movable Glass
3. Door Handles
4. Magnetism Strip

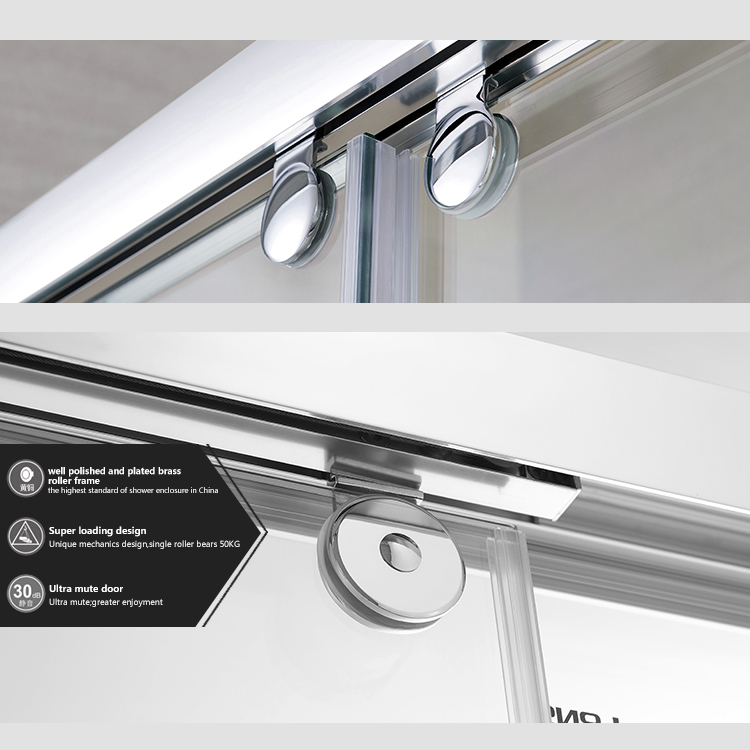

5. Upper Wheel

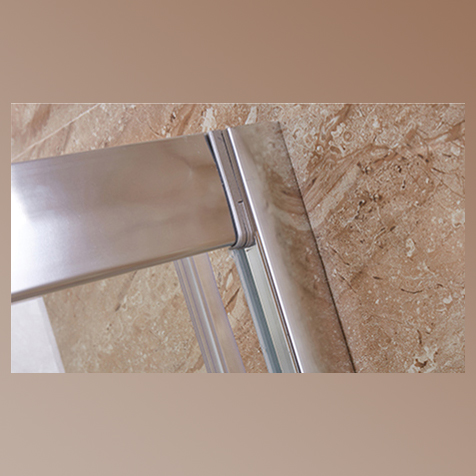

6. Up Rail Stainless Steel
7. Down Rail Stainless Steel
8. Slider
9. Bumper block
10. Artificial Marble Made Jamb Stone
11. Round-head Tapping Screw
12. Expansion Plastic Piece
|
Step 2
|
|
Instructions
|
|
|
This shower door can be assembled so that the
sliding door opens from Left to Right, or Right to Left.
The drawings illustrate the shower door
opening from Left to Right.
1 glass is fixed & 2 glasses can move
|
Step 3
|
|
Step 4
|
|
|
|
Step 5
|
|
Step 6
|
|
|
|
|
|
|
