How to Install Rennes Polished Gold Finish Wall Mount Dual Cross Handle Bathroom Faucet | BS9829

Double Handled Wall Mount Faucet - 3 pc

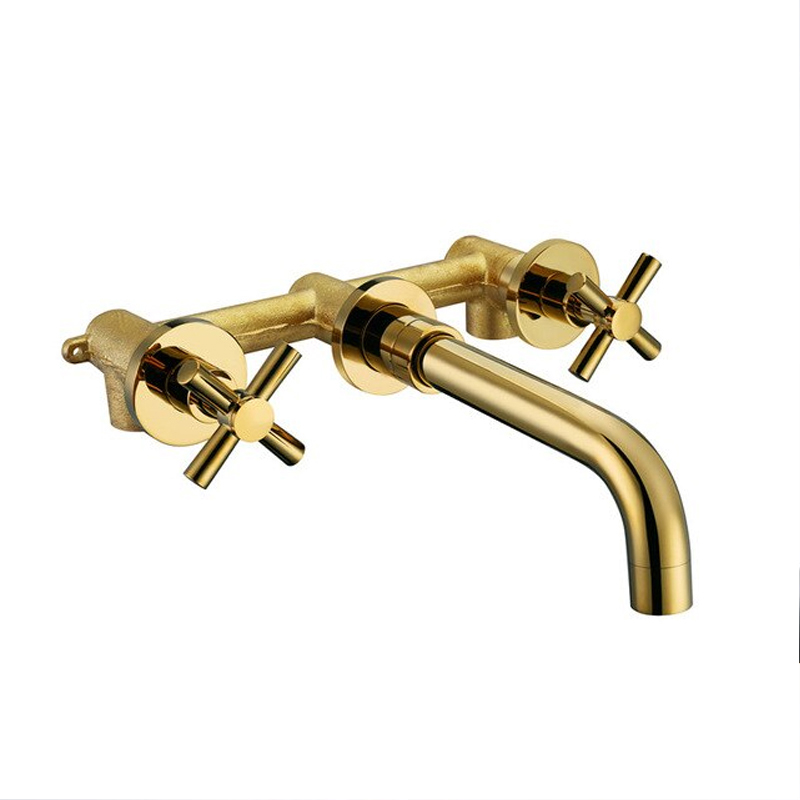

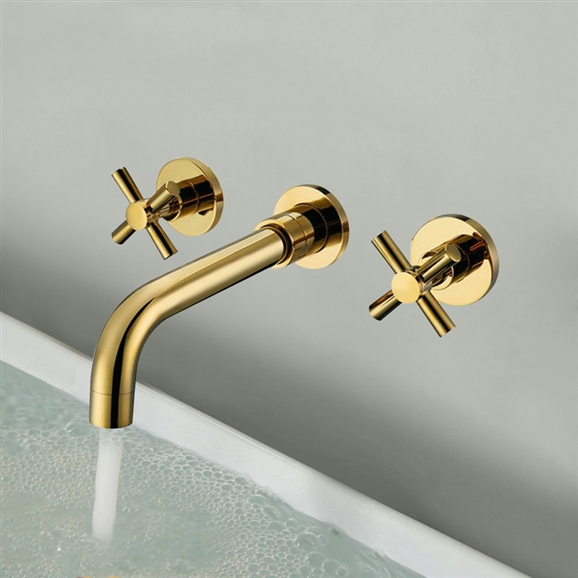

This exquisite faucet in Polished Gold finish elevates the decor of your bathroom it is made with the highest quality and for great tastes. Our wall mount 3 piece chrome faucet set is an elegant solution when deck mount is not an option. The handles have a cross design which make it look elegant and classic. It is very easy to install and it can be installed as wall mount. It requires three holes for the installation. It comes with a super seal technology inside, capable of delivering superior performance. It is drip free, leak free, & rust free. It has separate handles for hot and cold water and built-in water mixer. Only the best quality materials have been used – the body and handles are made of solid brass, as well as the valve core material is also brass. It comes complete with accessories and installation instructions.

Features:

  • Style : Three hole handle
  • Model Number : BS9829
  • Surface treatment : Polished Gold
  • Hot and cold water : Yes
  • Type : Ceramic spool plate
  • Style : Contemporary
  • Installation Type : Wall Mount
  • Handle number : Dual handle
  • Package weight : 4.4 gal (2 KG)
  • Valve core material : Brass
  • Cold & Hot Water : Yes
faucet Rennes Polished Gold Finish Wall Mount Dual Cross Handle Bathroom Faucet

Installation Instructions for 3 pc Bath Tub Faucet Set





Step 1:




Installation Instruction

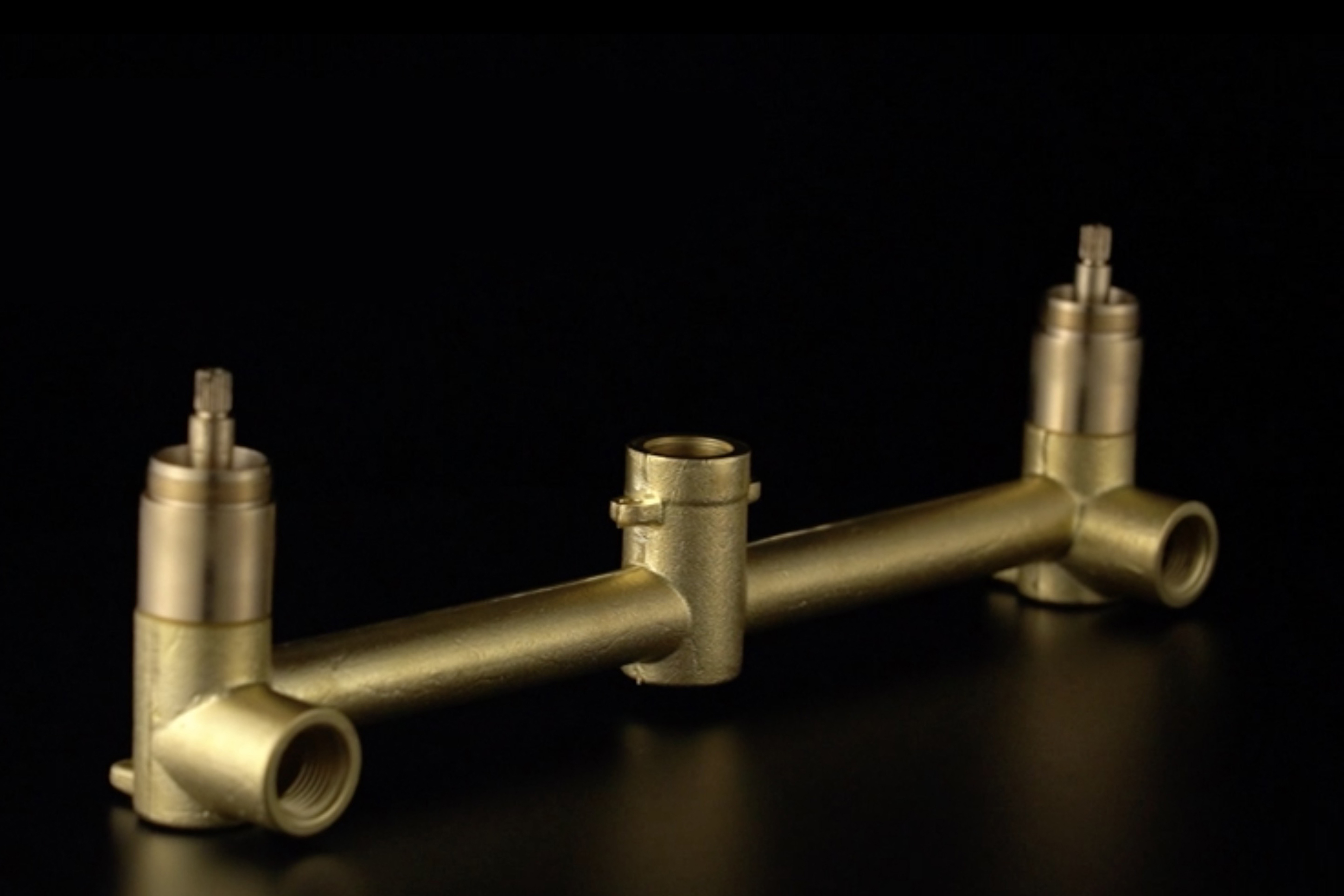

1. Fix the valve body into the wall with screws. Make sure the valve body is completely level.

2. Connect the hot and cold water inlets of the valve body to the main water supply.

3. Apply teflon tape to the threaded pipe and screw it into the valve outlet. Then, put rubber washer to the spout body and screw the spout body into the threaded pipe.

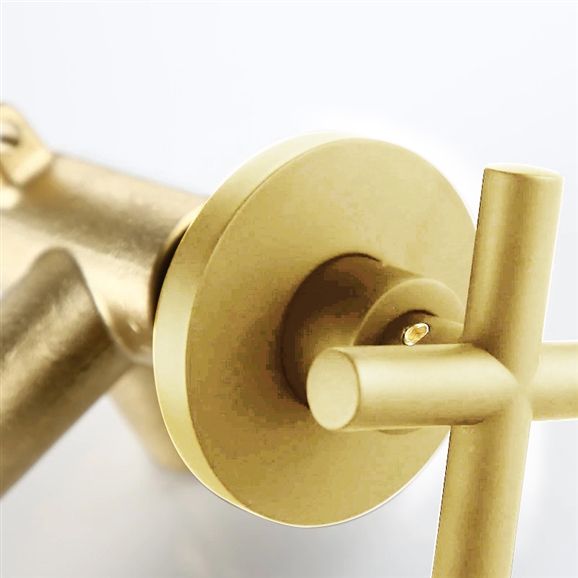

4. Fix the handle escutcheon onto the valve firmly against the finished wall. Install the handle to the valve, then tighten the set screw with Allen key and place the indication button on the handle.

Cleaning & Maintenance
To keep product clean and shiny follow the instruction below.
1. Flush with clean water and dry with soft cloth only.
2. Do not use any detergent, polisher, sane-cloth, or a scraper.
3. Do not use acid detergent.
