Installation Instructions for Ramona LED Thermostatic High Pressure Brushed Nickel Bathroom Shower Set | BS11001
Thermostatic Brushed Nickel Bathroom Shower Set

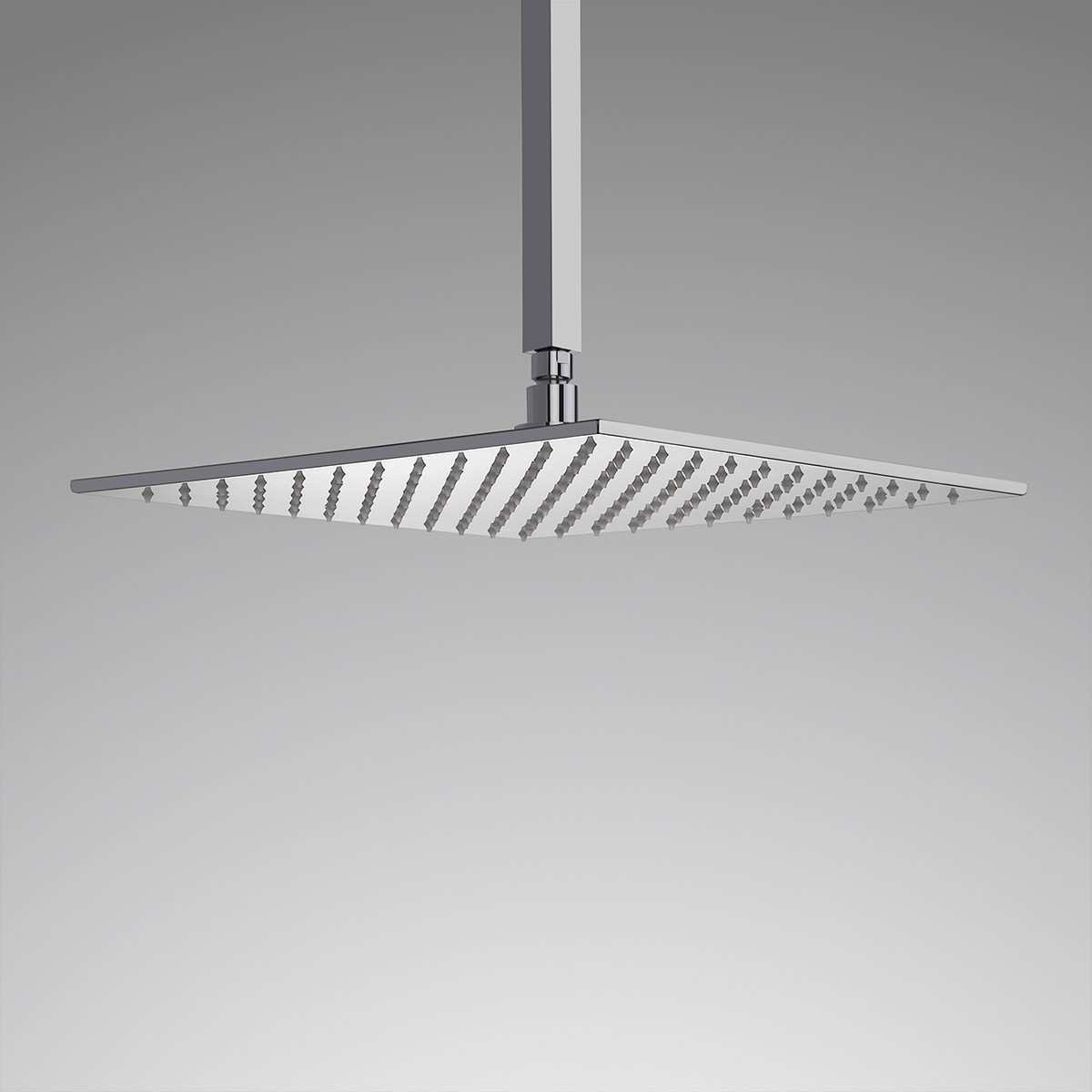

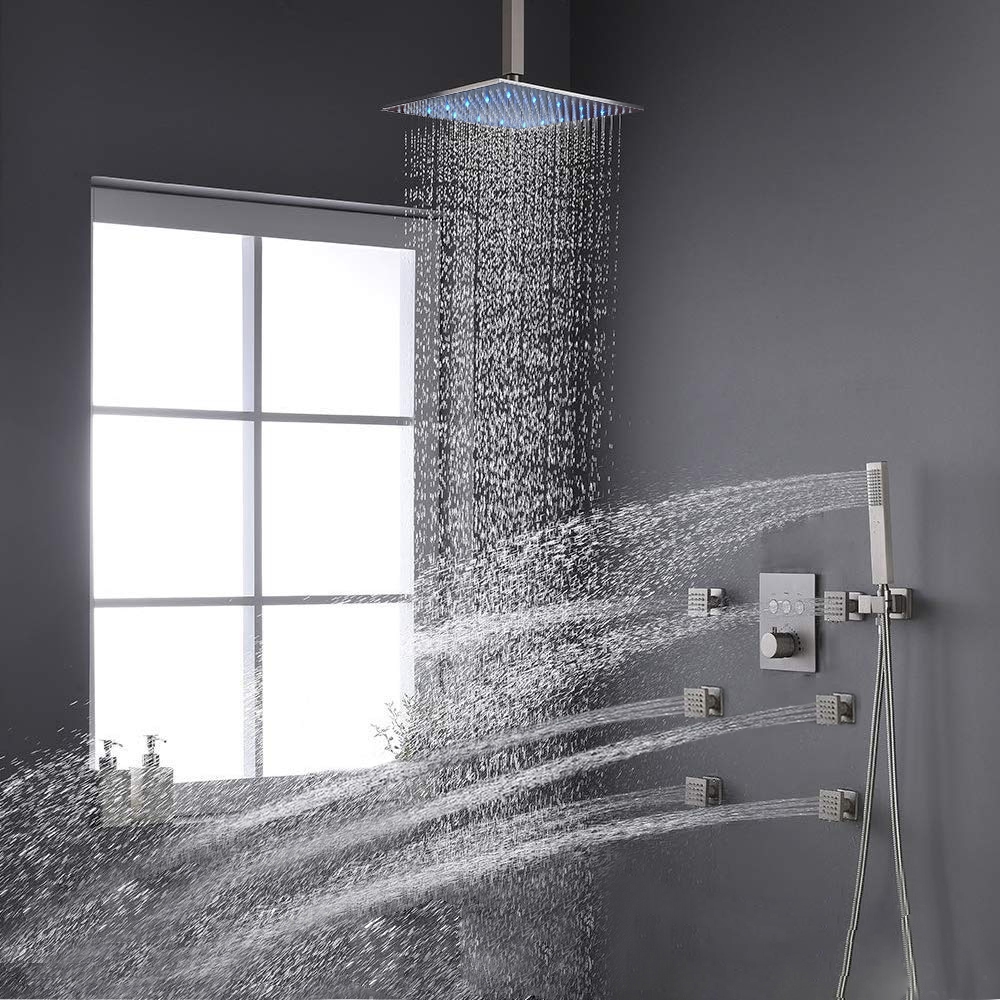

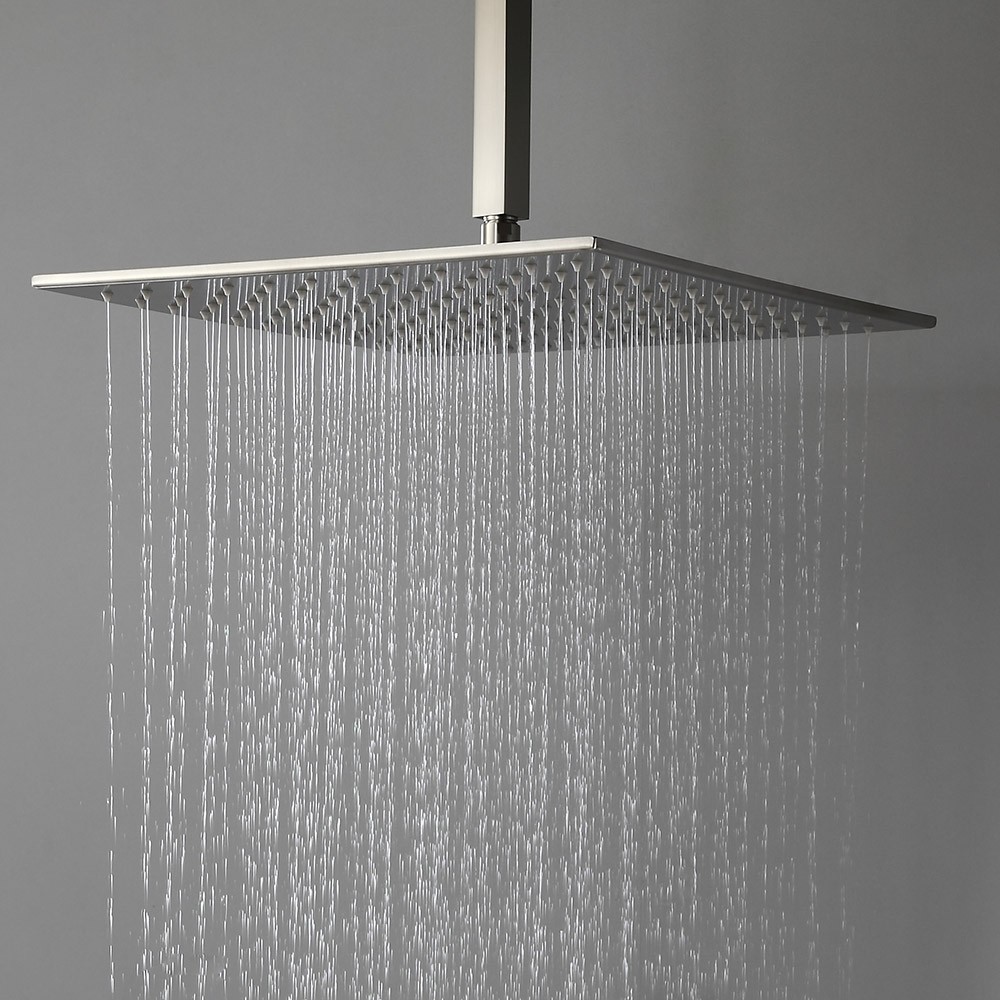

Enhance your modern bathroom with the Napolis Thermostatic LED High Pressure Brushed Nickel Bathroom Shower Set, which comes complete with the Square ceiling mount shower head with sizes you can choose from 8", 10", 12", 16", four square body jets and the thermostatic shower valve. Its optimum design and innovative technology allow for voluminous soft droplets to make your showering experience a fun one. The thermostatic shower valve controls the flow and temperature of the water and a diverter that allows you to switch between the fixed head, hand shower or the body jets. Made from solid brass that looks sleek and modern but delivers a refreshing showering experience. The shower arm is a ceiling-mount that has been made from brass. The square body jets enhance the overall showering experience and provide an invigorating massage effect, while the hand shower with adjustable slide bar allows for easier rinsing and cleaning. Easy installation, comes with all standard accessories. It is designed to be lightweight, durable, and corrosion-resistant and has an automatic anti-scald device.
Features:
Model Number: BS11001

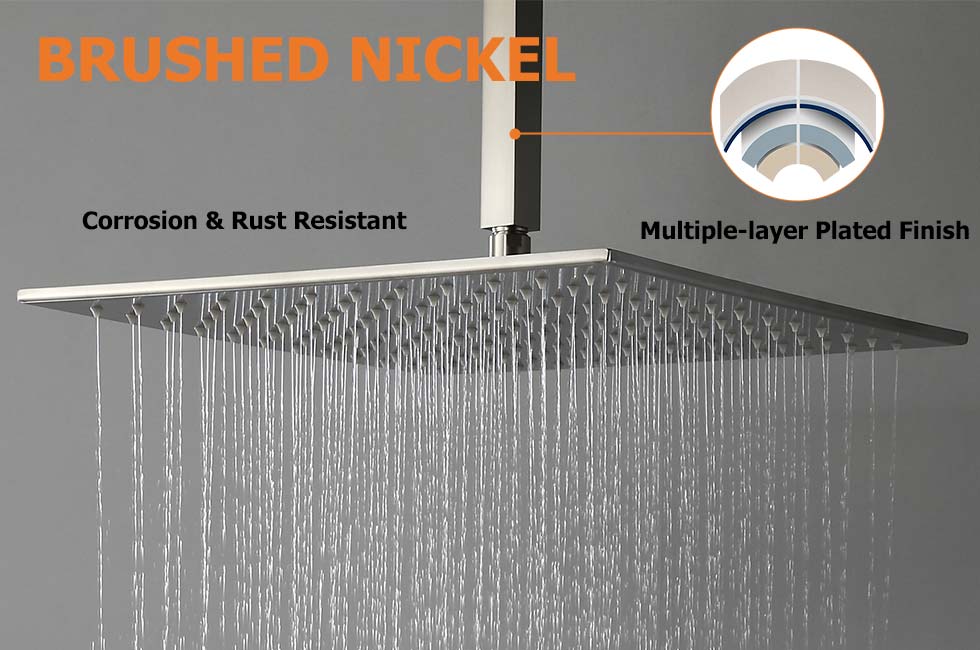

Finish: Brushed Nickel
Shower Head Type: Fixed Rotated Type
Shower Head Material: Brass
Handheld Shower Head Material: Brass
Shower Holder: Brass
Cartridge: Ceramic Disc Cartridge
Valve Trim: Brass
Handle Count: Single Lever, 3 ON/OFF Press buttons
1.5M Kink-free Shower Hose: 304 Stainless Steel
Connector Size: G1/2", fits US standard thread size
½" NPT Inlets and outlets compatible with standard US plumbing connections
Installation Method: Ceiling Mount or Wall Mount
Working Pressure : 0.05-1.0Mpa
Cold water Temperature: 5°C-29°C
Hot water temperature:50°C-80°C
Valve connect size
Hot & cold inlet size is G3/4" , Three outlet size is G1/2"
Thermostatic valve future
Thermostatic / Anti-scald / pressure balanced
Shower arm Length : 12"
Spa Message body jets : 5cm for diameter
Shower hose length :1.5m (60”)
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
Shower Head Installation Instructions
Ceiling Mount Shower Installation Instructions
Step 1:
Step 2:
shower installation
Step 3:
Step 4:
Step 5:
Step 6:
Step 1: Take Out the Old Shower Head You can easily remove it by hand, but depending on how long the rain showerhead has been installed, you might need to use an adjustable wrench. Hence, if you find it difficult to remove, rotate the showerhead with an adjustable wrench in a counterclockwise direction to unscrew it.
Step 2: Keep the Shower Arm Clean and In Good Shape After you have removed the head, check the shower arm threads for any debris and old Teflon tape. If you find any, remove it and clean them off thoroughly. It’s best to use a microfiber cloth when cleaning the thread because it removes Teflon tape perfectly and works great to pick up tiny grits. Once you’re done cleaning, check if it is corroded or leaking. For damaged threads, it will be best you replace it entirely so you can have a comfortable shower experience any time.
Step 3: Time to Add New Teflon Tape Since you have removed the old Teflon tape, you have to replace it with new ones. The reason is that this tape helps to protect the shower from leaking after installing the showerhead. Now apply the new Teflon tape about 3-5 turns on the thread and tear the end part. Use your hands to smooth it out to keep it leveled to the thread. Keep in mind that when applying the tape, you should go in a clockwise motion so that it doesn’t come off when you attach the head in the same direction.
Step 4: Connect the Showerhead As said earlier in the tools needed, we’re using the rubber sealing washer that comes with the showerhead. This tool helps to make the showerhead stay watertight and secured on to the thread. Ensure you place it properly before installing it. After that, reconnect the shower head and tighten it down with your hands. You can employ a chair or ladder to make things easier for you.
Step 5: Tighten the Showerhead On To the Thread You will need to get the adjustable wrench handy to tighten down the shower very well. But make sure you wrap the threads with a terry cloth, so it doesn’t damage the finish when tightening the showerhead. Once you have done that, now use the adjustable wrench to tighten down the showerhead. However, don’t over-tight or force it so that it’s easier to remove in the future.
