Installation Instructions for BathSelect Nysa Gold Finish Deck Mounted Bath Tub Faucet With Hand Held Shower | BS883MBS

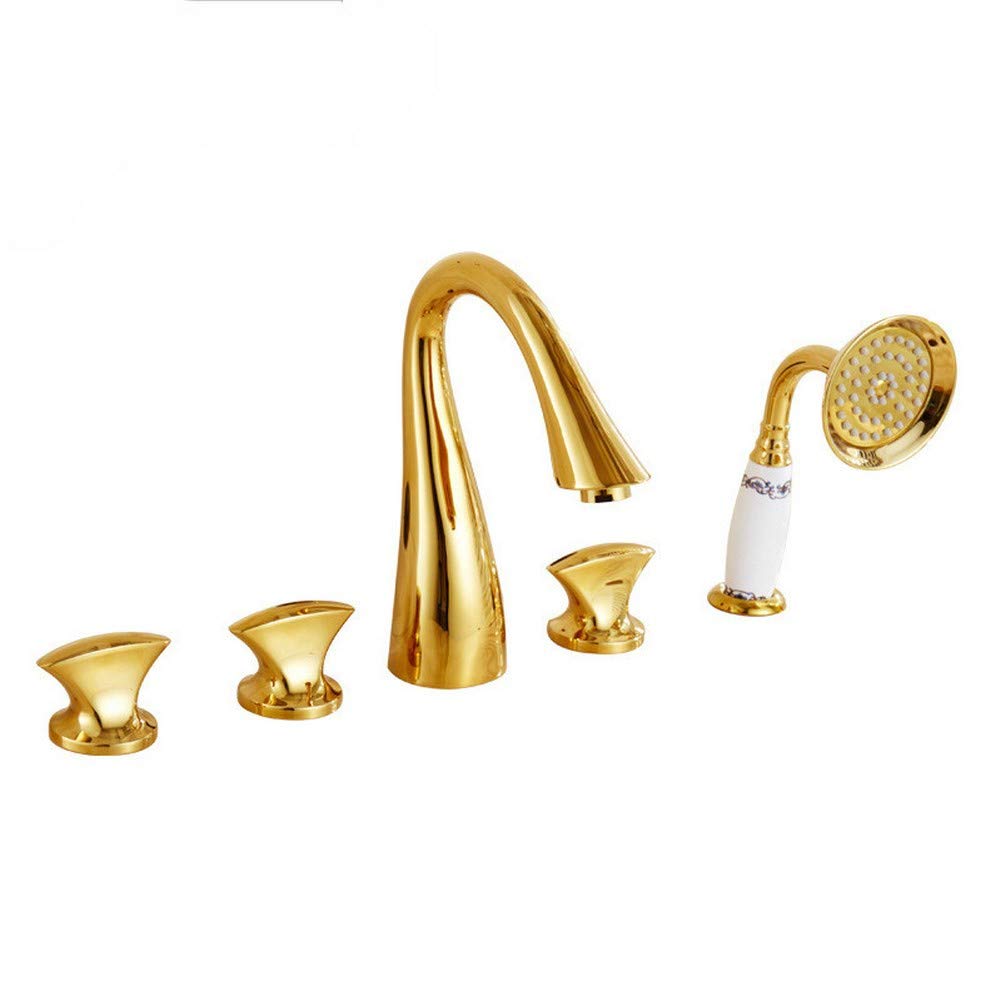

3 Handle Deck Mounted Bath Faucet - 5 pcs

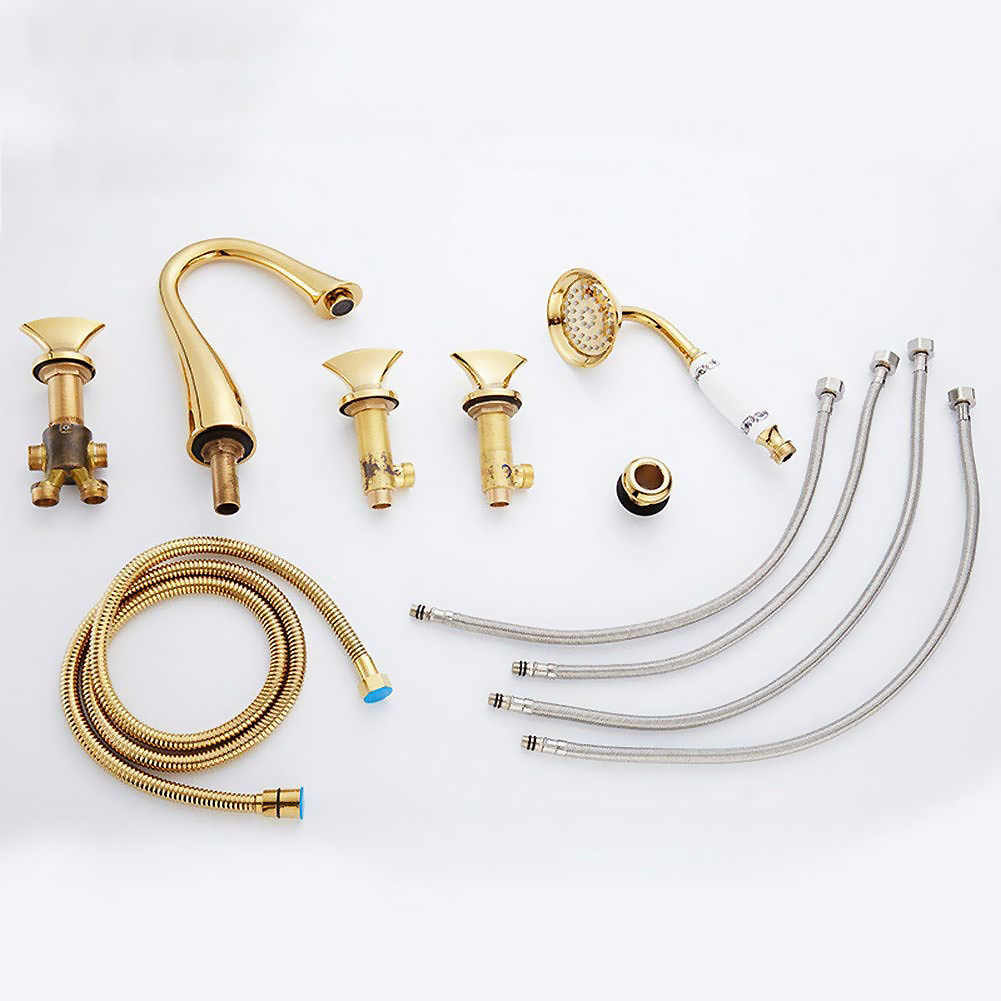

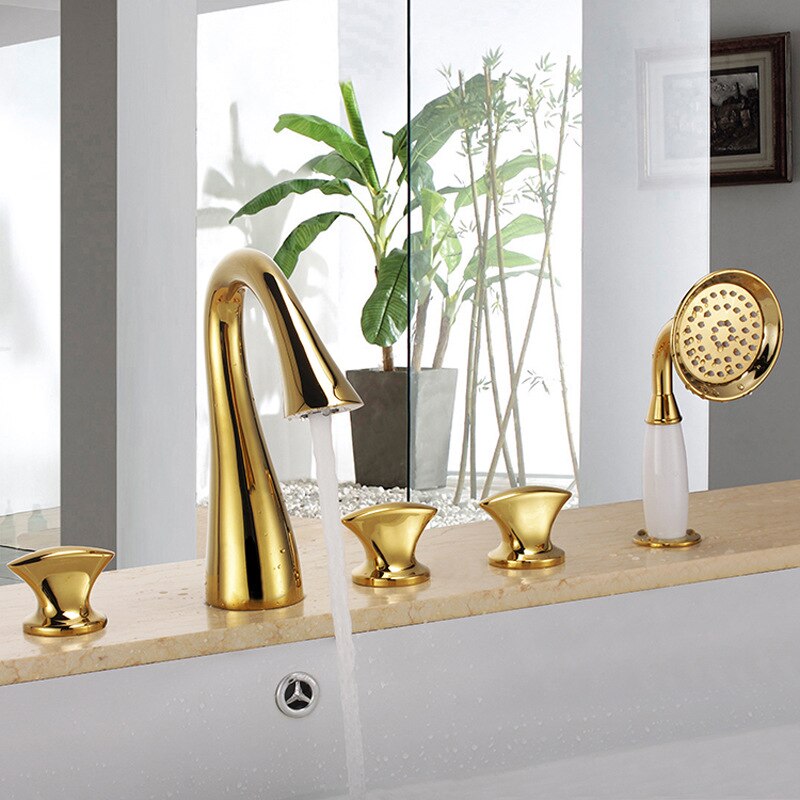

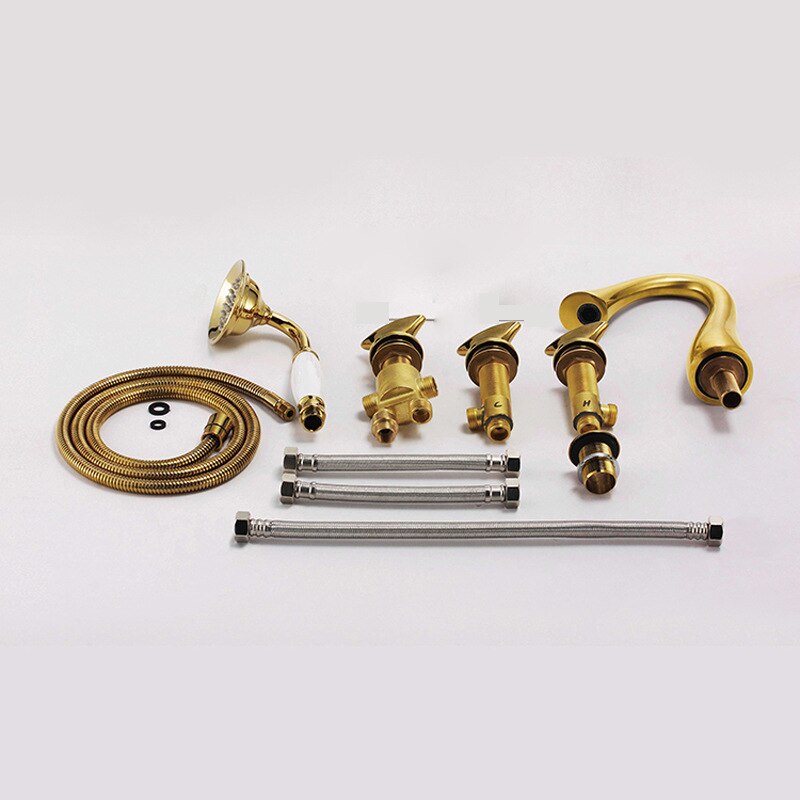

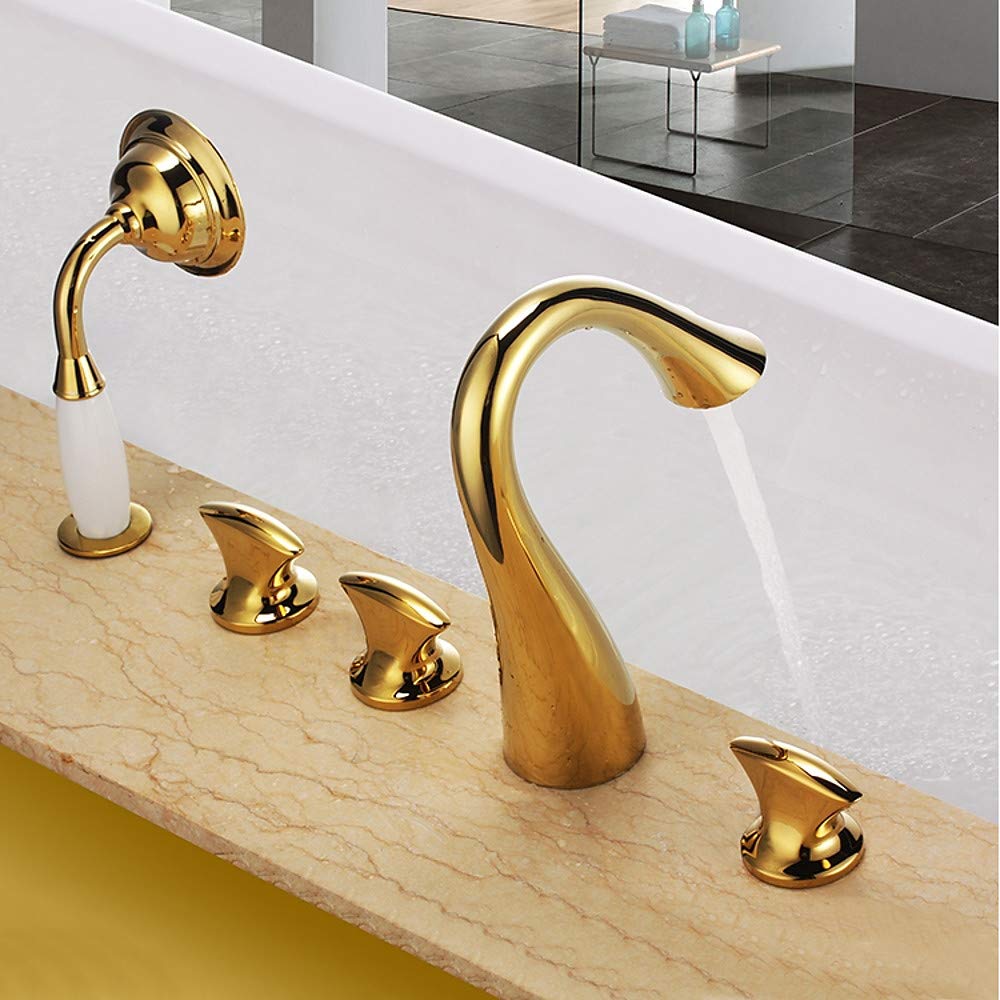

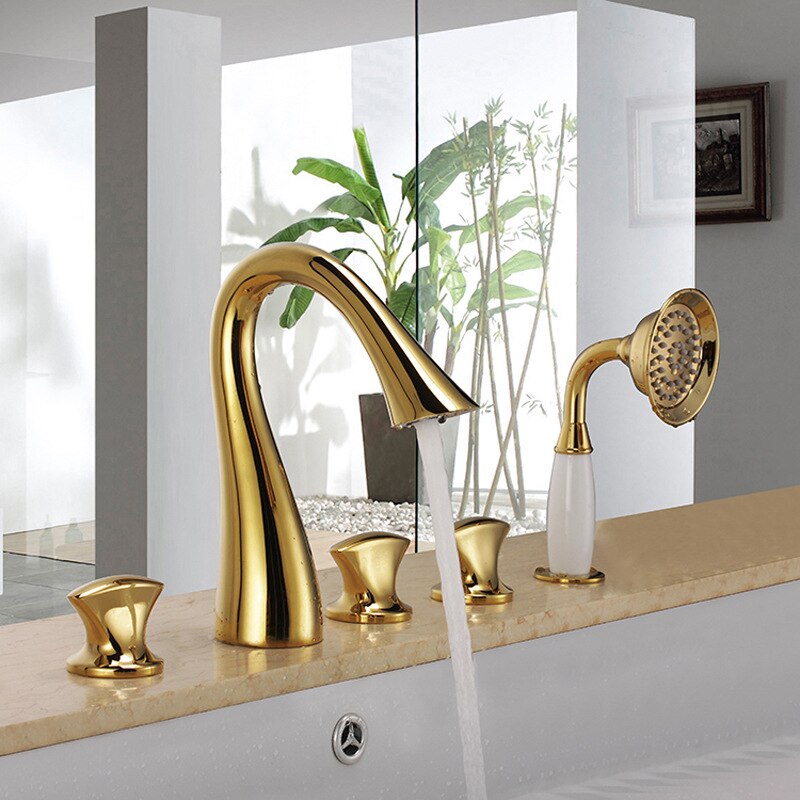

| Our Nysa bathtub faucet with handheld shower has a beautiful gold finish, which makes it ideal for the most sophisticated bathroom styles. It comes with three handles, it is deck mounted shower head and it requires five holes for installation. It is made of the best materials, the valve core material is ceramic, for improved functionality and long-lasting lifetime. It comes complete with mounting accessories and installation instructions. | |  | | |
|
| | | | Features: | faucet | | - Brand Name: BathSelect
- Model Number: BS883MBS
- Type: Bath and Shower Faucet
- Style : Contemporary
- Number of Handles: Triple Handle
- Surface Treatment: Brushed
- Type: Fixed Support
- Core Material: Ceramic
- Surface Finish: Gold Finish
- Installation Type: Deck Mounted
- Materi Copper
| |
|
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
|
|
Faucet Installation Instructions
| Step 1: | 5pcs bath faucet | Step 2: |  | |  |
| | | | Step 3: | | Step 4: |  | |  |
| | | | Step 5: | | Step 6: |  | |  | | | |
| | |
Installation Instruction

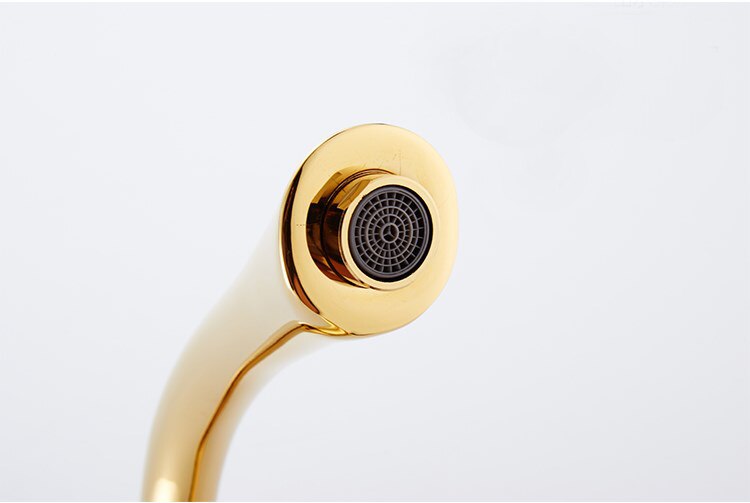

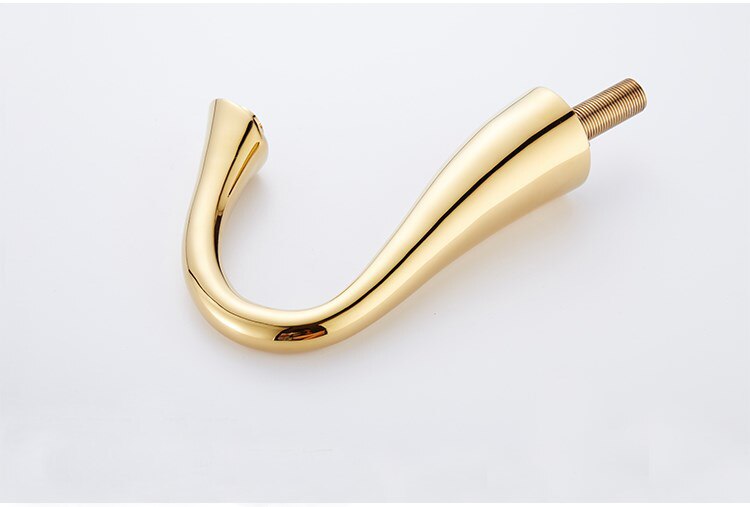

1. Screw threaded pipe into the spout body, and fit O-ring into the bottom groove of spout body.
2. Insert spout body into the specified drill hole on the countertop.
3. Install rubber washer to the threaded tailpipe of the spout body from underneath the counter top and then screw the mounting nut.

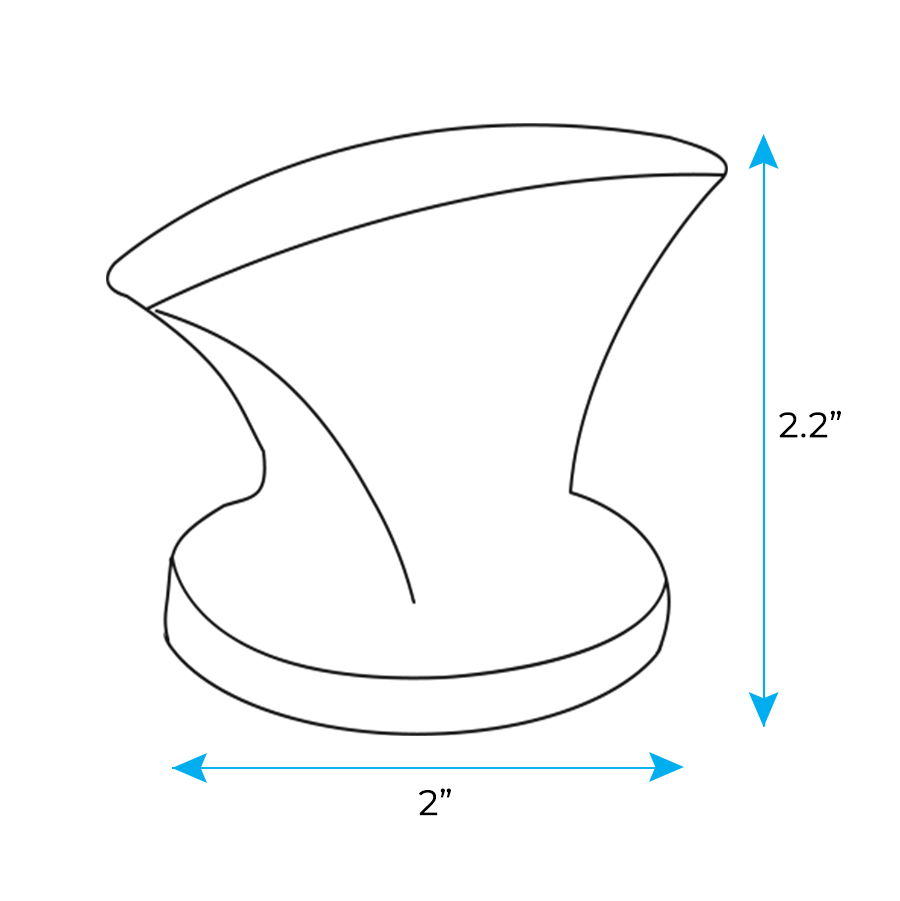

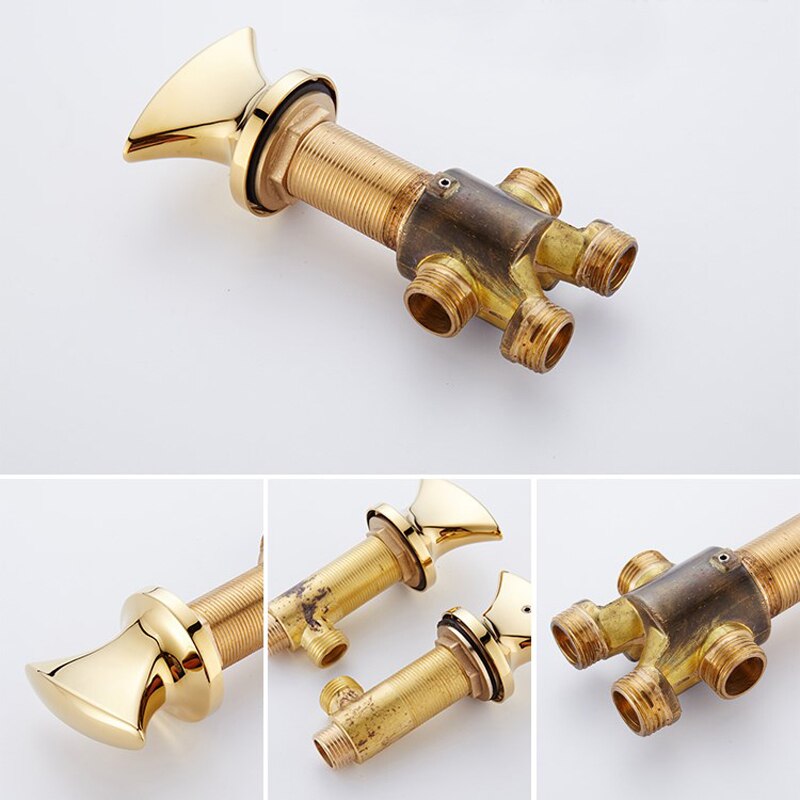

4. Install valve into specified drill hole from underneath the counter top. Screw bonnet nut into valve and fit the handle. Adjust the height and position of valve, then screw mounting nut to tighten valve underneath counter top securely.
5. Tighten set screw with Allen key to fix the handle.

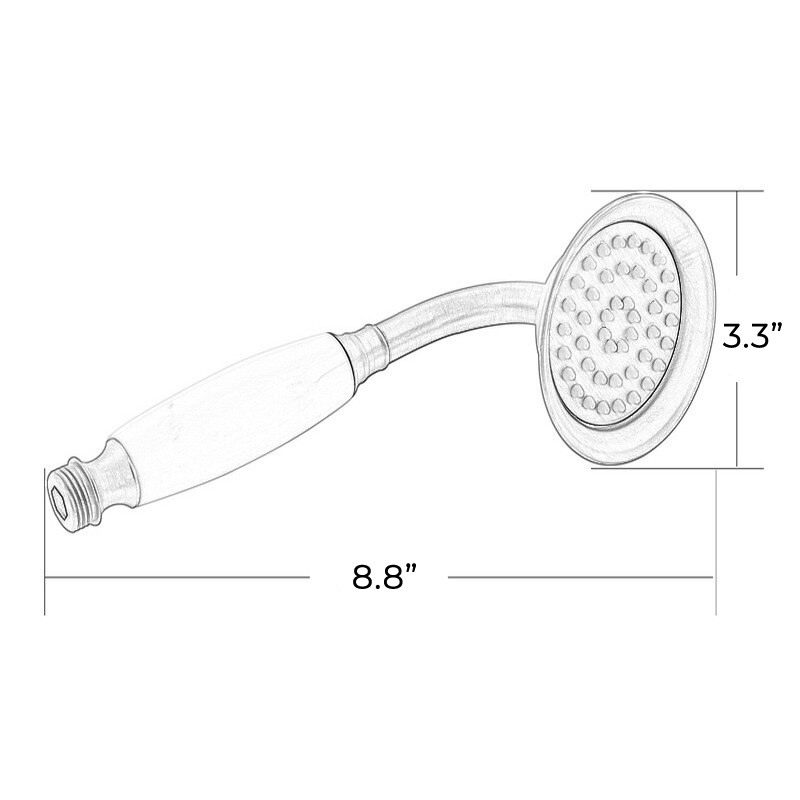

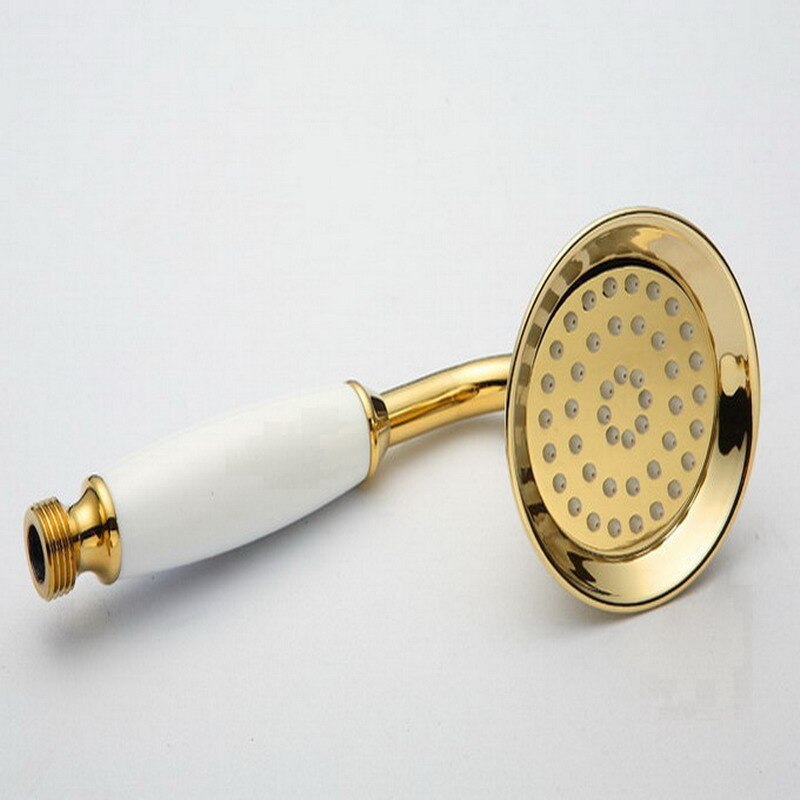

6. Install the O-ring and insert the hand shower holder into the specified drill hole. Put on the rubber washer and screw in the mounting nut securely underneath the counter top.

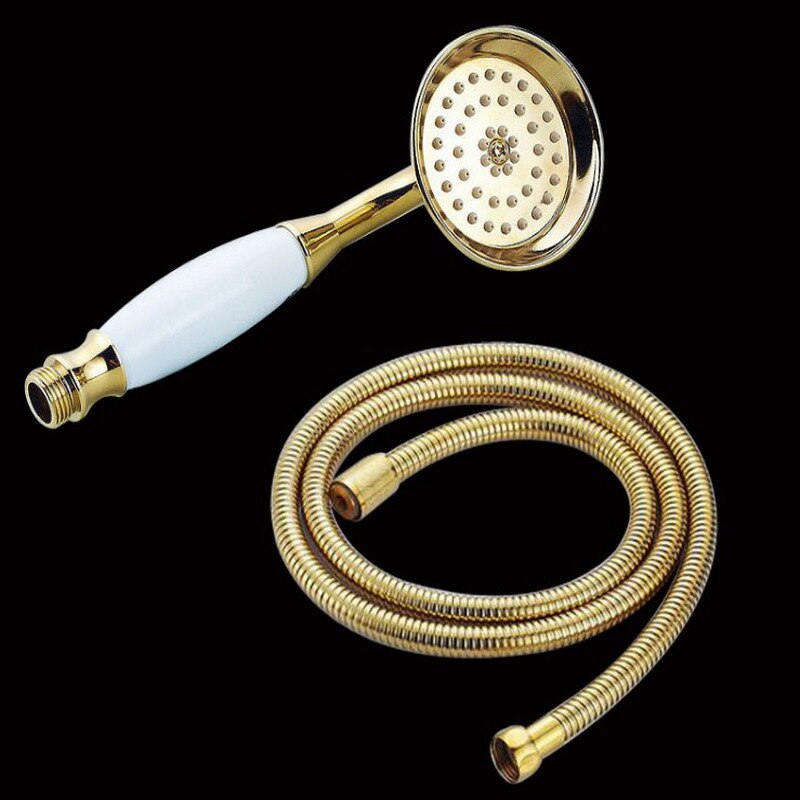

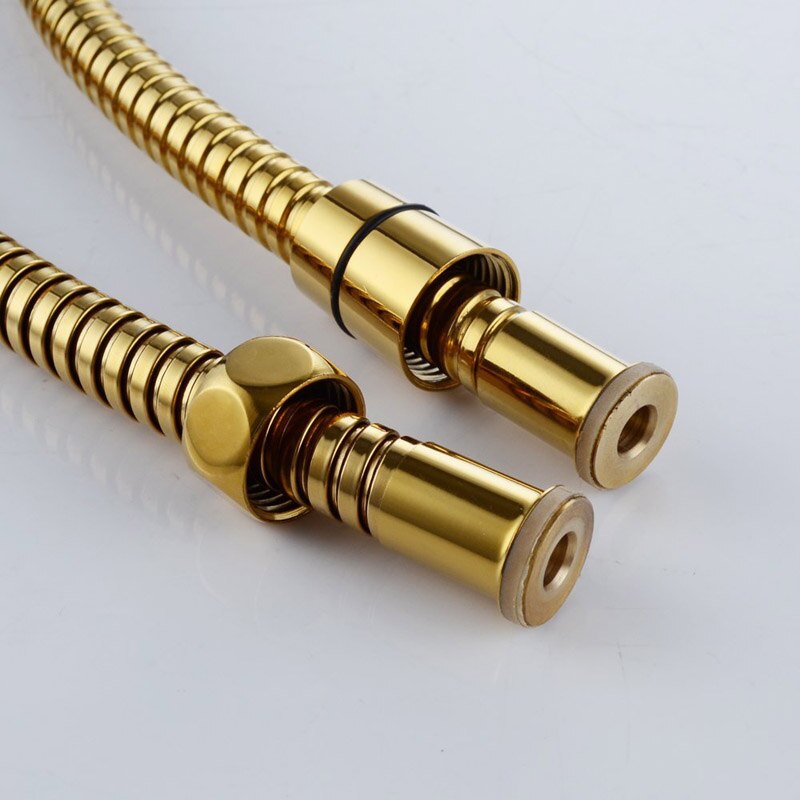

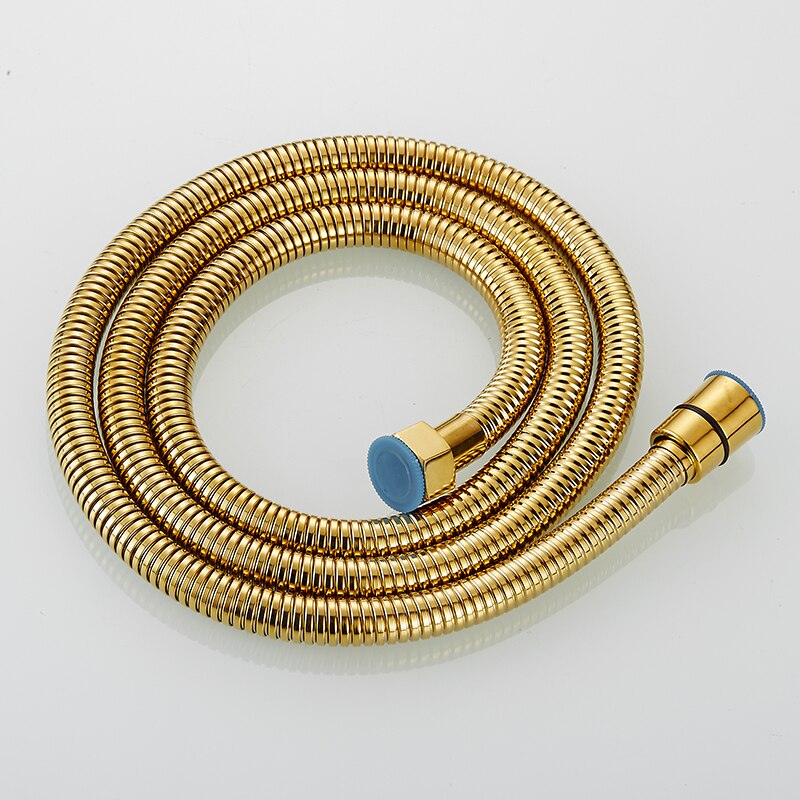

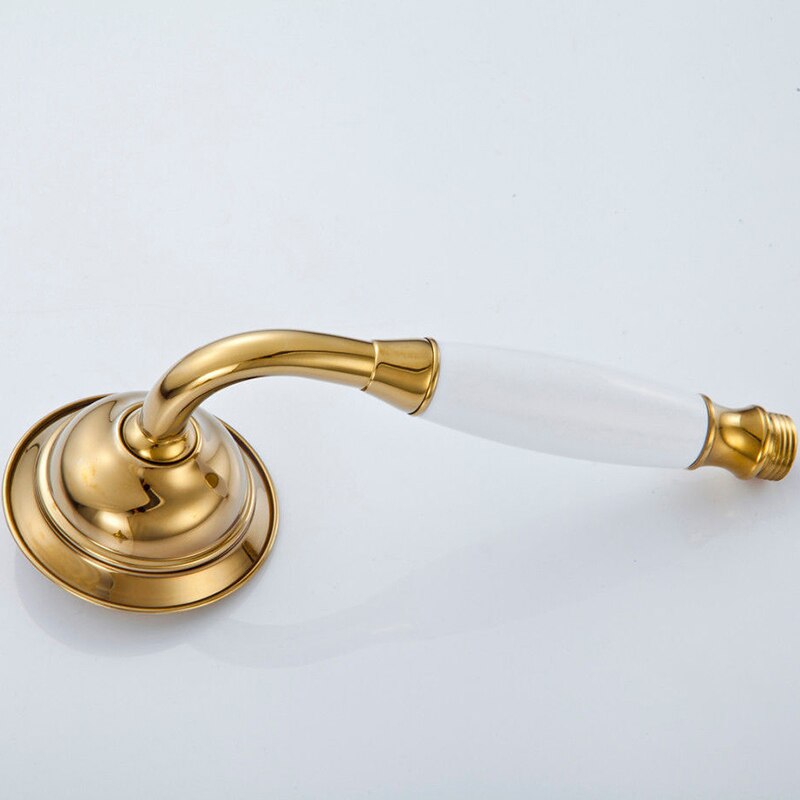

7. Connect the shower hose to the hand shower and diverter valve. Make sure to add the rubber washer at both ends.
8. Connect the other waterlines according to the picture.
9. Connect waterlines (not included) onto the bottom of the hot & cold valve and then to main water supply lines.
| | | | | | Cleaning & Maintenance
To keep product clean and shiny follow the instruction below.
1. Flush with clean water and dry with soft cloth only.
2. Do not use any detergent, polisher, sane-cloth, or a scraper.
3. Do not use acid detergent. | |
|
|
|
