How to Install Lyon LED Shower Panel Tower System, Rainfall And Mist Head Rain Massage Stainless Steel Shower Fixtures With Adjustable Body Jets In Brushed Nickel | BS10391
|

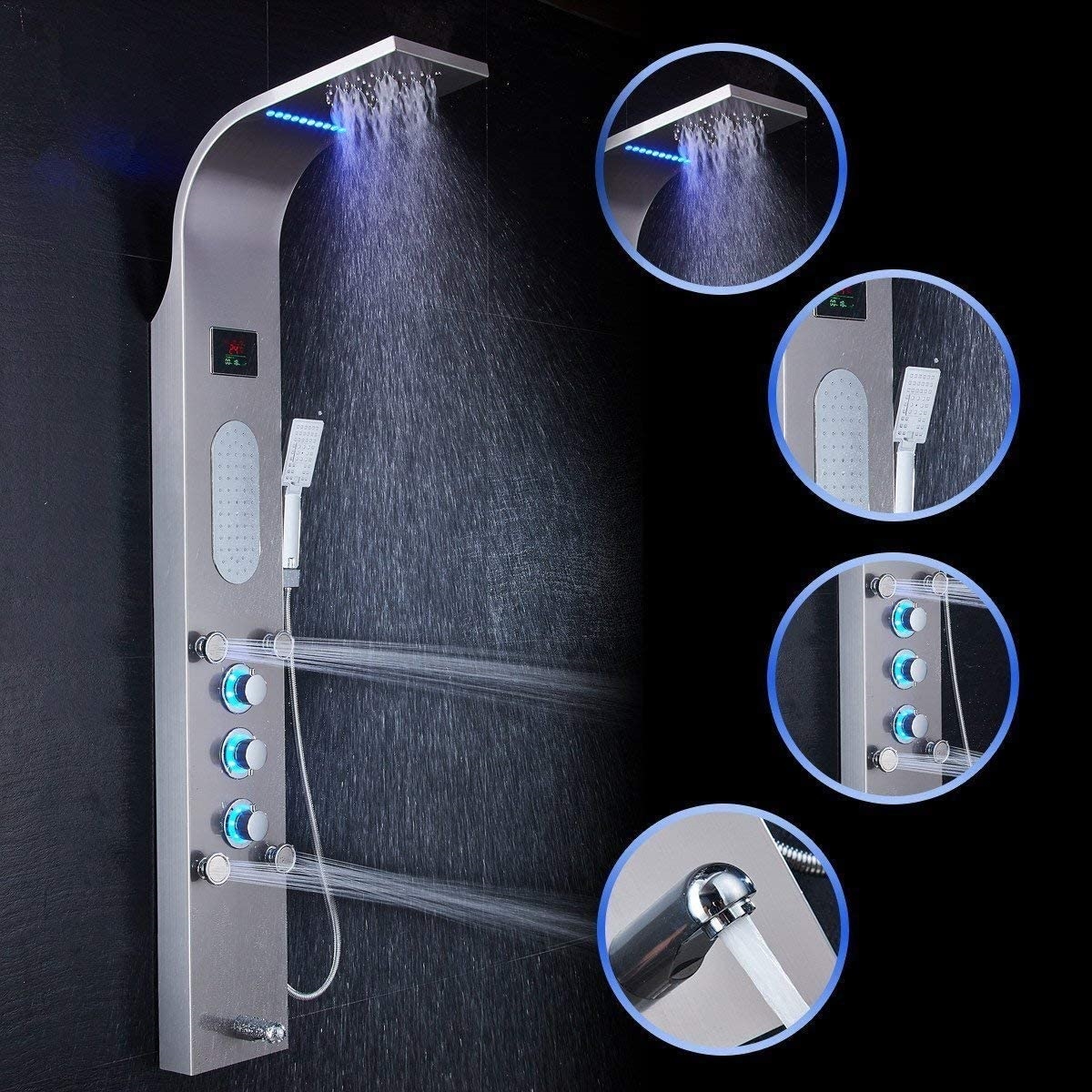

The Shower Panel Tower is constructed with the highest quality SUS304 stainless steel and with an attractive brushed nickel finish to match, this shower panel is designed to provide only the most opulent of showers with its fully simultaneous functions and variable controls. Massage enjoyment, like raining -- clear and comfortable with dynamic waterfall flap on shoulder skin softly, let you enjoy comfortable massage. The shower panel has a rainfall waterfall shower head, water spout, a multi-functional 3-setting handheld shower and body jets spray pattern. Plumbing components are included, super easy install. LED Works by Water Flow, No Batteries Needed. Temperature display that assists you to select the best water temperature(100 degrees Fahrenheit) and can let you know the time of the shower. It has also 4 adjustable body massage jets with active side spray: 360-degree rotation of water, multi-directional shower. Its hand shower and tub spout is made of brass and chrome-plated finish that will not rust. This shower panel will give you a spa shower experience at home. Immerse yourself in a truly relaxing shower experience and enjoy the modern style of this beautifully designed shower panel.
|
|
|
|
|
|
|
|
Features:
|
shower
|
Visit Product Page
|
|
- Brand Name: BathSelect
- Model Number: BS10391
- Installation Method: Wall Mounted
- Panel Material: SUS304 Stainless steel
- Hand Shower Material: Engineering Grade Plastics ABS, outer finish Zinc Alloy, PVD Plating
- Shower Hose: 59" long stainless steel chrome hand shower hose
- Faucet Body Material: Brass
- Finish: Brushed Nickel
- Functions: Five Modes (Rainfall, Waterfall, Horizontal Massage Spray, Hand Shower, Water Spout)
- Product Dimension: 55"x18.3"x8.46"
- Weight: 21.8 pounds
- Number of Handles: 3
- Batteries Required?: No
|
|
|
|
|
|
|
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided.
|
|
Shower Panel Installation Instructions
|
Step 1:
|
|
Step 2:
|
|
|
|
|
|
|
|
|
mirror
|
|
|
|
|
|
Step 3:
|
|
Step 4:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Step 5:
|
|
Step 6:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IMPORTANT
Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position.
Drill the two holes for the top bracket 1” apart at the desired height.
Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket.
Insert the wall anchors into the pre-drilled holes as shown in Figure B.
Place the shower panel brackets aligned with the drilled holes and using a Philips screw-driver tighten the screws to secure the brackets.
Insert the shower wand holder through the pre-drilled hole on the shower panel.
Install the water supply hose for the shower wand onto the holder, as shown.
Make sure all O-rings are inserted to prevent leakage.
Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection.
Finally, install the hand shower to the hose.
Screw the cold and hot water hose from the shower panel to the supply lines in the wall.
Carefully hang the shower panel on the secured mounting |
|
|
|
