How to Install BathSelect Luxury Chrome Curved LED Showerhead Ceiling Phone Control With Jet Spray Set | BS9613


LED Phone Control Ceiling Shower Head

BathSelect curved LED shower comes in its a bathroom ceiling mount shower and It has multiple colors changing feature with remote control. It comes in a chrome finish polished and the installation is a ceiling mount. It fixed the support type. Water flow has 16-28L/min. It comes with high-quality copper casting & Enjoys new luxury led shower head and give a new look and feel to your shower room and bathroom. Get fresh body massage and feel relax. 64 different colors phone control changing led lights while you will take shower. It is easy to install showerhead.

Features:
  • Type: Bathroom Shower
  • Product Code: BS9613
  • Product Brand: Bathselect
  • Installation Type: Ceiling Mount
  • Feature: Rainfall Showerhead
  • Material: Stainless Steel
  • Surface Finish: Chrome
  • Showerhead Finish: Polished
  • Shower Shape: Rectangle

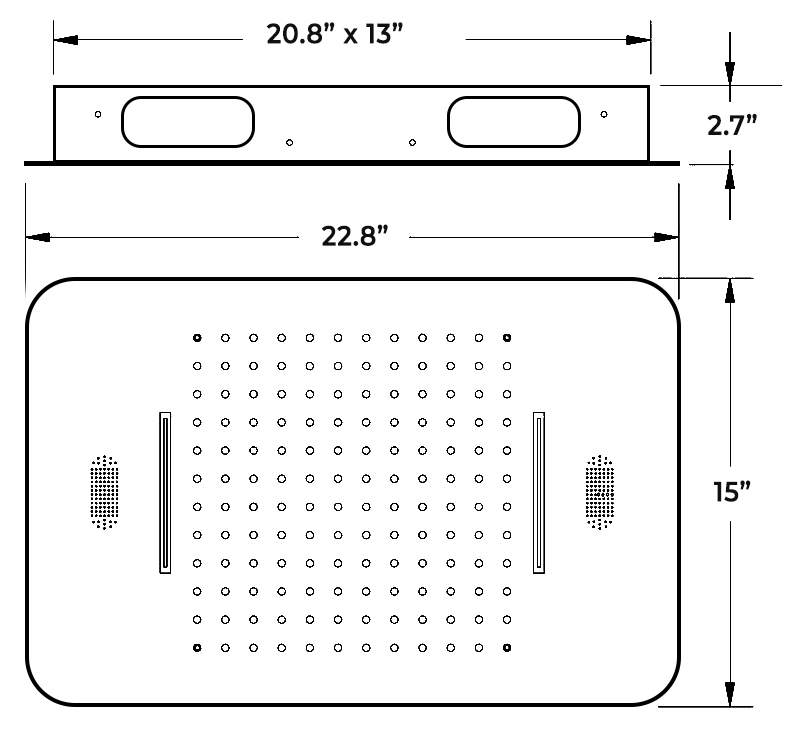

  • Shower Size: 24" X 31"
  • Fixed Support: Yes
  • Style: Single Head
  • Light Type: LED Light
  • Special Feature: Thermostatic Faucet
  • Music: Bluetooth Connection
  • Minimum Water Pressure: 0.3MPA
  • Remote Control: Yes
  • Color Control: 64 Colors
  • Water flow: 16-28L/ Min
  • Music Song: Bluetooth Connection
  • Water Function: Misty/ Waterfall/ Rainfall
  • Thread Interface: G1/ 2 inch
  • Product Weight: 15.94 lbs
  • Product Dimension: 26.7in X 34.6in X 11.02 inches

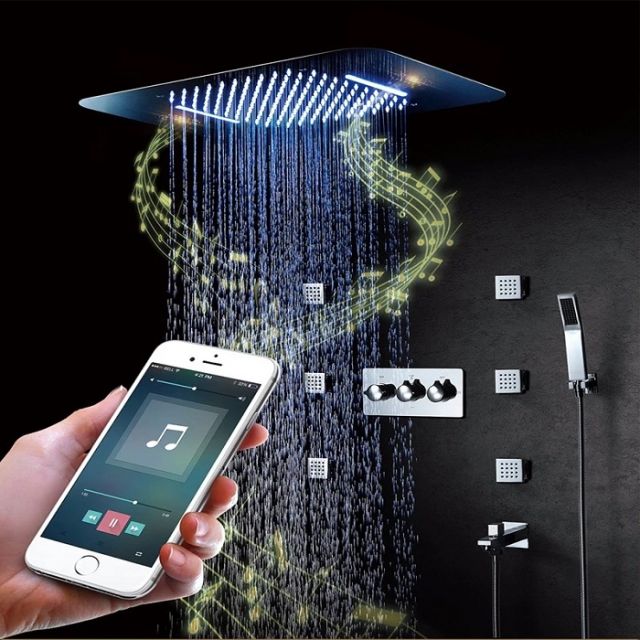

shower LED Showerhead Ceiling Phone Control With Jet Spray Set


Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

  • Shower Head Installation Instructions

    Step 1: recessed Step 2:

    Step 3: Step 4:
    Step 5: Step 6:

    Step 7: (LED Control Box) Step 8:



    Shower Hand Held Shower Installation Instructions

    Step 1: Step 2:
    HandHeld
    Shower
    Hand
    Held
    Shower

    Handheld Shower
    Step 3:

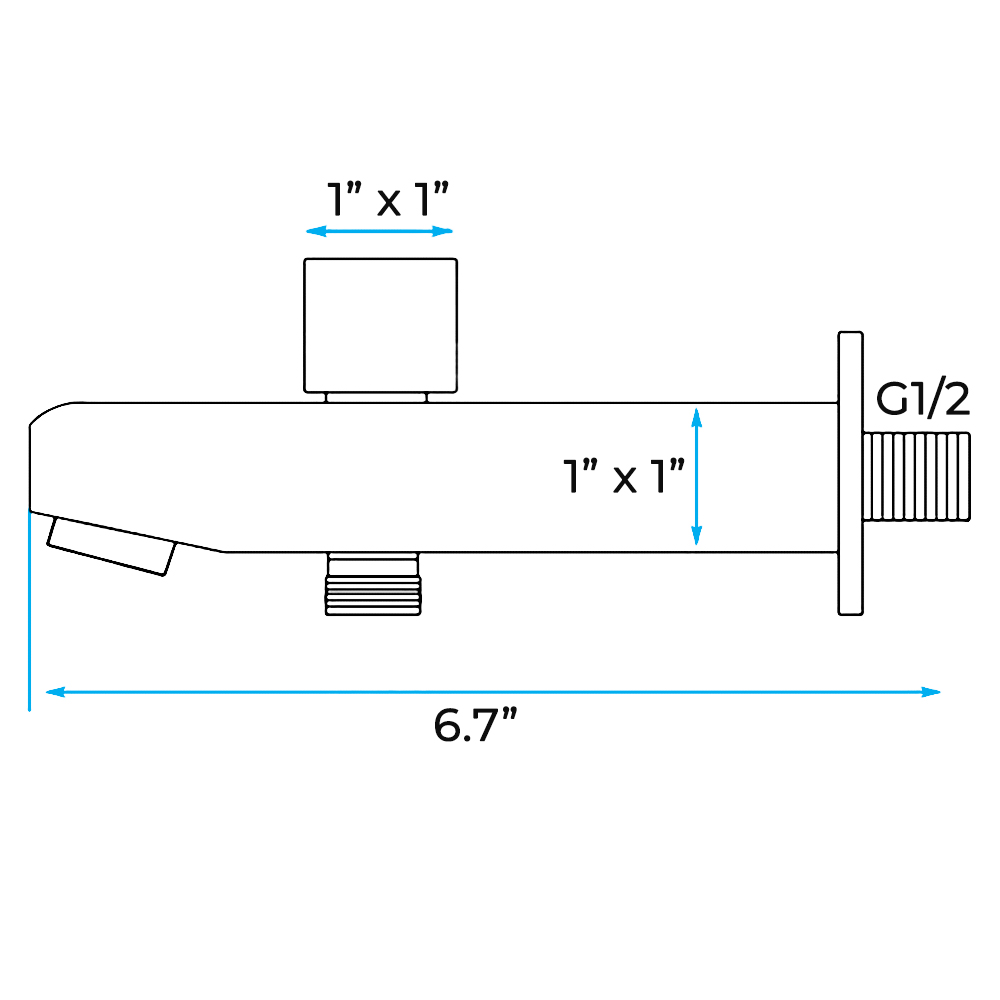

    Tub Spout & Hand Shower Outlet Installation
    • Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow.

    Note:
    This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting.

    • Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to give a watertight joint.

    Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and the section that has been cut is dressed correctly, before installation.

    Shower Wall Holder Installation
    Decide the position for the shower head holder on the wall within the bath showering area and proceed as follows:
    • Hold the hand shower head holder fixing plate in a suitable position on the wall, mark out the position of the holder. Mark the two locating holes, these are 17mm center.
    • Drill and plug the wall. Use an appropriate masonary drill, but if the wall is plasterboard or a soft building block, use special wall plugs and an appropriate drill bit.
    • Slide the inserts onto the screws in the orientation. Secure the inserts by tightening the screws.
    • Slide the hand shower head holder body onto the inserts and secure by tightening the grub screw facing down.




    Shower Body Jets Installation Instructions

    Step 1: Body
