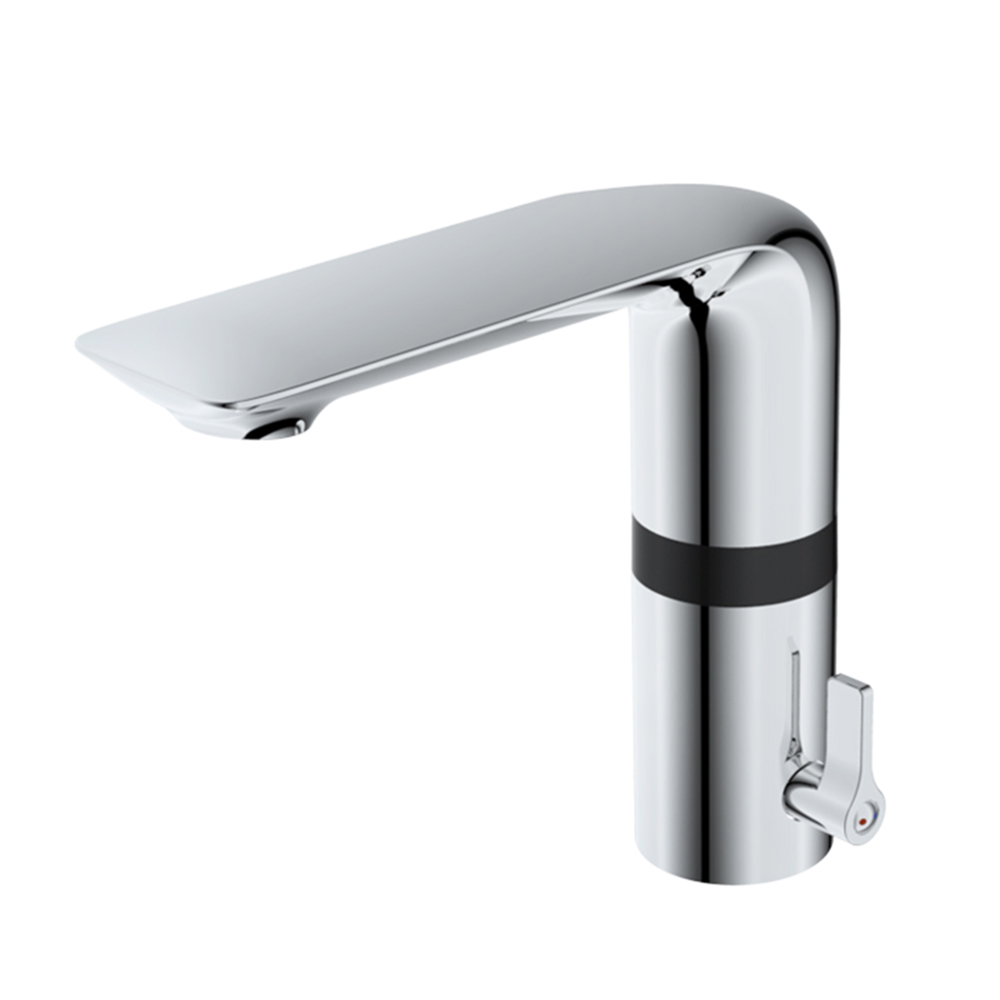

Installation Instructions for Lille Deck Mount Bathroom Sensor Faucet With Hot And Cold Water Mixer In Chrome Finish | BS9804
The Lille deck mount bathroom sensor faucet with hot and cold water mixer in chrome finish requires a single hole for installation. The electronic faucet is made of solid brass and have a ceramic cartridge. This infrared sensor faucet automatically turns on and off. There is a mixer within the faucet to adjust the water temperature in cold or hot water. It has a wave-on sensor, if hand is wave once, the water automatically flows while hands wave again water automatically stops. This touchless design provides hygienic hands-free and germ-free operation. The water-efficient faucet reduces overall water usage without sacrificing water pressure. The stunning electronic faucet is resistant to rust and corrosion, preserving its sheen. Minimize the waste of water, by using the automatic faucet. Lead-free and easy to maintain, the electronic faucet with a single-hole configuration has a pop-up drain assembly. This bathroom fixture is designed to look as modern and contemporary as it can be, boasting a sleek polished chrome finish that stays as bright and clean as when it was first bought and installed. Being a touchless electronic faucet, this automatic sensor faucet is perfect for commercial establishments that value sanitation and the health and well-being of their clients and customers. This sensor faucet is the perfect choice for such an endeavor as it is packed with a whole lot of modern features that will surely leave you and your visitors impressed. | |
|
Features: | | Visit Product Page | - Type: Basin Faucets
- Model Number: BS9804
- Feature: Sensor faucets
- Surface Treatment: Chorme
- Faucet Mount: Single Hole
- Installation Type: Deck mount
- Number of Handles: Single handle
- Style: Contemporary
- Valve Core Material: Ceramic
- Material: H59 Brass
- Application: Bathroom sink faucet
- Driving Type: Automatic infrared sensor faucet
- Finished: Chrome
- Watersaving: 50%
- Power Input: DC6V and AC200V
- Certification: CE,CUPC,Watersaving
| sensor faucet |
|
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.Unpack and inspect the product for any shipping damages. If you find damages, do not install.Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided. | |
Sensor Faucet Installations Instructions

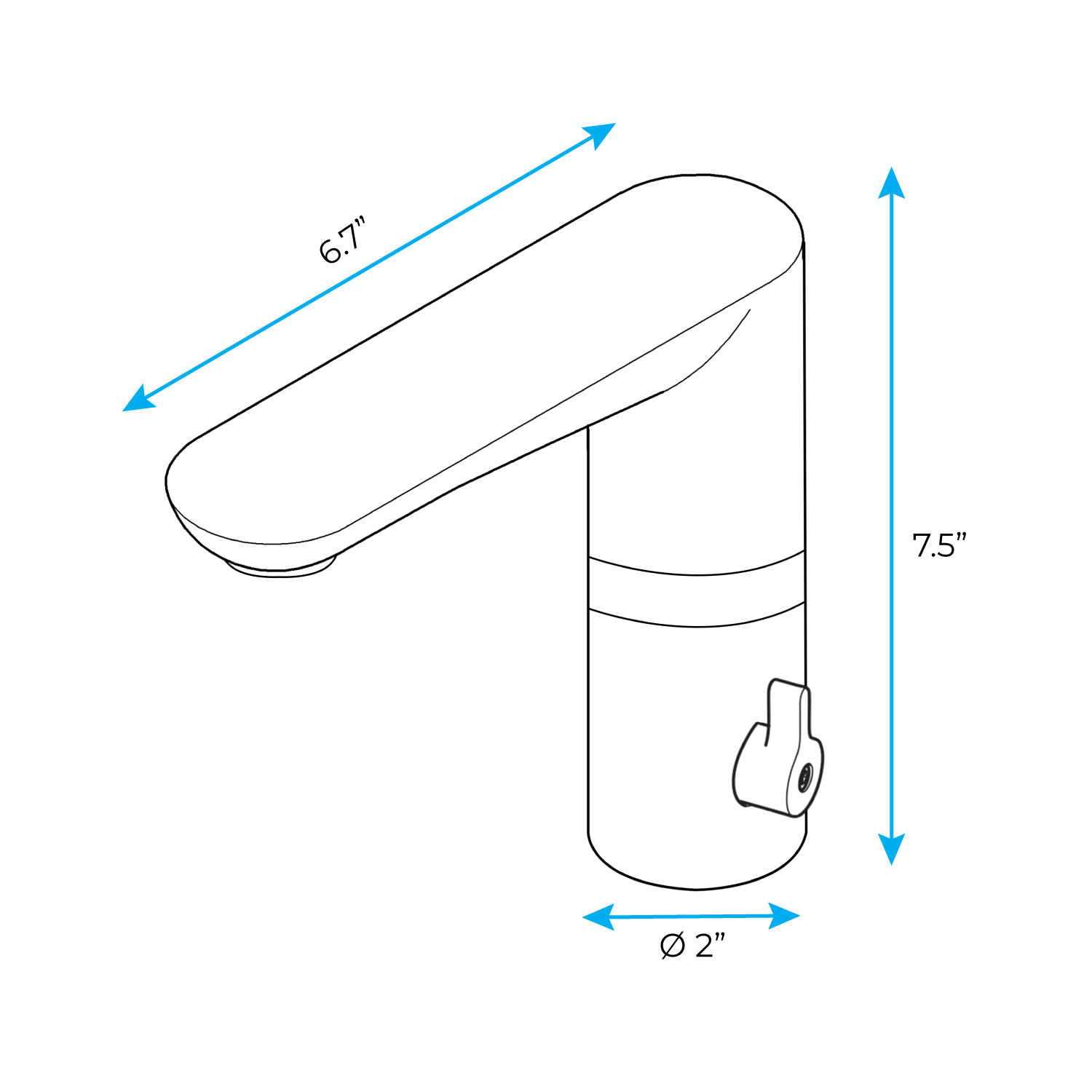

Size
|
faucet
|
Hole Size Chart
|
|
|
|
|
|
|
|
|
|
Size 1: Deck Mount Installation
|
|
Step 2:
|
|
sensor
|
|
|
|
|
Step 3: Connect to Power Supply
|
|
Step 4: Flush debris from waterpipes
|
|
|
|
|
|
|
Step 5:
|
|
Step 6: (Correct way for Hose)
|
|
|
|
|
|
|
|
|
|
| | |
Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply.
Ensure the ‘O’ ring is in place at the bottom of the mixer body.
Push the control cable down through the hole and position the mixer on the basin. From the underside of the basin fit the rubber washer, metal washer onto the threaded tube followed by the nut. Tighten the nut to clamp the mixer to the basin. Tighten the 2 side screws up onto the washer.
CAUTION: Do not over tighten the nut/bolts as this may damage the basin.
Screw the two flexible pipes to the mixer body, but do not over tighten, hand tighten only.
Connect the water supply to the water inlet pipes.
Plug together the connectors coming from the mixer to the transformer. Line up the flats on both the plug and socket and firmly push together.
|
|
|
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose.
Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.
|
|
|
Bathroom Rotatable Double Sensor Hot And Cold Water Basin Led Faucet
Suitable for: Undercounter, Bathroom Basin
Temperature control type: Thermoregulation for cold and hot water
Dia. of Inlet: DN15(G1/2')
Installing Hole: 35mm
Body Material: 59 Brass
Finished: Chrome Plating
Power Input: DC6V or AC200V Water saving: 50%
Water Pressure: 0.05-0.7MPa
Distance Adjusted: By Remote Controller
Sensor distance: Front: 30±2cm, Side: 5±1cm
Waterproof: IP56
Lifetime: ≥500,000 times
Faucet Size: 51*195*174mm
Product features:
1. Automatic on/off: infrared sensor faucet automatically turns on and off.
2. There is a mixer within the faucet to adjust the water temperature in cold or hot water
3. Led light will be work while the water is in flow.
4. Convenience:

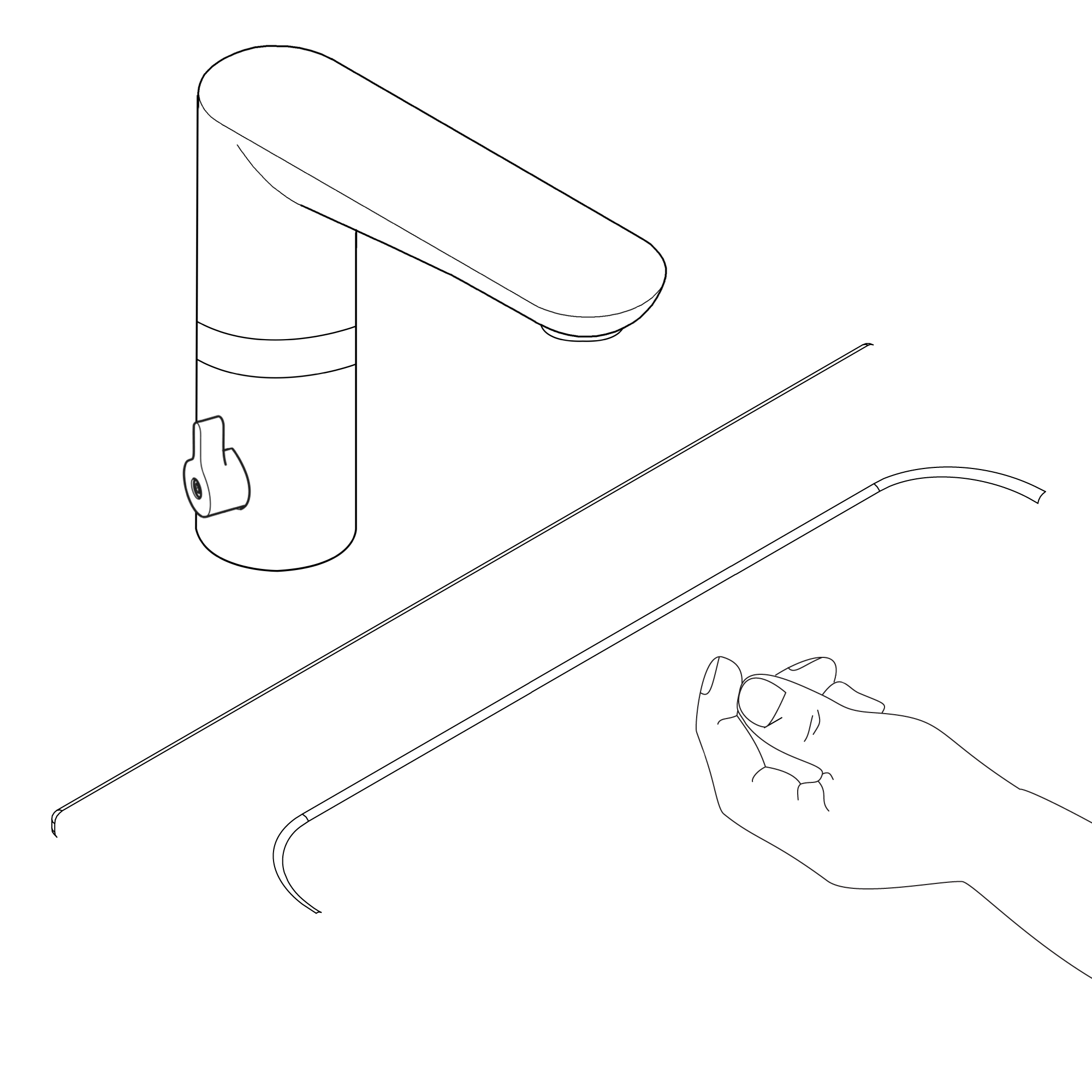

a) Side Sensor----This is a wave-on sensor. Function: Hands wave once, the water automatically flows while hands wave again water automatically stops.
b) Front Sensor----This is an automatic sensor. Function: Hands in sensor range, the water automatically flows while hands out of sensor range, the water automatically stops.
5. Hygienic: Touchless design provides hands-free and germ-free operation.
6. Water saving: Water-efficient faucet reduces overall water usage without sacrificing water pressure.
7. Sensor indicator light will blink every 3 to 4 seconds alerting users to replace batteries.
8. Energy saving: Battery will last approximately 7,000 items/month for one year.
9. Indicator light will flash when battery power is lower than 4.5V.
|
|
|
|
|
|
