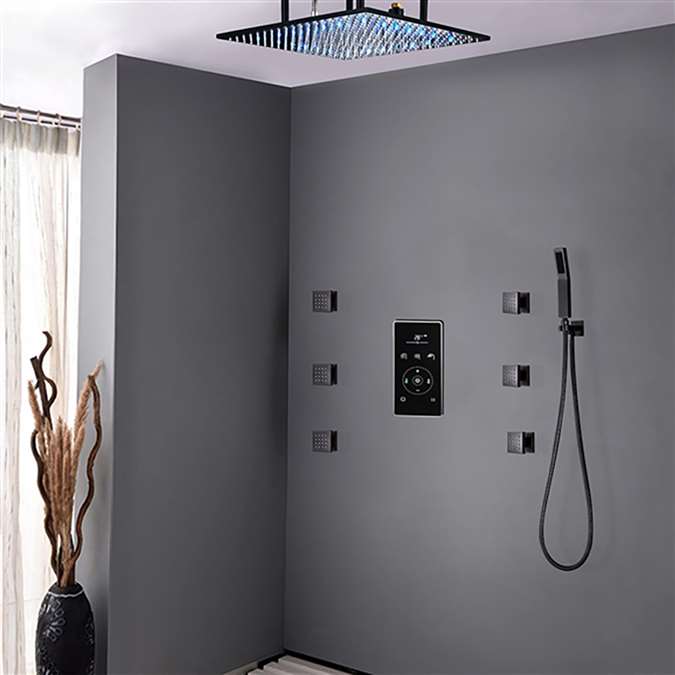

How to Install BathSelect Royal Shower System With LCD Digital Mixer And Adjustable Body Jets | BST10192
BathSelect Royal Shower System With LCD Digital Mixer And Adjustable Body Jets Features
Brand Name: BathSelect
Model Number: BST10192
Type: Shower Set
Style: Contemporary
Surface Treatment: Dark Oil Rubbed Bronze
Type: Fixed Type
Feature of Shower head: Rainfall and Waterfall
Feature of LCD Mixer: Temperature control, 3 way function
Valve Core Material: Ceramic
Surface Finish: Brass
Bath & Shower Faucet Type: mount shower
Installation Type: Wall Mount
Finish : Oil Rubbed Bronze
Showerhead Height (thickness): 0.33
Showerhead Size: See Options
Showerhead Style: Contemporary Rain Shower
Mount Method: Ceiling mount
Connection: 1/2" US standard (included)
Body Jets: Comes with solid brass 360° adjustable Body Jets finished in Oil Rubbed Bronze. Body Jets size 5" x 5"
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided
Shower Head Installation Instructions
shower
Step 1:
Step 2:
According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.
Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.
Step 3:
Step 4:
Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.
2 water inlets so the water disperses equally throughout the showerhead.
