Installation Instructions for Hydro Massage Steam Shower | BSTM-A030L


A shower panel will make the dull task of showering much more exciting. It is a kind of shower stall that fits well in a small bathroom. It is one of the best accessories that you can buy for your bathroom. They also have numerous advantages. Here are some of them.

They may be installed in your bathroom on any wall. They will not change the appearance of your bathroom at all. Unlike a shower enclosure or a modern bathroom vanity, they will take up significantly less space. They can be instead of shower enclosure since it serve the same thing.

A shower panel is relatively inexpensive, especially when compared to the cost of other accessories for bathrooms like a modern bathroom vanity or a shower enclosure. The fact is the practically everybody can afford to purchase one. While there prices may be different depending on the manufacturer, the expense is always reasonable. Therefore, you won't have to purchase one knowing that you won't be able to afford it.

If you modern bathroom vanity or your shower enclosure should happen to become broken for whatever reason, you'll simply have to replace it with a new one which can be rather expensive. However, they can be replaced very inexpensively. This is unlike numerous other kinds of bathroom accessories. One other advantage they have is that your shower can't unintentionally misused by friends and guests.

The Versatility Of Steam Showers
The additional luxury of space to really enjoy the full effects of the superbly styled with its many invigorating shower options.

Durability Of Fontana Steam Showers
Safety is paramount and because the supply pipes to the shower are enclosed within an aluminum casing, they are protected from accidental or intentional damage, while users are protected from the high surface temperature of the hot water pipe. The panel is durable, so that the shower unit can operate over an extended lifespan, providing reliability and value for money. All of our shower panels feature water saving fittings, to ensure that an optimized flow of water is maintained while avoiding unnecessary wastage of energy and water.

FUNCTION:
  • Sauna
  • Extractor
  • Light
  • Shower
  • FM radio and speaker
  • CD connection
  • Tel function (Can answer and dial out)
  • Back massage
  • Automatic shut-off for overheating or no-water for safety
  • Countdown timer for automatic steam shut-off
  • RCD(Residual Current Device)safety
  • Steam with temperature setting, and steam outlet with provision for aromatherapy oil

EQUIPMENT:

  1. Top light: 1 pc
  2. Overhead rainfall shower: 1 pc
  3. Handheld shower: 1 pc
  4. Acupunctureack jet: 16 pcs
  5. Mirror: 1 pc
  6. Shelf: 1 pc
  7. Brass chrome faucet and diverter: 1 set
  8. Wooden seat/temperature gauge/sand timer/sauna stove: 1 set
  9. Control system: 1 set (One 3KW steam generator, one control box, one control panel and one remote)
Hydro Massage Steam Shower

Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

  • Steam Shower Installation Instructions


    Step 1: Step 2:
    sauna shower



    Step 3: Step 4:


    Step 5: Step 6:


    Step 7: Step 8:


    This steam shower is entirely free-standing and requires no further structural support. All pipe connections are designed with excess length to allow the unit to be pulled away from the wall to allow for servicing after installation.

    Electrical Requirements
    • A dedicated 16 AMP electrical supply is required for operation.
    • All units are supplied with an RCD (Residual Current Device) reset switch on the main unit flex.
    • The unit can be powered via an isolated fused spur connected directly back to the consumer box fitted with RCD.
    • Alternatively, the unit can be powered via an I.P. 56 rated wall socket.


    Water & Pressure Requirements
    • Both Hot & Cold water supplies must be of high pressure. (Minimum of 9 liters per minute per water feed - combined LPM of 18).
    • The unit requires a supply pressure of 2.0 - 3.0 bar, typically provided by most high-pressure water systems.
    • The unit will work with Combination Boilers, Pressurised Pump systems and Pressurised cylinder systems.
    • The water supply must be balanced (equal pressure across both supplies).
    • If the water pressure is not balanced, it may cause permanent damage to the thermostatic valve.
    • Fitting a Pressure Equalising Valve (PEV) will ensure that the water supply to the unit is constantly equal.
    • Pipework must be recessed to allow the finished unit to sit flush against the wall.
    • Use full bore water lever ball valves for the hot and cold supply to enable quick & easy shutoff of the supply.
    • All units come complete with flexible piping for the hot and cold water feeds. A flexible shower waste fitting is also supplied with all units - enquire for further details.


    Drainage Guidelines
    This unit comes complete with an “easyplumb” shower tray. The tray is supported by a rigid steel framing complete with adjustable feet. There is sufficient space underneath for drain pipework and waste trap systems.


    Flooring
    Prior to installation, it is recommended that the walls and floor are prepared prior to arrival. Ensure that the floor is level. Tiling the floor and surrounding area is advised - Sliding the unit away from the wall or corner will be easier. All cabins are sealed units so tiling behind is not necessary.


    Installation

    1. Install the tray - open the package, move the tray to the usage position, adjust the foot screw, Using the spirit level to measure, adjust the tray to be at a level. Then tweaking the nut tight, every ground foot must close the ground, can't hang in the air.
    2. Install the first and second wood board - Use the wood board Aim at the corresponding holes, then use the screws to lock it tight.
    3. Install the functional pillar and backboard glass - Use the backboard glass Aim at the corresponding holes of functional pillar, then use the screws to lock it tight.
    4. Install the mid-glass Use the mid-glass - Aim at the corresponding holes of the frontal glass, use the screws to lock it tight. Then take it to the tray. Finally, install the transom.
    5. Install the top board - Take the top cover to aim at the backboard corresponding holes, then use the screws to lock it tight. Finally, install the glass door.
    6.Install the cabin of the sauna room
    a. Install the wood floor, notice the direction.
    b. Take the bench into the cabin, then use screws to lock it.
    c. Install the sauna stove to the appointed position. Notice the power line position.
    d. Put the sandglass timer and thermometer and hygrometer to the appointed position, then install the expose proof light, finally put the cask and ladle on the bench.
    e. Install the glass door.

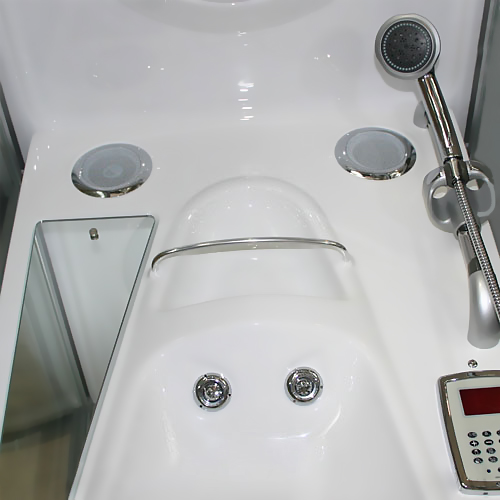

    Features - Hydro Massage Steam Shower

    features Hydro massage body jets
    This steam sauna comes complete with 8 hydro massage body jets mounted on the back piece above the padded seat. These directional body jets are perfectly suited to soothe an aching back or shoulders after a long day at work.
    features


    Digital control panel with remote
    This steam sauna is packed with a whole host of features, most of which can be activated via the touch of a button with our easy to use control panel. Everything from activating the steam to starting the FM radio can be done using the control panel or externally via the remote control.

    Telephone Function
    This steam shower enclosure comes complete with a fully functional telephone feature, so that the user can make and receive calls. If you'd prefer peace and quiet during your relaxing steam session, the function can be left disconnected.
    features


    Thermostatic (Anti-Scald) Valve

    Steam generator with time & temperature settings
    This steam shower comes complete with a fully programmable steam generator mounted at the back of the cabin. This eliminates the need for additional space to house the generator. Users can set their desired temperature and session duration with the touch of a few buttons – it couldn't be easier.
    features



    Acrylic construction & Hemlock sauna wood
    This steam shower and sauna combination is constructed using high-quality materials throughout. The conventional sauna is made from classic hemlock sauna wood. The steam shower side is built from high-grade acrylic reinforced with several layers of fiberglass.


    Circulation Fan
    This comes complete with a circulation fan fitted flush along the back piece of the cabin, providing a stream of fresh air into the cabin when needed. When the cabin begins to fill up with steam, the circulation fan helps to keep the steam from building up at the top of the unit.
    features



    Door Handles

    Padded Seating & Bench Seating
    This comes complete with a moulded seat with moveable seat pad in the steam shower. The conventional sauna comes complete with a wooden bench seat for one. The wooden bench can be removed for easy maintenance.
    features



    2 Glass Hinged Doors
    This steam shower enclosure comes complete with separate doors for accessing the steam shower and conventional sauna cabins. Constructed from tempered safety glass housed in an aluminum profile for added strength, these solid doors are designed to last.
    features


    Storage Shelf
    1 The storage rack is conveniently located to store all of your shower essentials for easy access while bathing.

    FM Radio with external audio support
    This comes complete with a fully programmable FM radio with a built-in memory function allowing the user to save up to 10 favorite radio stations. In addition to the FM radio, users can connect external audio devices using the standard AV connections located at the back of the cabin.
    features


    Overhead Monsoon Shower
    This steam shower comes complete with an 8 inch overhead monsoon shower mounted into the top piece of the cabin, providing a drenching shower experience like no other. The gentle flow combined with a large volume of water make this feature an invigorating experience.


    Overhead Lighting
    This shower enclosure comes complete with an overhead white light mounted flush into the roof of the cabin. When switched on this feature provides sufficient lighting inside the unit to illuminate the internal area, highlighting various chrome fittings inside the cabin.
    features

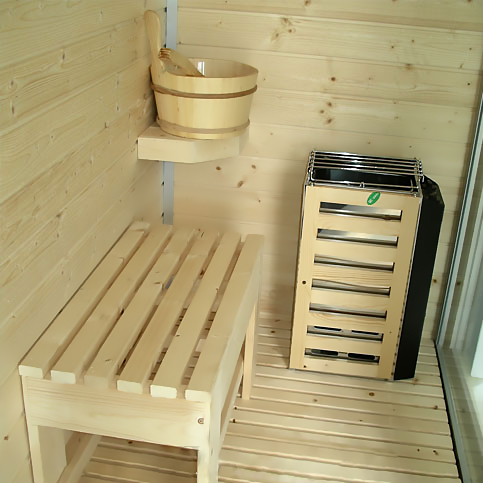

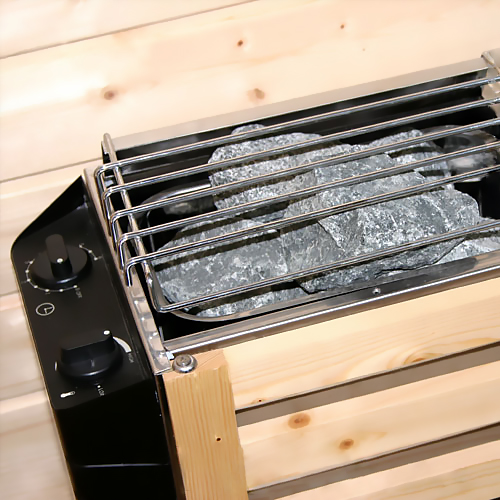

    Conventional Hot Rock sauna with bucket & ladle
    To complement the steam shower, it provides a conventional one person sauna powered by a single hot rock stove. Simply turn the dial to set your desired heat setting before adding a ladle or two of water from the bucket provided.


    Cask And Scoop: 1
    features


    Handheld shower on slide rail
    In addition to the overhead shower, this steam shower also comes complete with an adjustable handheld shower on slide rail. This allows the shower to easily accommodate users of different heights. The handheld showerhead can easily be removed from its holder, which can be useful for washing away any unwanted suds.
    features

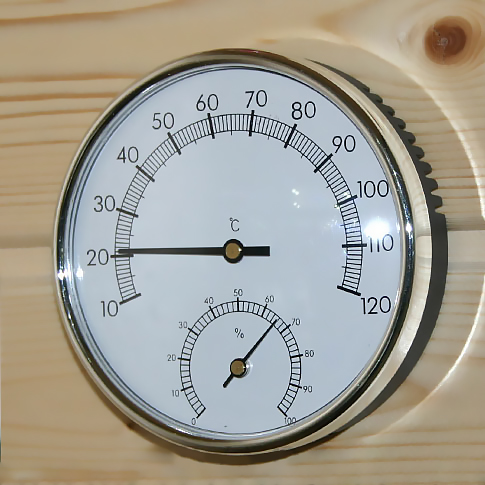

    Sauna Temperature Gauge & Sand Timer
    This sauna comes complete with a classic sauna temperature gauge so that you can accurately monitor the internal temperature of the cabin throughout your sauna session. In addition to this, the cabin comes complete with a 15 minute sand timer to keep track of the session length.


    Automatic Safety Features
    This steam shower enclosure comes complete with built-in safety features, including dry-boil protection on the steam generator to ensure that the element doesn't burn out if the water supply suddenly cuts off. In the unlikely event of a power surge, this will turn off automatically to prevent any potential damage to the cabin.

    features
