Installation Instructions for Four Function Vertical Chrome Diverter Shower Controller Mixer | BS10284

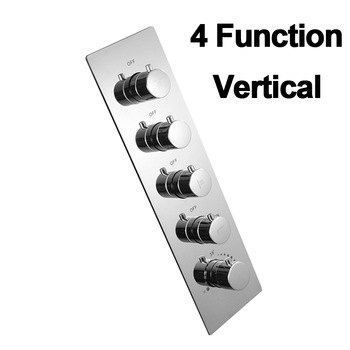

BathSelect provides a total solution for the bathroom to high-end customers. This mixer can be used with a shower. The installation is a wall mount.

Features:
Surface Finish: Brass Surface Treatment: Polished Number of Handles: 5 Handle Style: Contemporary Valve Core Material: Ceramic Feature: Wall Mount Mixer Color: Chrome Material: Brass, Finish: Chrome Plating Usage: Bathroom Water	glass door

Important Note: Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the product for any shipping damages. If you find damages, do not install. Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

Shower Thermostatic Mixer Installation Instructions

Step 1:			Step 2:
	Mixer	Valve
			Release 4 handwheel levers according to the above directions. Take apart the embed valve, panel, and handwheel.
Mixer Control Valve Installation Instructions
Step 3:			Step 4:
Dig the embed space for the pipe on the wall according to the specification of the valve. Dig 4 holes according to the position of the screws.			Use a hammer to thwack the screws into 4 holes. Fix the valve body with 4 screws.
Mixer Control Valve Installation Instruction
Step 5:			Step 6:
Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body.			After connecting all the pipes and before sealing the wall with concrete, confirm no leaking problem occurs when you turn on the water.
Mixer Control Valve Installation Instruction
Step 7:			Step 8:
Fix the decorative panel on the embed valve body.			Screw the handwheel arms with the handwheels.
Mixer Control Valve Installation Instruction
Step 9:			Step 10:
Mixer Control Valve Installation Instruction
Step 11:			Step 12:
Mixer Control Valve Installation Instruction
Step 13:
