How to Install Fabrizio Bath Tub Faucet Set
|
|

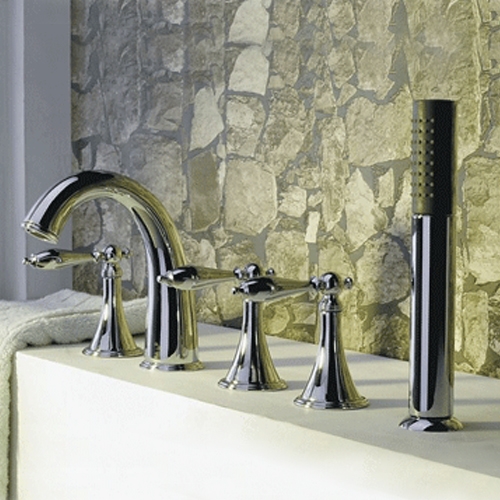

Fabrizio Luxury Bath Tub Faucet Set 5 Pcs
Fabrizio is one of our bathtub luxury sets, made of a classy spout, three matching handles and a practical hand held shower. The polished chore finish emphasizes its elegance and makes it a proper match for any style contemporary bathroom. It is deck mount, five holes. The body and spout are made of brass, while the valve core material is ceramic for best performance and long lasting life time. It comes complete with accessories and installation instructions.
Fabrizio Faucet
Faucet Type
|
|
Tub & Shower
|
Installation
|
|
Deck Mount
|
Number of Handle
|
|
3
|
Finish
|
|
Chrome
|
Material
|
|
Brass
|
Brand
|
|
Fabrizio
|
Fabrizio Faucet Feature
- Durable Solid Brass Construction
- Polished Chrome Finish
- Hand Shower Included
- Drip Free Ceramic disc cartridge for smooth and long lasting operation
- Easy to clean. Can be cleaned with mild soap to ensure the non-tarnish life shine
- With about (23.62") 60cm handheld shower
- Complete with hot & cold water hoses & accessories
|
faucet
|
|
Installation Instruction For Bath Tub Faucet Set
Step 1:
|
bath faucet
|
Step 2:
|
|
|
|
|
|
|
Step 3:
|
|
Step 4:
|
|
|
|
|
|
|
Step 5:
|
|
Step 6:
|
|
|
|
|
|
|
|
|
|

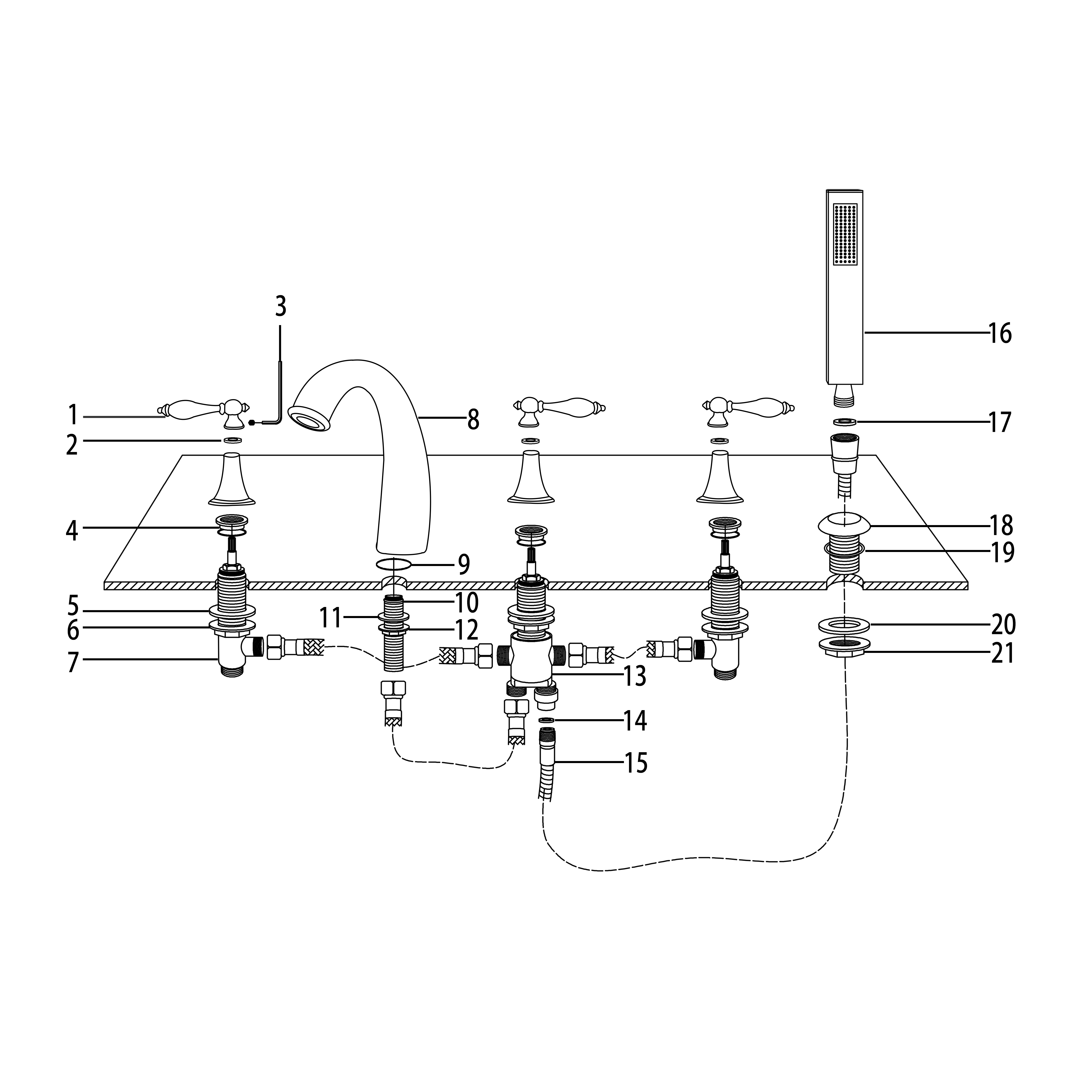

Parts: 1. Handle 2. Washer 3. Allen key 5. Rubber washer 6. Mounting Nut 7. Valve 8. Spout Body 9. O-ring 10. Threaded Pipe 11. Rubber washer 12. Mounting Nut 13. Diverter Valve 14. Rubber washer 15. Shower Hose 16. Hand Shower 17. Rubber washer 18. Hand Shower Holder 19. O-ring 20. Rubber washer 21. Mounting Nut
Installation Instruction

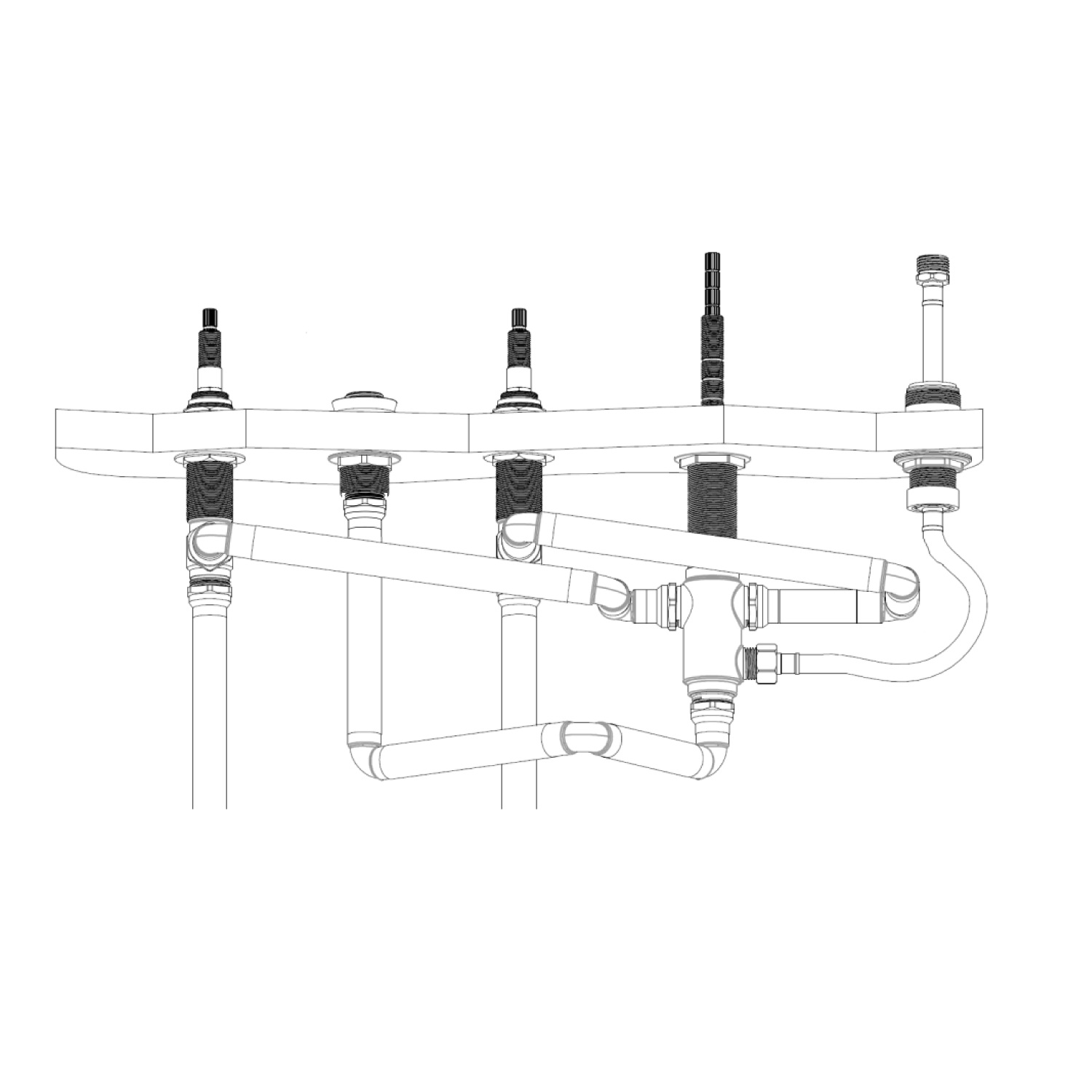

1. Screw threaded pipe into the spout body, and fit O-ring into the bottom groove of spout body. 2. Insert spout body into the specified drill hole on the countertop. 3. Install rubber washer to the threaded tailpipe of the spout body from underneath the counter top and then screw the mounting nut. 4. Install valve into specified drill hole from underneath the counter top. Screw bonnet nut into valve and fit the handle. Adjust the height and position of valve, then screw mounting nut to tighten valve underneath counter top securely. 5. Tighten set screw with Allen key to fix the handle. 6. Install the O-ring and insert the hand shower holder into the specified drill hole. Put on the rubber washer and screw in the mounting nut securely underneath the counter top. 7. Connect the shower hose to the hand shower and diverter valve. Make sure to add the rubber washer at both ends. 8. Connect the other waterlines according to the picture. 9. Connect waterlines (not included) onto the bottom of the hot & cold valve and then to main water supply lines.
|
|
|
|
|
|
Cleaning & Maintenance To keep product clean and shiny follow the instruction below. 1. Flush with clean water and dry with soft cloth only. 2. Do not use any detergent, polisher, sane-cloth, or a scraper. 3. Do not use acid detergent.
|
|
|
|
