Name: Electric Heated Towel Rack
Material: Low carbon steel
Voltage: AC220
Color: White, Black
Power: 400 W
Waterproof: IPX4
Product size: Height: 700mm Width: 400mm (Suitable for 3-5 square bathroom heating)

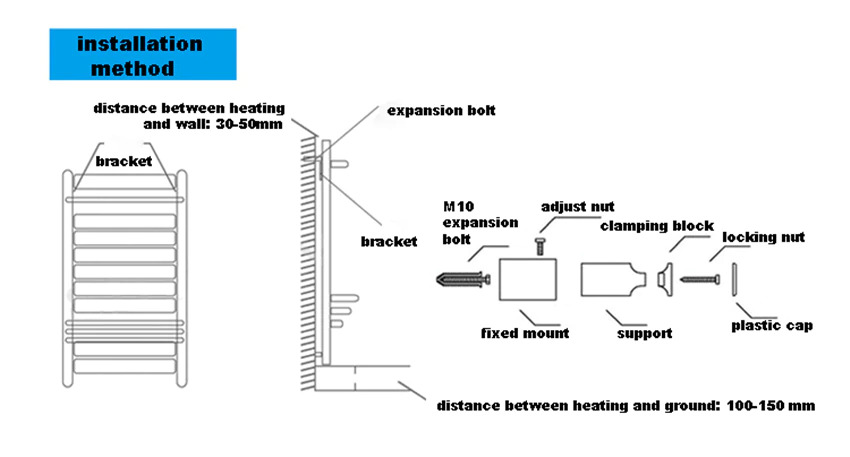

Select the appropriate installation location, determine the installation direction of the towel rack according to the installation card, attach the installation card to the wall surface, select the installation hole position according to the model of the product you need to install, and drill 4 holes respectively with the impact drill (hole depth can be depending on the length of the wall plug or the length of the screw, it can be customized)
1. Insert the wall plug into the hole in the direction indicated by the arrow in the figure, flush with the wall
2. Pass the screw through the center hole of the horseshoe and fix it on the wall plug.
3. Install the four support feet of the towel rack on the horseshoe, and tighten the screws on the four feet
of the rack with the hex wrench to make it completely fastened to the wall.
4. Installation is complete
|
|
|
