How to Install Cholet Brushed Nickel 16-Inch LED Ceiling Rain Shower Head | BS10264

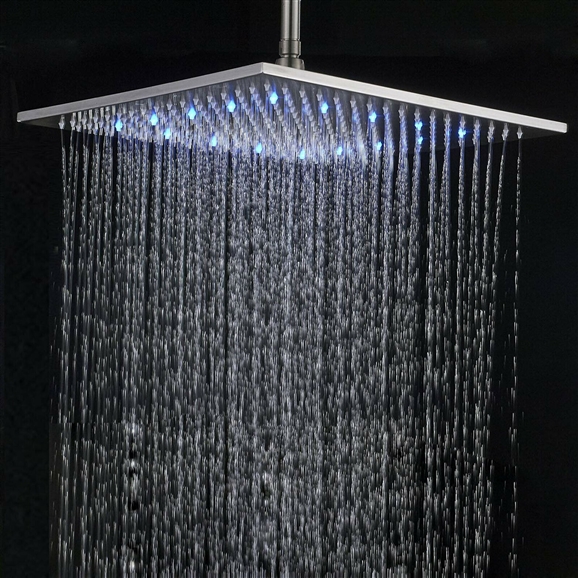

Cholet Brushed Nickel 16-Inch LED Ceiling Rain Shower Head
| This Cholet Brushed Nickel 16-inch LED Ceiling Rain Shower Head comes with solid construction for long durability that will upgrade your bathroom with a modern and cool look. Dual control style for easy flow and temperature management, a square rainfall shower head that is a self-cleaning and hand spray for better showering experience. You may even have more time to enjoy your shower with a rainfall feeling. Effortlessly provides superior water pressure. Optimal performance even in low water pressure. This shower set can be easily put in without the need for professional skills. When it comes to new bathroom upgrades, BathSelect is offering shape, finishes, and styles that you've looking for. | |  | | |
|
| |
|
|
| |
|
|
Features:
| |
|
-
Brand Name:
BathSelect
-
Model Number: BS10264
- Type : Shower Set
- Style: Contemporary
- Finish: Brushed Nickel
- Type: LED Shower Head
- Valve Core Material: Ceramic
- Surface Finish: Brass
- Installation Type: Ceiling Mounted
- Size: 16" inch
- Shower Head Shape: Square
- Feature: Rain Shower
| shower head |
|
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
|
|

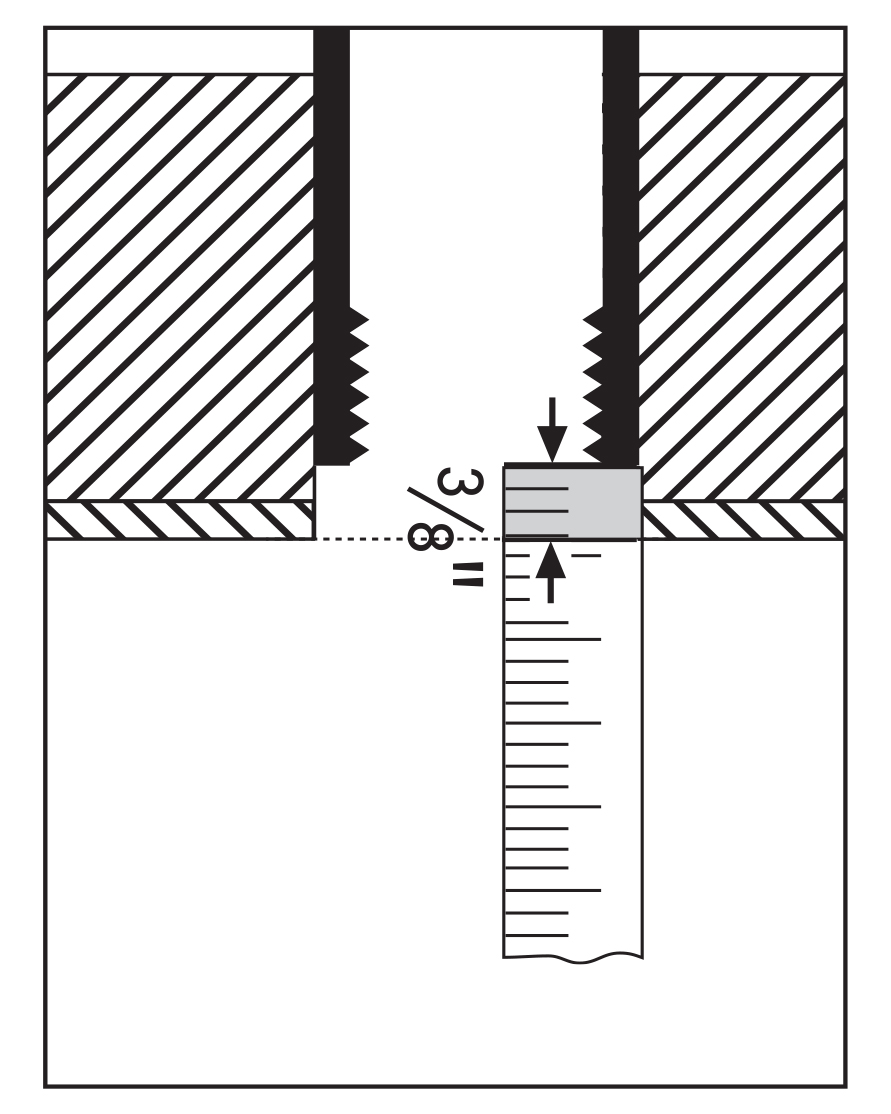

Ceiling Mount Shower Arm Installation Instructions| Step 1: | shower | Step 2: |  | |  | Rough-in: Install a 1/2" NPT female fitting,
inside the surface of the finished ceiling.
| | Wrap the threads on '12" NPT part of the nipple with plumber's tape.
Install the mounting nipple using a 3/8" Allen wrench (not included).

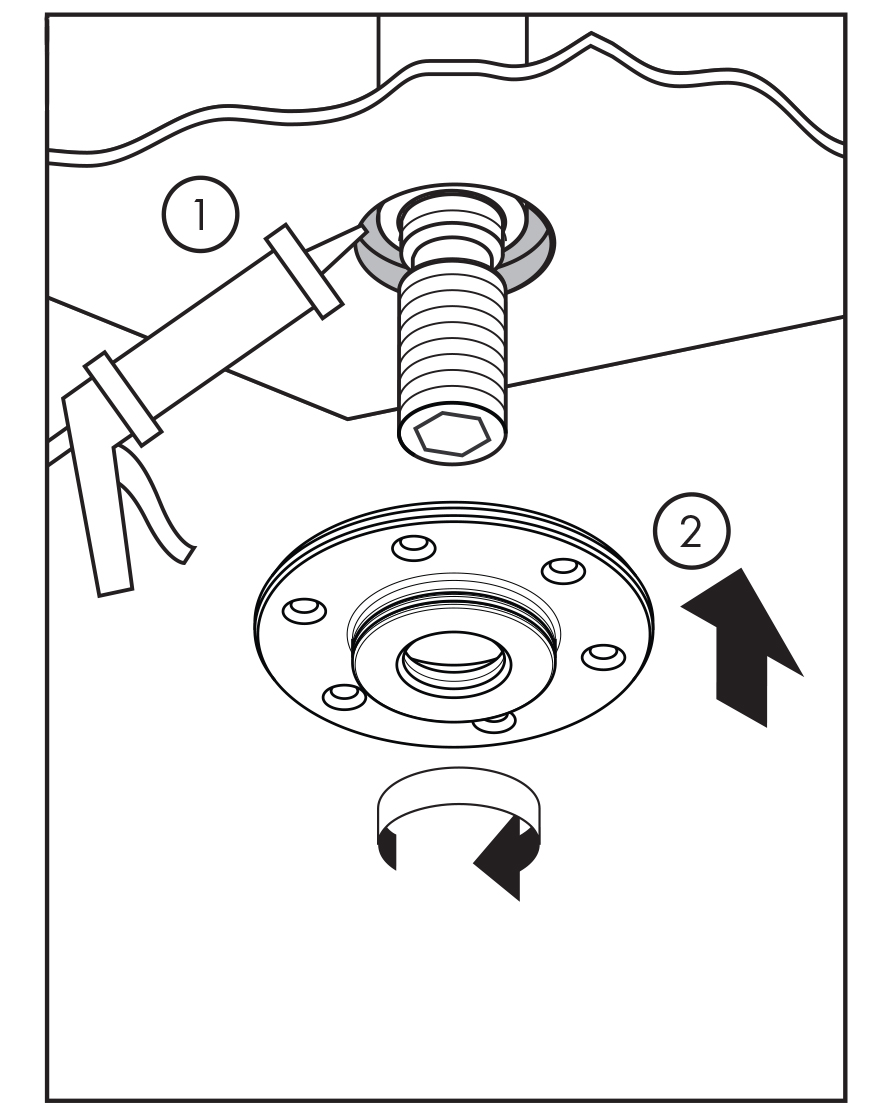

| | | | | Step 3: | | Step 4: |  | |  | Seal the ceiling around the nipple using a waterproof sealant.
Install the mounting ring.

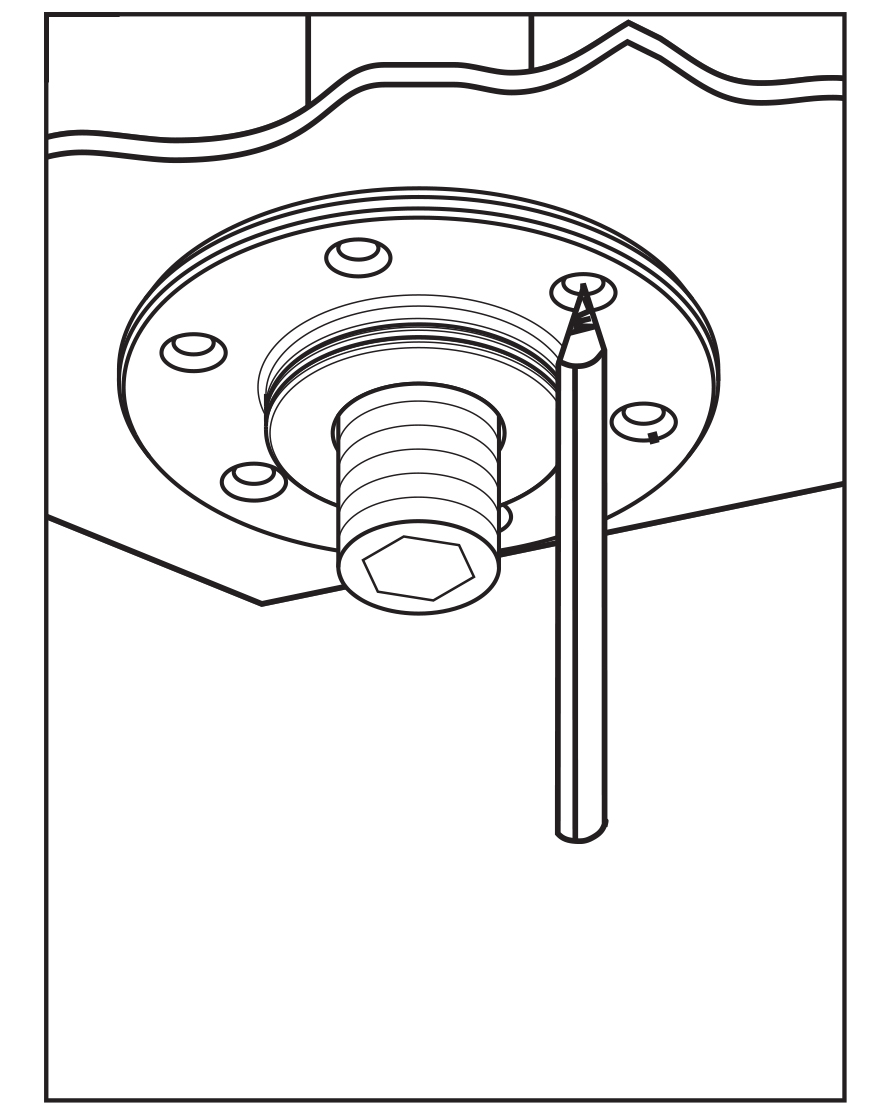

| | Mark the positions of four screw holes.

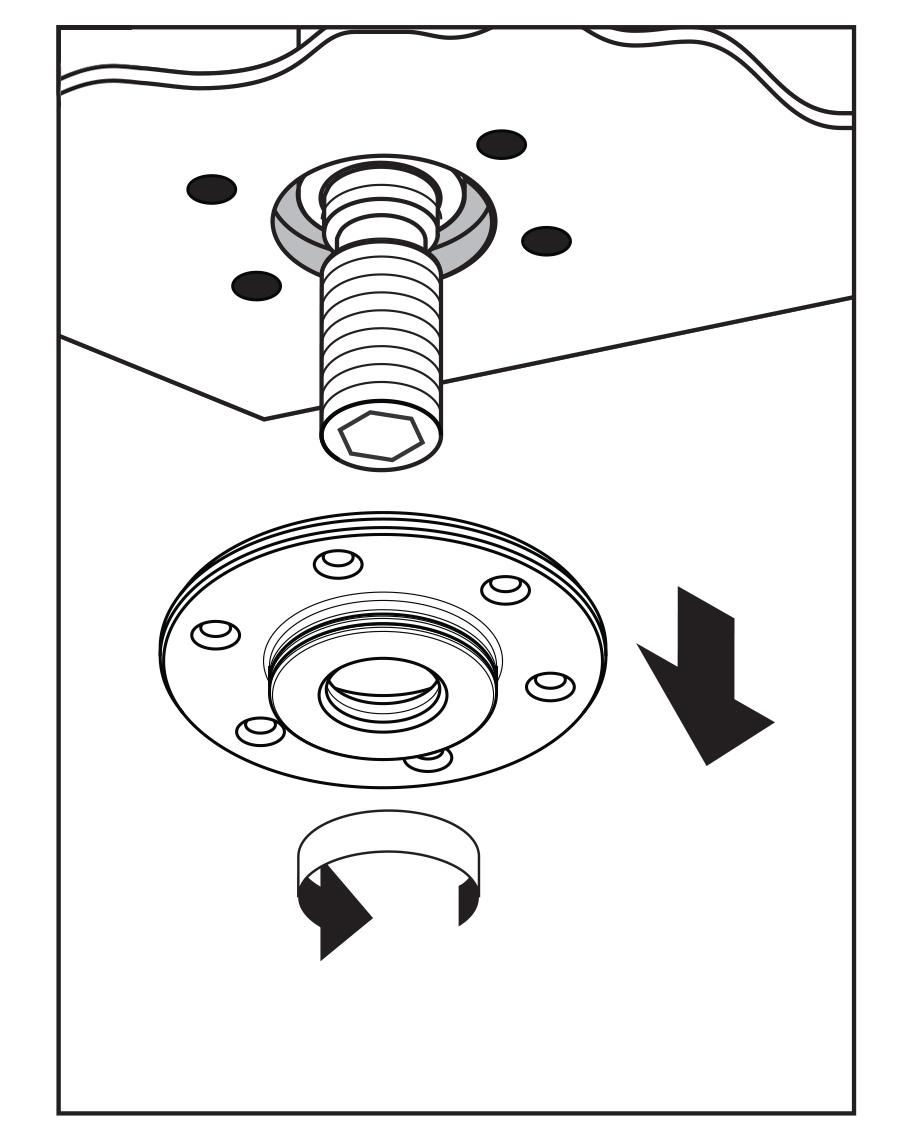

| | | | | Step 5: | | Step 6: |  | |  | Remove the mounting ring.

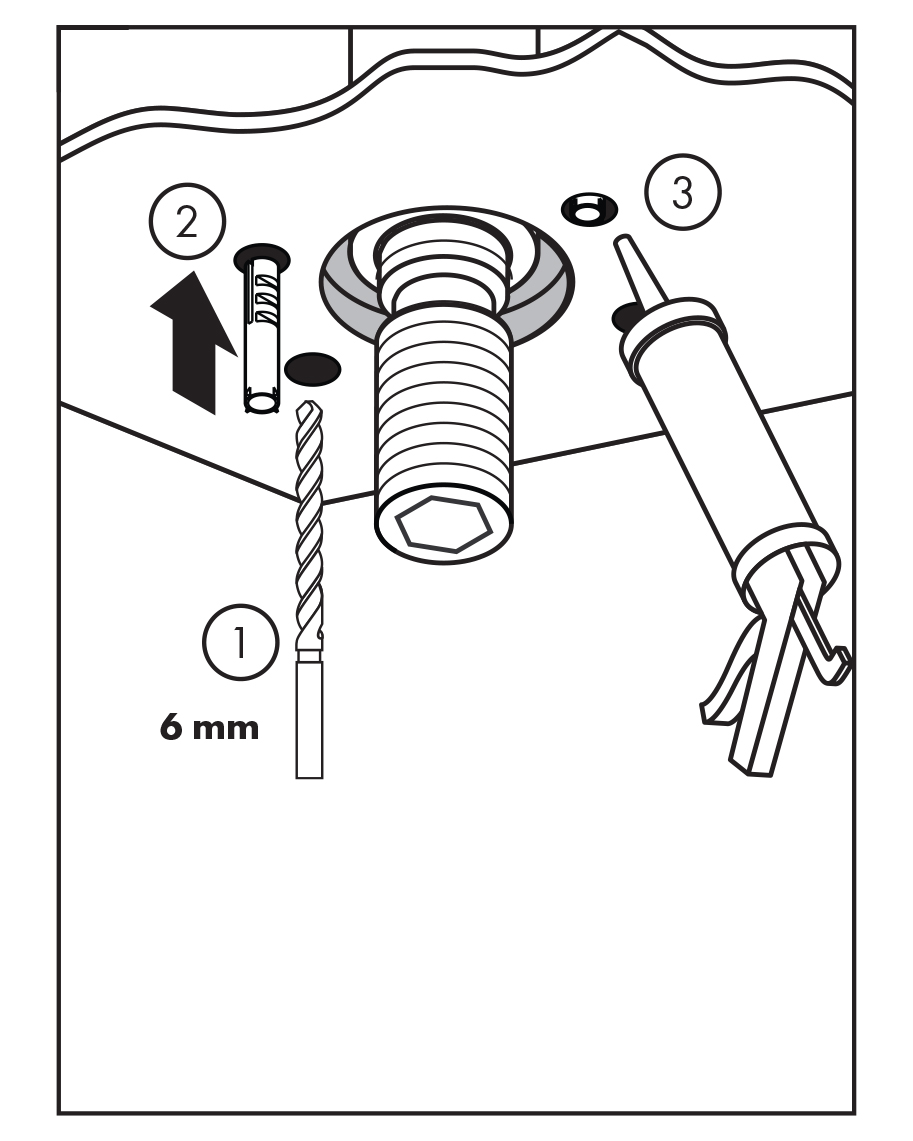

| | Drill the screw holes using a 6 mm bit. Install the anchors.
Seal the ceiling around the an-chors using a waterproof sealant.

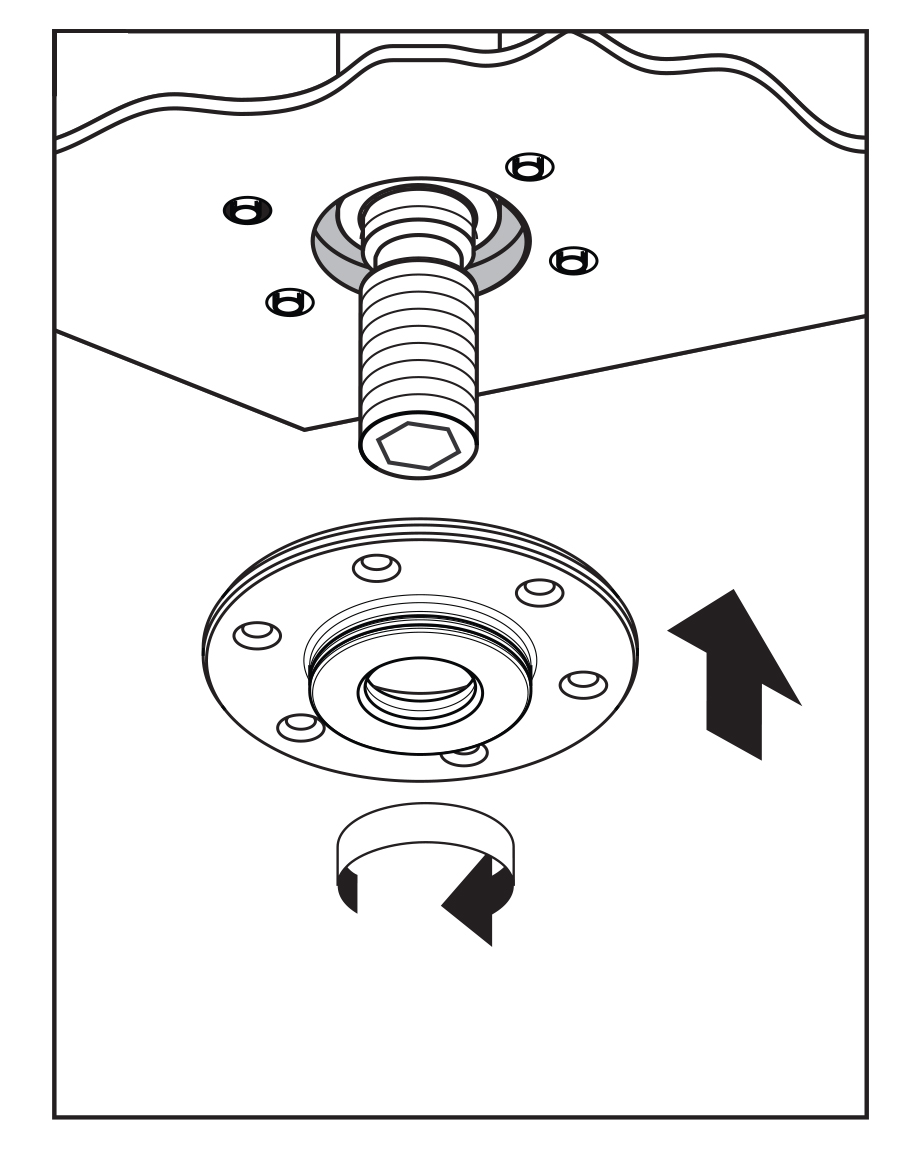

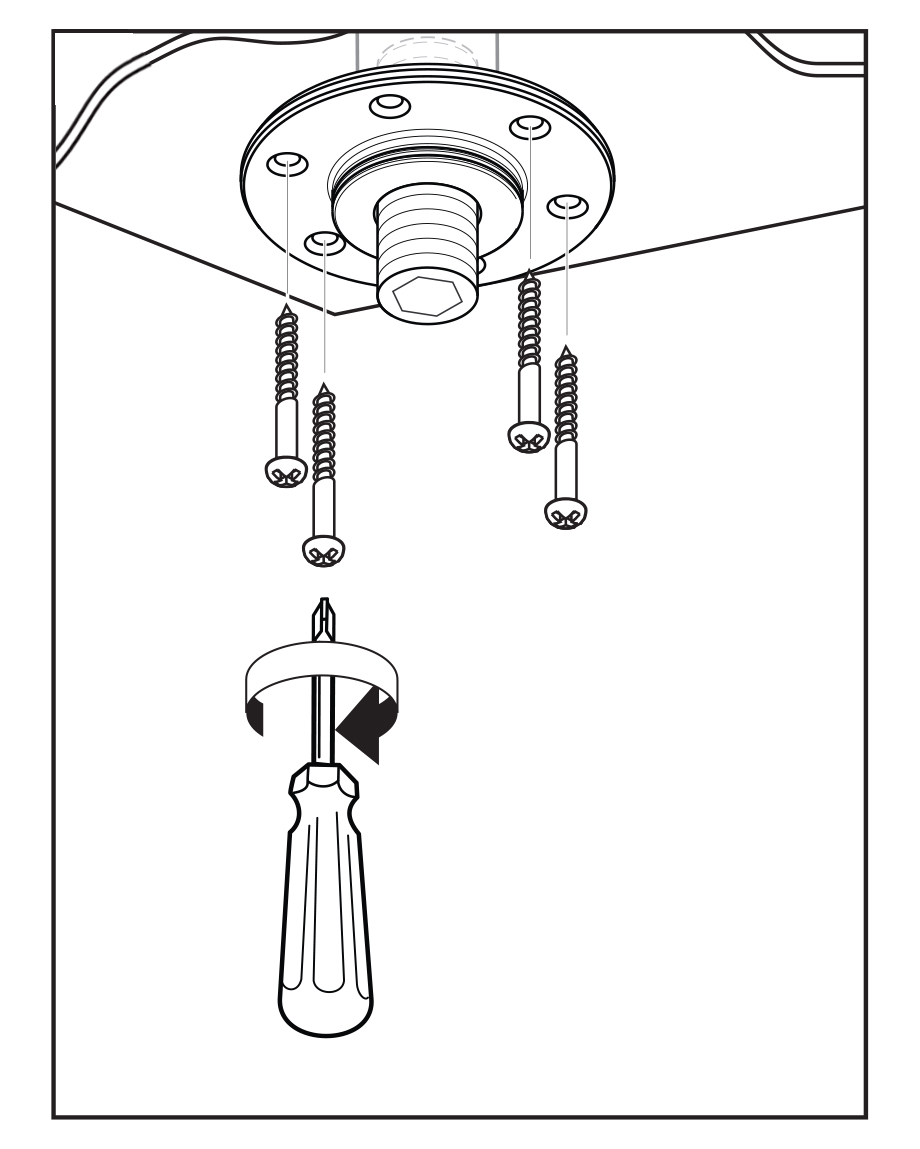

| | | | | Step 7: | | Step 8: |  | |  | Install the mounting ring.
| | Install the screws.

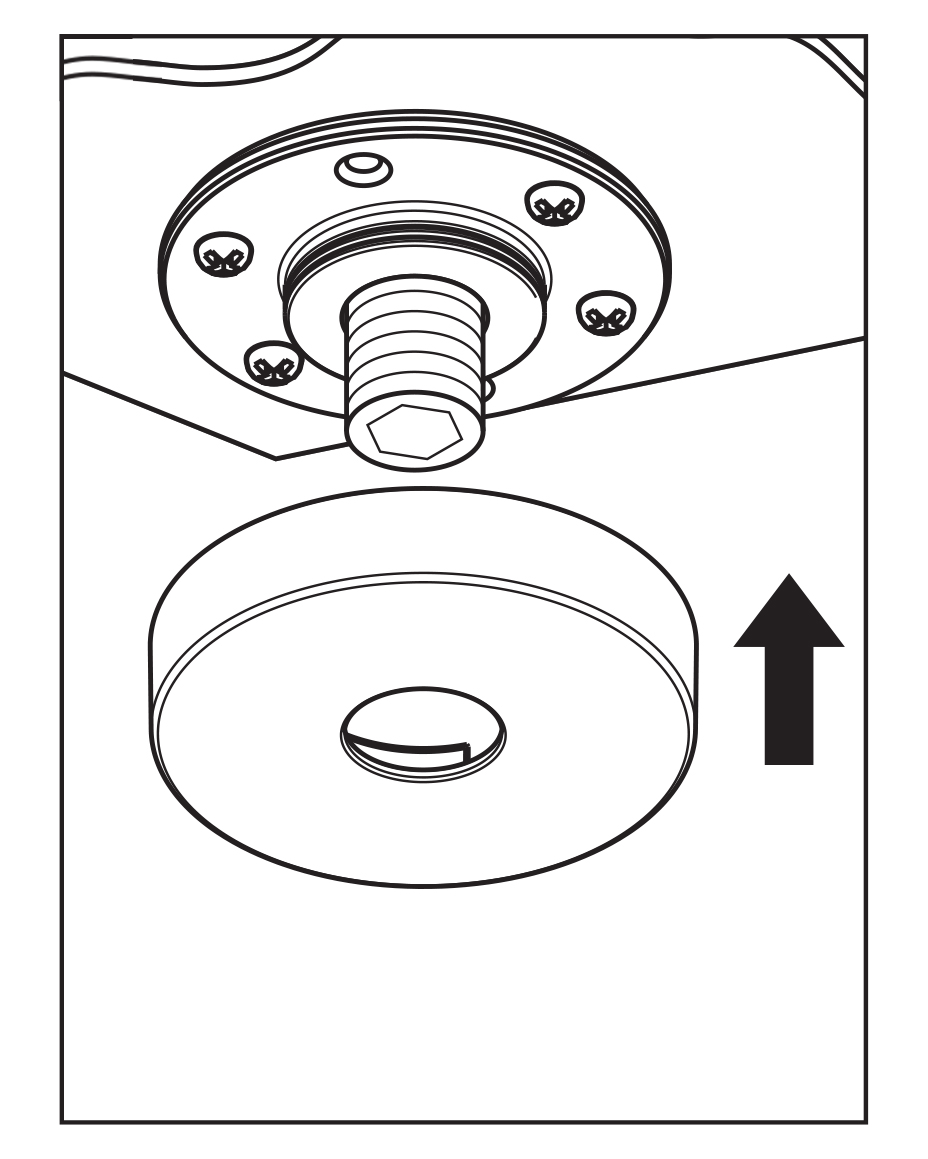

| | | | | Step 9: | | Step 10: |  | |  | Install the escutcheon.

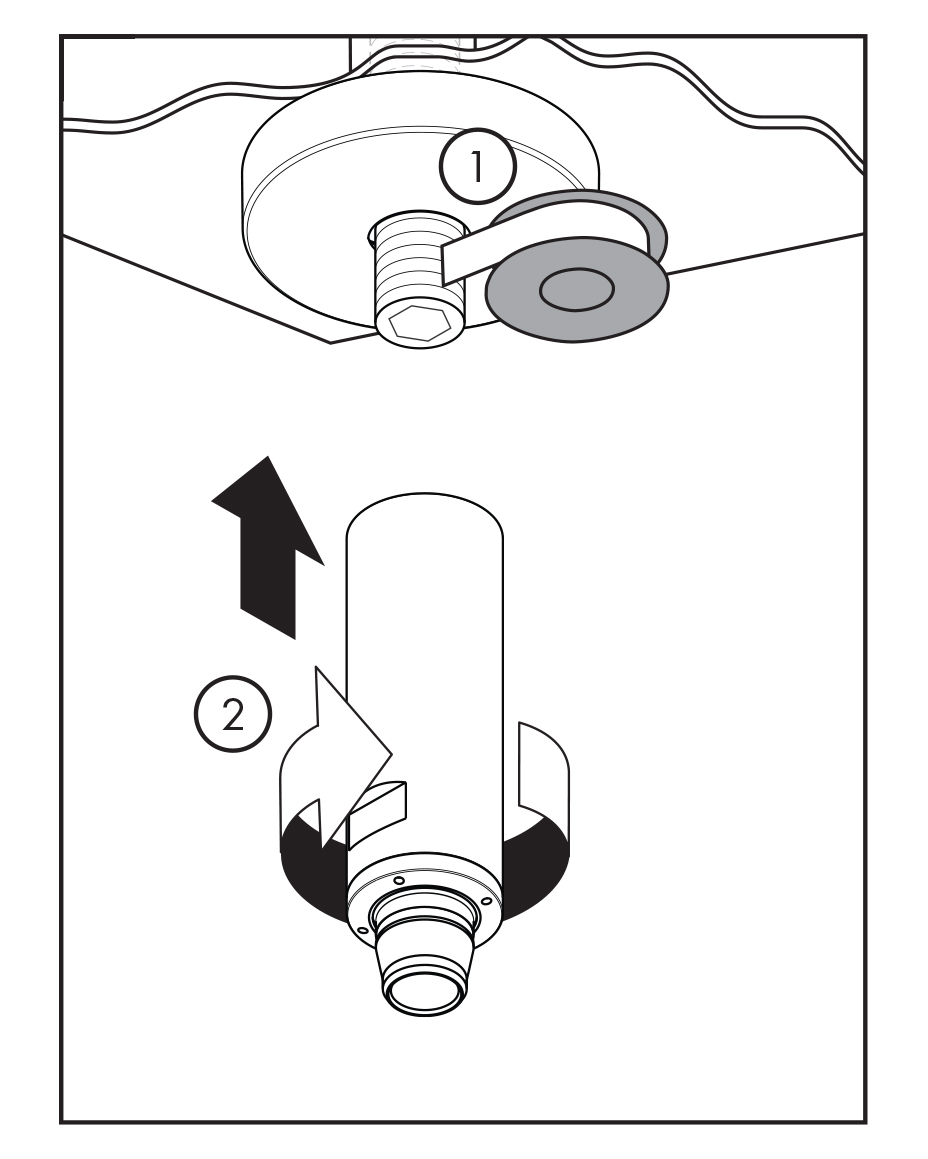

| | Wrap the threads on the nipple using plumber's tape.
Install the extension pipe.
|
| | |
Ceiling Mount Shower Head Installation Instructions
| | | | Step 1:
|
|
Step 2:
|
|
shower head
|
|
|
|
|
|
| | |
|
Step 1: Take Out the Old Shower Head
You can easily remove it by hand, but depending on how long the rain showerhead has been installed, you might need to use an adjustable wrench. Hence, if you find it difficult to remove, rotate the showerhead with an adjustable wrench in a counterclockwise direction to unscrew it.
Step 2: Keep the Shower Arm Clean and In Good Shape
After you have removed the head, check the shower arm threads for any debris and old Teflon tape. If you find any, remove it and clean them off thoroughly. It’s best to use a microfiber cloth when cleaning the thread because it removes Teflon tape perfectly and works great to pick up tiny grits.
Once you’re done cleaning, check if it is corroded or leaking. For damaged threads, it will be best you replace it entirely so you can have a comfortable shower experience any time.
Step 3: Time to Add New Teflon Tape
Since you have removed the old Teflon tape, you have to replace it with new ones. The reason is that this tape helps to protect the shower from leaking after installing the showerhead. Now apply the new Teflon tape about 3-5 turns on the thread and tear the end part. Use your hands to smooth it out to keep it leveled to the thread. Keep in mind that when applying the tape, you should go in a clockwise motion so that it doesn’t come off when you attach the head in the same direction.
Step 4: Connect the Showerhead
As said earlier in the tools needed, we’re using the rubber sealing washer that comes with the showerhead. This tool helps to make the showerhead stay watertight and secured on to the thread. Ensure you place it properly before installing it.
After that, reconnect the shower head and tighten it down with your hands. You can employ a chair or ladder to make things easier for you.
Step 5: Tighten the Showerhead
On To the Thread You will need to get the adjustable wrench handy to tighten down the shower very well. But make sure you wrap the threads with a terry cloth, so it doesn’t damage the finish when tightening the showerhead.
Once you have done that, now use the adjustable wrench to tighten down the showerhead. However, don’t over-tight or force it so that it’s easier to remove in the future.
|
|
|
|
|
|
|
|
|
|
