BathSelect Mugla 24" Brushed Nickel Color Changing Water Powered Led Ceiling Mount Shower Head

Turn on the fun in your shower just by turning on the water, the LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. All this with no batteries, everything is self-powered by a built-in dynamo that takes advantage of the water pressure to create the energy to light the bulbs. They do not require any electrical connection, as they are powered by the water flow. The rainfall shower is ceiling mount has the best materials have been used the showerhead is made of stainless steel and the valve comes with ceramic core material for a long-lasting lifetime. It comes complete with accessories and installation instructions.

Features:

  • Brand Name: BathSelect
  • Model Number: BBD007-1BN
  • Material: Stainless Steel
  • Finish: Brushed Nickel
  • Style: Contemporary Rain Showerhead
  • Showerhead Height (thickness): 0.33
  • Showerhead Width: 24" (600mm)
  • Showerhead Length: 24" (600mm)
  • LED Power Source: Water Flow
  • LED Color: Blue, Green, Red
  • Installation Type: Ceiling Mount

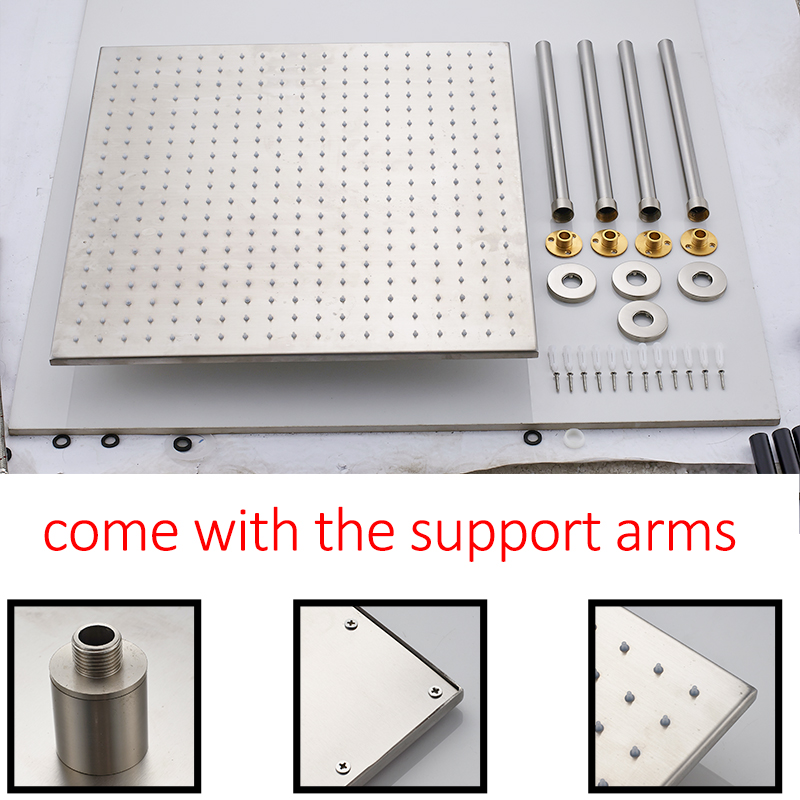

  • Shower Arm: 4 shower arm included
  • Flow Rate: 7-8L/Min

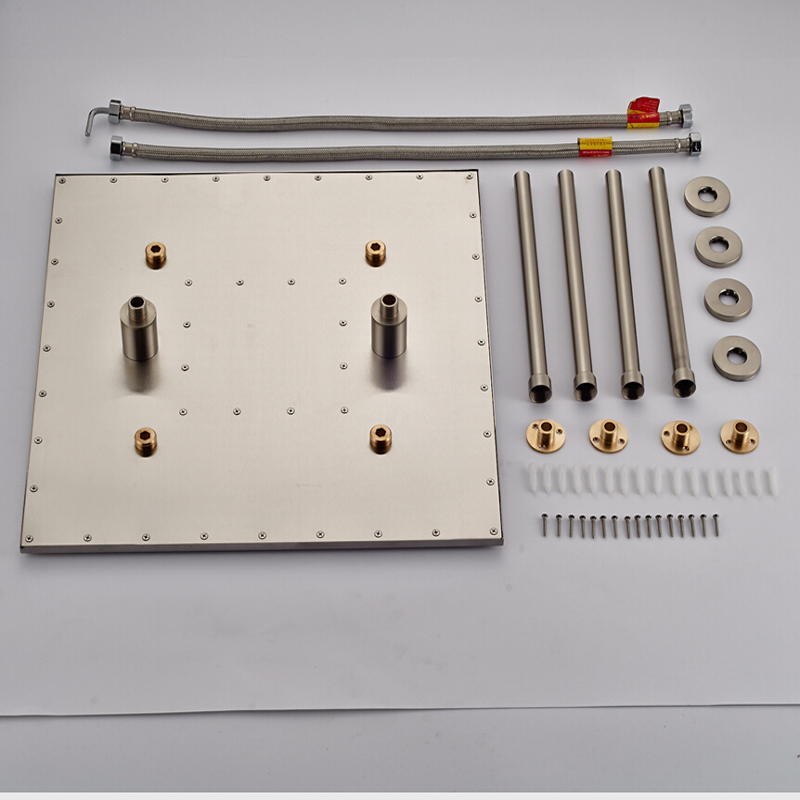

  • Comes with all installation parts

recessed shower Mugla 24" Brushed Nickel Color Changing Water Powered Led Ceiling Mount Shower Head


Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

  • Shower Head Installation Instructions

    shower

    Step 1: Step 2:
    According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.

    Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.


    Step 3: Step 4:
    Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.

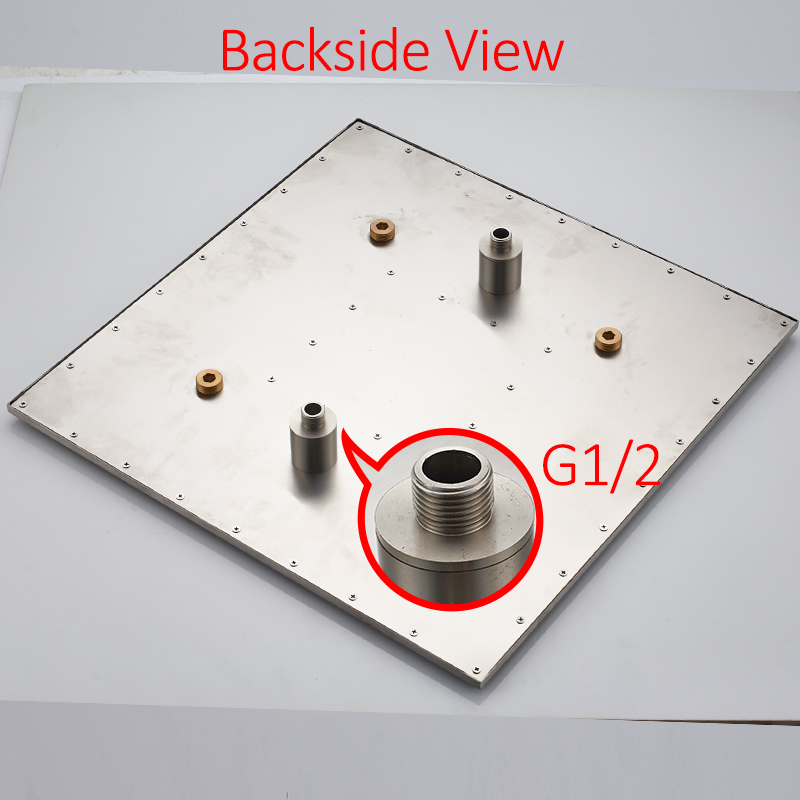

    2 water inlets so the water disperses equally throughout the showerhead.




    Step 5:




    Additional Information:

    Specification:

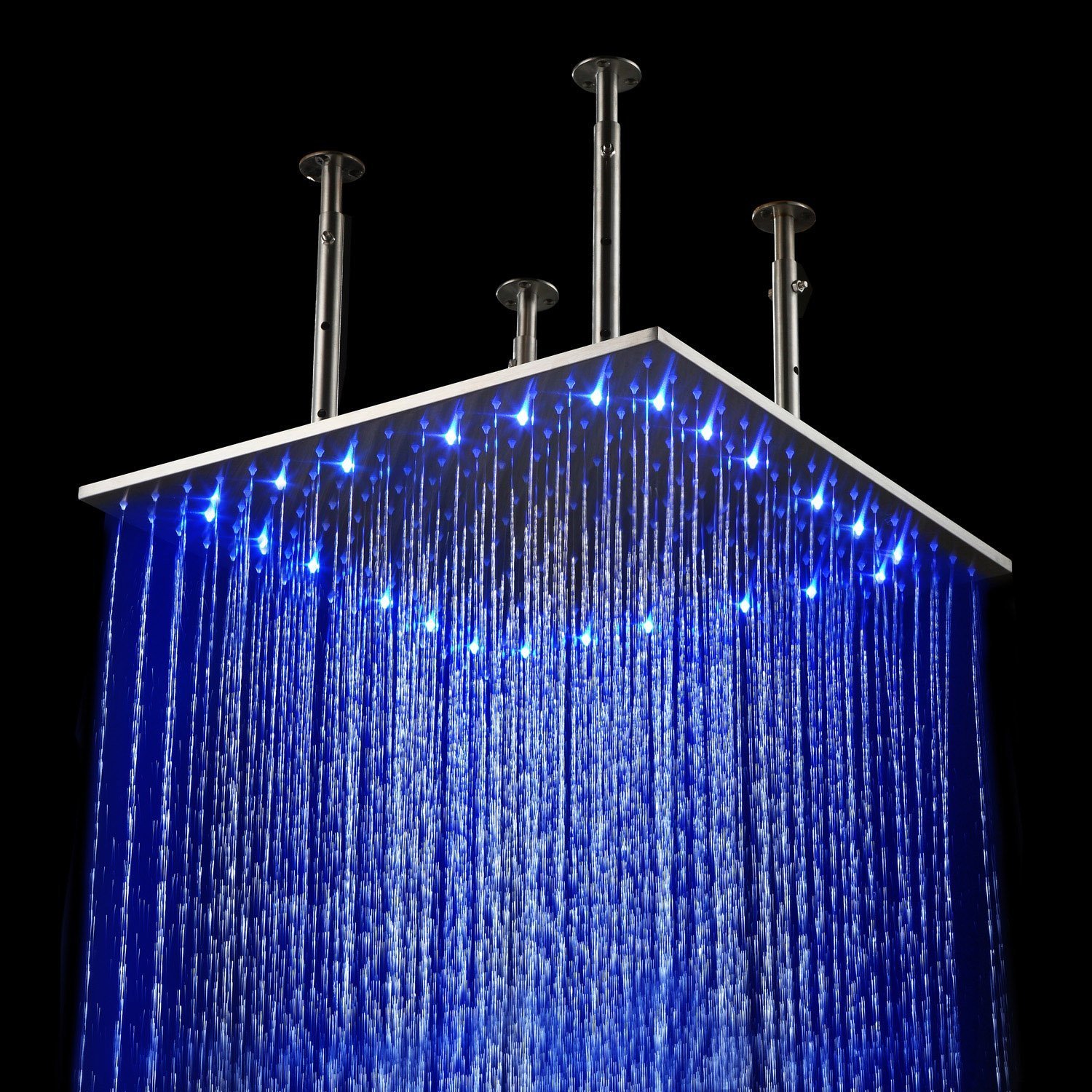

    - The LED lights are powered by water flow, and will be activated once the water is turned on.

    - Constructed from stainless steel for durability and reliability.

    - Finished in a high quality, corrosion resistant.

    - Shower head comes in size of 24" x 24" (600mm x 600mm).

    - Not suitable for low pressure. Minimum required water pressure is 0.1 MPa (1 bar).

    - Flow rate 2.5 GPM (9.5 LPM).

    - The LED light will change its color by detecting water temperature:

    - 0-30 C (32-86 F): Blue LED
    - 30-40 C (86-104 F): Green LED
    - 40-50 C (104-122 F): Red LED
    - 50-100 C (122-212 F): Flashing Red LED
